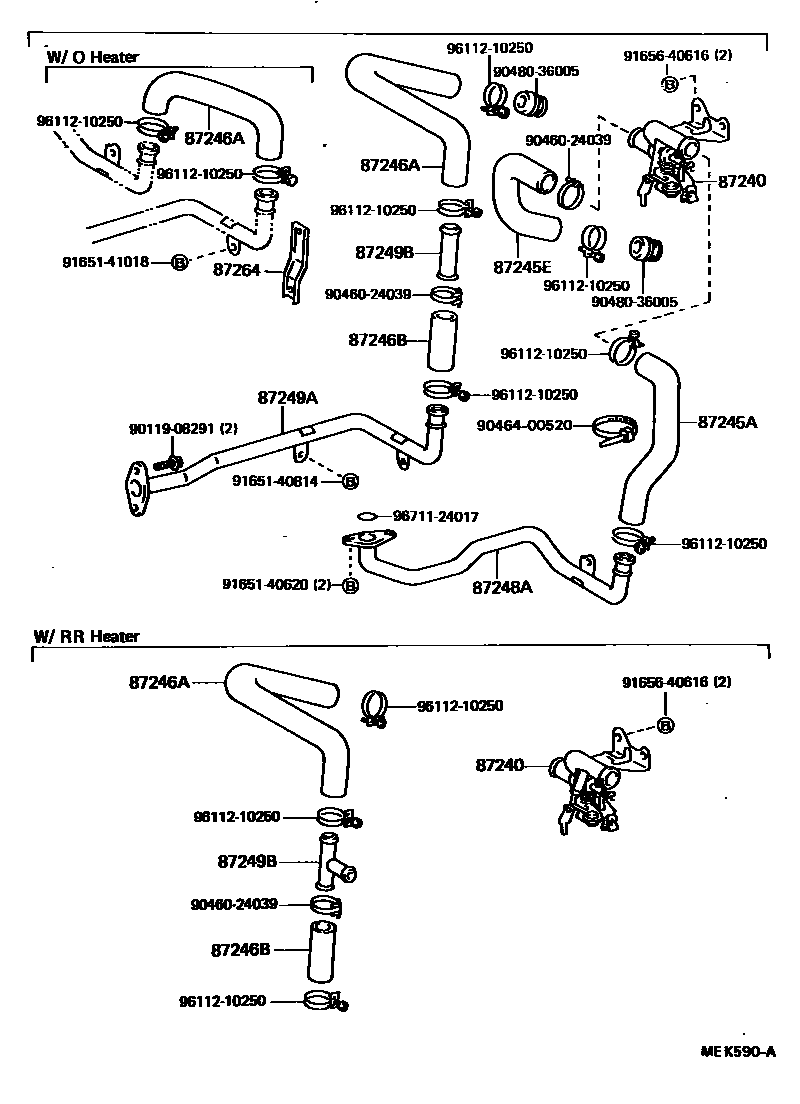

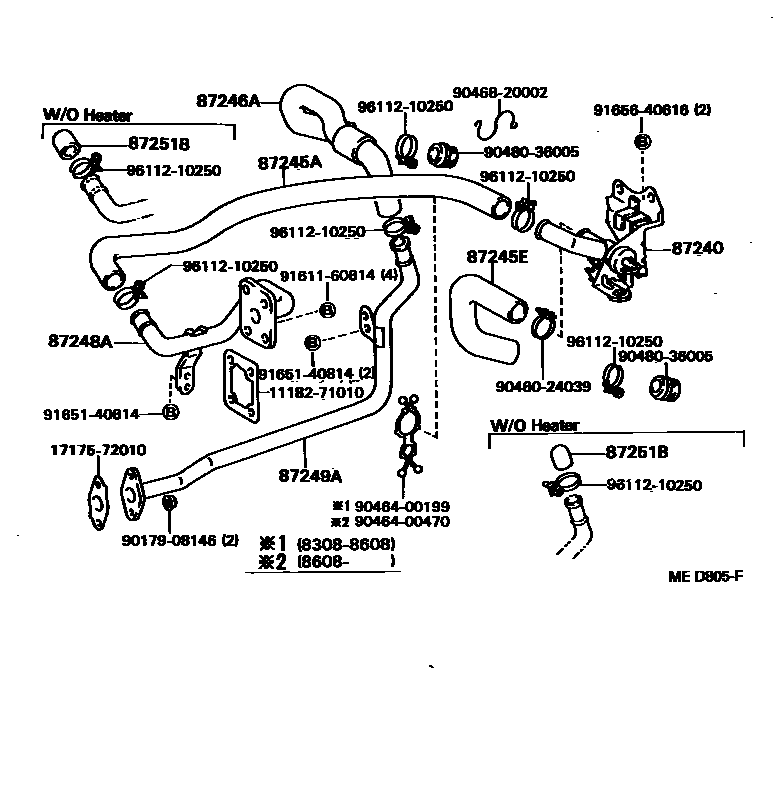

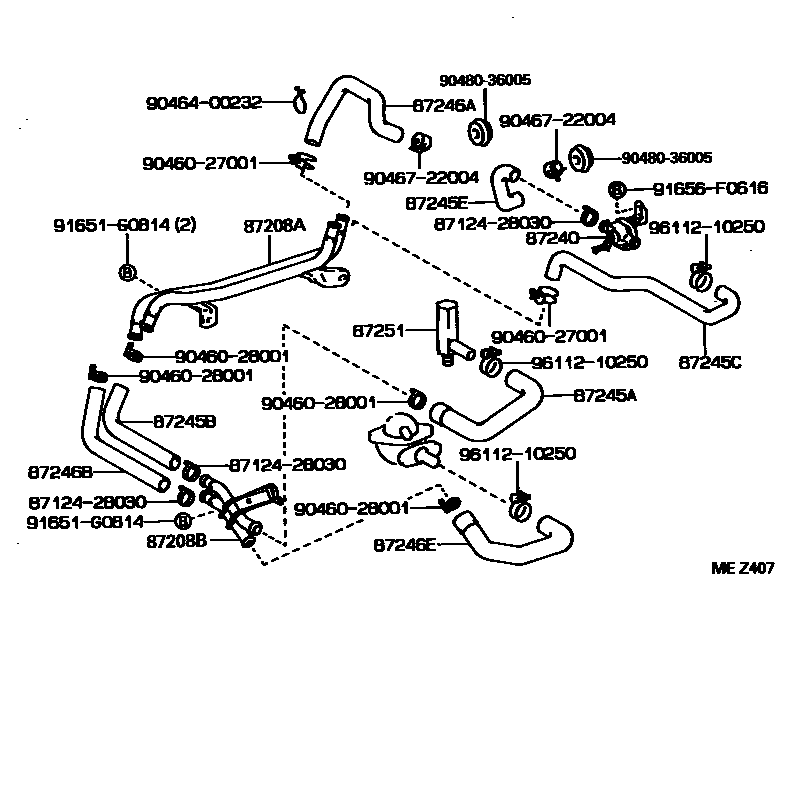

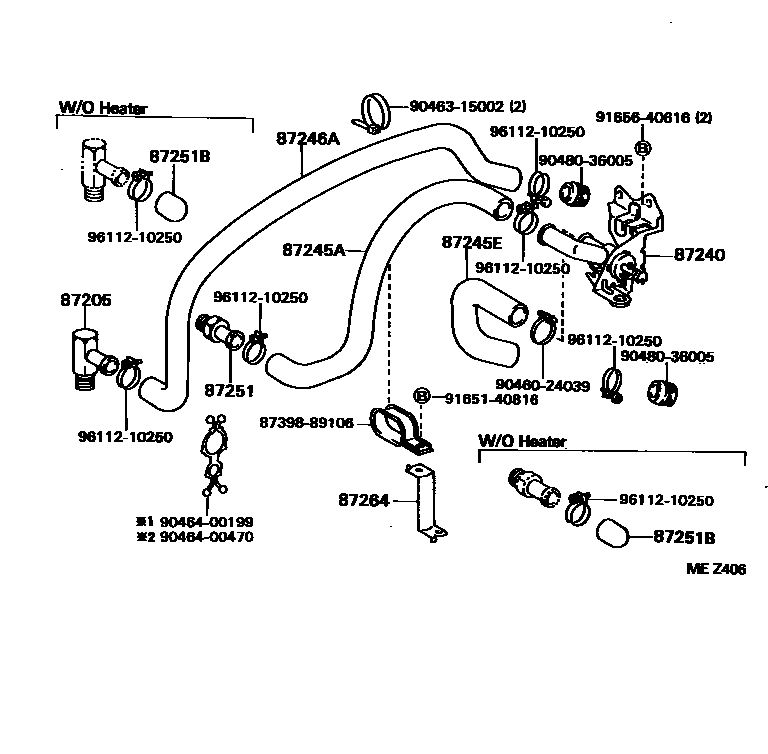

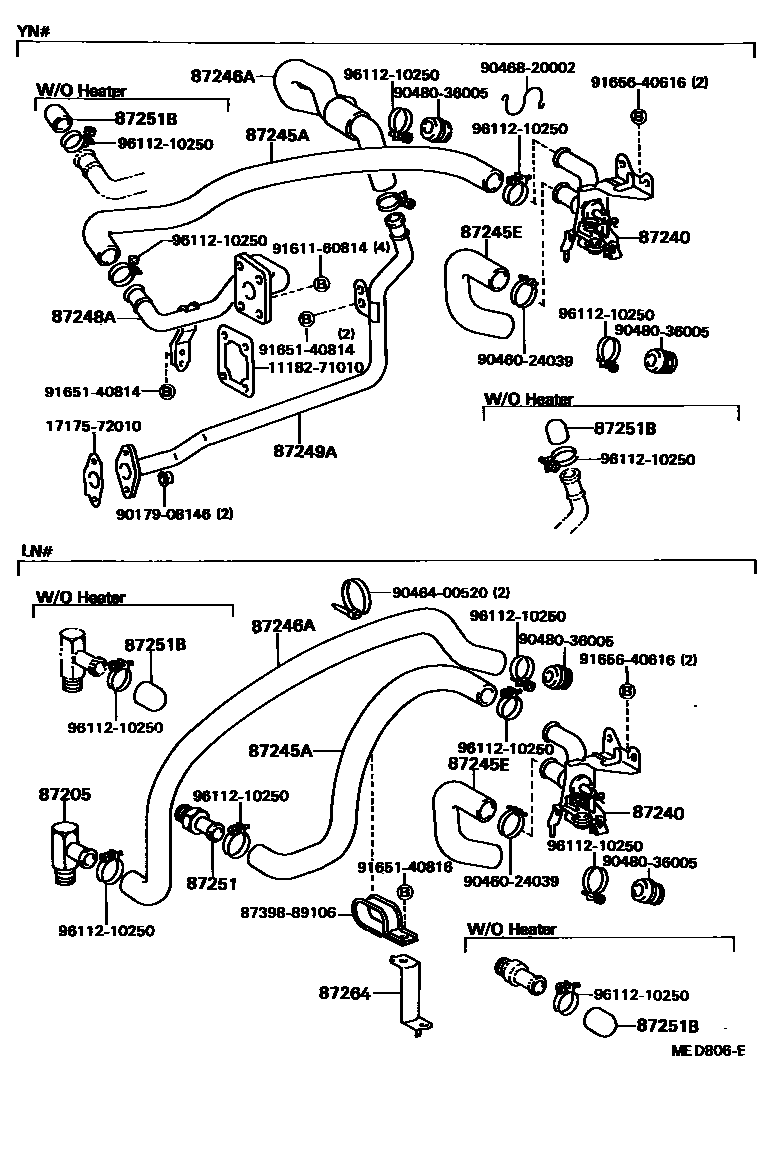

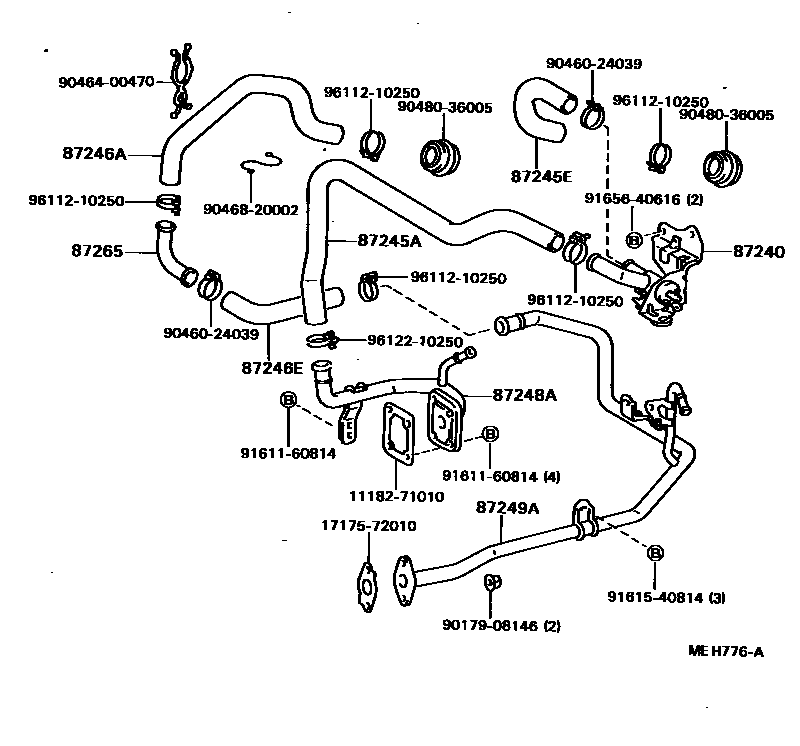

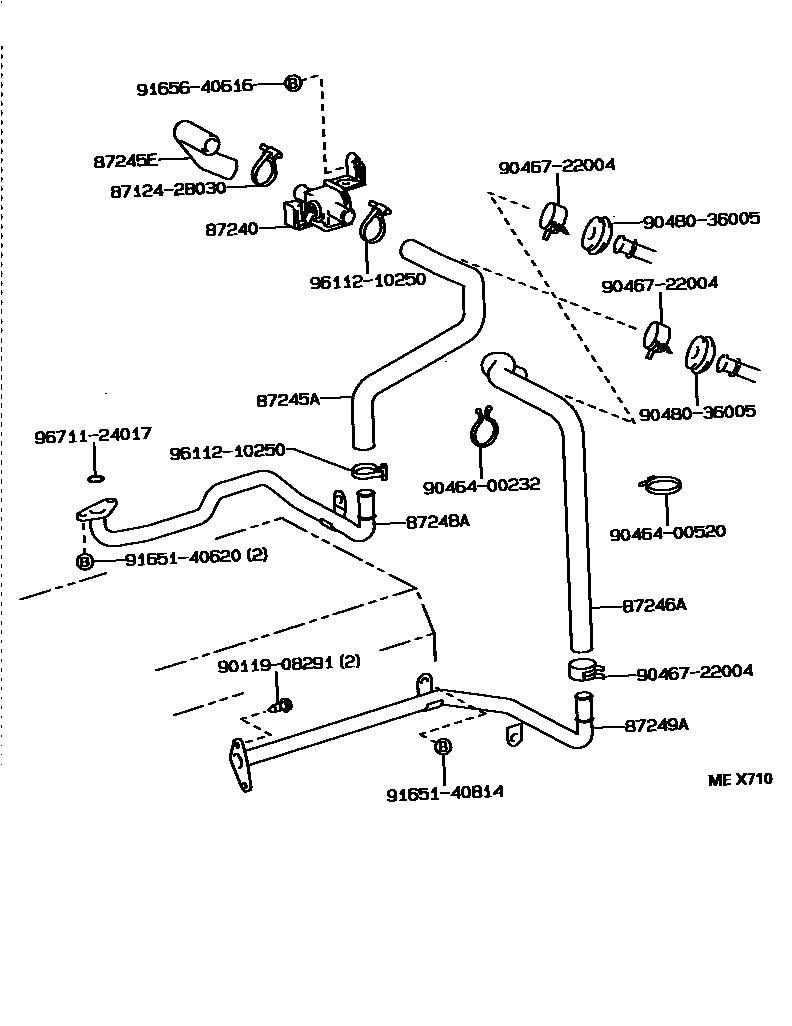

Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716
Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 8 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87205 | Front heater hose feedthrough connector or water inlet valve connector | 87251-30230 |
| 87208 | Heater water pipe sub-assembly | 87248-89125 |
| 87208A | Heater water pipe sub-assembly A | 87208-89143 |
| 87208B | Heater water pipe sub-assembly B | 87208-89144 |
| 87240 | Heater water valve assembly | 87240-35020 · 87240-89115 · 87240-89116 · 87240-89117 · 87240-89118 |
| 87245A | Heater water inlet hose A | 87245-89149 · 87245-89181 · 87245-89194 · 87245-89220 · 87245-89279 · 99552-31000 |
| 87245B | Heater water inlet hose B | 87245-89281 |
| 87245C | Heater water inlet hose C | 87245-89240 |
| 87245E | Heater water inlet hose E | 87245-89146 · 87245-89233 |
| 87246A | Heater outlet hose A | 87245-89153 · 87245-89161 · 87245-89162 · 87245-89163 · 87245-89195 · 87245-89210 · 87245-89211 · 87245-89215 · 87245-89221 · 87245-89241 |
| 87246B | Heater outlet hose B | 87245-89170 · 87245-89282 |
| 87246E | Heater outlet hose E | 87245-89196 · 87245-89280 |
| 87248A | Heater water inlet pipe A | 87208-14280 · 87208-22130 · 87208-35160 · 87208-89110 · 87208-89128 |
| 87249A | Heater outlet pipe A | 87208-35130 · 87208-89112 · 87208-89121 · 87208-89126 · 87208-89129 |
| 87249B | Heater outlet pipe B | 87248-14090 · 87265-89102 |
| 87251 | Water hose penetration joint | 87251-30200 · 87251-89113 |
| 87251B | heater water plug | 90339-16007 |
| 87255A | Rear heater water inlet hose A (from engine) | 87245-89216 |
| 87255E | Rear heater water inlet hose E (to heating device) | 87245-89164 |
| 87256A | Rear heater water outlet hose A (self-heating device) | 87245-89165 |
| 87256E | Rear heater water outlet hose E (to engine) | 87245-89186 |
| 87264 | Heater water hose bracket | 87263-14140 · 87263-89108 |
| 87265 | Heater water hose connector | 87265-89104 |
