Toyota HILUX 扬声器 — Figure 8602

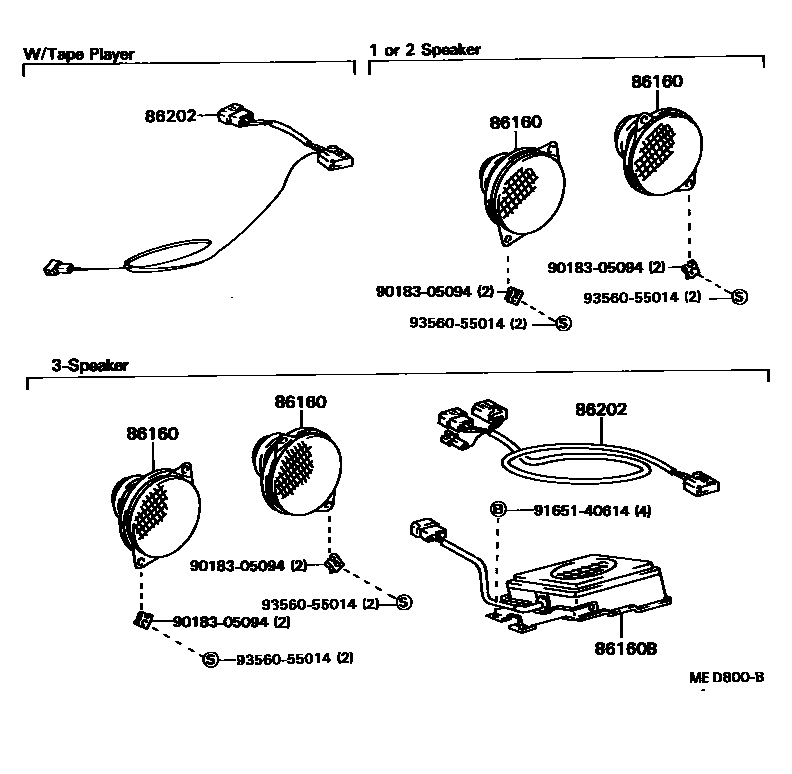

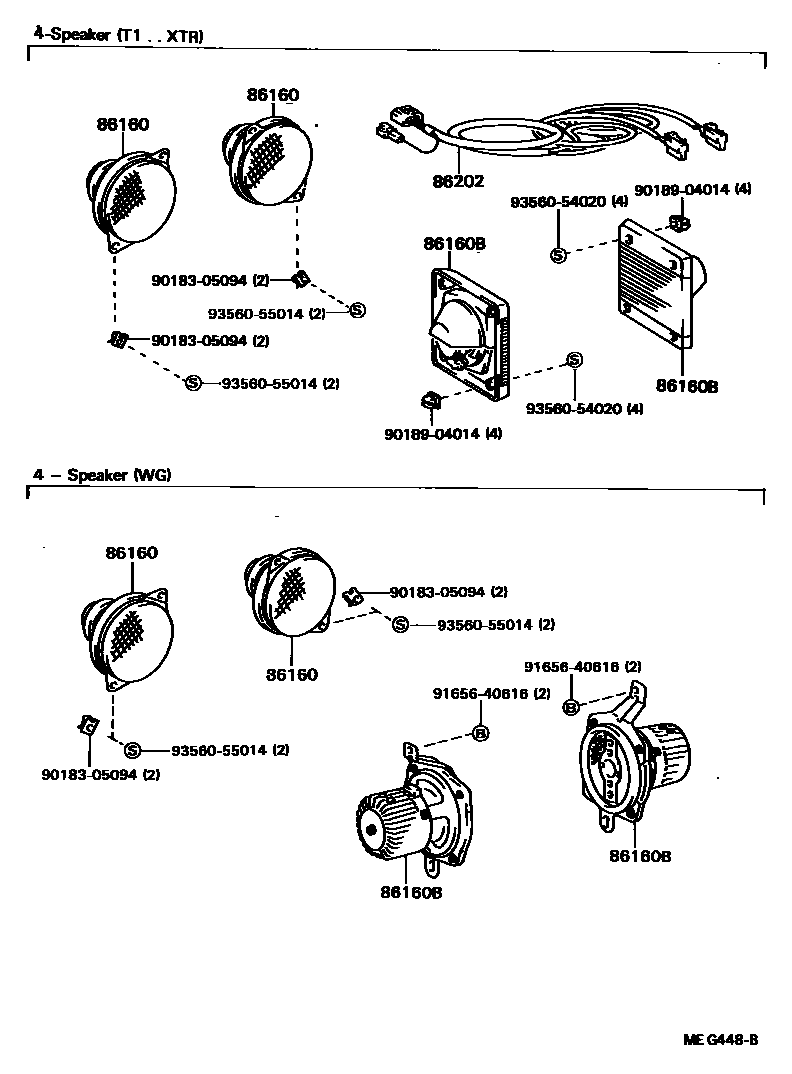

Toyota HILUX EPC diagram 8602, 扬声器, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-20230 |
| 86160B | Rear speaker assembly | 86150-89101 · 86160-89110 |
| 86202 | No. 1 speaker harness | 86202-89108 · 86202-89109 · 86205-89101 · 86205-89102 · 86205-89105 |
