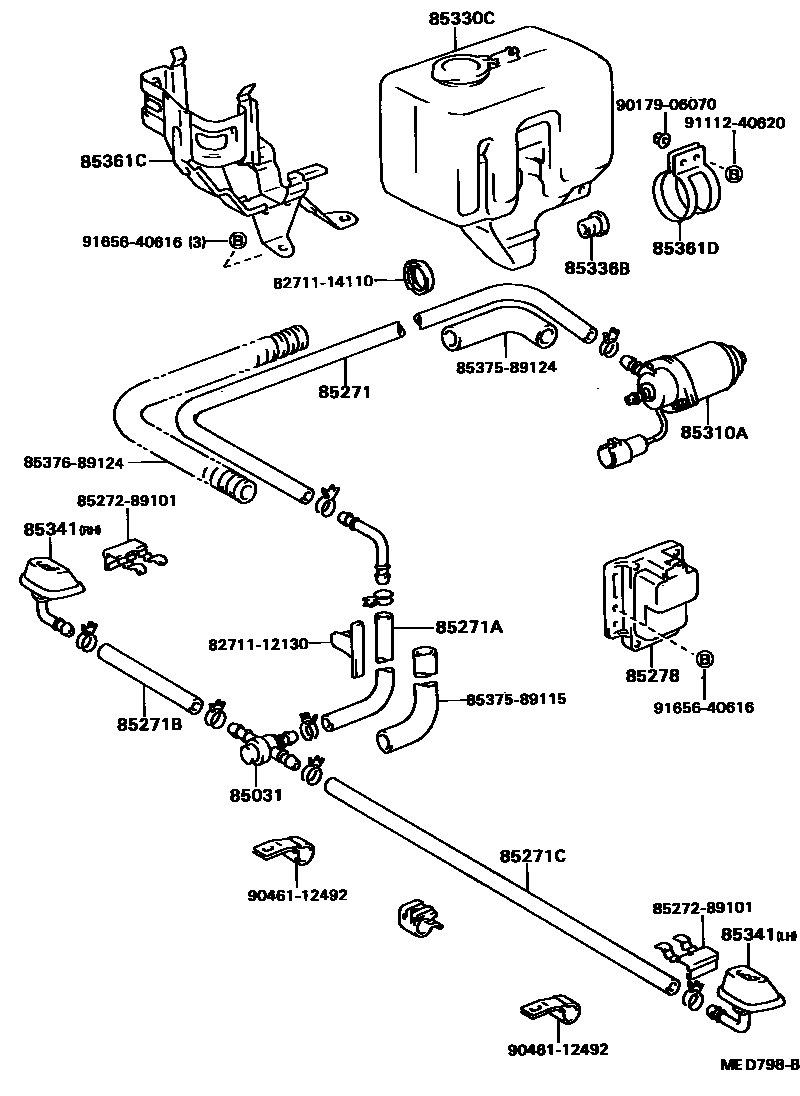

Toyota HILUX 前大灯清洗器 — Figure 8505
Toyota HILUX EPC diagram 8505, 前大灯清洗器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-12010 |
| 85271 | No. 1 headlight washer hose | 90445-14023 · 90445-14070 |
| 85271A | No. 2 headlight washer hose | 90445-14022 |
| 85271B | No. 3 headlight washer hose | 85343-95701 |
| 85271C | No. 4 headlight washer hose | 90445-14037 |
| 85278 | Headlight washer control relay assembly | 85276-22020 |
| 85310A | Headlight washer motor and pump assembly | 85310-10090 |
| 85330C | Headlight washer cleaning fluid tank assembly | 85330-22120 |
| 85336B | Headlight washer seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85035-89106 · 85035-89107 · 85035-89112 · 85035-89113 |
| 85361C | Cleaner stand | 85361-89104 |
| 85361D | No. 2 headlight washer bracket | 85361-14100 |
