Toyota HILUX 车内灯 — Figure 8121

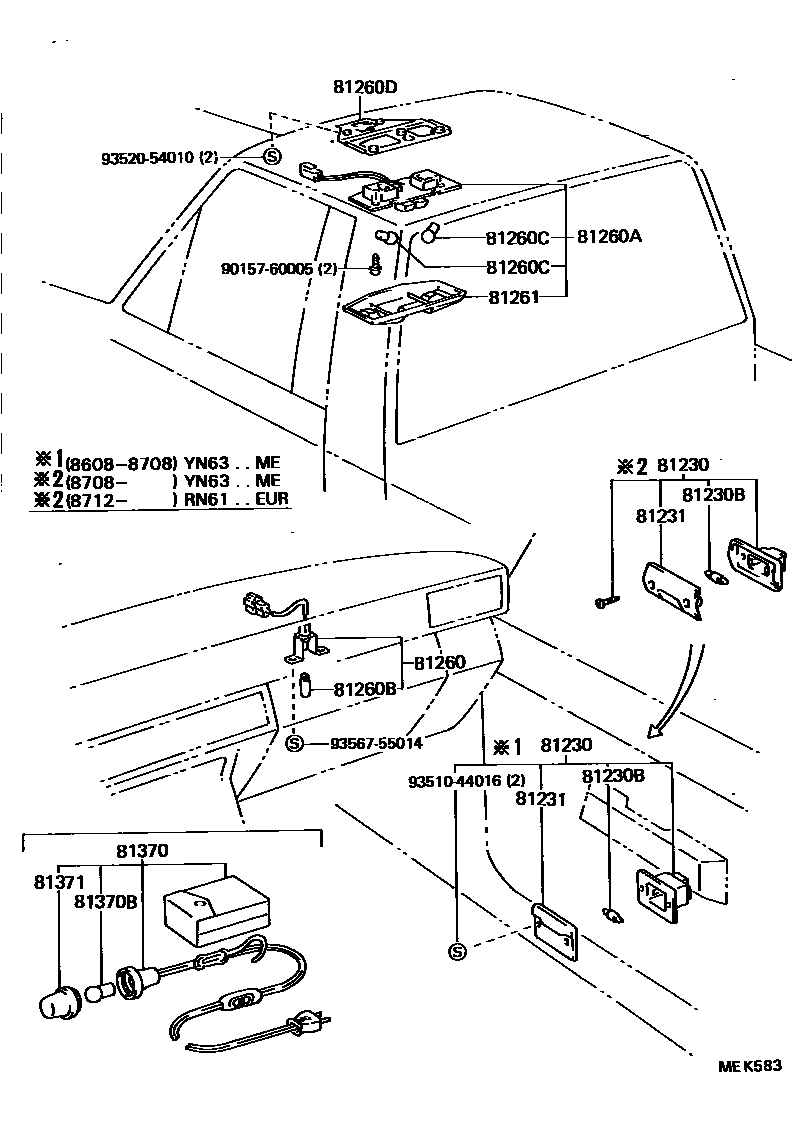

Toyota HILUX EPC diagram 8121, 车内灯, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81230 | Door control light assembly | 81230-89101 · 81230-89102 |
| 81230B | Bulb (for gated lights) | 90981-14001 |
| 81231 | door control lamp shade | 81231-89101 · 81231-89102 |
| 81240B | Interior light bulb No. 1 | 99132-12100 |
| 81241 | Interior light cover No. 1 | 81241-20060 |
| 81260 | Glove box light assembly | 81260-89101 |
| 81260B | Light bulb (for glove box) | 90981-11018 |
| 81260C | Light bulb (for reading lamp) | 90981-12005 |
| 81260D | reading light holder | 55865-89101 |
| 81370 | Check light assembly | 81370-89101 |
| 81370B | Check light bulb | 99132-11100 |
| 81371 | inspection lamp shade | 81371-89101 |
