Toyota HILUX 后雾灯 — Figure 8116

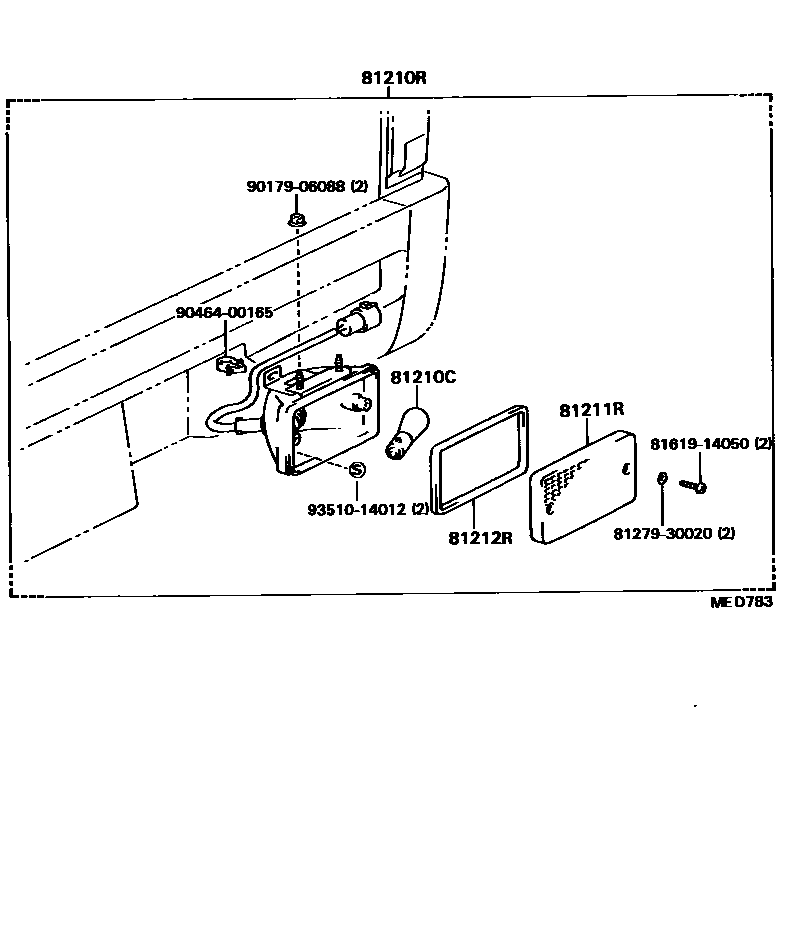

Toyota HILUX EPC diagram 8116, 后雾灯, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81210C | Rear fog light bulb | 99132-11210 |
| 81210R | Rear fog light assembly | 81210-39115 |
| 81211R | Rear fog light cover | 81211-95700 |
| 81212R | No. 1 rear fog light gasket | 81212-95700 |
