Toyota HILUX Headlamp — Figure 8101

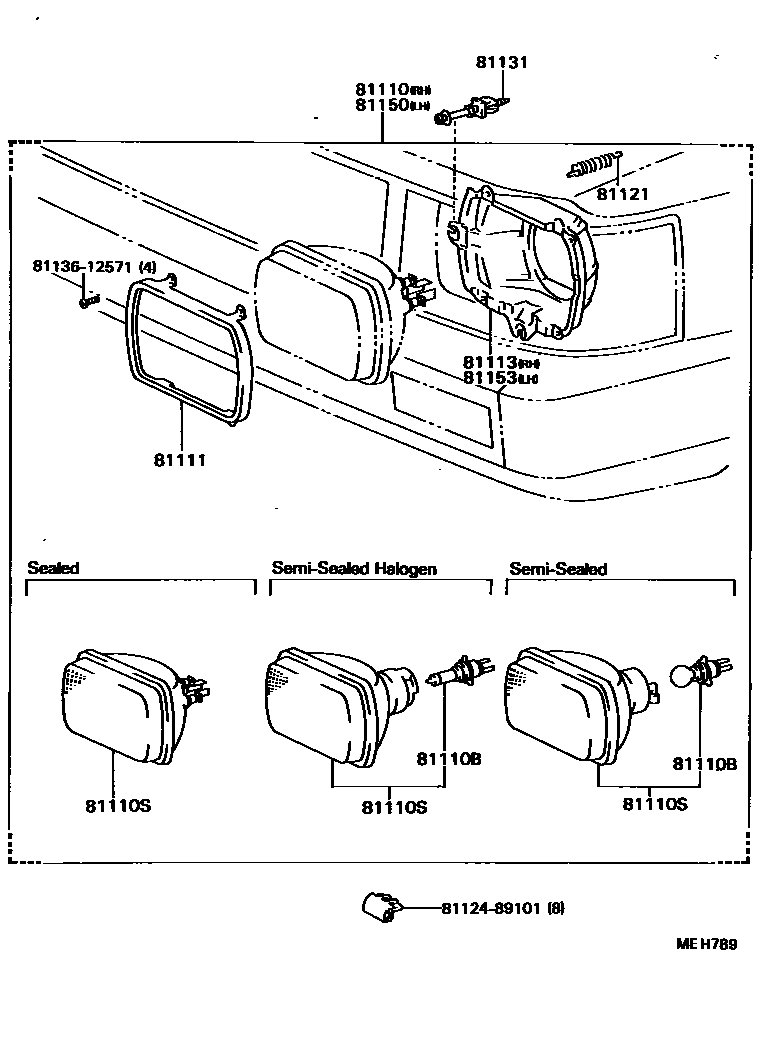

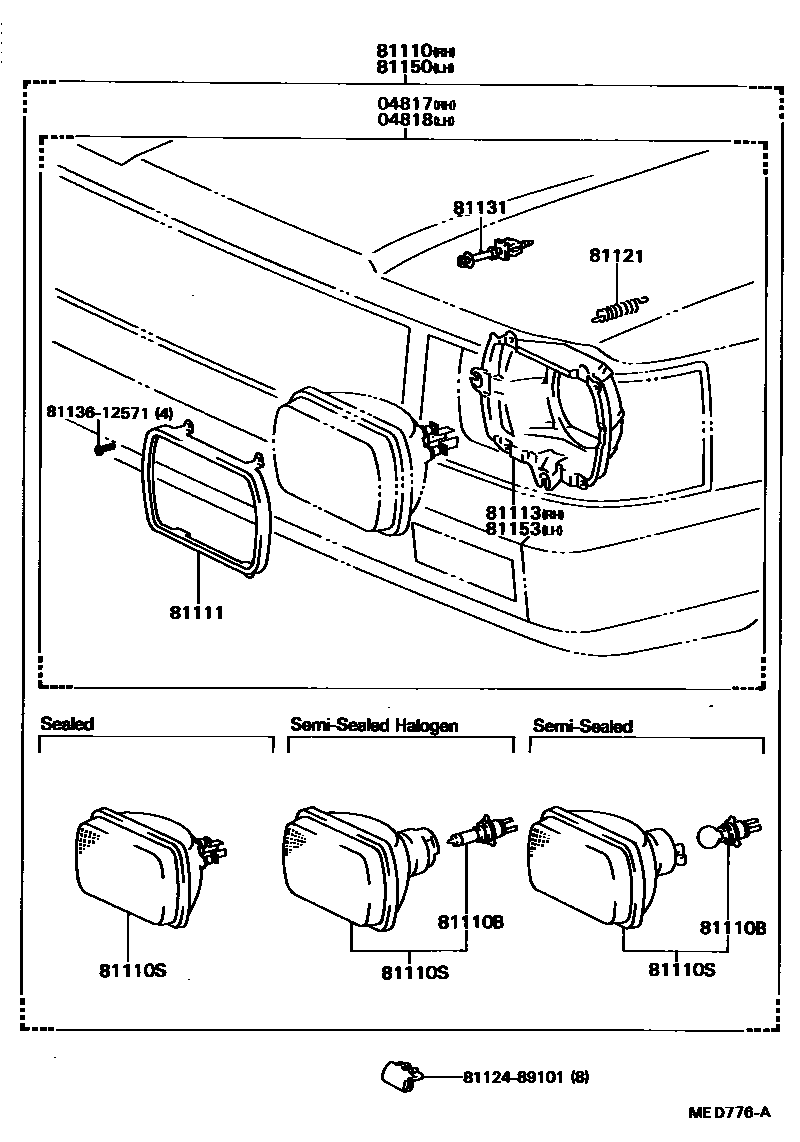

Toyota HILUX EPC diagram 8101, Headlamp, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04817 | Right headlight assembly (without closed headlight) | 04817-35020 |
| 04818 | Left headlight assembly (without closed headlight) | 04818-35020 |
| 81110 | Right headlight assembly | 81110-80366 · 81110-80367 · 81110-80368 · 81110-80369 · 81110-80370 · 81110-80371 · 81110-80372 · 81110-80374 · 81110-80375 · 81110-89149 · 81110-89150 · 81110-89152 · 81110-89153 · 81110-89154 · 81110-89155 · 81110-89158 · 81110-89159 · 81110-89160 |
| 81110B | Bulb (for headlight No. 1) | 90981-13013 · 90981-13015 · 90981-13016 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04001 · 90981-04004 · 90981-04005 · 90981-04006 · 90981-04008 · 90981-04009 · 90981-04011 · 90981-04015 · 90981-04020 |
| 81111 | Closed headlight retaining ring | 81111-16020 |
| 81113 | Right No. 1 closed lamp seat | 81113-89136 · 81113-89149 |
| 81121 | headlight spring | 81121-14670 |
| 81131 | Headlight adjustment screw | 81131-89103 |
| 81150 | Left headlight assembly | 81150-80360 · 81150-80361 · 81150-80362 · 81150-80363 · 81150-80364 · 81150-80365 · 81150-80366 · 81150-80368 · 81150-80369 · 81150-89149 · 81150-89150 · 81150-89152 · 81150-89153 · 81150-89154 · 81150-89155 · 81150-89158 · 81150-89159 · 81150-89160 |
| 81153 | No. 1 closed lamp seat on the left | 81153-89136 · 81153-89149 |
