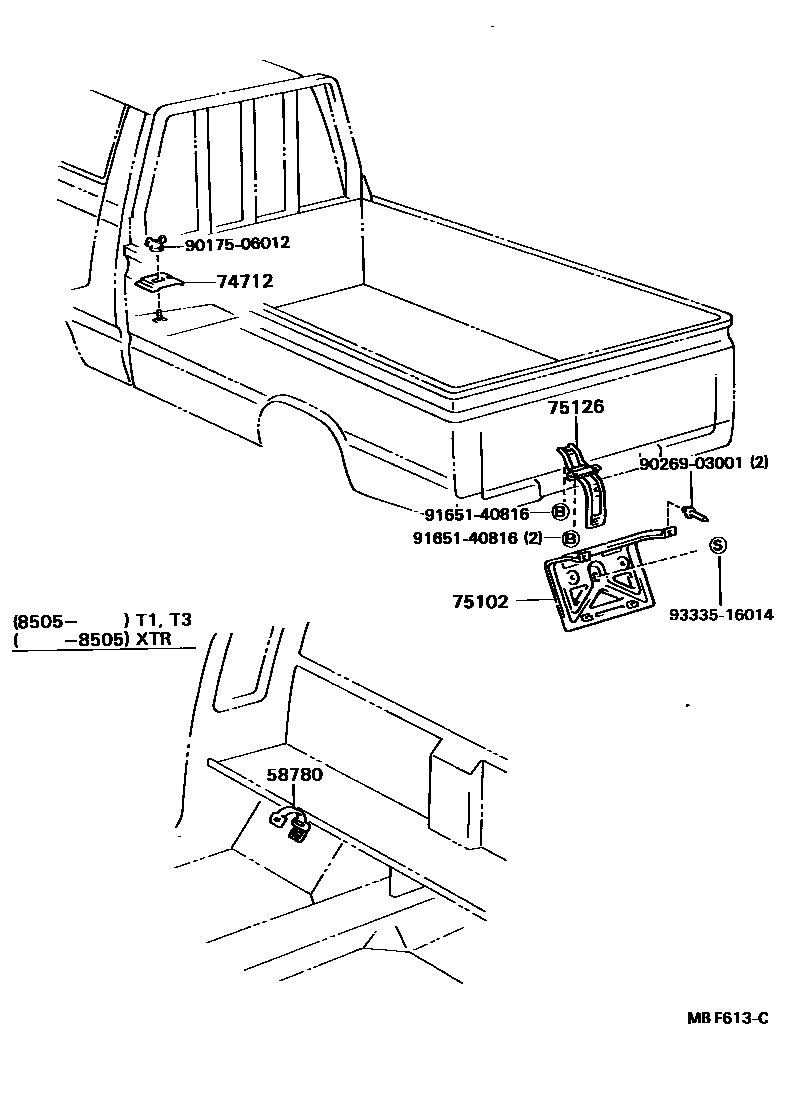

Toyota HILUX 工具箱和牌照支架 — Figure 7554
Toyota HILUX EPC diagram 7554, 工具箱和牌照支架, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58780 | Tool box strap assembly | 58780-89101 |
| 74712 | Jack fixed frame hanger | 74714-89102 |
| 75102 | Rear license plate bracket sub-assembly | 75102-89116 |
| 75126 | Rear license plate bracket lower stay | 66407-89101 |
