Toyota HILUX 后门板和后门玻璃 — Figure 6755

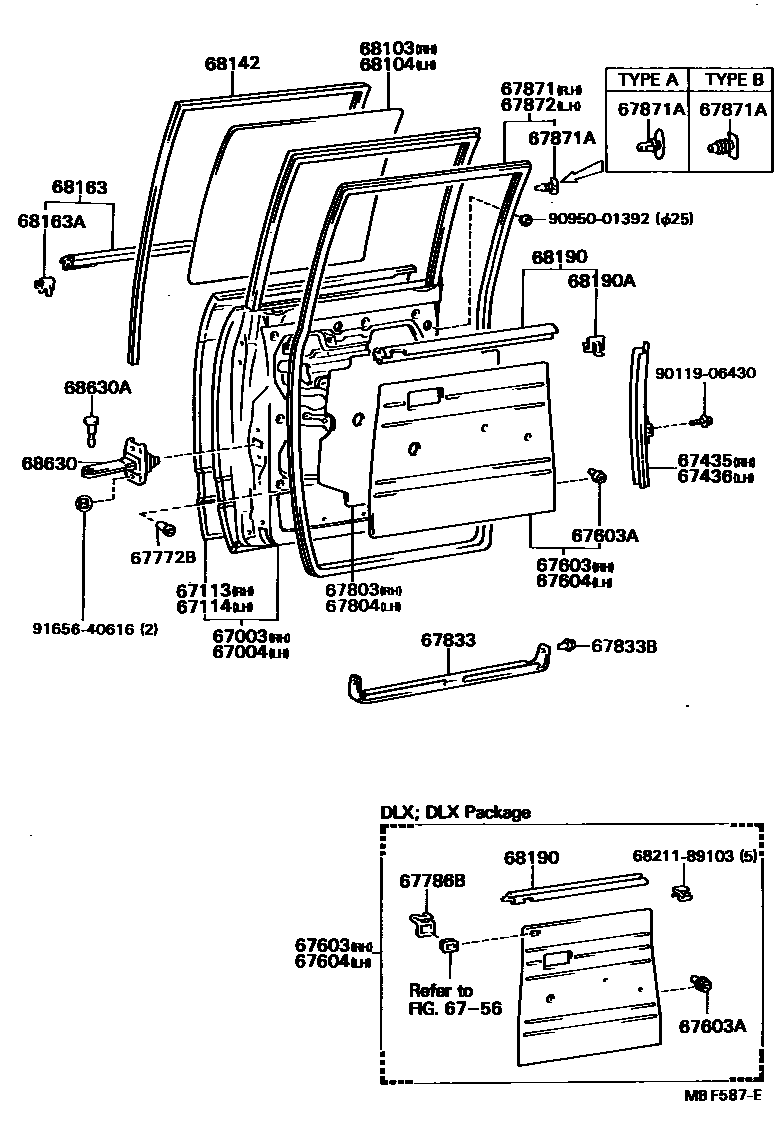

Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 1 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-89102 · 67003-89106 |
| 67004 | Left rear door panel sub-assembly | 67004-89102 · 67004-89106 |
| 67113 | Right rear door outer panel | 67113-89102 · 67113-89103 |
| 67114 | Left rear door outer panel | 67114-89102 · 67114-89103 |
| 67435 | Right rear door window lower frame | 67407-89102 |
| 67436 | Left rear door window lower frame | 67408-89102 |
| 67603A | Fixings (for rear door trim) | 67771-12010 |
| 67772B | Rear door trim panel fixing cover | 67772-89101 |
| 67786B | Door lock button collar fastener (for rear doors) | 67786-10010 |
| 67803 | Right rear door access hole cover sub-assembly | 67841-89101 |
| 67804 | Left rear door access hole cover sub-assembly | 67841-89101 |
| 67833 | Rear door access hole cover | 67842-89102 |
| 67871 | Right rear door sealing strip | 67871-89102 |
| 67871A | Fixings (for rear door sealing strip) | 67867-89103 · 67868-30040 · 67868-89101 |
| 67872 | Left rear door sealing strip | 67872-89102 |
| 68103 | Right rear door glass sub-assembly | 68113-89103 · 68113-89104 |
| 68104 | Left rear door glass sub-assembly | 68113-89103 · 68113-89104 |
| 68142 | Rear door glass lift chute | 68142-89102 |
| 68163 | Rear door glass outer seal strip | 68180-89102 |
| 68163A | Catch (for rear door glass outer sealing strip) | 68211-89105 |
| 68190 | Rear door glass inner sealing strip assembly | 68173-89106 · 68173-89107 · 68174-89103 · 68174-89104 · 68190-89102 · 68240-89102 |
| 68190A | Catch (for rear door glass inner sealing strip assembly) | 68211-10030 |
| 68630 | Rear door opening limiter assembly | 68630-89102 |
| 68630A | Pin (for rear door opening limiter) | 68617-12010 · 68617-22010 · 68617-90A00 |
