Toyota HILUX 后车身悬置 — Figure 6558

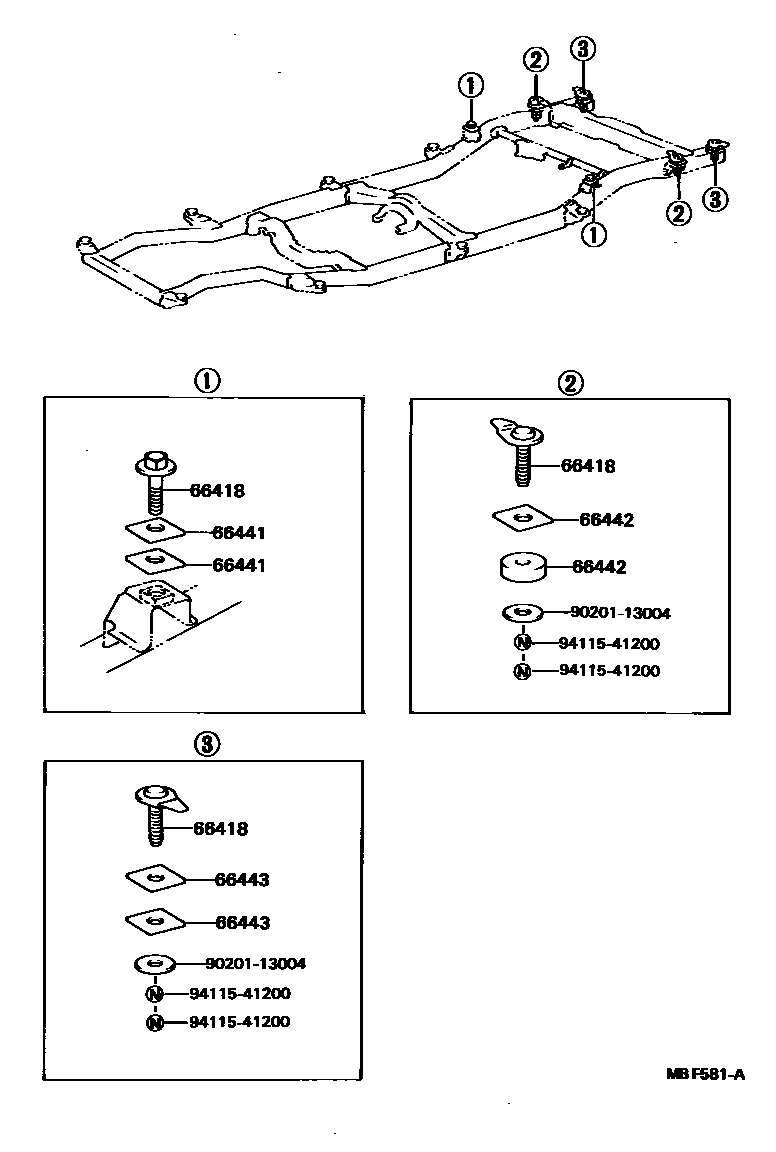

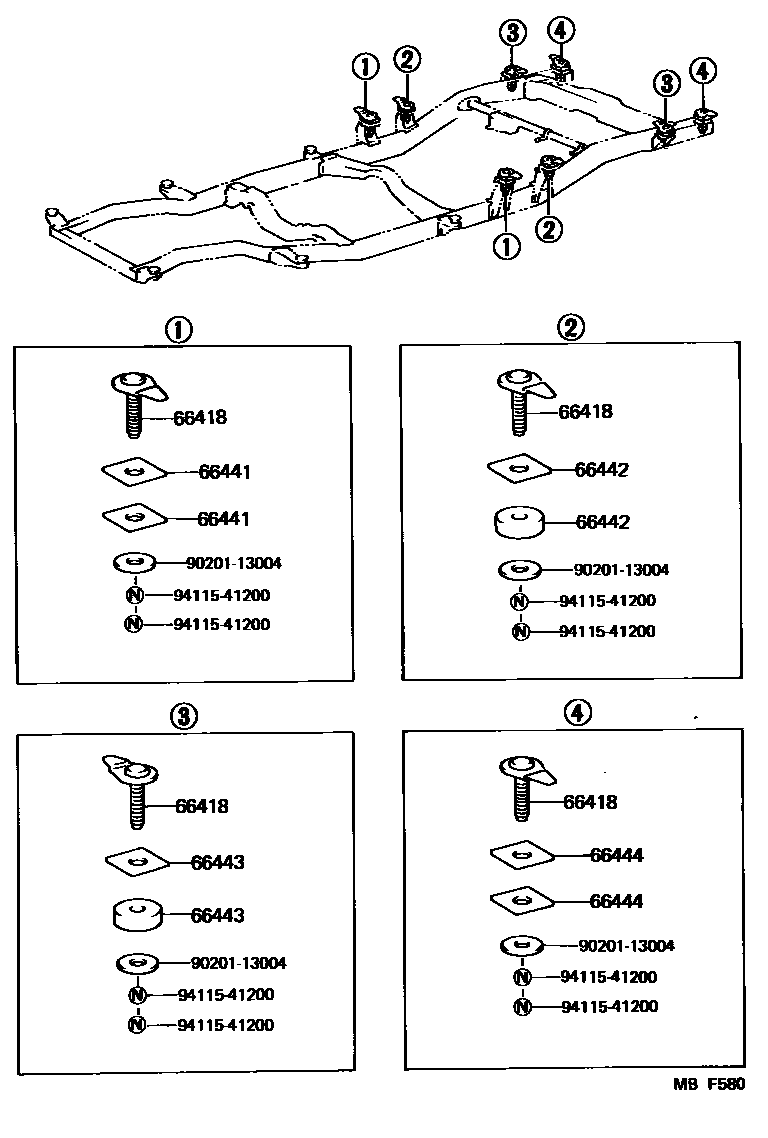

Toyota HILUX EPC diagram 6558, 后车身悬置, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 66418 | mounting bolts | 64189-89102 · 90119-12056 · 90119-12105 |
| 66441 | No. 1 mounting gasket | 66441-89102 · 90950-04019 · 90950-04020 |
| 66442 | No. 2 mounting gasket | 90540-13006 · 90950-04019 · 90950-04020 |
| 66443 | No. 3 installation gasket | 90540-13006 · 90950-04019 · 90950-04020 |
| 66444 | No. 4 installation gasket | 90950-04019 · 90950-04020 |
