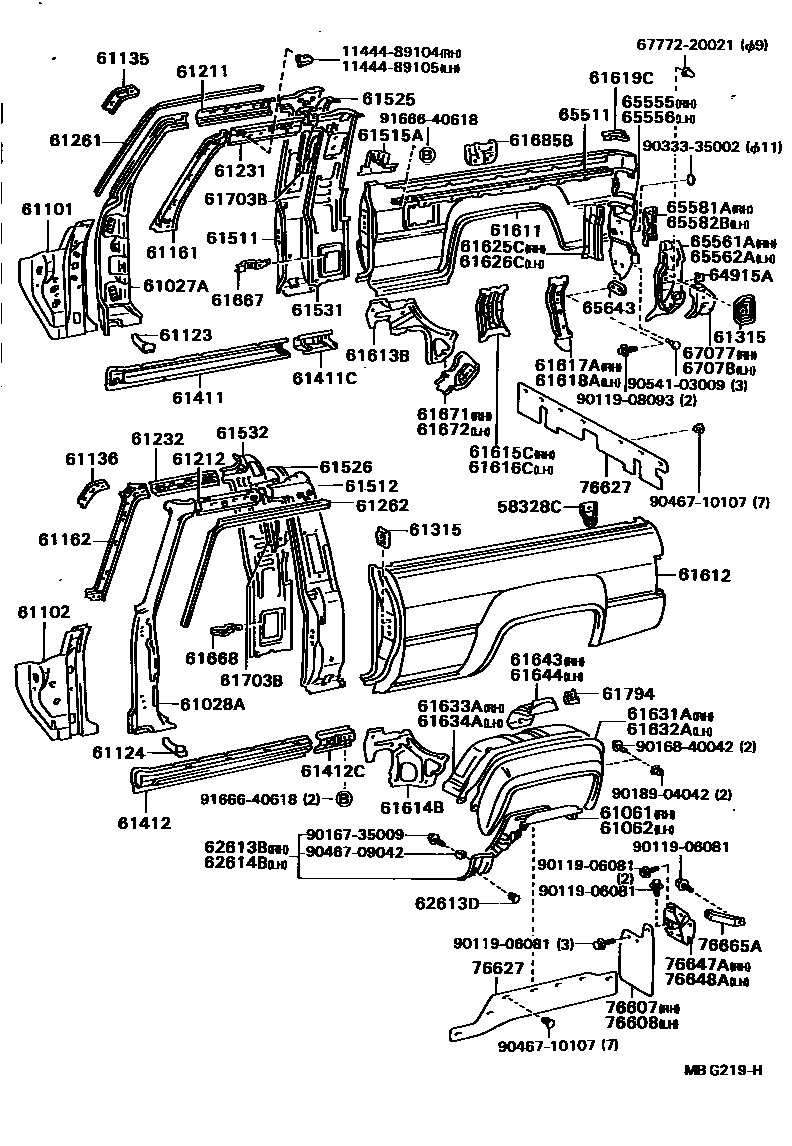

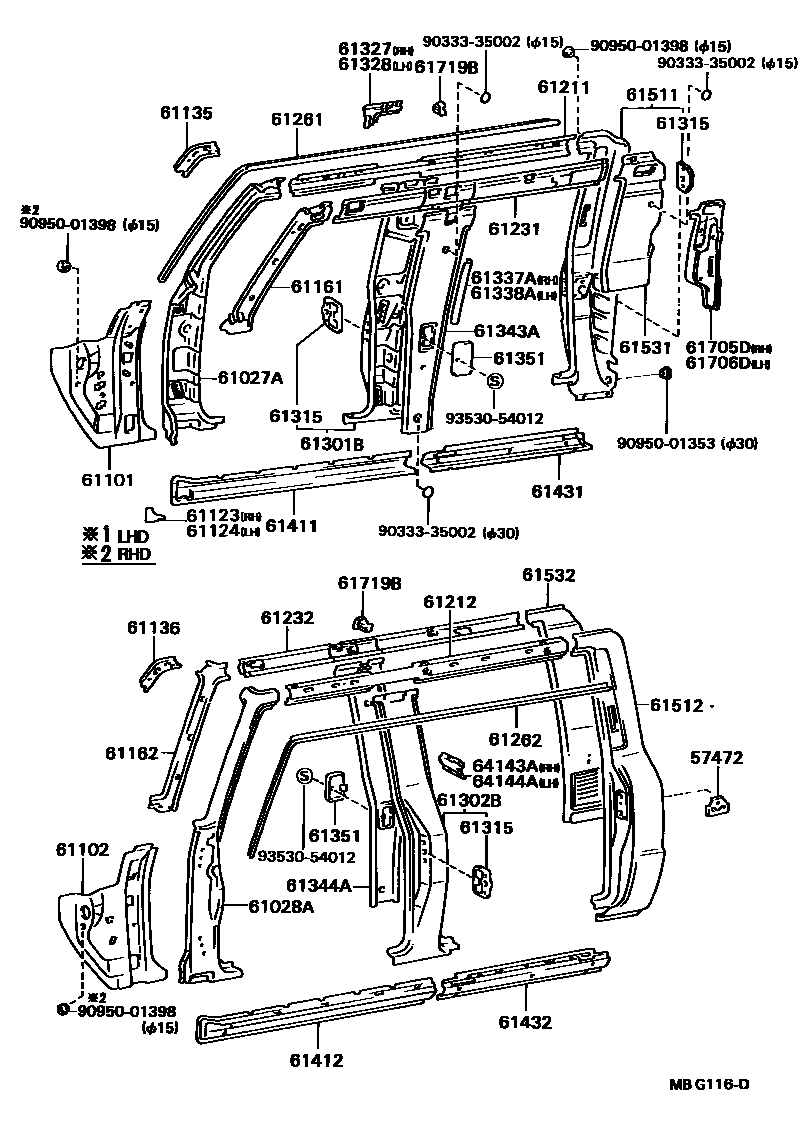

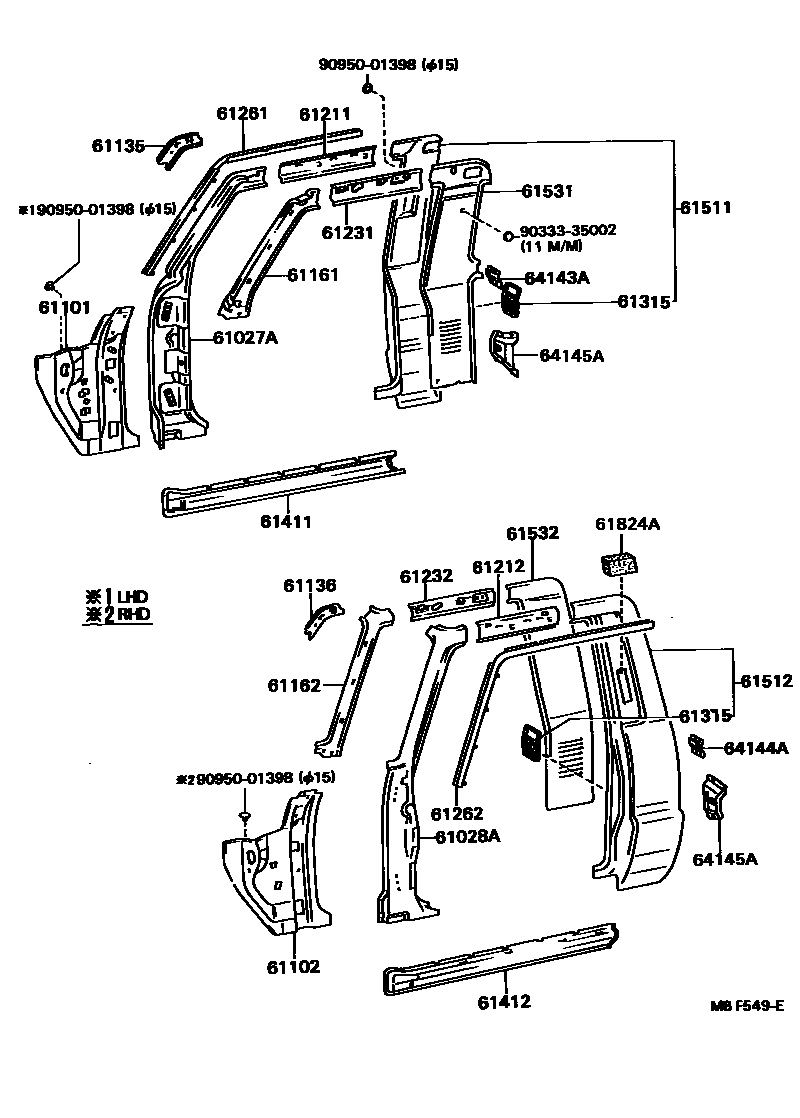

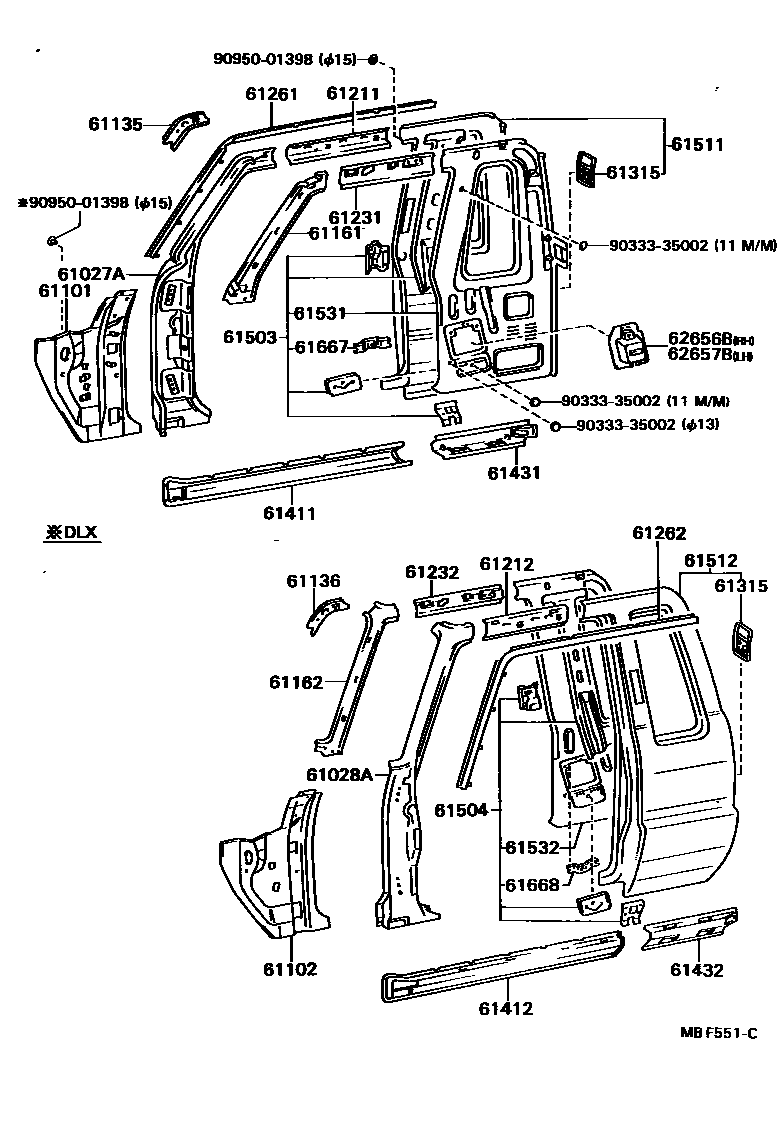

Toyota HILUX 侧梁 — Figure 6151
Toyota HILUX EPC diagram 6151, 侧梁, with 4 images and 97 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57472 | Left-hand seat belt anchor to floor support reinforcement | 57471-89103 |
| 58328C | jack stand | 58328-89102 |
| 61027A | Right body outer front pillar sub-assembly | 61027-89108 · 61027-89109 · 61027-89110 · 61027-89111 · 61027-89112 |
| 61028A | Left body outer front pillar sub-assembly | 61028-89108 · 61028-89109 · 61028-89110 · 61028-89111 · 61028-89112 |
| 61061 | Right wheel cover reinforcement sub-assembly | 61061-89101 |
| 61062 | Left wheel cover reinforcement sub-assembly | 61062-89101 |
| 61101 | Right front wall side panel sub-assembly | 61101-89127 · 61101-89128 · 61101-89130 · 61101-89131 · 61101-89132 · 61101-89133 · 61101-89134 |
| 61102 | Left front wall side panel sub-assembly | 61102-89124 · 61102-89125 · 61102-89126 · 61102-89127 · 61102-89128 |
| 61123 | Right front side lower panel | 61123-89104 · 61123-89105 |
| 61124 | Left front side lower panel | 61123-89105 · 61124-89103 |
| 61135 | Reinforcement member on the right front body pillar | 61135-89106 |
| 61136 | Reinforcement member on left front body pillar | 61136-89106 |
| 61161 | Right upper body inner front pillar | 61161-89107 |
| 61162 | Left side inner front upper pillar | 61162-89107 |
| 61211 | Roof right outer longitudinal beam | 61211-89105 · 61211-89106 |
| 61212 | Roof left outer longitudinal beam | 61212-89105 · 61212-89106 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-89109 · 61231-89110 · 61231-89111 |
| 61232 | Roof left inner longitudinal beam | 61232-89109 · 61232-89110 · 61232-89111 |
| 61261 | Drainage channel on the right side of the roof | 61261-89105 · 61261-89106 · 61261-89107 · 61261-89108 · 61261-89109 · 61261-89110 |
| 61262 | Drainage channel on the left side of the roof | 61262-89105 · 61262-89106 · 61262-89107 · 61262-89108 · 61262-89109 · 61262-89110 |
| 61301B | Right body outer center pillar | 61301-89103 · 61301-89104 |
| 61302B | Left body outer center pillar | 61302-89103 · 61302-89104 · 61302-89106 |
| 61315 | Door latch plate fixing parts | 61309-89102 · 61309-89103 · 61309-89104 · 61315-22020 |
| 61327 | Right body outer center pillar reinforcement | 61327-89101 |
| 61328 | Left body outer center pillar reinforcement | 61328-89101 |
| 61337A | Right body inner center pillar reinforcement | 61337-89101 |
| 61338A | Left body inner center pillar reinforcement | 61338-89101 |
| 61343A | Right body inner center pillar | 61343-89102 · 61343-89103 |
| 61344A | Left body inner center pillar | 61344-89102 · 61344-89103 |
| 61351 | Right body inner center pillar cover | 62429-89101 |
| 61411 | Right door outer sill panel | 61411-89105 · 61411-89106 · 61411-89107 · 61411-89108 |
| 61411C | Right door outer sill extension | 61415-89102 |
| 61412 | Left door outer sill panel | 61412-89105 · 61412-89106 · 61412-89107 · 61412-89108 |
| 61412C | Left door outer sill extension | 61416-89102 |
| 61431 | Right rear door outer sill panel | 61431-89102 · 61431-89103 |
| 61432 | Left rear door outer sill panel | 61432-89102 · 61432-89103 |
| 61503 | Right body inner rear pillar sub-assembly | 61503-89103 · 61503-89104 · 61503-89106 · 61503-89107 |
| 61504 | Left body inner rear pillar sub-assembly | 61504-89103 · 61504-89104 · 61504-89106 · 61504-89107 |
| 61511 | Right side locking post | 61501-89104 · 61501-89105 · 61501-89108 · 61501-89109 · 61501-89110 · 61501-89111 · 61501-89112 · 61501-89114 · 61501-89115 · 61501-89116 · 61511-89120 |
| 61512 | Left side locking post | 61502-89105 · 61502-89106 · 61502-89109 · 61502-89110 · 61502-89111 · 61502-89112 · 61502-89115 · 61502-89116 · 61502-89119 · 61502-89123 · 61512-89126 |
| 61515A | Side locking post extension | 61515-89102 · 61516-89101 |
| 61525 | Reinforcement piece on the right side locking column | 61525-89102 |
| 61526 | Reinforcement piece on the left side locking column | 61526-89102 |
| 61531 | Inner right rear corner panel | 61531-89112 · 61531-89113 · 61531-89114 · 61531-89115 · 61531-89116 |
| 61532 | Inner left rear corner panel | 61532-89112 · 61532-89113 · 61532-89114 · 61532-89115 · 61532-89116 |
| 61611 | Right side hoarding | 61611-35900 · 61611-89102 · 61611-89107 |
| 61612 | left side panel | 61612-35900 · 61612-89102 · 61612-89113 |
| 61613B | Right front side panel inner panel | 61613-89101 |
| 61614B | Left front side panel inner panel | 61614-89101 |
| 61615C | Right side panel center inner panel | 61615-89101 |
| 61616C | Left side enclosure center inner panel | 61615-89101 |
| 61617A | Right rear side panel inner panel | 61617-89101 |
| 61618A | Left rear side panel inner panel | 61618-89101 |
| 61619C | Rear upper side panel reinforcement | 61619-89102 |
| 61625C | Right rear corner panel | 61625-89101 |
| 61626C | Left rear corner panel | 61626-89101 |
| 61631A | Right wheel cover outer panel | 61631-89101 |
| 61632A | Left side wheel cover outer panel | 61632-89101 |
| 61633A | Right wheel housing lining panel | 61633-89101 |
| 61634A | Left side wheel housing lining panel | 61634-89101 |
| 61643 | Right wheel housing center corner panel | 61643-89101 |
| 61644 | Left side wheel housing center corner panel | 61644-89101 |
| 61667 | Right seat belt anchor reinforcement | 61681-89101 · 61681-89102 |
| 61668 | Left side seat belt lower anchor reinforcement | 61681-89101 · 61681-89102 |
| 61671 | Rear right seat backrest hinge bracket | 61683-89101 |
| 61672 | Rear left seat back hinge bracket | 61684-89101 |
| 61685B | Rear seat backrest stop bracket | 61685-89101 · 61686-89101 |
| 61703B | Roof inner reinforcement sub-assembly | 61703-89104 · 61703-89109 · 61704-89106 · 61704-89111 |
| 61705D | Roof right inner reinforcement | 61703-89108 |
| 61706D | Roof left inner reinforcement | 61704-89110 |
| 61719B | roof inner bracket | 61719-89102 · 61729-89101 |
| 61794 | No. 1 radio speaker stand | 61794-89101 |
| 61824A | Noise Control Panel No. 1 | 61824-89101 |
| 62613B | Right wheel cover | 62613-89104 |
| 62614B | Left side wheel cover | 62614-89104 |
| 62656B | Right side panel inner cover | 62656-89101 |
| 62657B | Left side enclosure inner cover | 62657-89101 |
| 64143A | Right rear corner panel reinforcement | 64143-89101 |
| 64144A | Left rear quarter panel reinforcement | 64144-89101 |
| 64145A | Upper back panel reinforcement corner plate | 64145-89101 · 64151-89101 |
| 64915A | Rear door panel side reinforcements | 64915-89101 |
| 65511 | Longitudinal beams on side panels | 65501-89102 · 65502-89103 · 65511-89133 |
| 65555 | Right rear side panel inner end pillar | 65555-89110 |
| 65556 | Left rear side panel inner end pillar | 65556-89110 |
| 65561A | Right rear end pillar plate | 65561-89111 |
| 65562A | Left rear end pillar plate | 65562-89111 |
| 65581A | Right rear end pillar reinforcement | 65581-89107 |
| 65582B | Left rear end pillar reinforcement | 65582-89107 |
| 65643 | Back door lining | 65643-89101 |
| 67077 | Back door right hinge convex reinforcement sub-assembly | 67077-89101 |
| 67078 | Rear door left hinge convex reinforcement sub-assembly | 67078-89101 |
| 76607 | Right rear side fender sub-assembly | 76625-89104 |
| 76608 | Left rear side fender sub-assembly | 76626-89103 |
| 76627 | Inner side fenders | 76627-89101 · 76628-89101 · 76628-89102 |
| 76647A | Right rear body fender bracket | 76647-89104 |
| 76648A | Left rear body fender bracket | 76648-89104 |
| 76665A | Rear fender stay | 76665-89101 |
