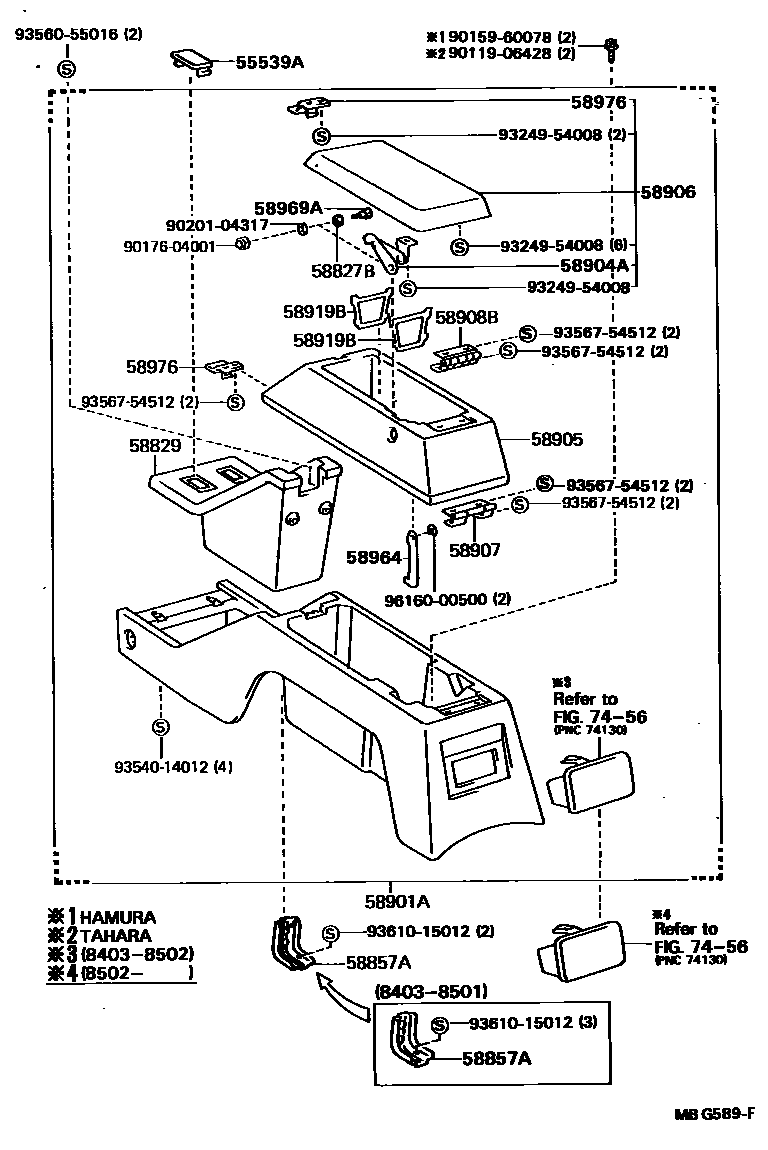

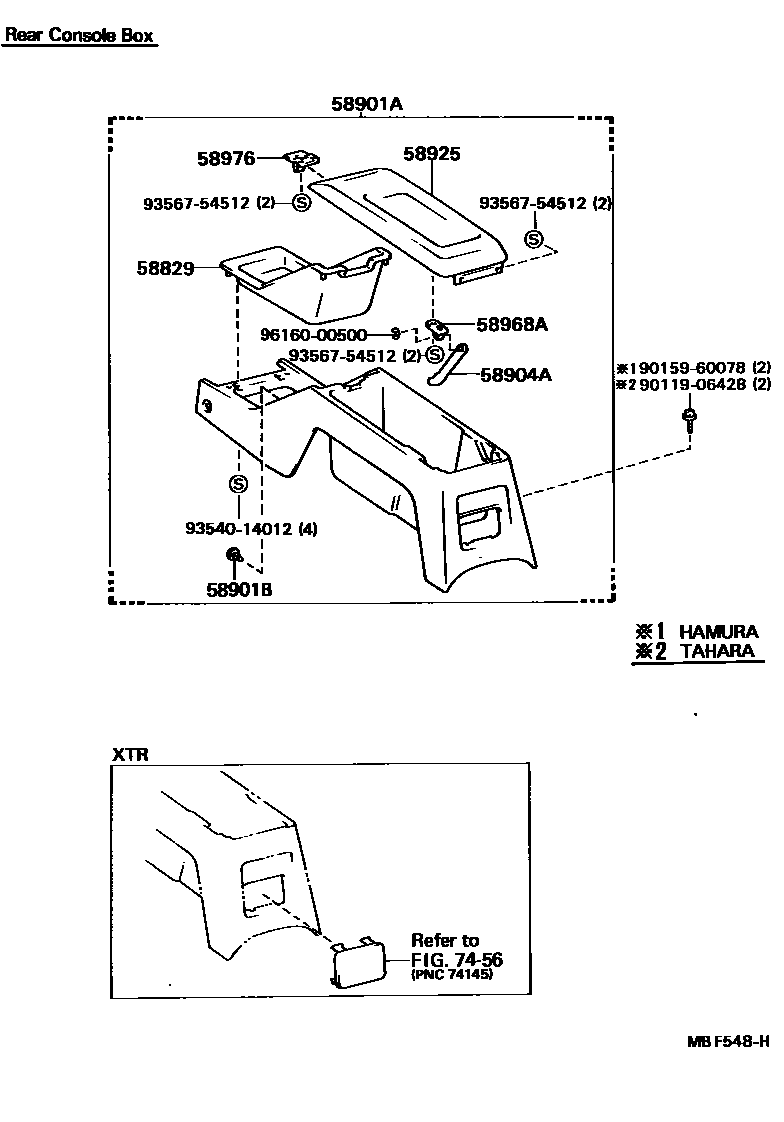

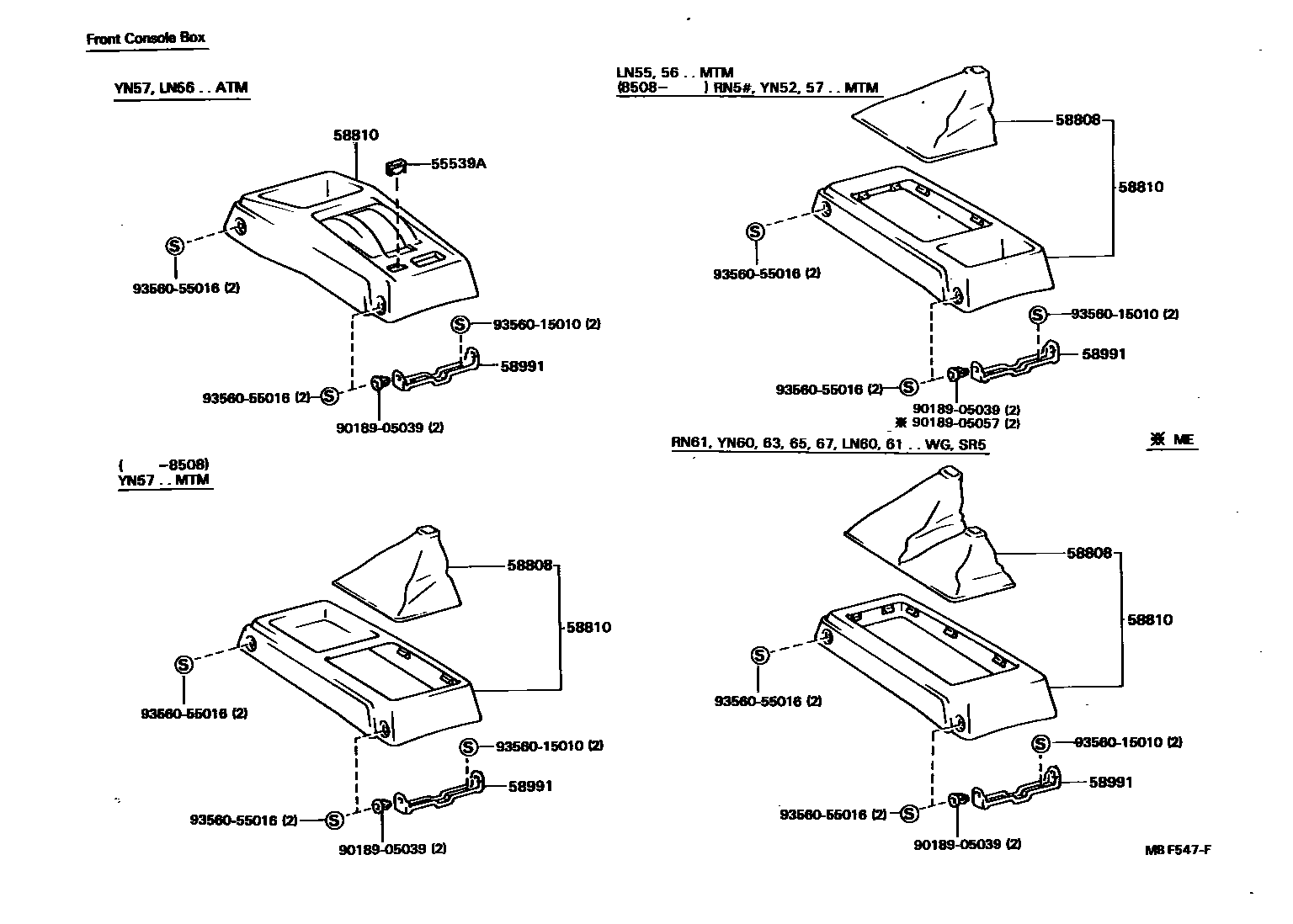

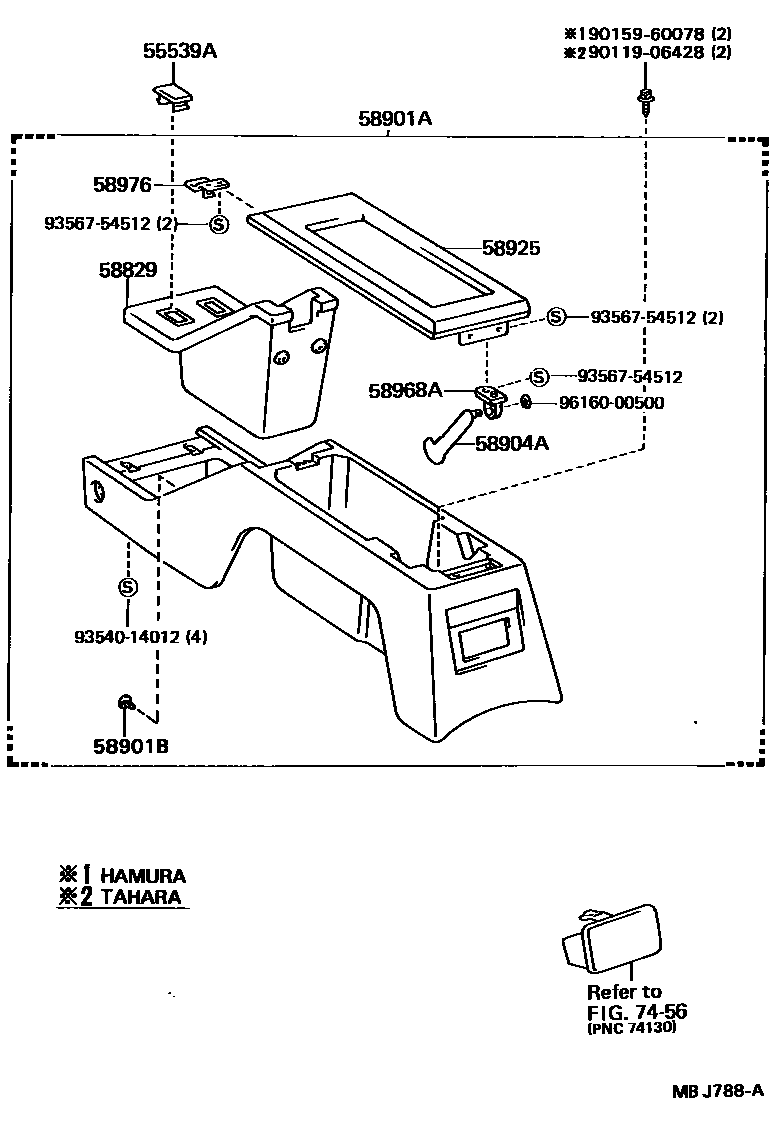

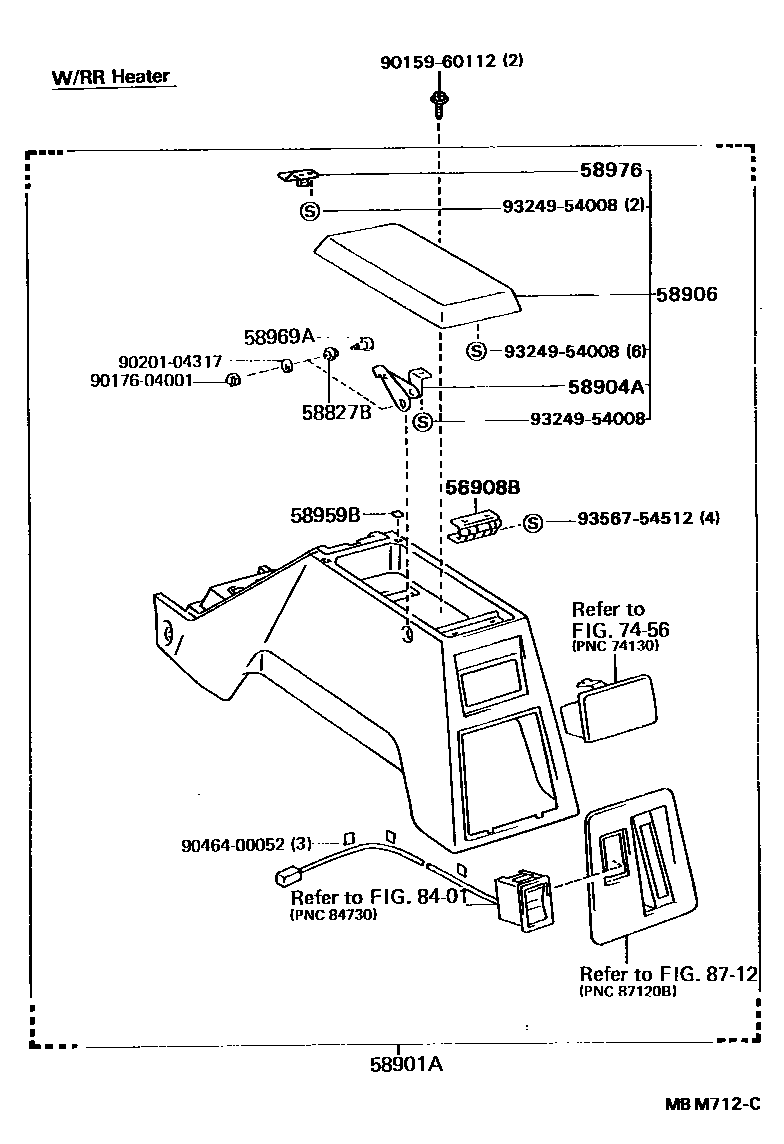

Toyota HILUX 中央扶手箱和支架 — Figure 5855
Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58808 | Shift hole cover sub-assembly | 58808-89103 · 58808-89104 · 58808-89105 |
| 58827B | Armrest box lid stopper spacer | 58827-20021 |
| 58829 | Armrest box groove | 58825-89104 |
| 58857A | Armrest box No. 1 upper bracket | 58858-89102 · 58858-89103 |
| 58904A | Armrest box lid stopper sub-assembly | 58904-22020 · 58964-30030 |
| 58907 | Armrest box lid hinge sub-assembly | 58907-89101 |
| 58908B | Rear armrest box armrest hinge sub-assembly | 58908-89101 |
| 58919B | Armrest box nameplate | 58919-89101 |
| 58959B | Armrest box cover cushion | 58959-16010 |
| 58964 | Armrest box cover No. 1 stop | 58964-20010 · 58964-30030 |
| 58968A | Armrest box cover stop bracket | 58968-89101 |
| 58969A | Armrest box lid stopper fixing | 58969-20010 |
| 58976 | Armrest box lid lock | 58976-20010 |
| 58991 | Mounting bracket on armrest box | 58991-89101 · 58991-89102 |
