Toyota HILUX 仪表板和手套箱 — Figure 5551

Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 2 images and 23 PNC and OE references.

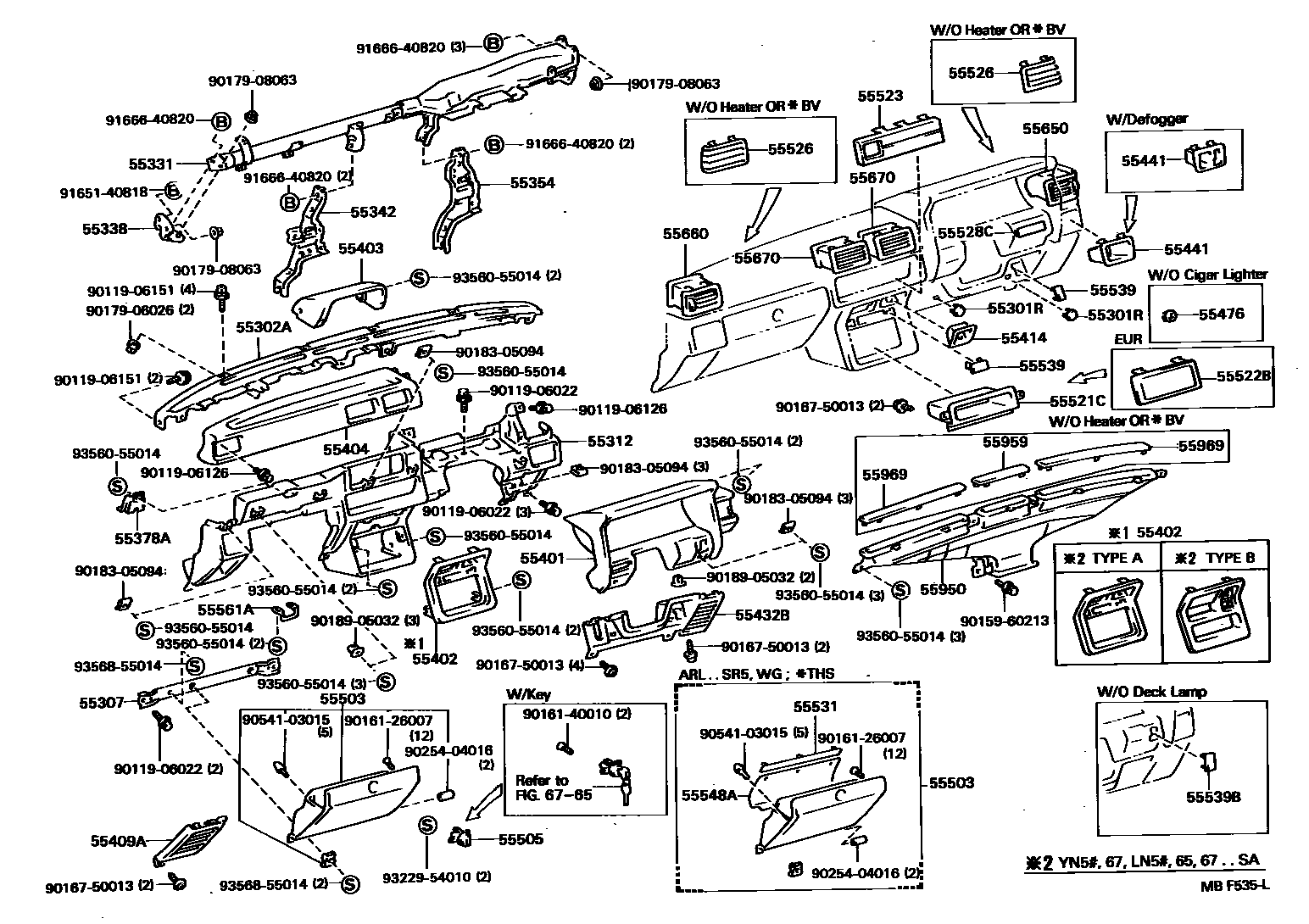

Toyota HILUX 仪表板和手套箱 EPC diagram — MBF535L
仪表板和手套箱 — MBF535L (198308 – 999999)

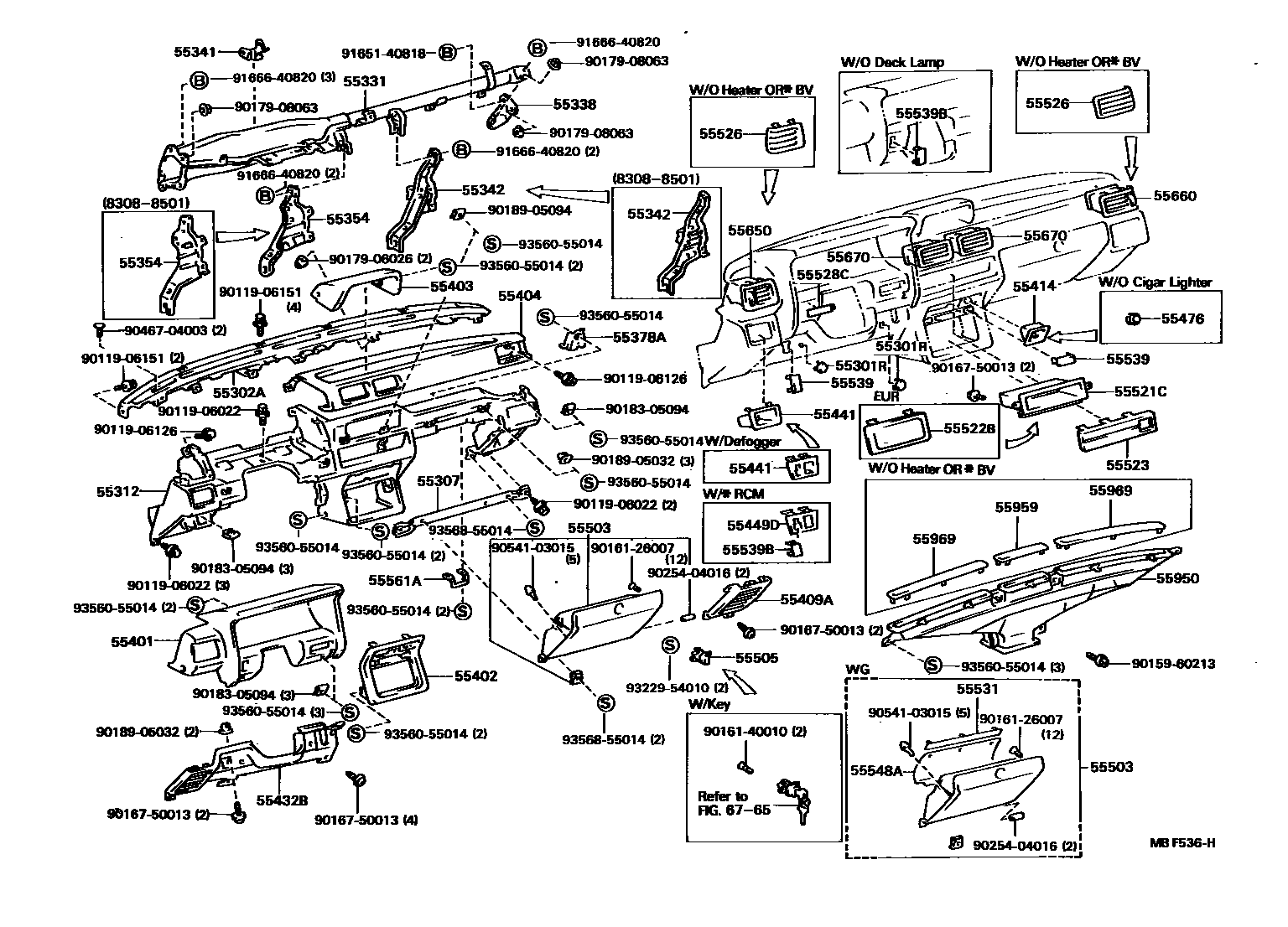

Toyota HILUX 仪表板和手套箱 EPC diagram — MBF536H
仪表板和手套箱 — MBF536H (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
55302AUpper instrument panel sub-assembly55302-89101 · 55302-89102 · 55302-89103 · 55302-89104
55307Under-dashboard reinforcement sub-assembly55330-89108 · 55331-89110 · 55331-89111
55331Dashboard reinforcement55330-89104 · 55330-89105 · 55330-89106 · 55330-89107 · 55330-89109 · 55330-89110 · 55330-89111 · 55330-89113 · 55330-89114
55338Instrument panel reinforcement extension No. 155338-89101 · 55338-89102
55341Instrument panel bracket No. 155341-89102
55342Instrument panel bracket No. 255307-89103 · 55307-89104 · 55307-89105 · 55307-89106
55354Dashboard to floor bracket55306-89103 · 55306-89104 · 55351-89102 · 55351-89103
55378AGlovebox lid lock mounting bracket55313-89104
55402Central instrument configuration panel sub-assembly55405-89152 · 55405-89153 · 55405-89154 · 55405-89155 · 55405-89156
55414Cigarette lighter hole frame55477-89103 · 55477-89104
55476Cigarette lighter hole cover55532-89102
55521Cstereo system hole cover55521-89101
55522BRadio tuner opening cover55522-14070
55523Heater control opening cover55523-89110 · 55523-89111 · 55523-89112 · 55523-89113
55531glove box panel55531-89104
55548ADashboard hole cover55548-89103
55561AGlove box lid lock55561-32010 · 55561-89103
55650No. 1 air regulator assembly on instrument panel55650-89106 · 55650-89109
55660No. 2 air regulator assembly on instrument panel55660-89105 · 55670-89110
55670Instrument panel No. 3 air regulator assembly55670-89106 · 55670-89107 · 55670-89110 · 55670-89113
55950Defroster nozzle assembly55950-89105 · 55950-89106
55959Defroster No. 1 nozzle opening cover55959-89102
55969Defroster No. 2 nozzle opening cover55959-89103 · 55969-89101
