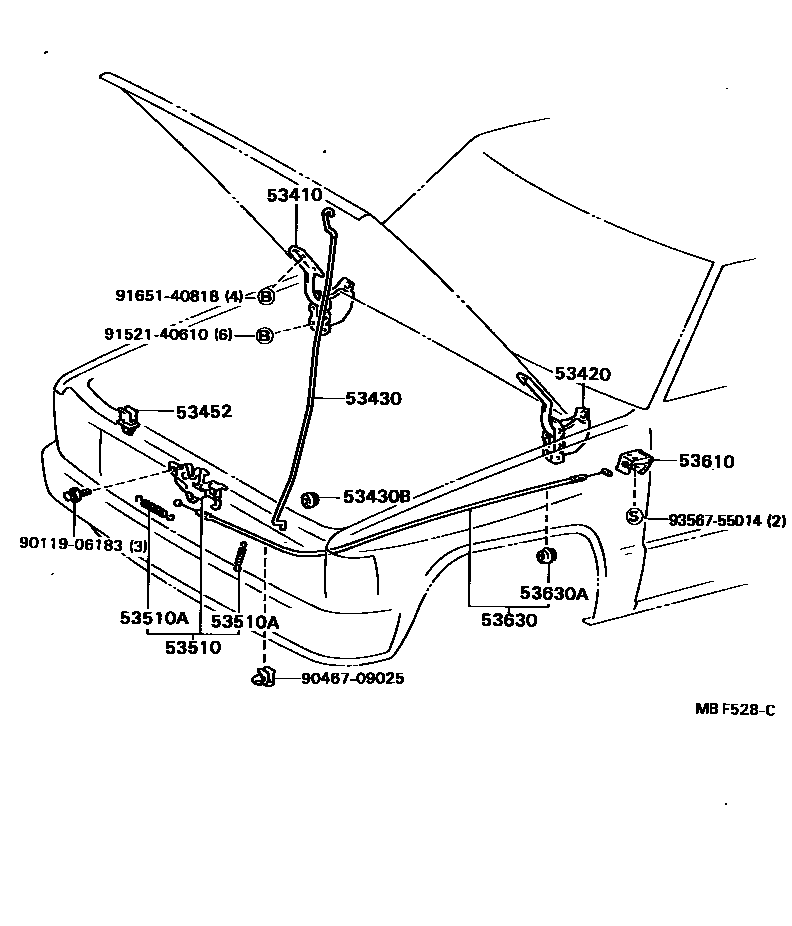

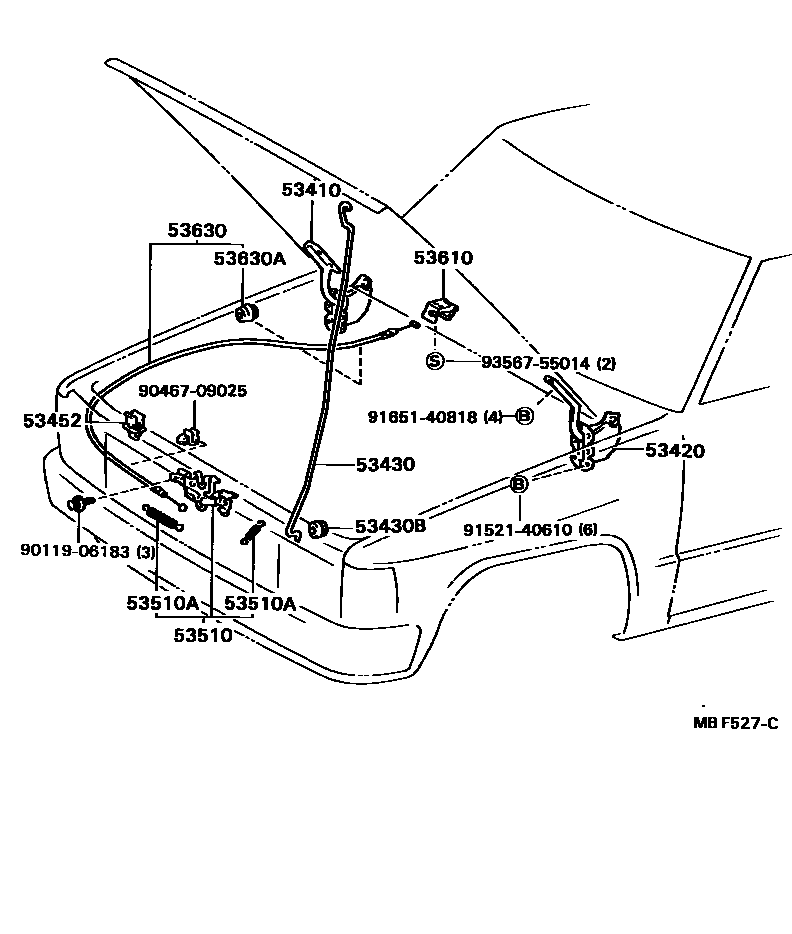

Toyota HILUX 发动机盖锁和铰链 — Figure 5354
Toyota HILUX EPC diagram 5354, 发动机盖锁和铰链, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-89105 |
| 53420 | Engine cover left hinge assembly | 53410-89105 |
| 53430 | Engine cover support rod assembly | 53441-89104 |
| 53430B | Gasket (for engine cover support rod) | 90480-15012 |
| 53452 | Engine cover stay rod fixing | 53452-90351 |
| 53510 | Engine cover lock assembly | 53510-89112 · 53510-89114 |
| 53510A | Tension spring (for hood lock) | 90506-09017 · 90506-20008 · 90506-26015 |
| 53630 | Engine hood lock control cable assembly | 53630-89109 · 53630-89110 · 53630-89111 |
| 53630A | Gasket (for hood lock control cable) | 90480-15001 |
