Toyota HILUX 车架 — Figure 5151

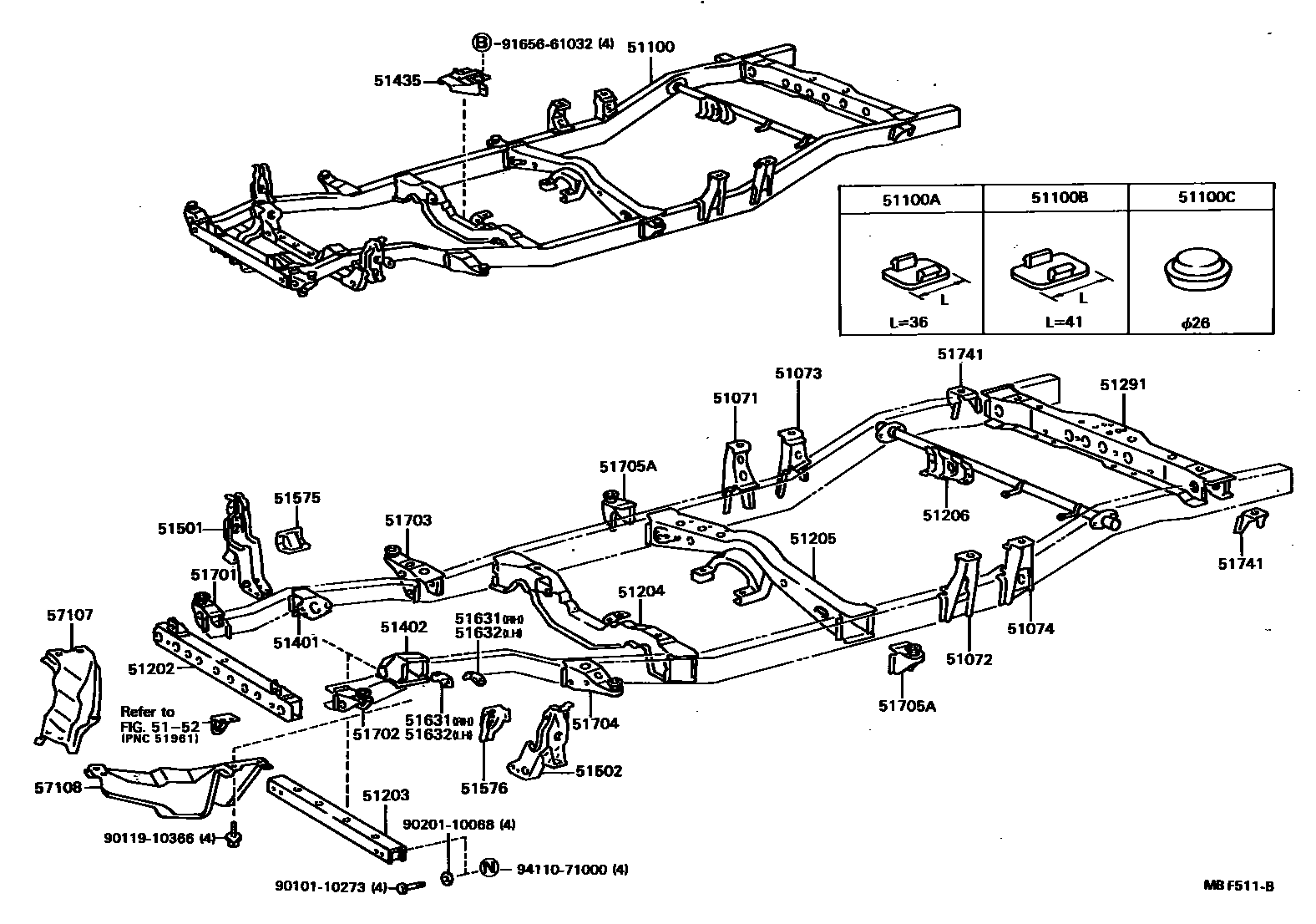

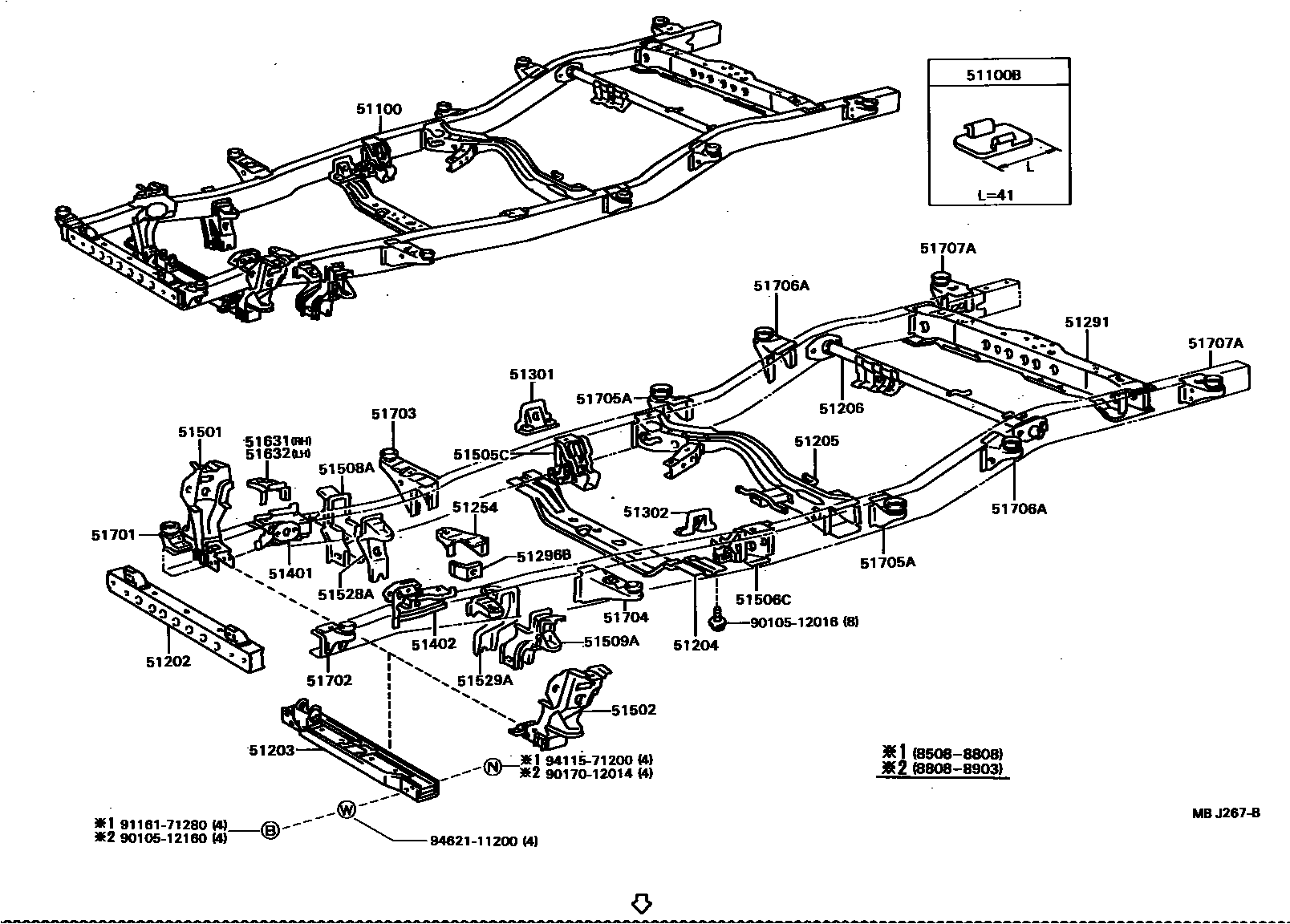

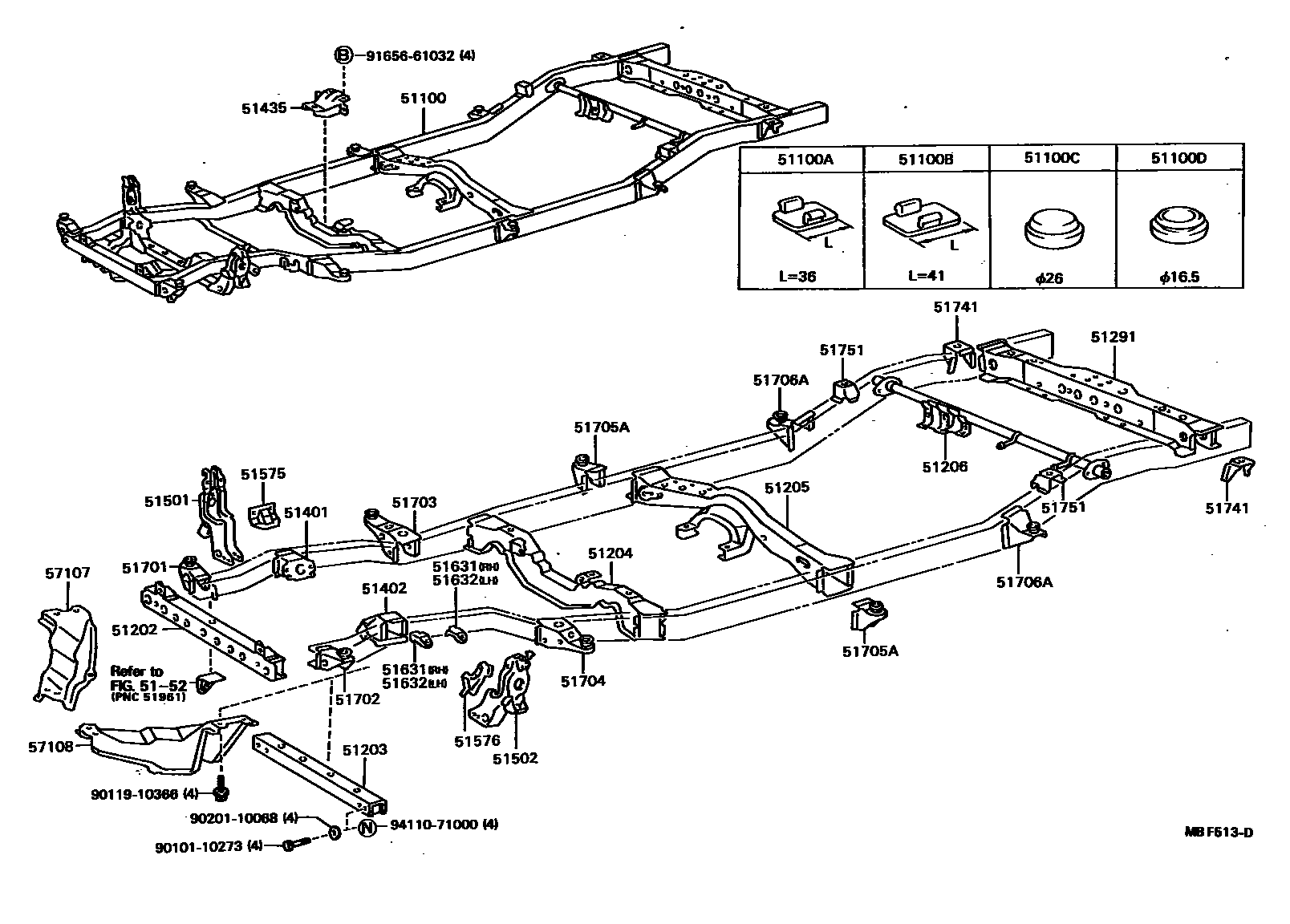

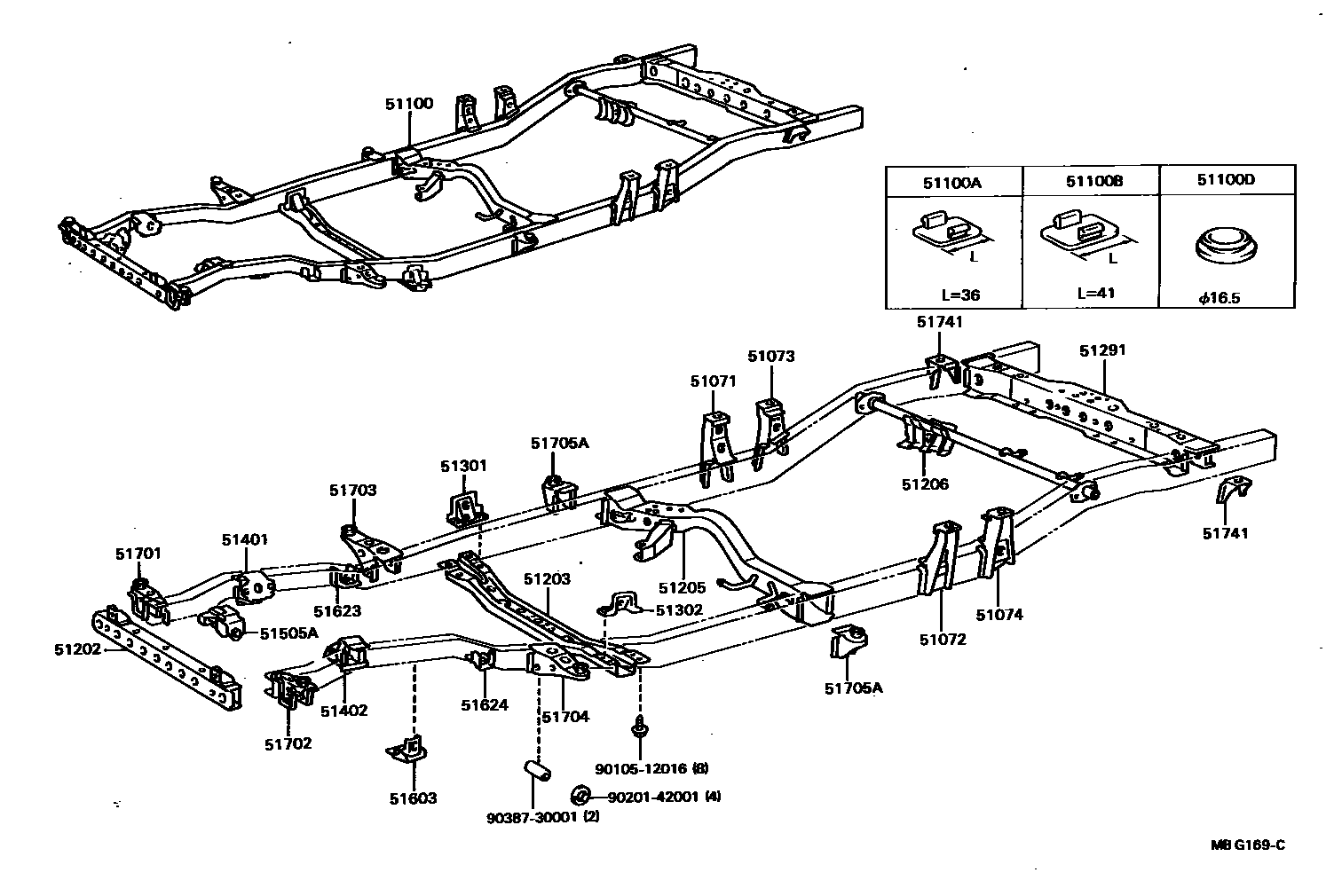

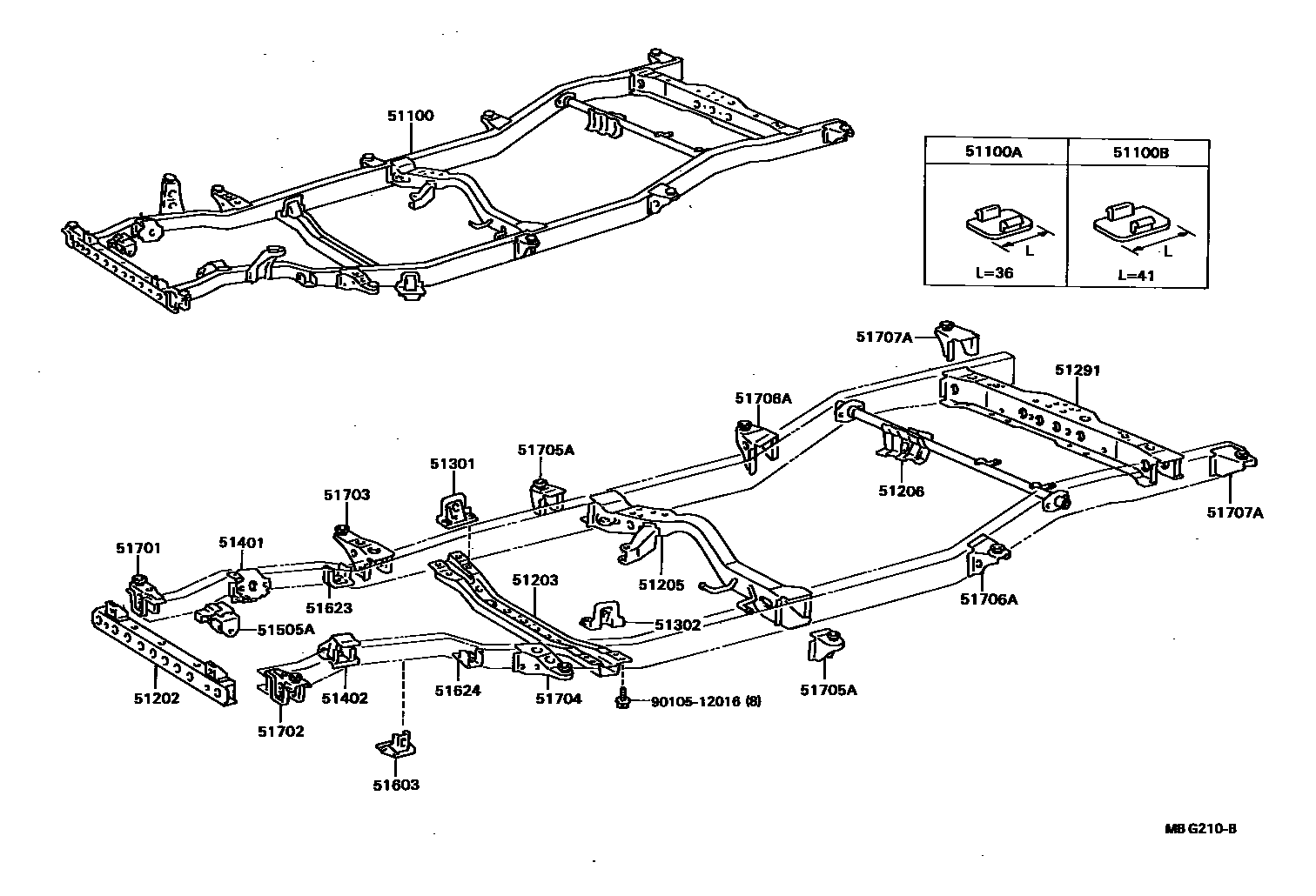

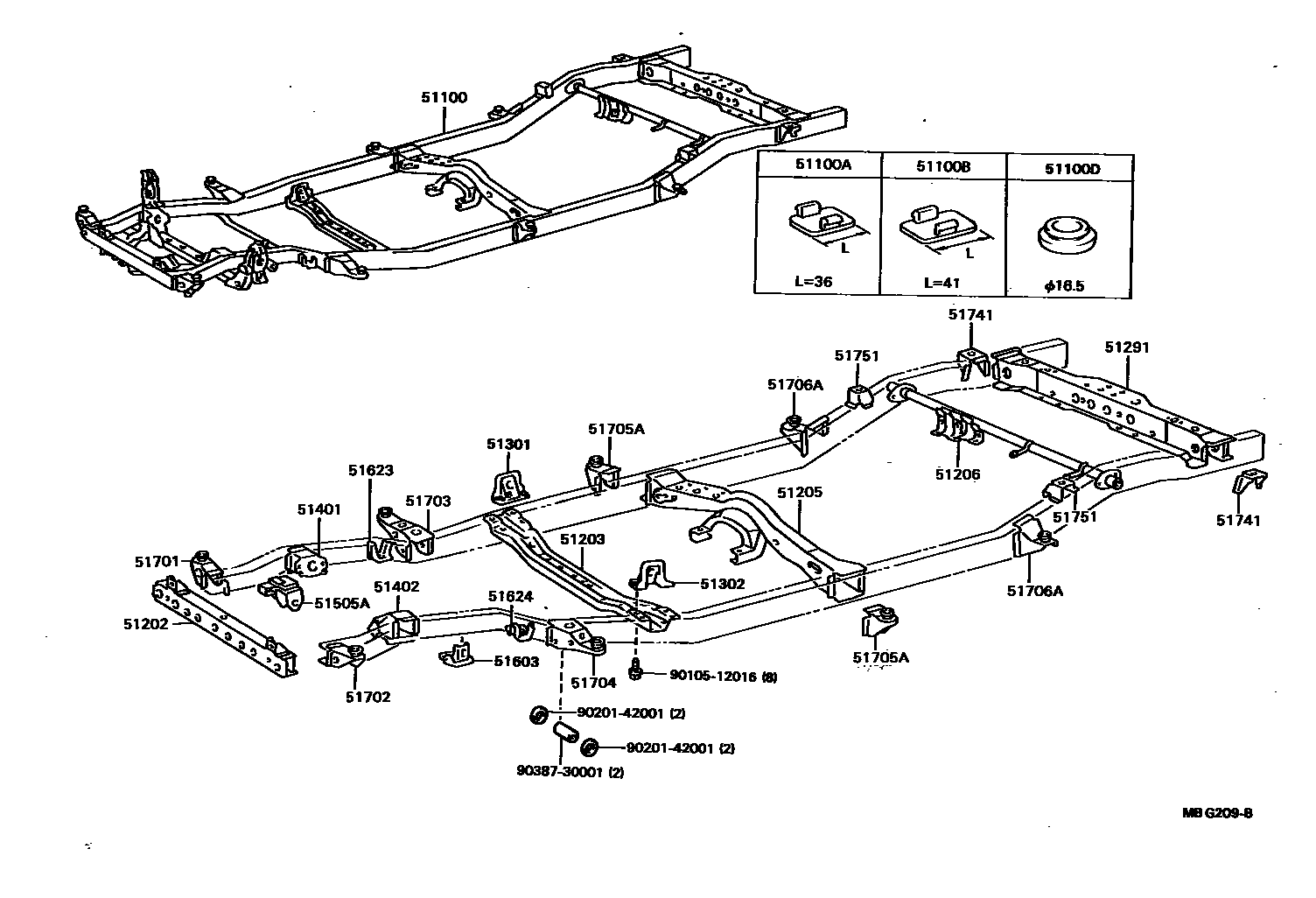

Toyota HILUX EPC diagram 5151, 车架, with 6 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51071 | Right rear body No. 1 mounting bracket sub-assembly | 51071-35010 · 51071-35020 · 51071-35050 |
| 51072 | Left rear body No. 1 mounting bracket sub-assembly | 51071-35020 · 51071-35050 · 51072-35010 |
| 51073 | Right rear body No. 2 mounting bracket sub-assembly | 51073-35010 · 51073-35020 |
| 51074 | Left rear body No. 2 mounting bracket sub-assembly | 51074-35010 · 51074-35020 |
| 51100 | Frame assembly | 51002-35080 · 51002-35110 · 51002-35111 · 51002-35120 · 51002-35121 · 51002-35130 · 51002-35131 · 51002-35140 · 51002-35141 · 51002-35150 · 51002-35151 · 51002-35160 · 51002-35161 · 51002-35170 · 51002-35171 · 51002-35180 · 51002-35181 · 51002-35190 · 51002-35200 · 51002-35201 · 51002-35210 · 51002-35211 · 51002-35220 · 51002-35221 · 51002-35230 · 51002-35231 · 51002-35240 · 51002-35241 · 51002-35250 · 51002-35251 · 51002-35260 · 51002-35261 · 51002-35270 · 51002-35271 · 51002-35280 · 51002-35281 · 51002-35290 · 51002-35291 · 51002-35330 · 51002-35340 · 51002-35341 · 51002-35350 · 51002-35360 · 51002-35361 · 51002-35370 · 51002-35371 · 51002-35380 · 51002-35381 · 51002-35390 · 51002-35391 · 51002-35400 · 51002-35401 · 51002-35410 · 51002-35411 · 51002-35420 · 51002-35421 · 51002-35430 · 51002-35431 · 51002-35440 · 51002-35441 · 51002-35480 · 51002-35481 · 51002-35490 · 51002-35491 · 51002-35500 · 51002-35501 · 51002-35510 · 51002-35511 · 51002-35580 · 51002-35581 · 51002-35590 · 51002-35591 · 51002-35600 · 51002-35601 · 51002-35610 · 51002-35611 · 51002-35620 · 51002-35621 · 51002-35630 · 51002-35631 · 51002-35640 · 51002-35641 · 51002-35650 · 51002-35651 · 51002-35670 · 51002-35671 · 51002-35680 · 51002-35681 · 51002-35690 · 51002-35691 · 51002-35700 · 51002-35701 · 51002-35740 · 51002-35750 · 51002-35760 · 51002-35770 · 51002-35780 · 51002-35790 · 51002-35811 · 51002-35812 · 51002-35821 · 51002-35822 · 51002-35890 · 51003-35010 · 51003-35070 · 51003-35071 · 51003-35080 · 51003-35081 · 51003-35090 · 51003-35100 · 51003-35110 · 51003-35130 · 51003-35131 · 51003-3D680 |
| 51100A | Hole plug (for frame) | 90950-01394 |
| 51100B | Hole plug (for frame) | 90950-01395 · 90950-01642 |
| 51100C | Hole plug (for frame) | 90950-01420 |
| 51100D | Hole plug (for frame) | 90950-01233 |
| 51202 | Frame No. 1 cross member sub-assembly | 51201-35100 · 51201-35110 · 51201-35120 · 51201-35130 · 51201-35140 · 51201-35150 |
| 51203 | Frame No. 2 cross member sub-assembly | 51202-35160 · 51202-35170 · 51202-35171 · 51202-35210 · 51202-35240 · 51203-35260 · 51203-35270 |
| 51204 | Frame No. 3 beam sub-assembly | 51202-35171 · 51202-35210 · 51203-35240 · 51203-35250 |
| 51205 | Frame No. 4 beam sub-assembly | 51204-35220 · 51204-35230 · 51204-35250 · 51204-35260 · 51204-35270 · 51204-35310 · 51204-35311 · 51204-35320 · 51204-35360 · 51204-35380 · 51204-35400 |
| 51206 | Frame No. 5 beam sub-assembly | 51205-35120 · 51205-35130 · 51205-35131 · 51205-35140 · 51205-35150 · 51205-35160 · 51205-35161 · 51205-35170 |
| 51254 | Differential left bracket | 51254-35010 |
| 51291 | Frame rear cross member | 51209-35090 · 51209-35092 · 51209-35110 · 51209-35111 · 51209-35112 · 51209-35120 · 51291-35080 · 51291-35081 |
| 51296B | Differential bracket left reinforcement | 51296-35010 |
| 51301 | Frame No. 2 crossbeam right side bracket | 51321-35050 · 51321-35090 |
| 51302 | Frame No. 2 cross member left bracket | 51321-35050 · 51321-35090 |
| 51401 | Engine right front mounting bracket sub-assembly | 51047-35011 · 51047-35021 · 51047-35040 · 51047-35070 · 51401-35170 · 51401-35180 · 51401-35190 · 51401-35200 |
| 51402 | Engine left front mounting bracket sub-assembly | 51048-35011 · 51048-35021 · 51048-35040 · 51048-35070 · 51401-35190 · 51402-35170 · 51402-35180 · 51402-35190 |
| 51435 | Engine rear mounting bracket | 51431-35050 · 51431-35060 · 51431-35070 |
| 51501 | Right suspension arm bracket sub-assembly | 51501-35020 · 51501-35030 |
| 51502 | Left suspension arm bracket sub-assembly | 51502-35020 · 51502-35030 |
| 51505A | Upper control arm bracket sub-assembly | 51505-35042 · 51505-35050 |
| 51505C | Fixed arm right side bracket sub-assembly | 51505-35060 · 51505-35080 |
| 51506C | Fixed arm left bracket sub-assembly | 51506-35010 · 51506-35020 |
| 51508A | Right lower arm bracket sub-assembly | 51508-35900 |
| 51509A | Left lower arm bracket sub-assembly | 51509-35900 |
| 51528A | Right lower arm bracket reinforcement | 51528-35900 |
| 51529A | Left lower arm bracket reinforcement | 51529-35900 |
| 51575 | No. 1 suspension arm bracket reinforcement | 51573-35010 |
| 51576 | No. 2 suspension arm bracket reinforcement | 51575-35030 · 51575-35040 · 51576-35010 |
| 51603 | Front suspension elastic bracket sub-assembly | 51603-35020 |
| 51623 | Right front spring-loaded stop bracket | 51623-35020 |
| 51624 | Left front spring-loaded stop bracket | 51624-35020 |
| 51631 | Right front suspension rebound limiter | 51061-35010 · 51631-35030 · 51631-35040 · 51631-35050 · 51632-35030 · 51632-35040 |
| 51632 | Left front suspension rebound limiter | 51061-35010 · 51631-35030 · 51631-35040 · 51631-35050 · 51632-35030 · 51632-35040 |
| 51701 | Cab suspension No. 1 right side bracket sub-assembly | 51701-35080 · 51701-35090 · 51701-35100 · 51701-35101 |
| 51702 | Cab suspension No. 1 left side bracket sub-assembly | 51701-35090 · 51702-35070 · 51702-35080 · 51702-35081 |
| 51703 | Cab suspension No. 2 right side bracket sub-assembly | 51703-35040 · 51703-35041 · 51703-35050 |
| 51704 | Cab suspension No. 2 left side bracket sub-assembly | 51704-35060 · 51704-35061 · 51704-35070 |
| 51705A | Cab suspension No. 3 bracket sub-assembly | 51705-35080 |
| 51706A | Cab suspension No. 4 bracket sub-assembly | 51707-35040 · 51707-35050 · 51707-35051 · 51708-35040 · 51708-35050 · 51708-35051 |
| 51707A | Cab suspension No. 5 bracket sub-assembly | 51709-35010 · 51709-35011 |
| 51741 | Rear body No. 1 mounting bracket | 51071-35030 · 51741-35050 |
| 51751 | Body No. 1 Bracket | 51751-35050 · 51752-35030 |
| 57107 | Right support rod bracket sub-assembly | 57107-35040 · 57107-35041 · 57107-35050 |
| 57108 | Left support rod bracket sub-assembly | 57108-35040 · 57108-35041 · 57108-35050 |
