Toyota HILUX 制动总泵 — Figure 4702

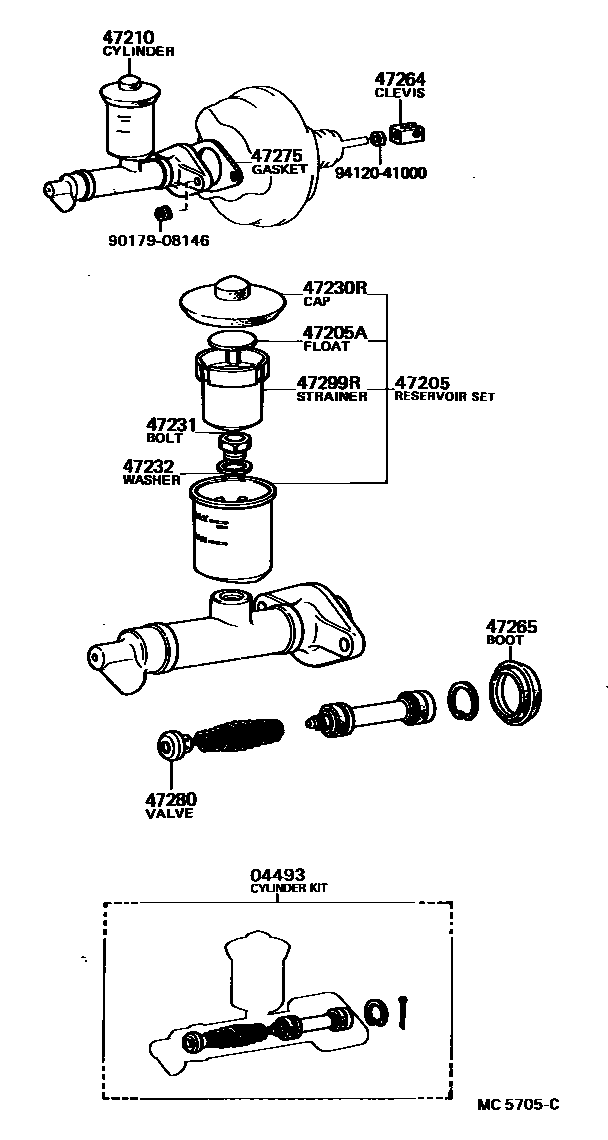

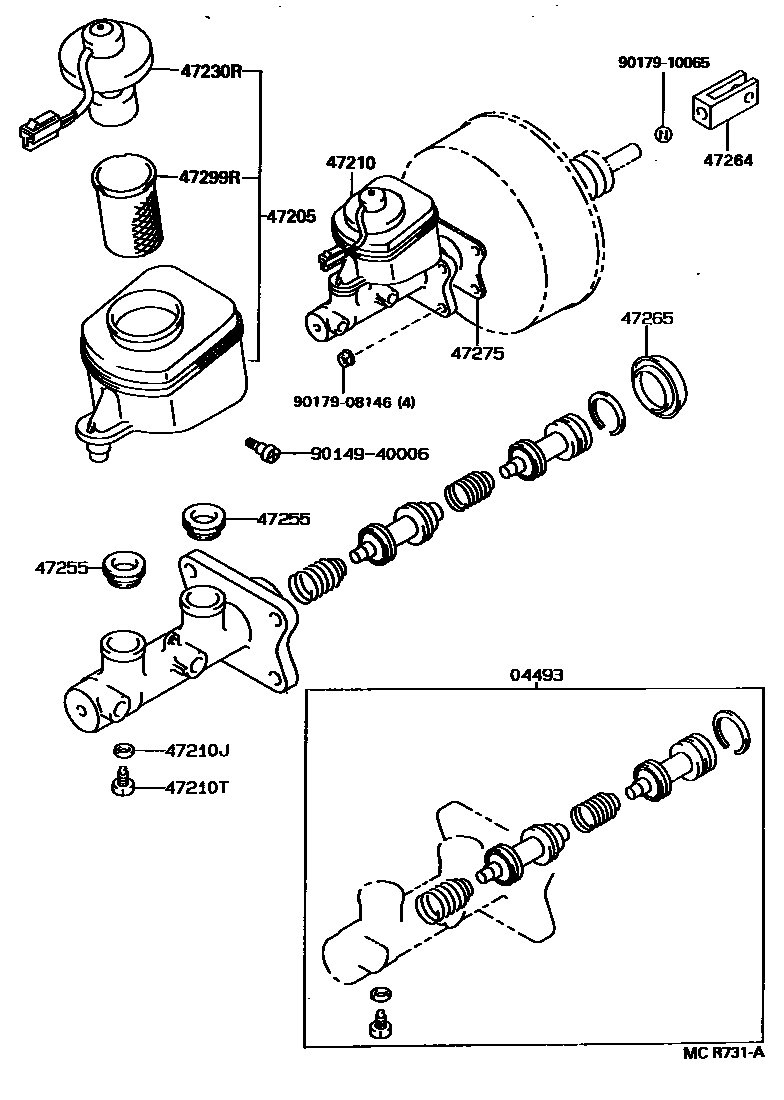

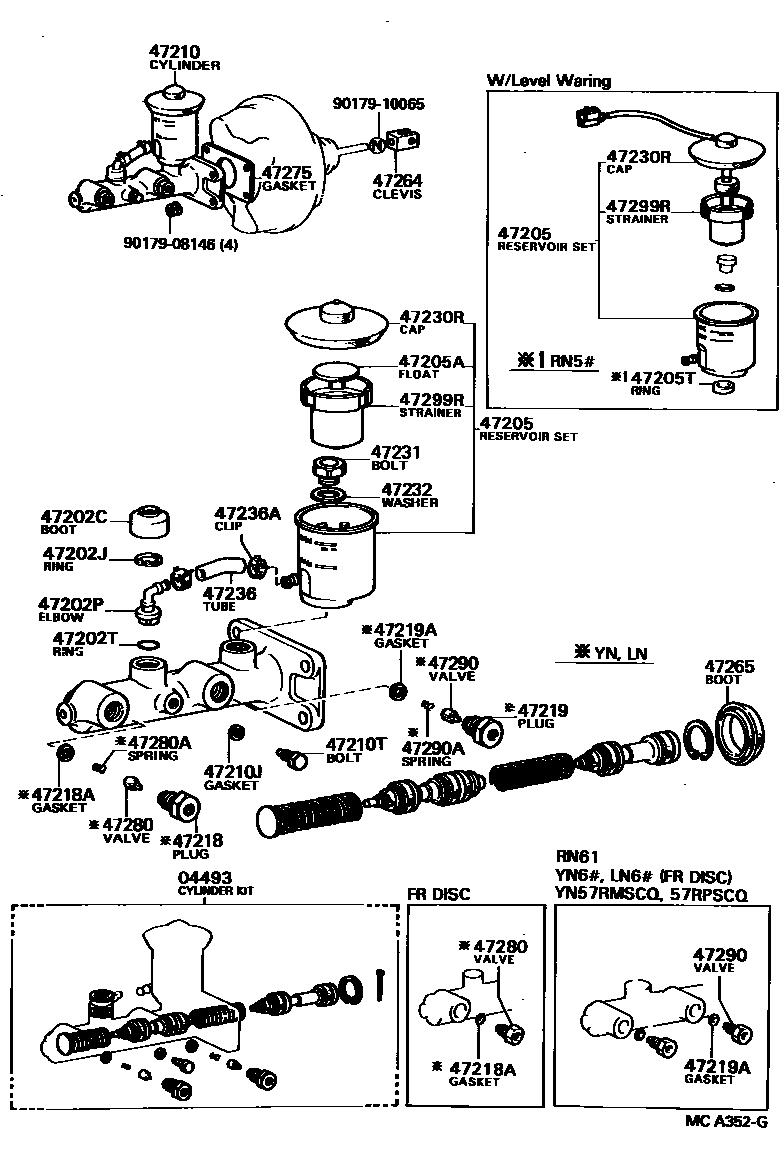

Toyota HILUX EPC diagram 4702, 制动总泵, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04471-26020 · 04493-35100 · 04493-35110 · 04493-35130 · 04493-35150 · 04493-35170 · 04493-35190 · 04493-35200 · 04493-35240 · 04493-35310 · 04493-35320 |
| 47202C | No. 1 fluid reservoir dust boot (for brake master cylinder side) | 47265-20060 |
| 47202J | Snap ring (for brake master cylinder side) | 96151-02000 |
| 47202P | Reservoir tank connector (for brake master cylinder side) | 90407-10003 · 90407-10004 |
| 47202T | Ring (for No. 1 brake master cylinder reservoir) | 90301-14001 |
| 47205 | Brake master cylinder reservoir assembly (for rear side) | 47202-14270 · 47202-20121 · 47202-35050 · 47202-35060 · 47202-35070 · 47202-35180 · 47202-35181 · 47202-35190 · 47202-35220 |
| 47205A | Brake master cylinder reservoir float (for rear side) | 31426-20010 |
| 47205T | Ring (for No. 2 brake master cylinder reservoir) | 90562-18151 |
| 47210 | Brake master cylinder assembly without booster | 47201-35110 · 47201-35300 · 47201-35310 · 47201-35320 · 47201-35340 · 47201-35350 · 47201-35370 · 47201-35380 · 47201-35400 · 47201-35420 · 47201-35440 · 47201-35450 · 47201-35460 · 47201-35530 · 47201-35550 · 47201-35551 · 47201-35610 · 47201-3D050 · 47201-3D260 |
| 47210J | Gasket (for master cylinder) | 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06008 · 90109-06077 |
| 47218 | Brake master cylinder brake fluid outlet screw plug | 47218-30030 |
| 47218A | Gasket (for brake fluid outlet plug) | 90430-09253 · 90430-11001 |
| 47219 | Master cylinder brake fluid outlet screw plug (for rear side) | 47218-30030 |
| 47219A | Gasket (for rear master cylinder brake fluid outlet plug) | 90430-09253 · 90430-11001 |
| 47230R | No. 2 fluid reservoir cap assembly (for rear side) | 47230-20030 · 47230-20040 · 84460-12011 · 84460-35040 |
| 47231 | Brake master cylinder reservoir fixing bolt | 47231-20010 · 47231-30010 |
| 47232 | Brake fluid reservoir retaining bolt washer | 47232-30010 |
| 47236 | Brake fluid reservoir tube | 47234-14010 · 47236-20010 |
| 47236A | Clamp (for reservoir tube) | 90467-16001 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-22010 · 47264-28010 |
| 47265 | Master pump dust jacket | 47265-20050 · 47265-35030 |
| 47275 | brake master cylinder gasket | 47275-14010 · 47275-22010 · 47275-24010 |
| 47280 | Brake master cylinder outlet check valve assembly | 47280-14010 · 47280-26020 · 47280-30030 · 47281-30020 |
| 47280A | compression spring | 90504-05001 |
| 47290 | Master pump outlet valve assembly (for rear side) | 47280-14010 · 47280-30030 · 47281-30020 |
| 47290A | Compression spring (for rear master pump outlet) | 90504-05001 |
| 47299R | Rear master cylinder reservoir filter | 47299-14010 · 47299-20020 · 47299-32010 |
