Toyota HILUX 前桥壳和差速器 — Figure 4301

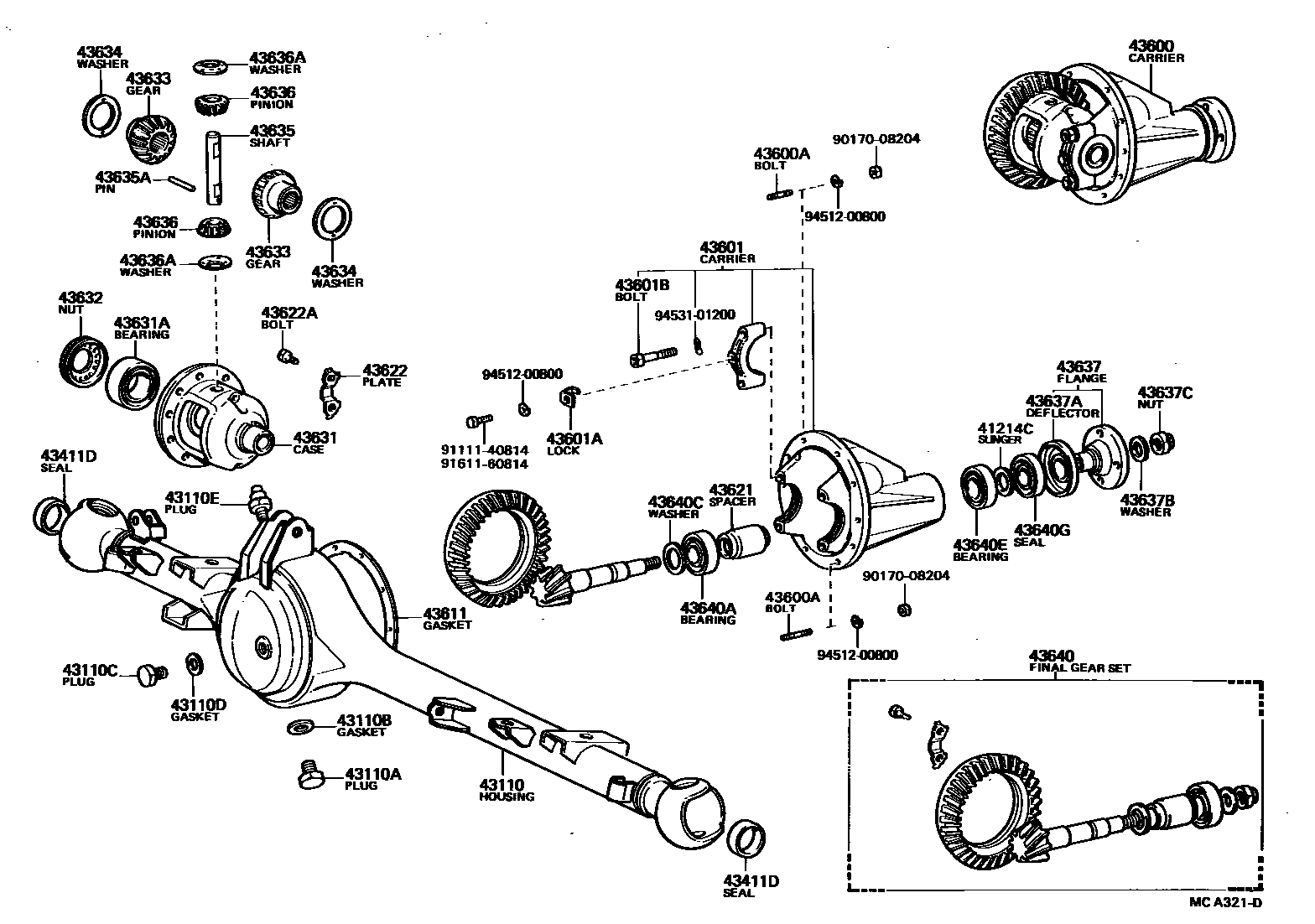

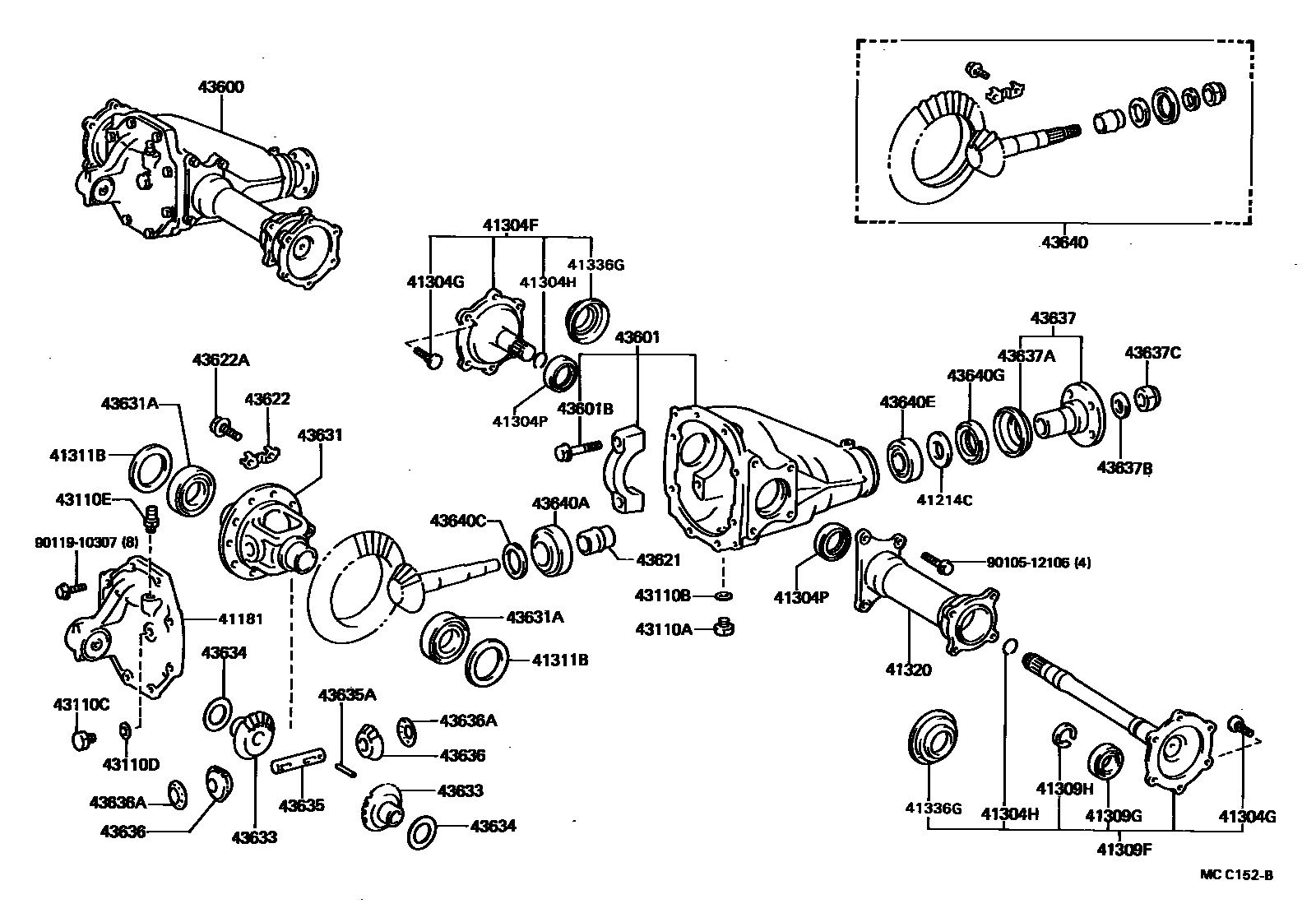

Toyota HILUX EPC diagram 4301, 前桥壳和差速器, with 2 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41181 | front differential case cover | 41108-35010 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-26010 · 41214-35020 |
| 41304F | Right differential side gear shaft sub-assembly | 41304-35010 |
| 41304G | Serrated threaded bolt (for differential side gear shaft) | 90114-12011 |
| 41304H | Hole snap ring (for differential side gear shaft) | 90521-29002 |
| 41304P | Oil seal (for differential side gear shaft) | 90311-35018 |
| 41309F | Left differential side gear shaft sub-assembly | 41309-35010 |
| 41309G | Bearings (for differential side gear shaft) | 90369-36008 |
| 41309H | Shaft snap ring (for differential side gear shaft) | 90520-33008 |
| 41311B | Flat washer (for front differential case) | 90201-65007 · 90201-65008 · 90201-65009 · 90201-65010 · 90201-65011 · 90201-65012 · 90201-65013 · 90201-65014 · 90201-65015 · 90201-65016 · 90201-65017 · 90201-65018 · 90201-65019 · 90201-65020 · 90201-65021 · 90201-65022 · 90201-65023 · 90201-65024 · 90201-65025 · 90201-65026 · 90201-65027 · 90201-65028 · 90201-65029 |
| 41320 | Front differential tube assembly | 41320-35010 |
| 41336G | Dust cover (for front differential side gear shaft) | 41336-22010 · 41336-28010 |
| 43110 | Front axle housing assembly | 43110-35030 · 43110-35040 |
| 43110A | Drain plug sub-assembly | 90341-18057 |
| 43110B | drain liner | 12157-10010 |
| 43110C | Screw plug (for front axle housing) | 90341-18006 · 90341-18049 |
| 43110D | Gasket (for front axle housing screw plug) | 12157-10010 |
| 43110E | Breather plug (for front axle housing) | 90930-03031 |
| 43411D | T-type oil seal (for front drive shaft) | 90311-33085 |
| 43600 | Front axle bracket assembly | 41110-35082 · 41110-35083 · 41110-35084 · 41110-35220 · 41110-35221 · 41110-35222 · 41110-35350 · 41110-35370 · 41110-35380 |
| 43600A | Stud bolts (used to secure the front axle differential case) | 90116-08223 · 90116-08226 · 90116-08235 |
| 43601 | Front axle bracket sub-assembly | 41101-35030 · 41101-35031 · 41101-35040 · 41101-35041 · 41101-35060 |
| 43601A | Front axle differential adjustment nut locking piece | 41316-30010 · 41316-35010 |
| 43601B | Front axle differential bearing cap bolts | 90105-12053 |
| 43611 | Front axle differential case gasket | 42181-35010 · 42181-60020 |
| 43621 | Front axle differential driving pinion bearing spacer | 41231-22010 · 41231-40010 · 41231-40011 |
| 43622 | Front axle differential ring gear fixing bolt locking plate | 41222-35020 · 41222-35030 |
| 43622A | Bolt (for front axle differential ring gear fixing plate) | 90101-11353 |
| 43631 | Front axle differential housing | 41311-22050 · 41311-22060 · 41311-40020 |
| 43631A | Front axle differential bearing | 90368-45002 · 90368-45066 · 90368-50006 |
| 43632 | Front axle differential bearing adjusting nut | 41315-35010 |
| 43633 | Front axle differential half gear | 41331-22041 · 41331-35010 · 41331-35011 |
| 43634 | Front axle differential side gear thrust washer | 41361-30040 · 41361-30050 · 41361-30060 · 41361-30070 · 41361-40021 · 41362-40021 · 41363-40021 |
| 43635 | Front axle differential planetary gear shaft | 41342-22020 · 41342-39610 |
| 43635A | Front axle differential planetary gear pin | 90250-06058 · 90250-06085 |
| 43636 | Front axle differential planetary gear | 41341-30020 · 41341-35020 · 41341-39020 |
| 43636A | Front axle differential planetary gear thrust washer | 41351-30051 · 41351-30052 · 41351-30060 |
| 43637 | Front axle drive pinion flange with dust cover | 41204-35040 · 41204-35050 |
| 43637A | Dust cover (for front axle) | 37341-30010 · 41252-30010 · 41252-35010 · 41252-35020 |
| 43637B | Flat washer (for front axle drive pinion) | 90201-18485 · 90201-20005 |
| 43637C | Castle nut (for front axle drive pinion) | 90179-18001 · 90179-20001 · 90179-20018 |
| 43640 | Front axle differential final reducer gear assembly | 41201-29475 · 41201-29495 · 41201-29536 · 41201-39416 · 41201-39695 · 41201-39696 · 41201-39697 · 41201-39715 · 41201-39735 · 41201-39745 |
| 43640A | Front axle drive pinion front bearing | 90366-35023 · 90366-35044 · 97609-32307 |
| 43640C | Front axle driving pinion thrust spacer or washer | 90201-35396 · 90201-35397 · 90201-35398 · 90201-35399 · 90201-35400 · 90201-35401 · 90201-35402 · 90201-35403 · 90201-35404 · 90201-35434 · 90201-35435 · 90201-35436 · 90201-35437 · 90201-35438 · 90201-35439 · 90201-35440 · 90201-35441 · 90201-35497 · 90201-35498 · 90201-35499 · 90201-35500 · 90201-35501 · 90201-35502 · 90201-35503 · 90201-35504 · 90201-35505 · 90201-35506 · 90201-35507 · 90201-35508 · 90201-35509 · 90201-35510 · 90201-35511 · 90201-35512 · 90201-35513 · 90201-35514 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 |
| 43640E | Front axle driving pinion rear bearing | 90366-30008 · 90366-30022 |
| 43640G | T-type oil seal (for front axle differential housing) | 90311-38035 · 90311-38134 |
