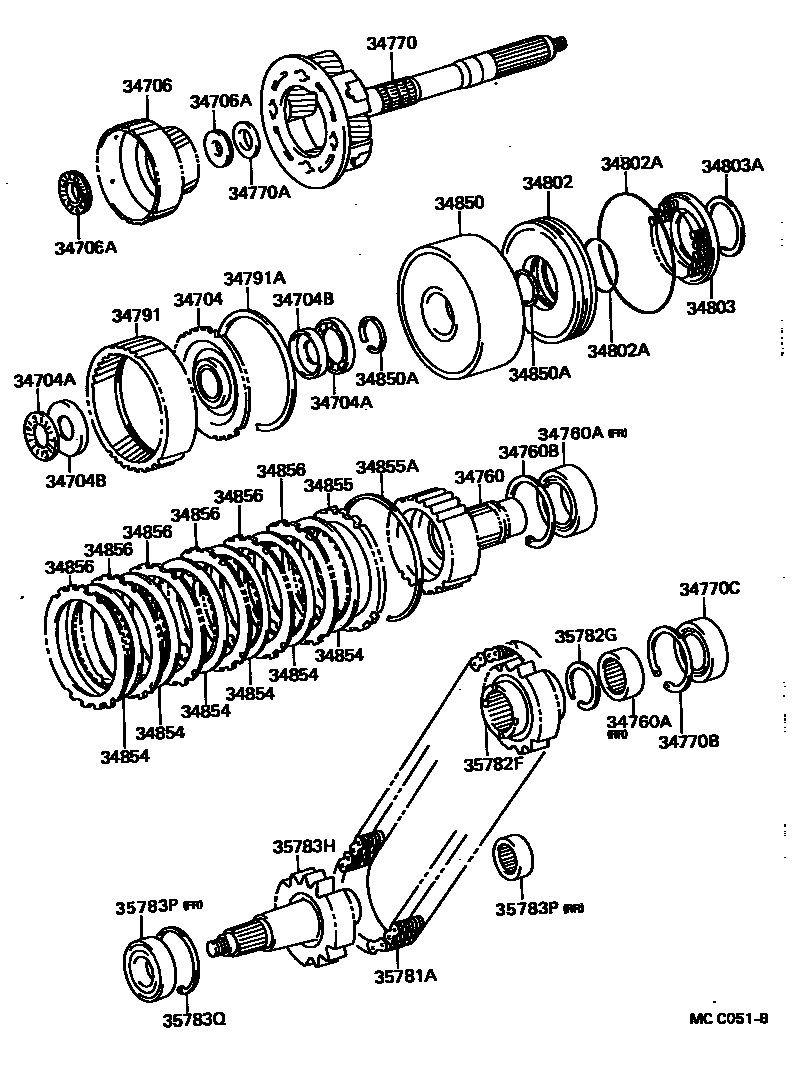

Toyota HILUX 前轮驱动离合器和齿轮 — Figure 3614
Toyota HILUX EPC diagram 3614, 前轮驱动离合器和齿轮, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 34704 | Transfer case planetary ring gear flange sub-assembly | 34704-35010 |
| 34704A | Thrust bearing (for transfer case planetary gear flange) | 90374-35002 · 90374-38001 |
| 34704B | Thrust bearing race (for planetary ring gear flange) | 35789-35040 |
| 34706 | Transfer case planetary gear train sun gear sub-assembly | 34706-35010 |
| 34706A | Thrust bearing (for transfer case planetary gear train sun gear) | 90374-19001 · 90374-30007 |
| 34760 | Transfer case front output shaft assembly | 34760-35011 |
| 34760A | Bearing (for transfer case front output shaft) | 90363-51001 · 90364-45003 |
| 34760B | Hole snap ring (for transfer case front output shaft bearing) | 90521-84001 |
| 34770 | Transfer case rear output shaft assembly | 34770-35011 · 34770-35012 |
| 34770A | Thrust bearing race (for transfer case rear output shaft) | 35789-35030 |
| 34770B | Snap ring (for transfer case rear output shaft) | 90521-84001 |
| 34770C | Bearing (for transfer case rear output shaft) | 90363-30046 |
| 34791 | Transfer case planetary ring gear | 34791-35010 |
| 34791A | Hole snap ring (for transfer case planetary ring gear) | 90521-99039 |
| 34802 | Transfer case front wheel drive clutch piston sub-assembly | 34802-35010 · 34802-35011 |
| 34802A | O-ring (for transfer case front-wheel drive clutch piston) | 90301-60003 · 90301-99041 |
| 34803 | Front wheel drive clutch return spring sub-assembly | 34803-35010 |
| 34803A | Shaft snap ring (for front wheel drive clutch return spring) | 90520-56001 |
| 34850 | Transfer case front wheel drive clutch drum assembly | 34850-35010 · 34850-35011 |
| 34850A | Shaft snap ring (for transfer case front wheel drive clutch drum) | 90520-32003 |
| 34854 | Transfer case front wheel drive clutch disc | 34653-35010 · 34653-35020 |
| 34855 | Transfer case front wheel drive clutch flange | 34655-35010 |
| 34855A | Hole snap ring (for transfer case front wheel drive clutch flange) | 90521-99036 |
| 34856 | Transfer case front wheel drive clutch plate | 34656-35010 |
| 35781A | Front wheel drive chain | 35781-35010 |
| 35782F | drive sprocket | 35782-35011 |
| 35782G | Shaft snap ring (for drive sprocket) | 90520-45002 |
| 35783H | Driven sprocket | 35783-35020 |
| 35783P | Bearings (for transfer case driven sprocket) | 90363-30046 · 90364-35006 |
| 35783Q | Hole snap ring (for transfer case driven sprocket bearing) | 90521-74001 |
