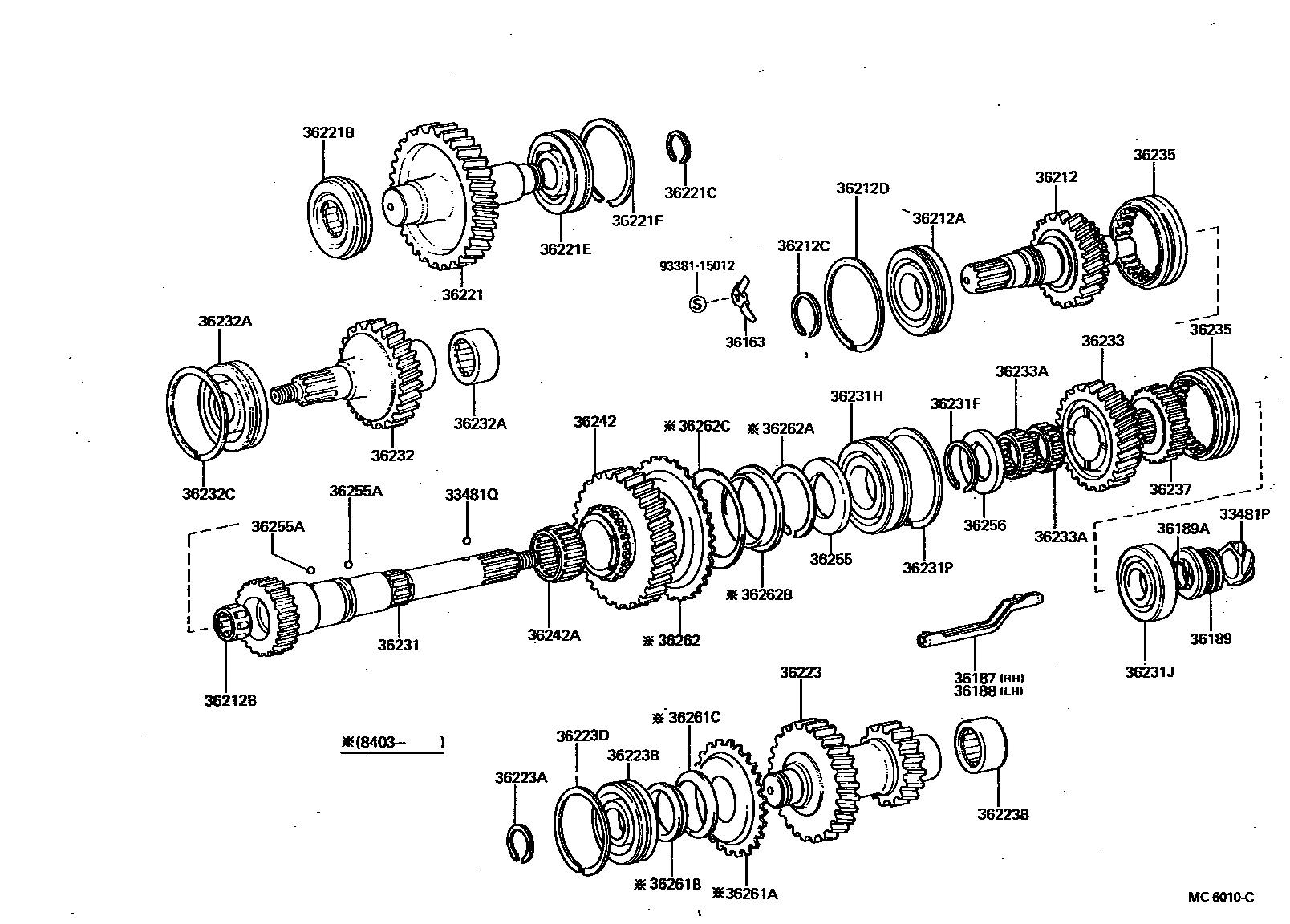

Toyota HILUX Transfer Gear — Figure 3610
Toyota HILUX EPC diagram 3610, Transfer Gear, with 1 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33481P | Speedometer drive gear (for transfer case) | 33481-20070 · 33481-22010 |
| 33481Q | Speedometer driving gear key or steel ball (for transfer case) | 90360-06004 |
| 36163 | Transfer case front bearing block | 36163-35010 |
| 36187 | Right transfer case oil supply pipe | 36187-35010 |
| 36188 | Left transfer case oil supply pipe | 36188-35010 |
| 36189 | Transfer case oil pump screw | 36189-35010 |
| 36189A | O-ring (for transfer case oil pump screw) | 96711-24028 |
| 36212 | transfer case input gear | 36212-35011 · 36212-35012 |
| 36212A | Radial ball bearing (for transfer case input gear) | 90363-35009 |
| 36212B | Needle roller bearings (for transfer case input gear) | 90364-19006 · 90364-19043 |
| 36212C | Shaft snap ring (for transfer case input gear) | 90520-33168 · 90520-33170 · 90520-33172 |
| 36212D | Shaft snap ring (for transfer case input bearing) | 90520-76001 |
| 36221 | Transfer case idler gear | 36221-35010 |
| 36221B | Bearings (for transfer case idler gear) | 90365-38001 |
| 36221C | Shaft snap ring (for transfer case idler gear) | 90520-28242 · 90520-28243 |
| 36221E | Radial ball bearing (for transfer case idler) | 90363-30012 |
| 36221F | Shaft snap ring (for transfer case idler bearing) | 90520-68193 |
| 36223 | Transfer countershaft gear | 36223-35010 · 36223-35011 |
| 36223A | Shaft snap ring (for transfer case countershaft gear) | 90520-30215 · 90520-30217 |
| 36223B | Bearings (for transfer case countershaft gear) | 90363-32006 · 90369-45001 |
| 36223D | Shaft snap ring (for transfer case countershaft gear bearing) | 90520-71221 |
| 36231 | Transfer case rear output shaft | 36231-35011 |
| 36231F | Shaft snap ring (for transfer case output shaft) | 90520-36250 · 90520-36251 · 90520-36252 · 90520-36253 · 90520-36254 · 90520-36255 |
| 36231H | Radial ball bearing (for transfer case front output shaft) | 90363-40007 |
| 36231J | Radial ball bearing (for transfer case rear output shaft) | 90363-28002 · 90363-28004 |
| 36231P | Shaft snap ring (for transfer case output shaft front bearing) | 90520-86001 |
| 36232 | Transfer case front driving gear | 36232-35011 |
| 36232A | Bearing (for transfer case front driving gear) | 90363-30014 · 90369-45001 |
| 36232C | Shaft snap ring (for transfer case front drive gear bearing) | 90520-76001 |
| 36233 | Transfer case drive gear | 36233-35010 |
| 36233A | Needle roller bearings (for transfer case driving gear) | 90364-35001 |
| 36235 | Transfer case high and low speed clutch sleeves | 36235-35010 |
| 36237 | Transfer case clutch hub | 36237-35010 |
| 36242 | Transfer case low gear | 36242-35010 · 36242-35011 |
| 36242A | Needle roller bearings (for transfer case low gear) | 90364-45002 |
| 36255 | No. 1 transfer case output shaft spacer | 36255-35010 |
| 36255A | Steel ball (for transfer case output shaft spacer) | 90360-06004 |
| 36256 | No. 2 transfer case output shaft spacer | 36256-35010 |
| 36261A | No. 1 transfer case counter gear | 36261-35011 |
| 36261B | Spacer (for No. 1 transfer case counter gear) | 90560-38002 |
| 36261C | No. 1 pinion gear thrust spring | 33357-35010 |
| 36262 | No. 2 transfer case counter gear | 36262-35011 |
| 36262A | Snap ring (for No. 2 transfer case counter gear) | 90520-59003 |
| 36262B | Spacer (for No. 2 transfer case counter gear) | 90561-63002 |
| 36262C | No. 2 counter gear thrust spring | 33357-35021 |
