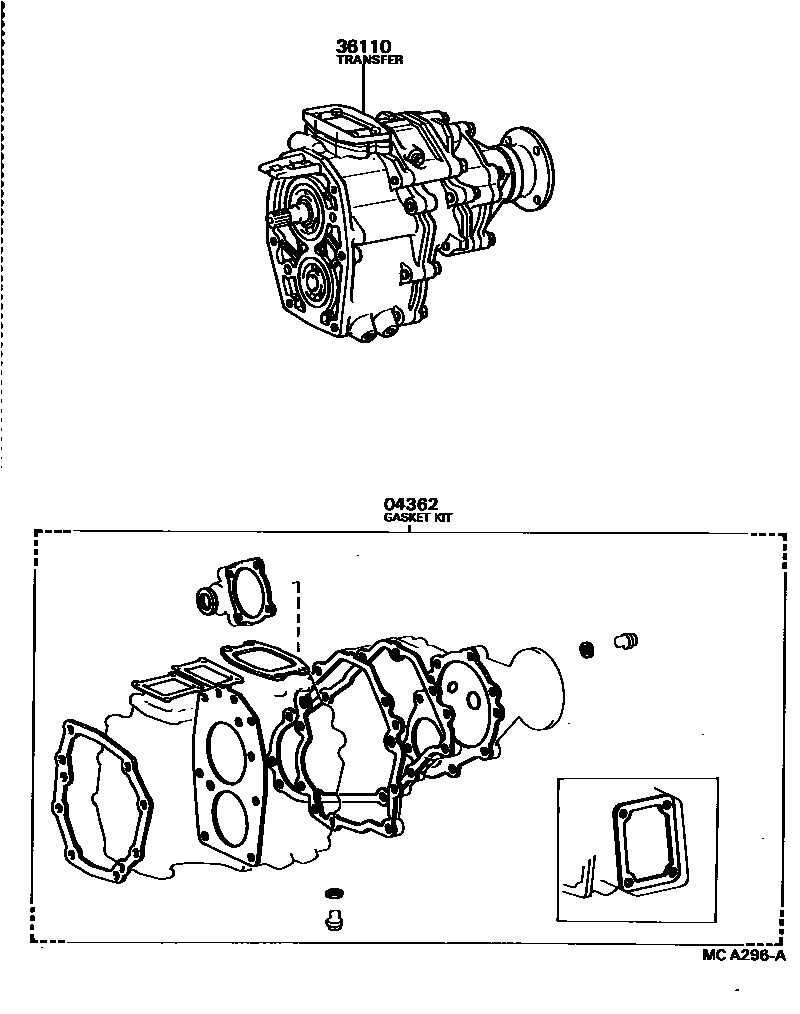

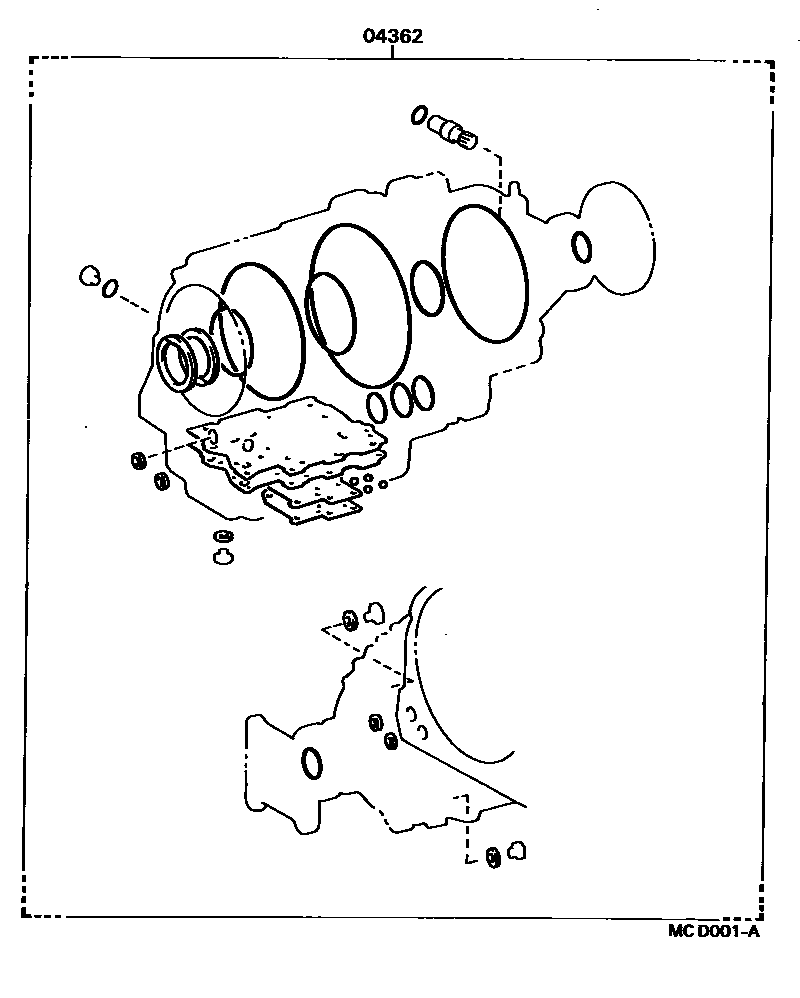

Toyota HILUX Transfer Assembly & Gasket Kit — Figure 3608
Toyota HILUX EPC diagram 3608, Transfer Assembly & Gasket Kit, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04362 | Transfer case overhaul gasket assembly | 04362-35012 · 04362-35013 |
| 36110 | Transfer case assembly | 36100-35180 · 36100-35181 · 36100-35190 · 36100-35191 · 36100-35210 · 36100-35211 · 36100-35230 |
