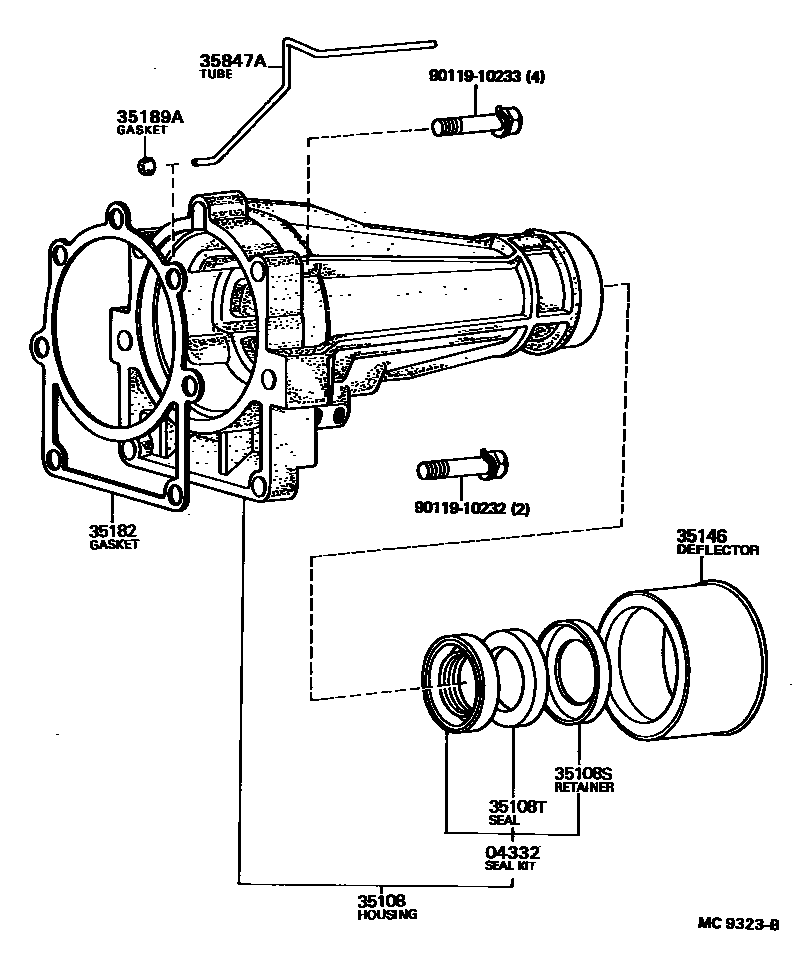

Toyota HILUX Extension shell (ATM) — Figure 3504
Toyota HILUX EPC diagram 3504, Extension shell (ATM), with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04332 | Oil seal assembly (for automatic transmission extension housing) | 04332-30020 |
| 35108 | Extended shell sub-assembly (ATM) | 35108-22033 · 35108-22034 |
| 35108S | Extension housing dust seal (ATM) | 33145-30010 |
| 35108T | Dust seal (for automatic transmission extension housing) | 90303-38010 |
| 35146 | Extension case dust cover (ATM) | 33146-30010 |
| 35182 | Extension shell liner (ATM) | 35182-22010 |
| 35189A | Extension housing bushing oil supply pipe gasket | 35189-30010 |
| 35847A | Extension housing bushing oil supply pipe | 35847-30020 |
