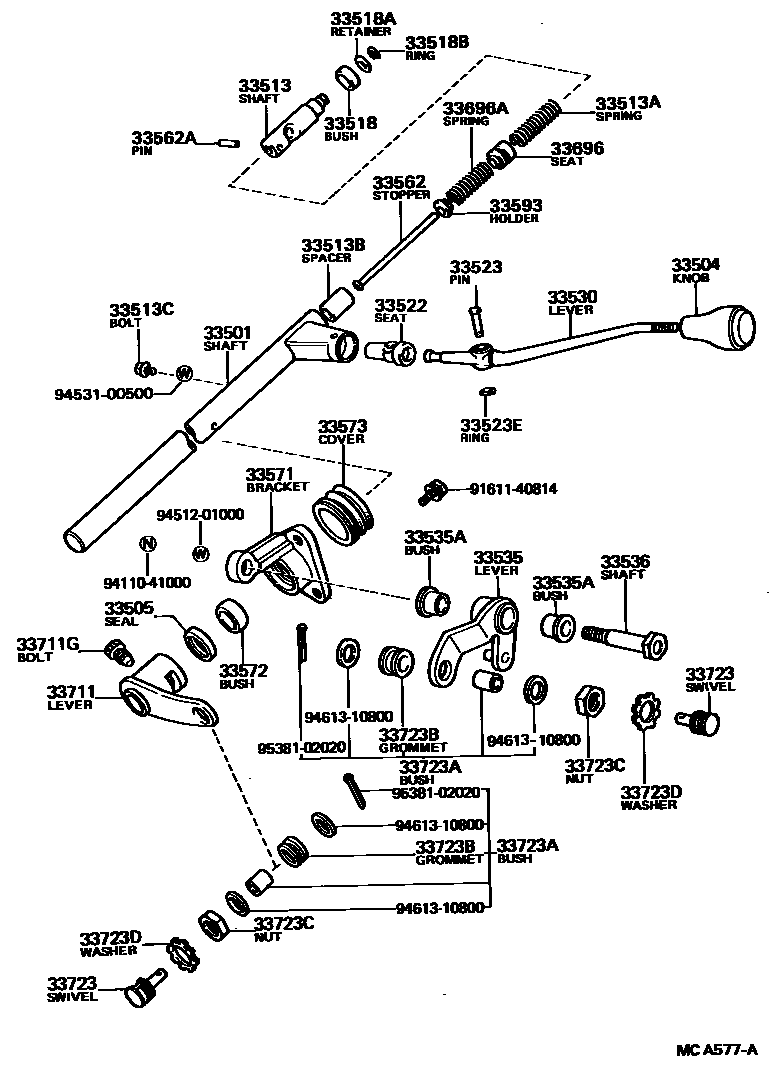

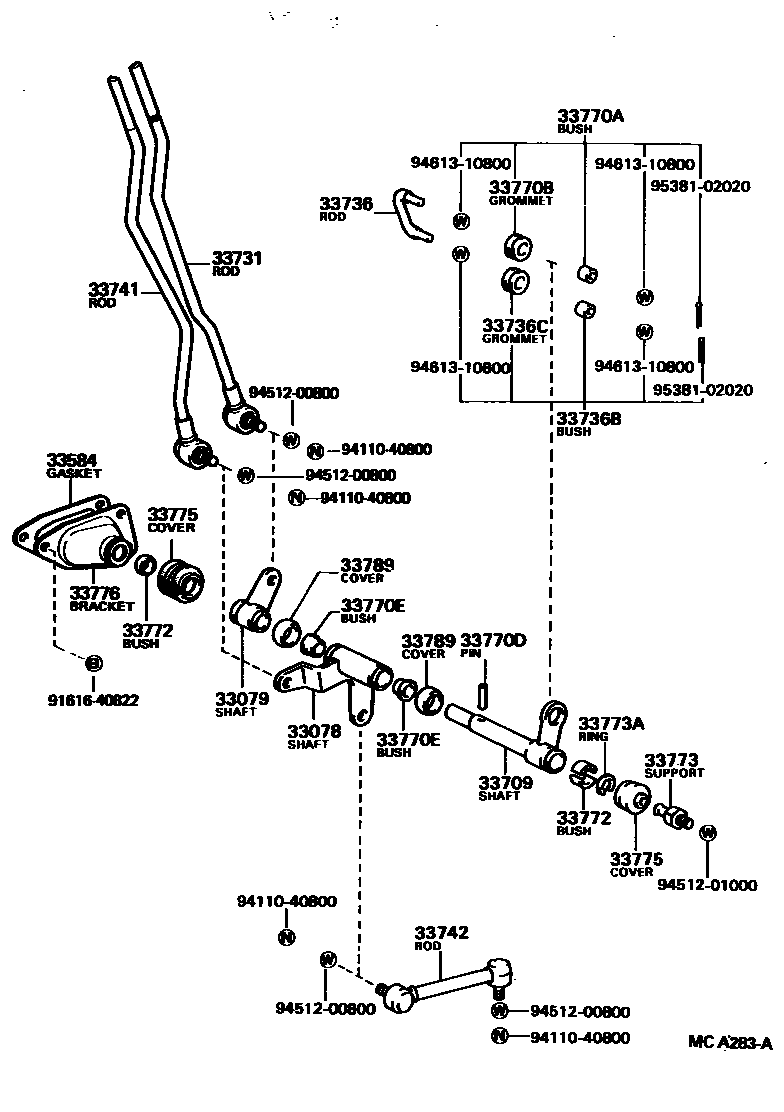

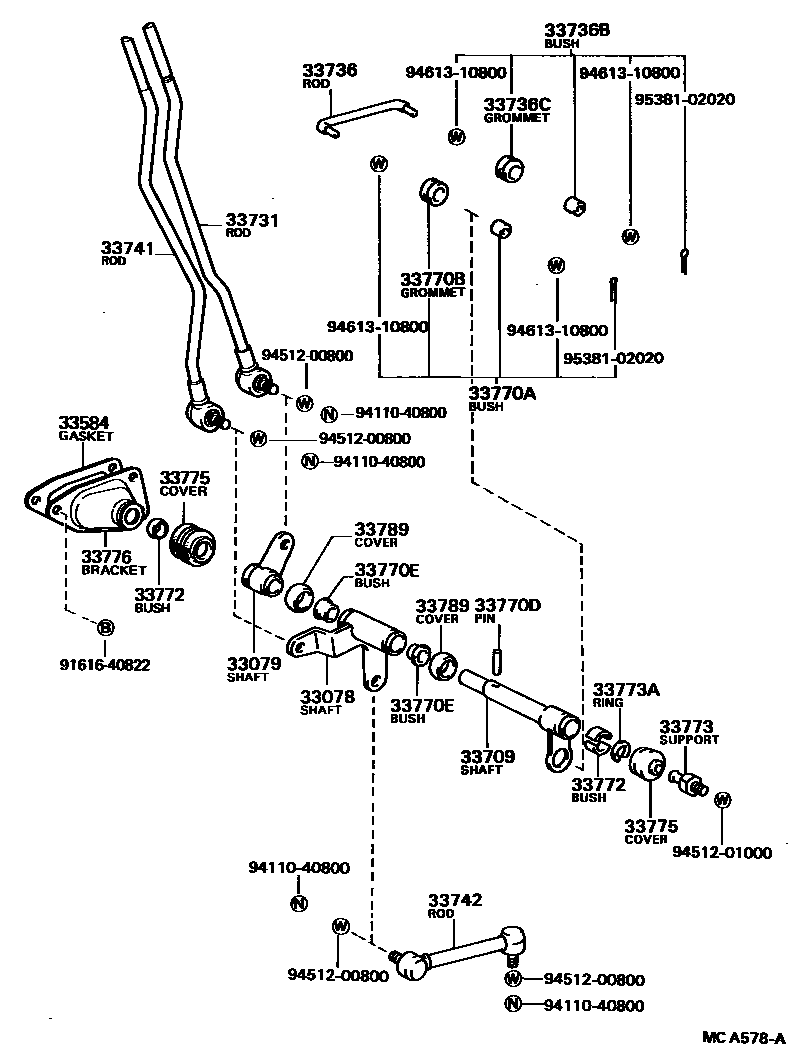

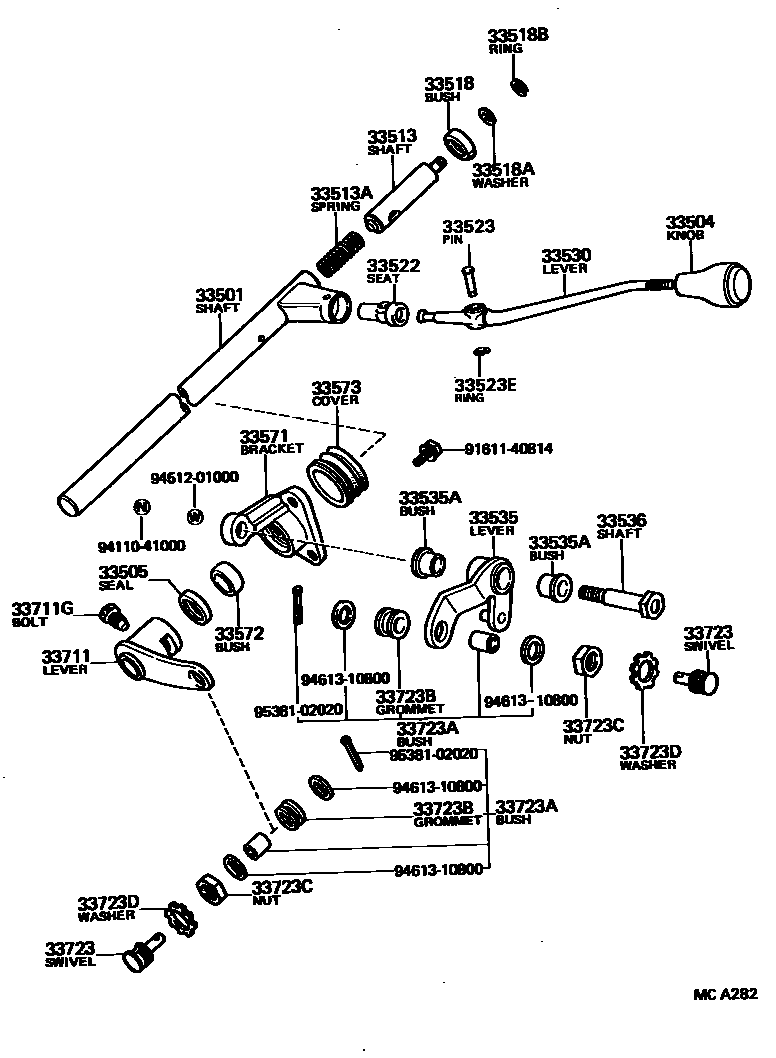

Toyota HILUX 控制轴和横轴 — Figure 3311
Toyota HILUX EPC diagram 3311, 控制轴和横轴, with 4 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33078 | No. 2 transverse shaft sub-assembly (for steering wheel gear shifting) | 33078-35080 · 33078-35090 |
| 33079 | No. 3 horizontal shaft sub-assembly (for steering wheel gear shifting) | 33079-35060 |
| 33501 | Control shaft sub-assembly (for steering wheel gear shifting) | 33501-35150 · 33501-35160 |
| 33504 | Shift lever handle sub-assembly (for steering wheel-type shifting) | 33504-30110 |
| 33505 | Control shaft dust seal ring sub-assembly (for steering wheel gear shift) | 33505-30010 |
| 33513 | Control shaft upper bracket shaft | 33513-35060 · 33513-35070 |
| 33513A | Compression spring (for upper bracket shaft) | 90501-14395 |
| 33513B | Spacer (for control shaft support shaft) | 90506-11015 |
| 33513C | Bolt (for control shaft upper bracket shaft) | 90109-05012 |
| 33518 | Upper control shaft bushing | 33518-35010 |
| 33518A | Flat washer (for upper control shaft bushing) | 90201-08056 |
| 33518B | E-ring (for upper control shaft bushing) | 90523-06019 |
| 33522 | Shift lever base plate holder (for steering wheel gear shifting) | 33522-36010 |
| 33523 | Shift lever pin (for steering wheel-mounted shifting) | 90249-07001 |
| 33523E | E-ring (for shift lever pin) | 96160-00500 |
| 33530 | Shift lever assembly (for steering wheel-type shifting) | 33541-35220 |
| 33535 | Gear selector lever (for steering wheel gear shifting) | 33535-35090 |
| 33535A | Bushing (for gear selector lever) | 90386-13007 |
| 33536 | Gear selector lever shaft (for steering wheel gear shifting) | 33536-25010 |
| 33562 | Control shaft upper bracket shaft stop | 33562-26010 |
| 33562A | Pin (used to control the upper bracket shaft stop on the shaft) | 90254-03006 |
| 33571 | Control shaft lower bracket (for steering wheel gearshift) | 33571-35070 |
| 33572 | Control shaft lower bushing (for steering wheel gearshift) | 33572-35020 |
| 33573 | Dust cover under control shaft | 33577-35010 · 33577-35020 |
| 33584 | Shift Lever Stopper Pad (for steering wheel gearshifts) | 33584-35060 |
| 33593 | Spring retainer (for gear selector lever) | 33593-26030 |
| 33696 | Gear selector spring seat | 33696-26020 |
| 33696A | compression spring | 90501-18049 |
| 33709 | No. 1 transverse shaft sub-assembly (for steering wheel gear shifting) | 33709-35090 · 33709-35100 |
| 33711 | Lever (for steering wheel gear shifting) | 33527-35090 |
| 33711G | Control lever locking bolt | 33218-35010 |
| 33723 | Connecting rod swivel joint (for steering wheel gear shifting) | 33723-12020 |
| 33723A | Bushing (for steering wheel shift control shaft) | 90999-99017 |
| 33723B | Retaining ring (for steering wheel shift control shaft) | 90480-17177 |
| 33723C | Hex nut (for securing control rod) | 90170-18159 |
| 33723D | Serrated washers (for securing control rods) | 90205-18012 |
| 33731 | No. 1 gear selector linkage (for steering wheel gear shifting) | 33720-35150 |
| 33736 | No. 2 gear selector linkage (for steering wheel gear shifting) | 33736-35020 · 33736-35030 |
| 33736B | Bushing (for No. 2 gear selector linkage) | 90999-99017 |
| 33736C | Retaining ring (for No. 2 gear selector linkage) | 90480-17177 |
| 33741 | Shift lever No. 1 (for steering wheel-type shifting) | 33710-35110 |
| 33742 | No. 2 gear shift lever (for steering wheel gear shifting) | 33730-35030 · 33730-35040 |
| 33770A | Bushing (for cross shaft) | 90999-99017 |
| 33770B | Gasket (for steering wheel shift shaft) | 90480-17177 |
| 33770D | Pin (for horizontal axis) | 90256-06001 |
| 33770E | Bushing (for cross shaft) | 90386-13007 |
| 33772 | No. 1 transverse shaft bracket bushing (for steering wheel gear shift) | 33772-20010 · 33772-35011 |
| 33773 | No. 1 horizontal shaft bracket (for steering wheel gear shifting) | 33773-20011 |
| 33773A | Hole snap ring (for cross-axis bracket) | 96151-01600 |
| 33775 | Transverse shaft dust cover (for steering wheel shift) | 33775-20020 · 33775-35030 |
| 33776 | No. 1 horizontal shaft bracket (for steering wheel gear shifting) | 33776-35080 |
| 33789 | Transverse shaft dust cover (for steering wheel shift) | 33789-36010 |
