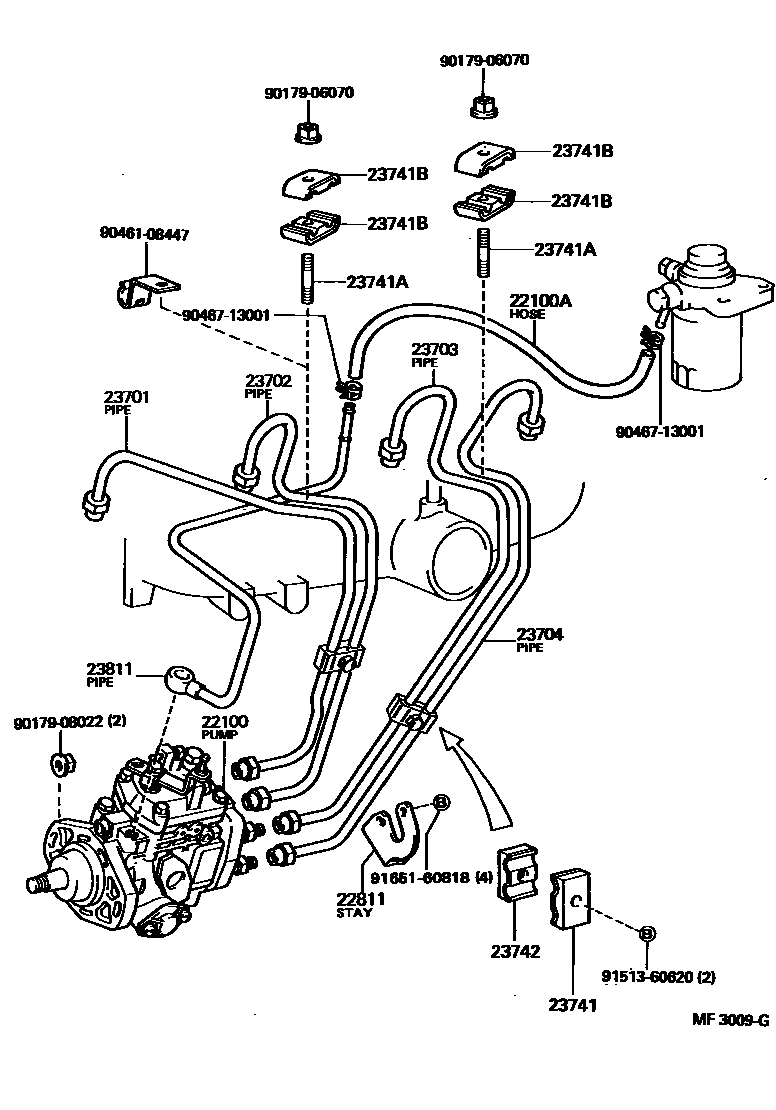

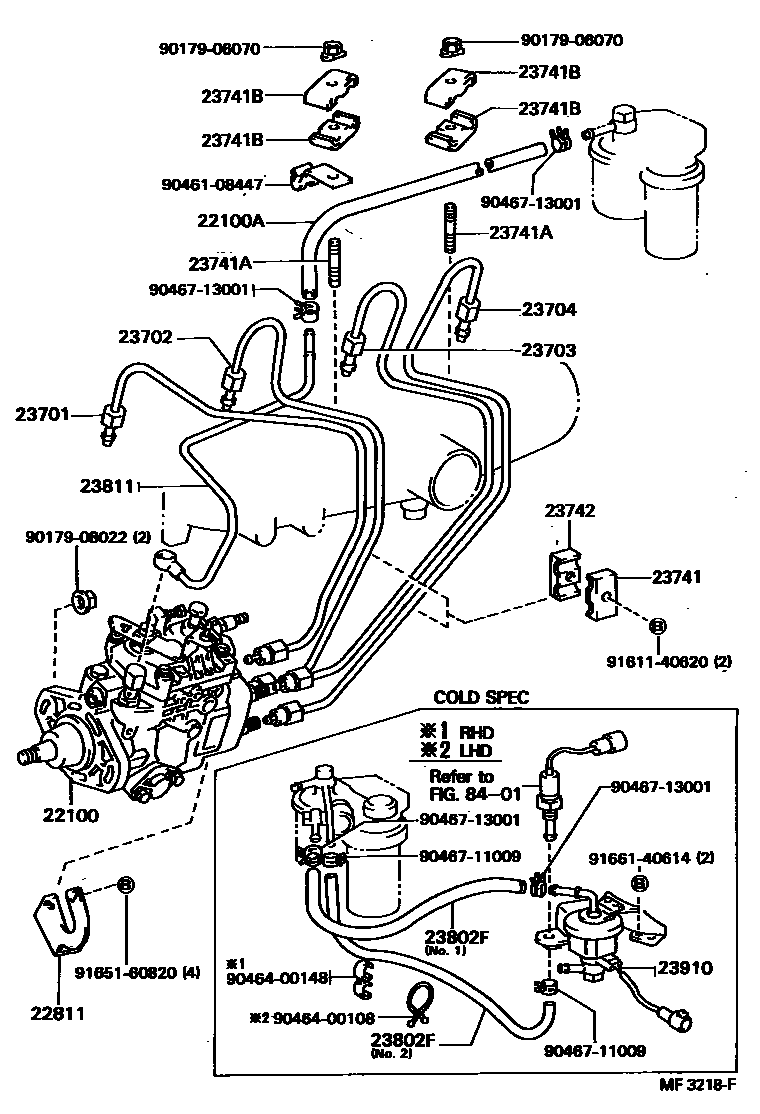

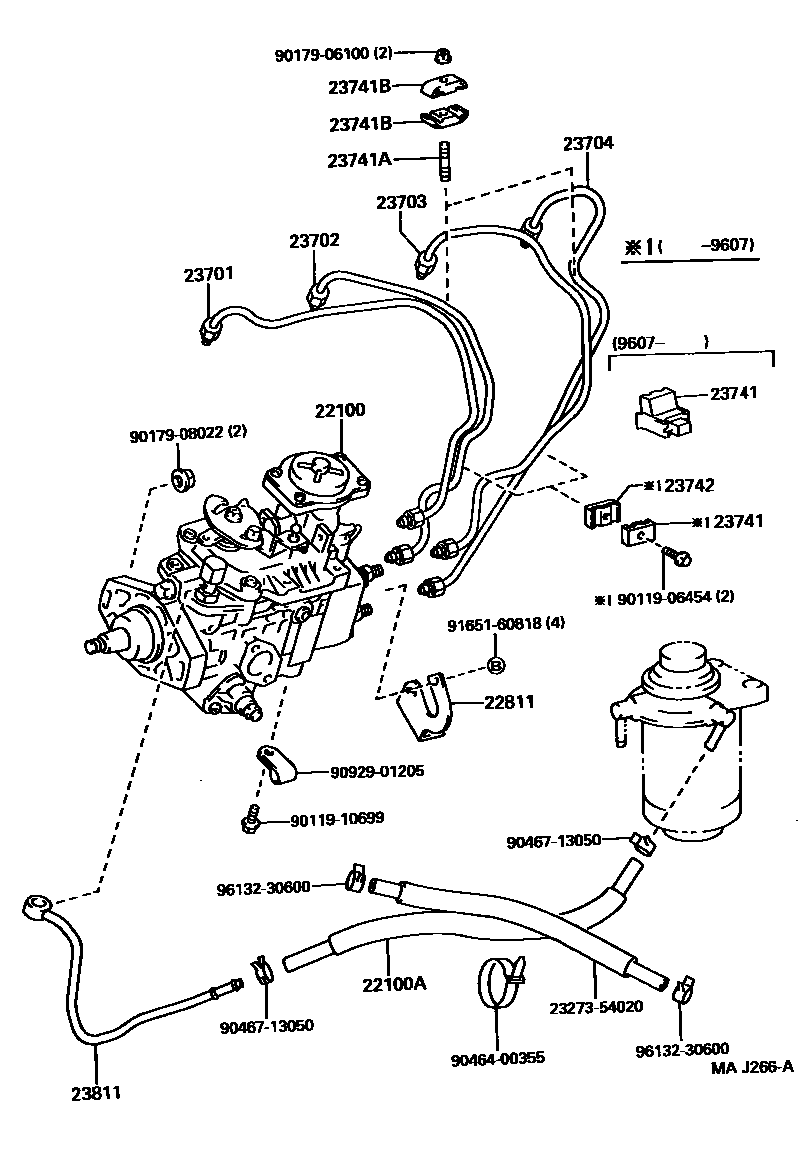

Toyota HILUX 喷油泵总成 — Figure 2202
Toyota HILUX EPC diagram 2202, 喷油泵总成, with 3 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-54131 · 22100-54132 · 22100-54141 · 22100-54142 · 22100-54143 · 22100-54200 · 22100-54201 · 22100-54202 · 22100-54230 · 22100-54231 · 22100-54310 · 22100-54311 · 22100-54340 · 22100-54341 · 22100-54350 · 22100-54351 · 22100-54360 · 22100-54361 · 22100-54380 · 22100-54441 · 22100-54510 · 22100-54511 · 22100-54530 · 22100-54531 · 22100-5B740 · 22100-5B770 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23271-54050 |
| 22811 | No. 1 fuel injection pump bracket | 22811-54040 · 22811-54041 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-54051 · 23701-54072 · 23701-54082 · 23701-54140 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-54050 · 23702-54071 · 23702-54081 · 23702-54140 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-54050 · 23703-54100 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-54050 · 23704-54100 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-54010 · 23741-54030 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06095 · 90116-06275 |
| 23741B | Fuel injection pipe clamp | 23741-54010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-54010 |
| 23802F | fuel hose | 95332-06030 · 95332-06040 · 95332-08020 · 95332-08030 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-54051 · 23811-54151 |
| 23910 | Fuel heater assembly | 23910-54030 |
