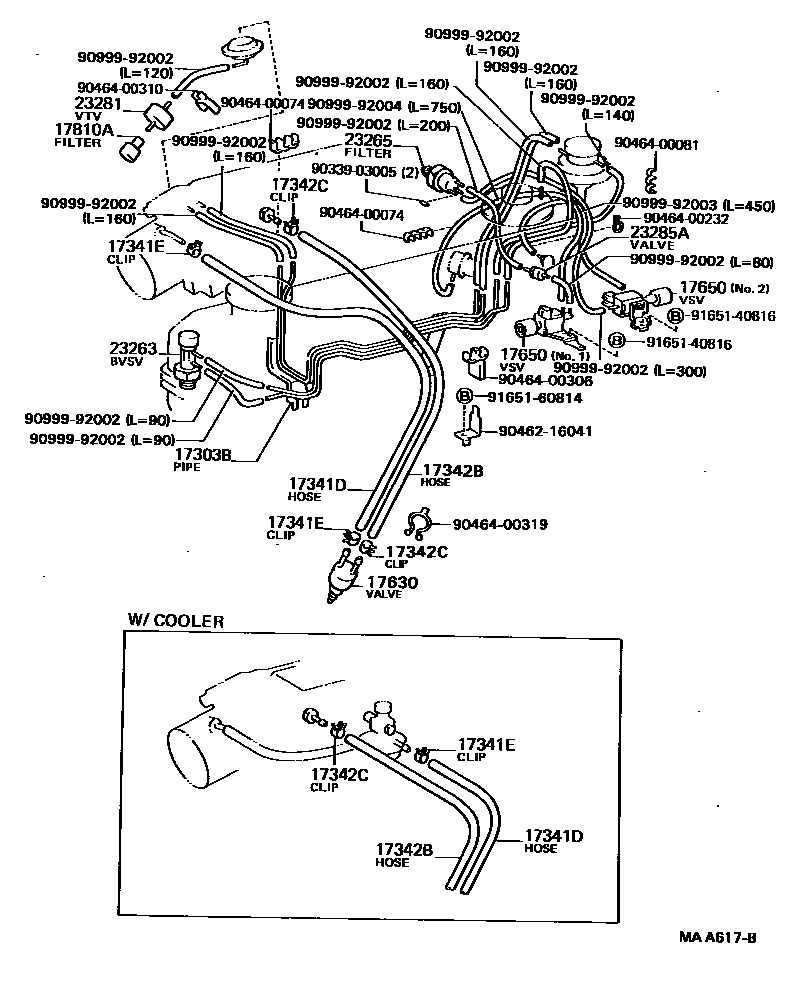

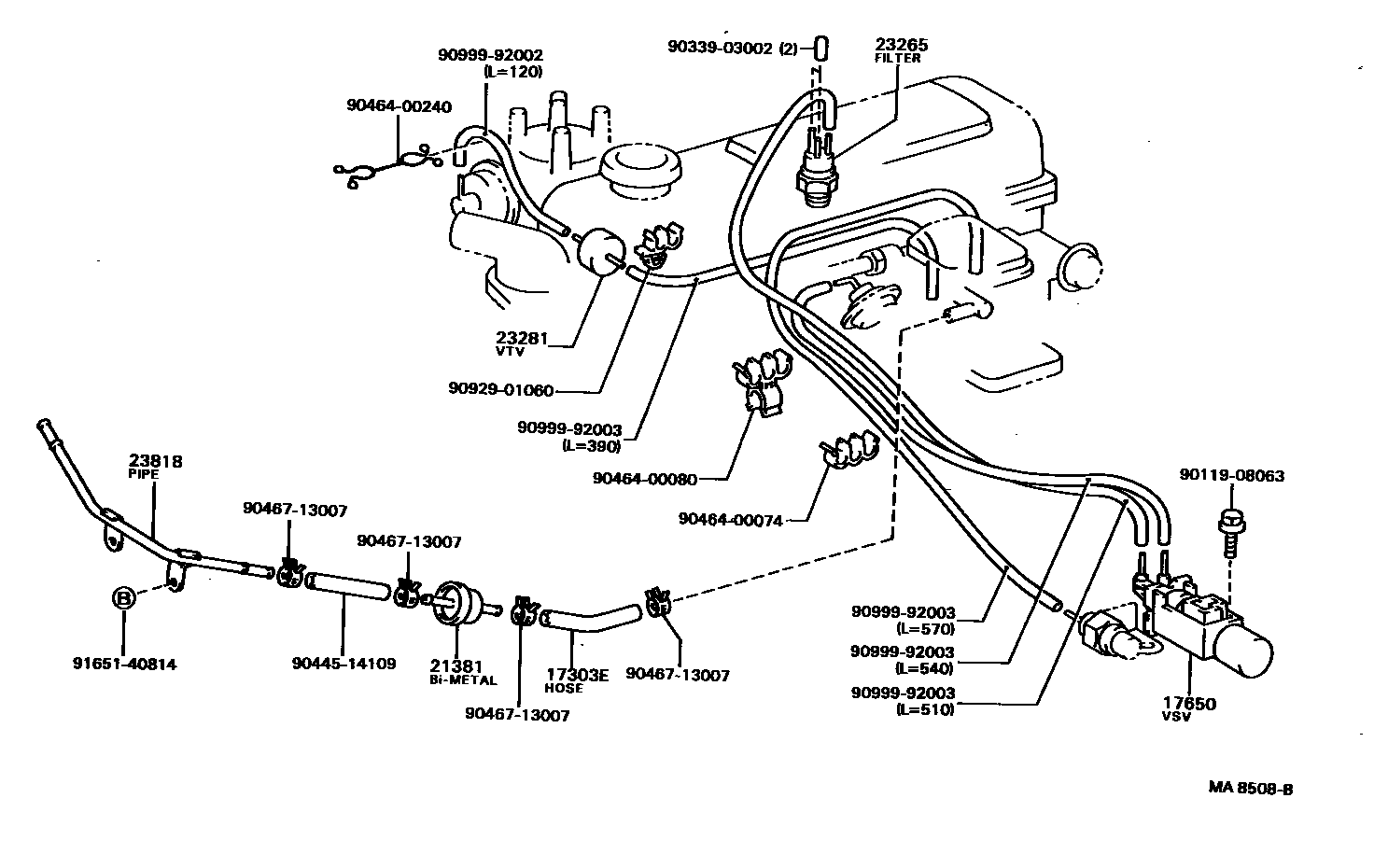

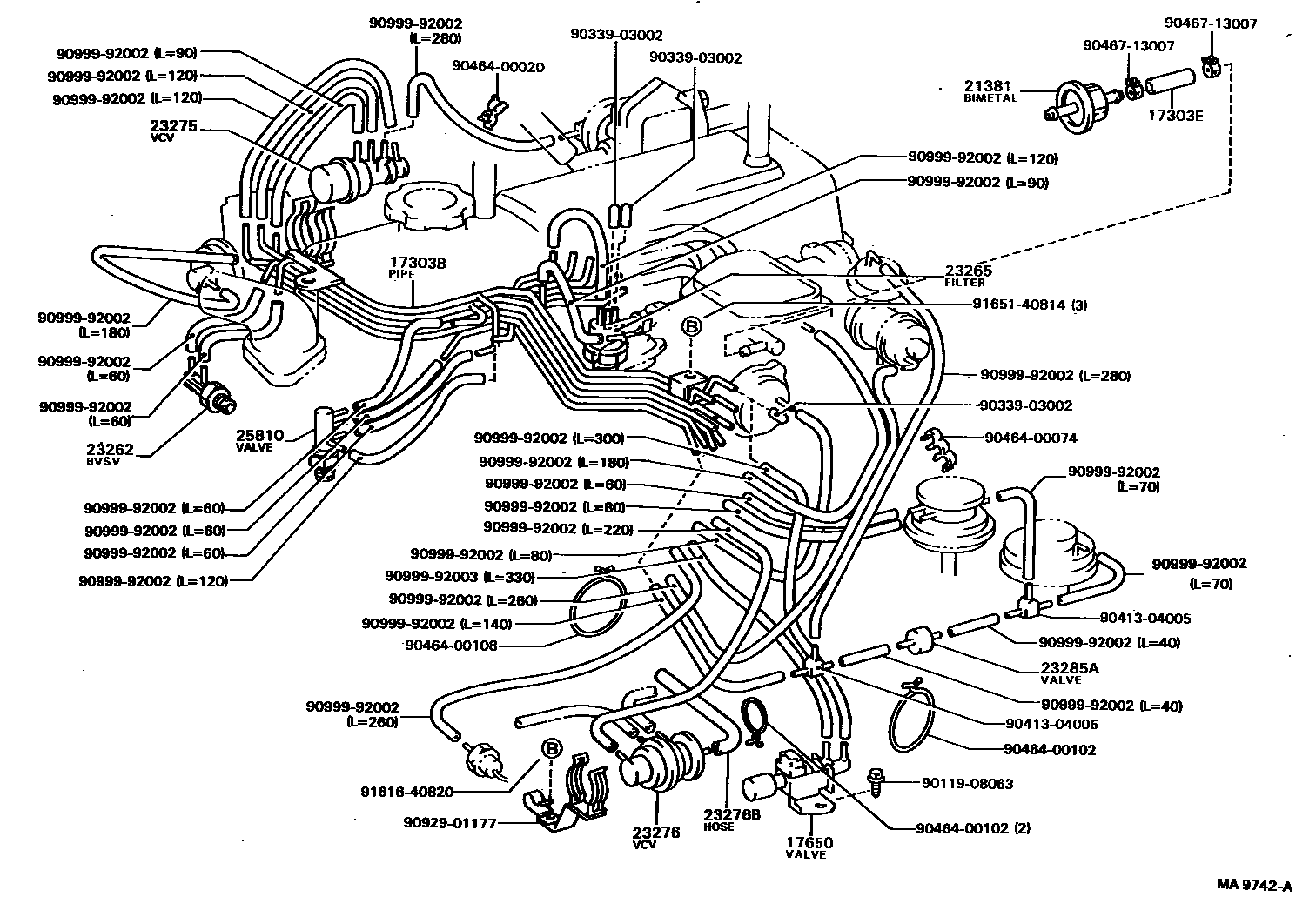

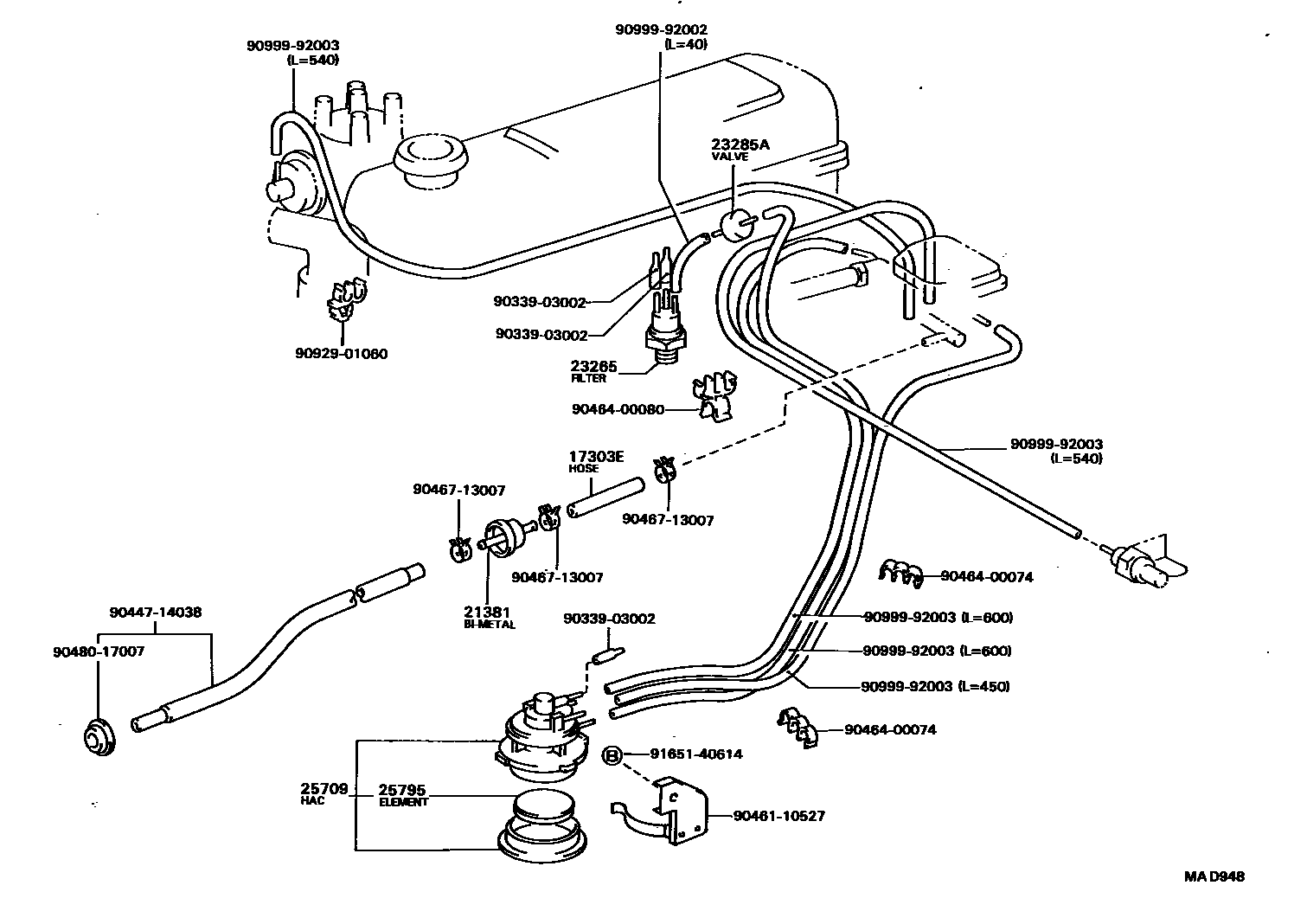

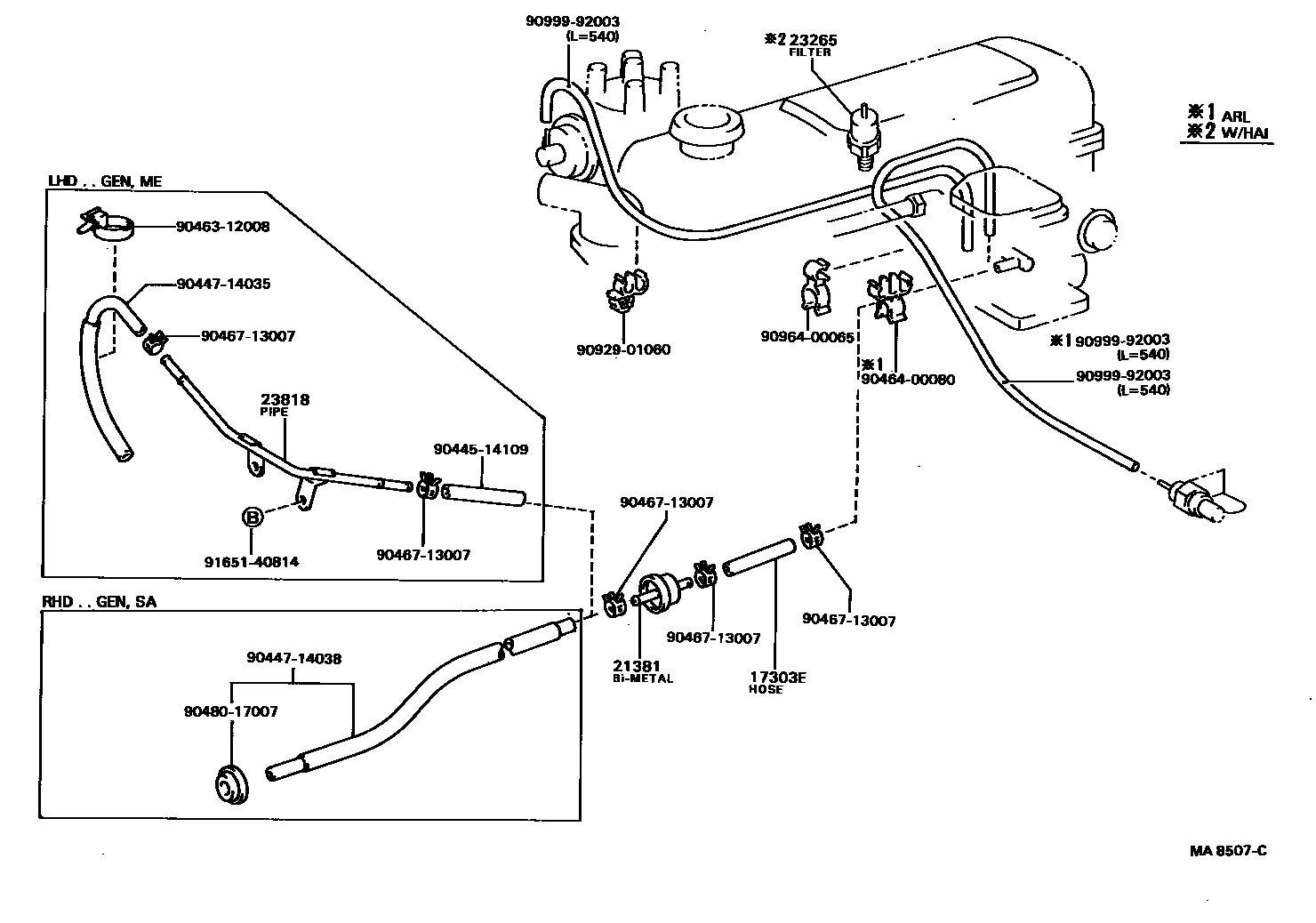

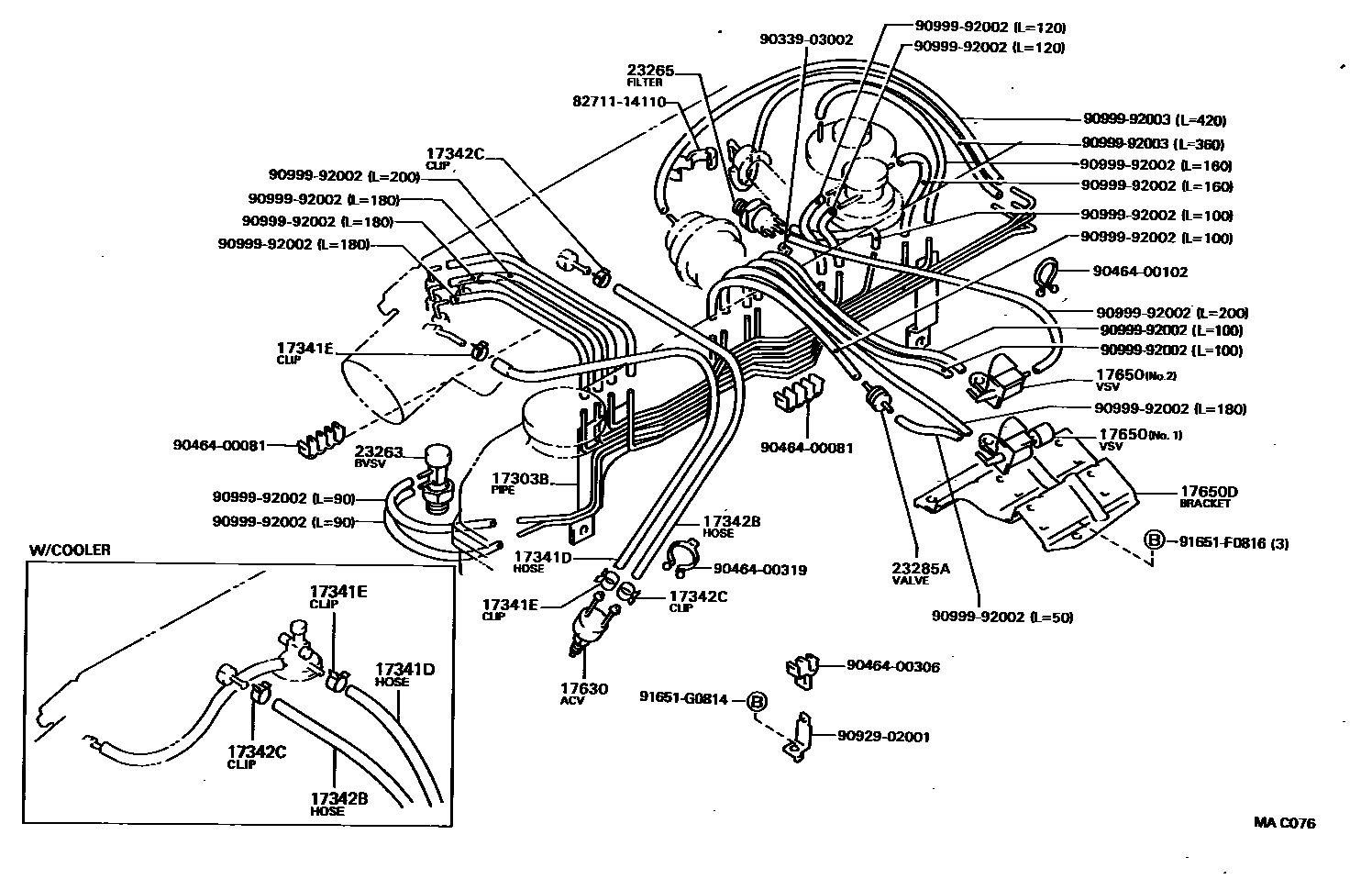

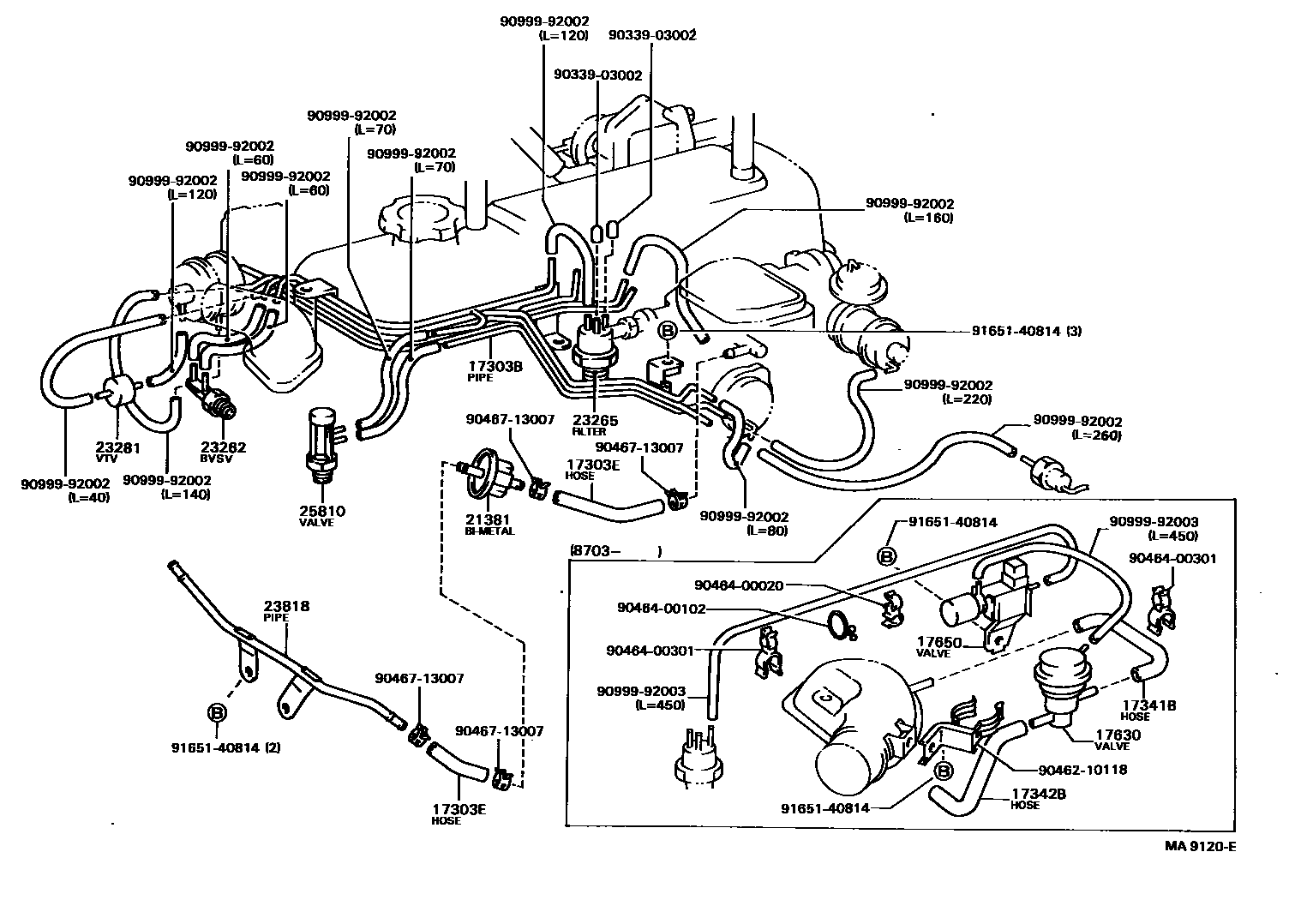

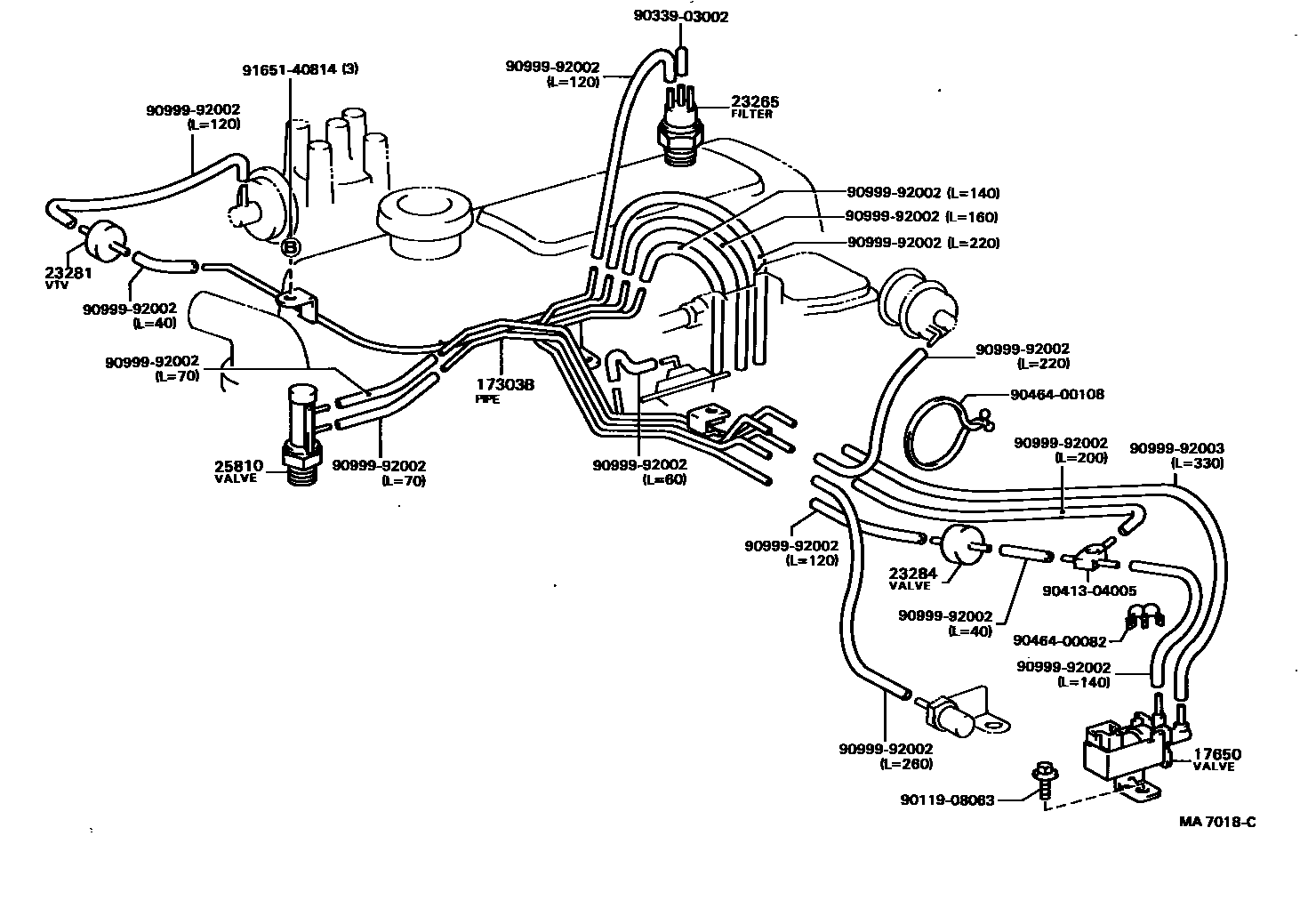

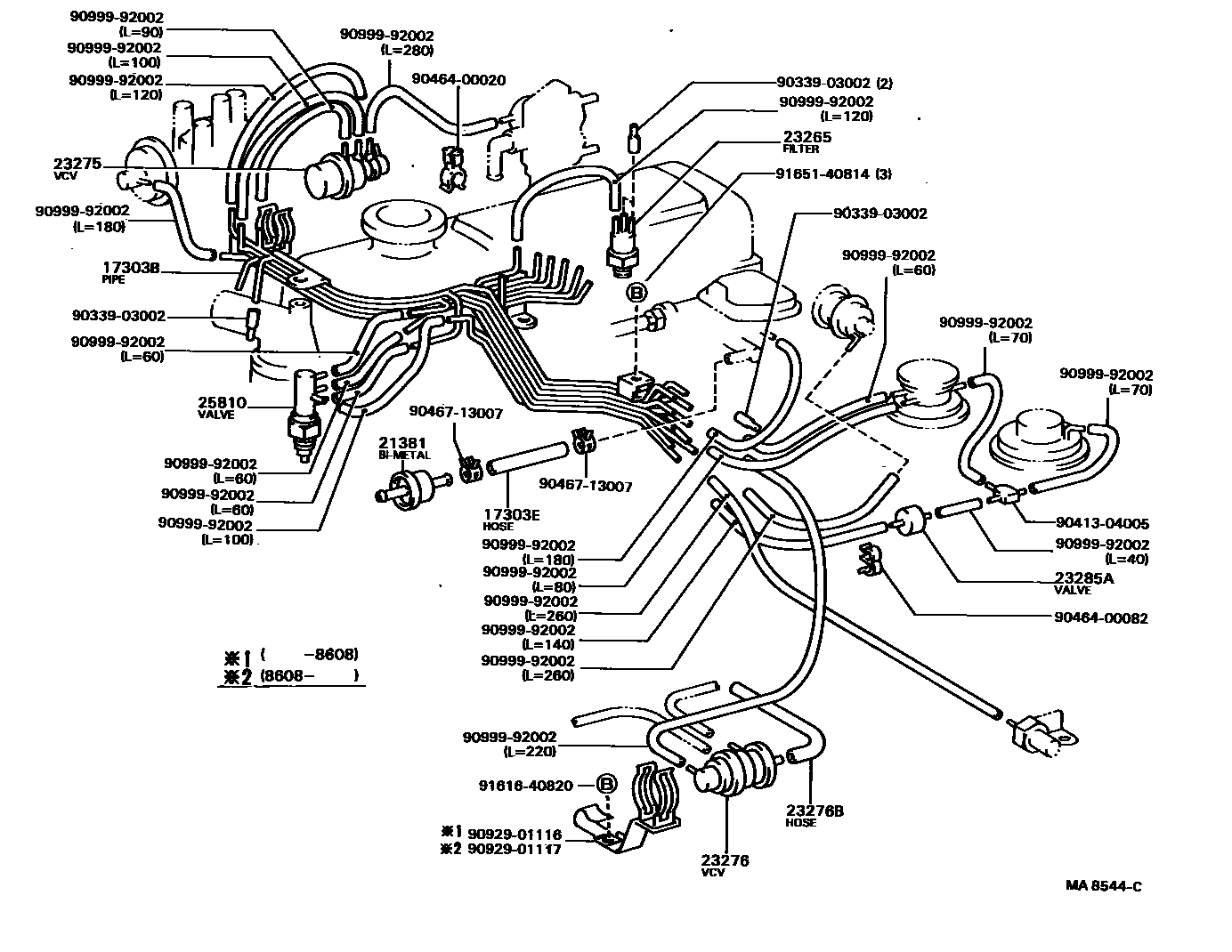

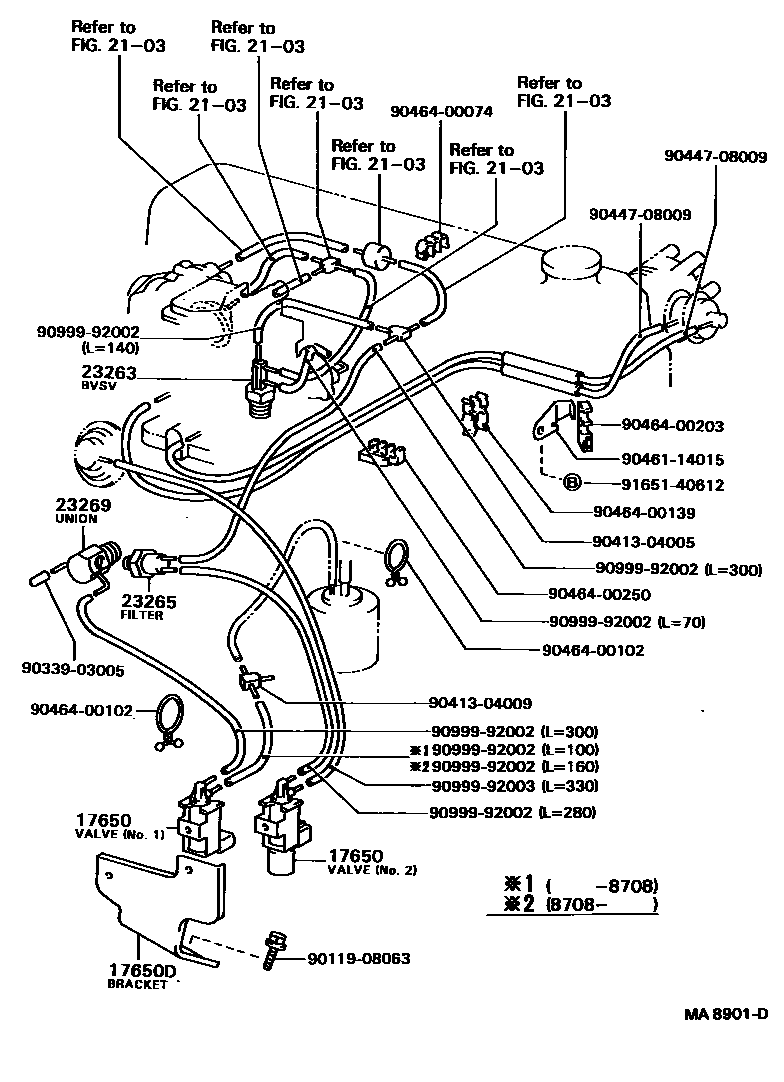

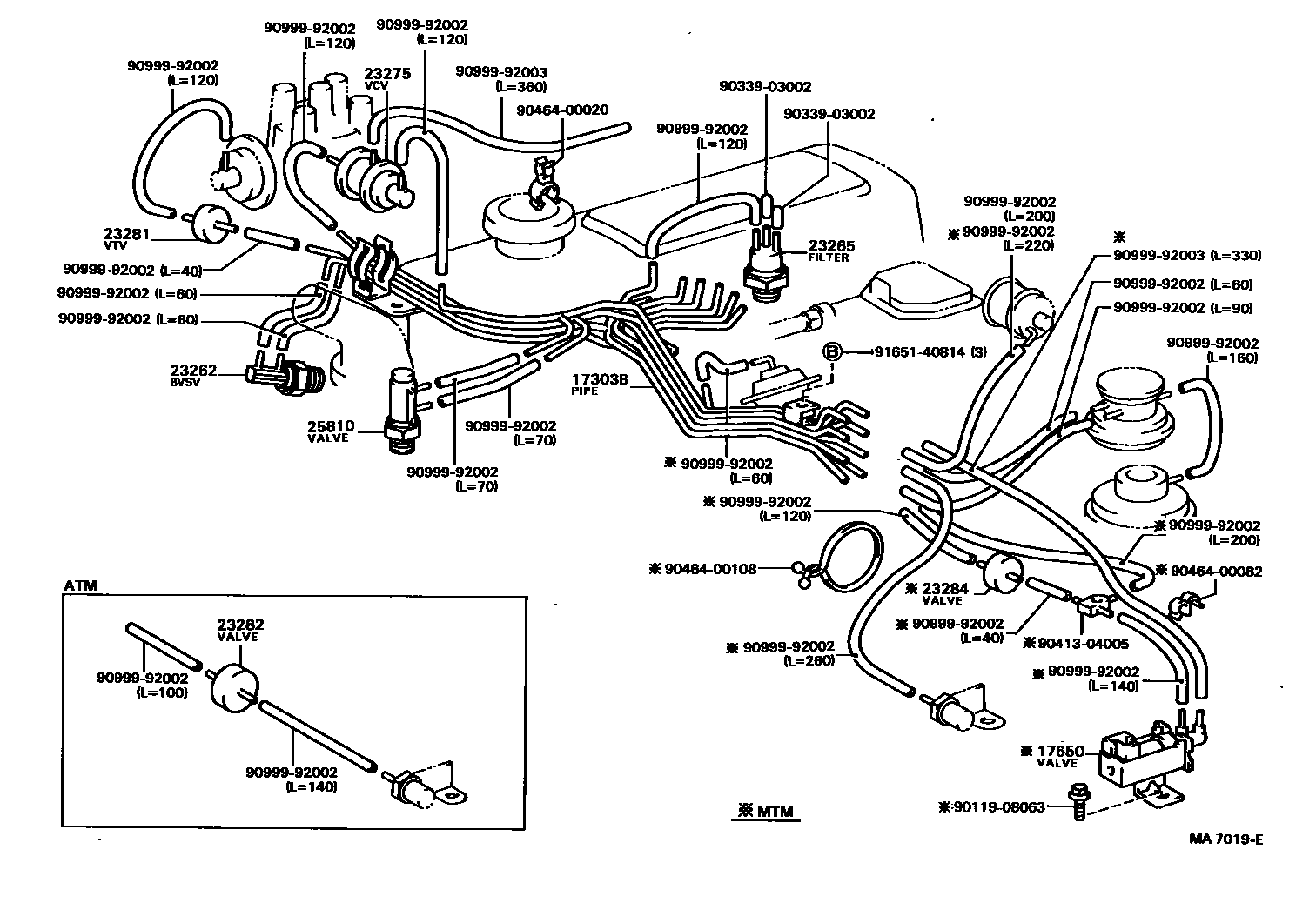

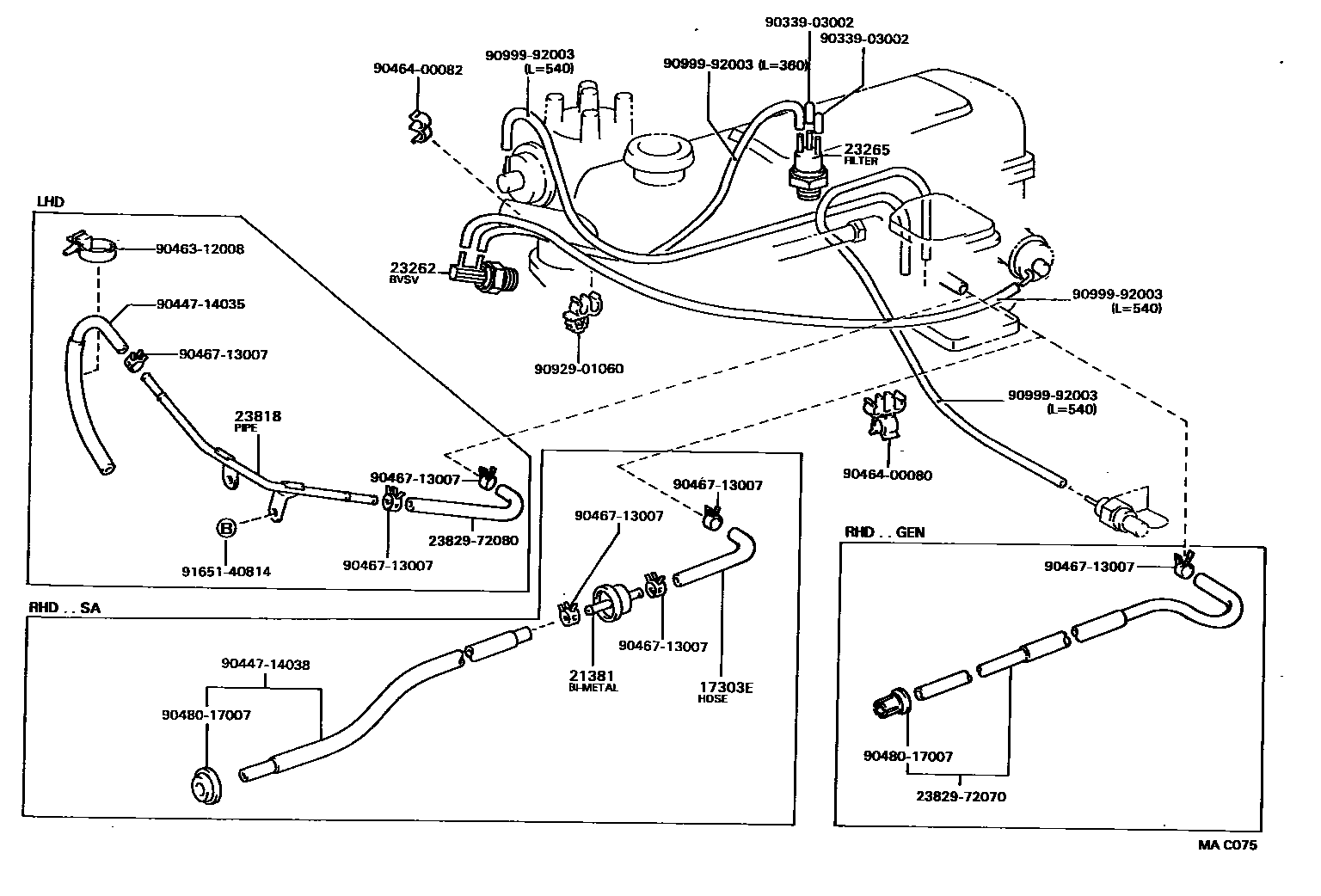

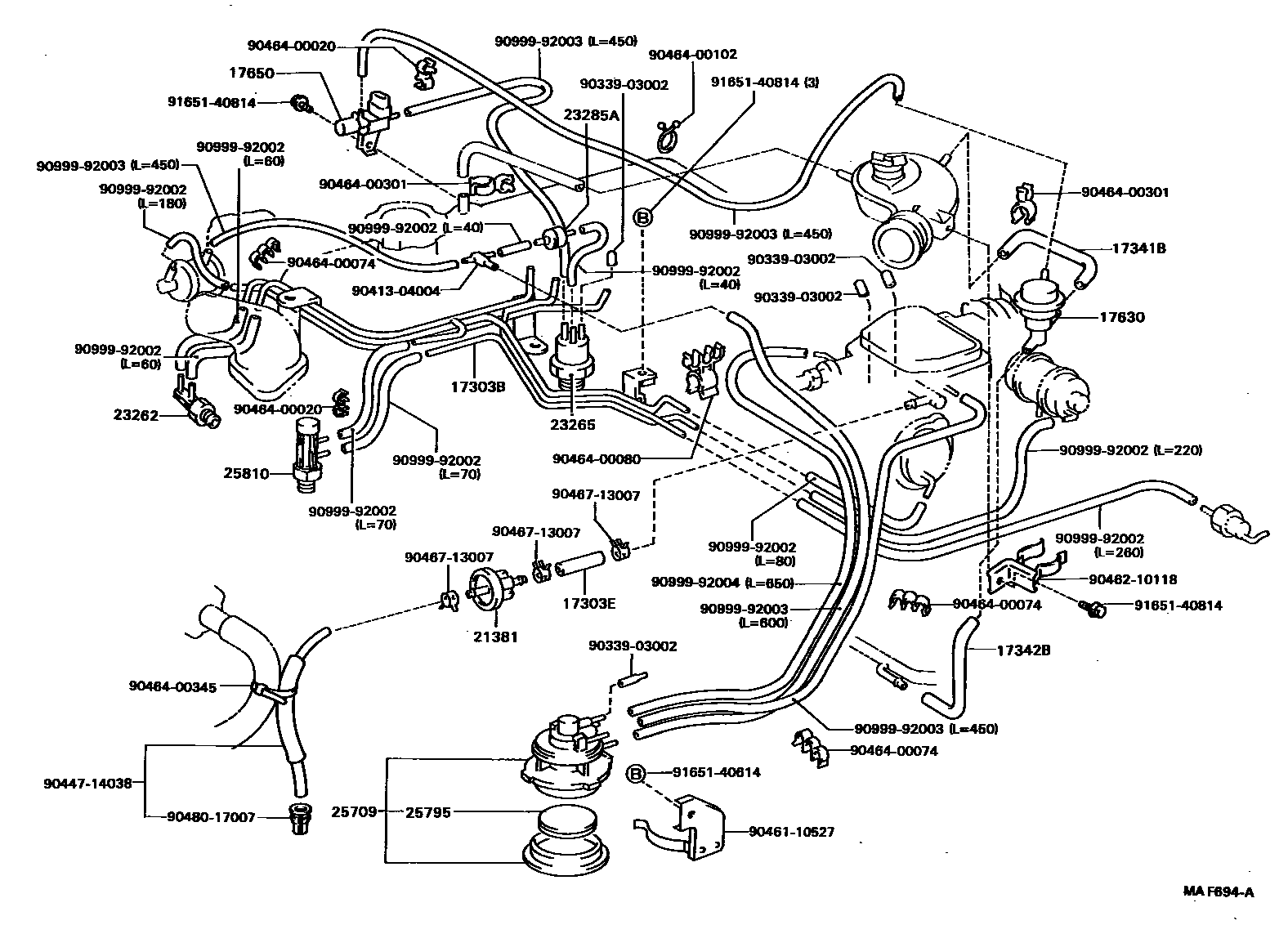

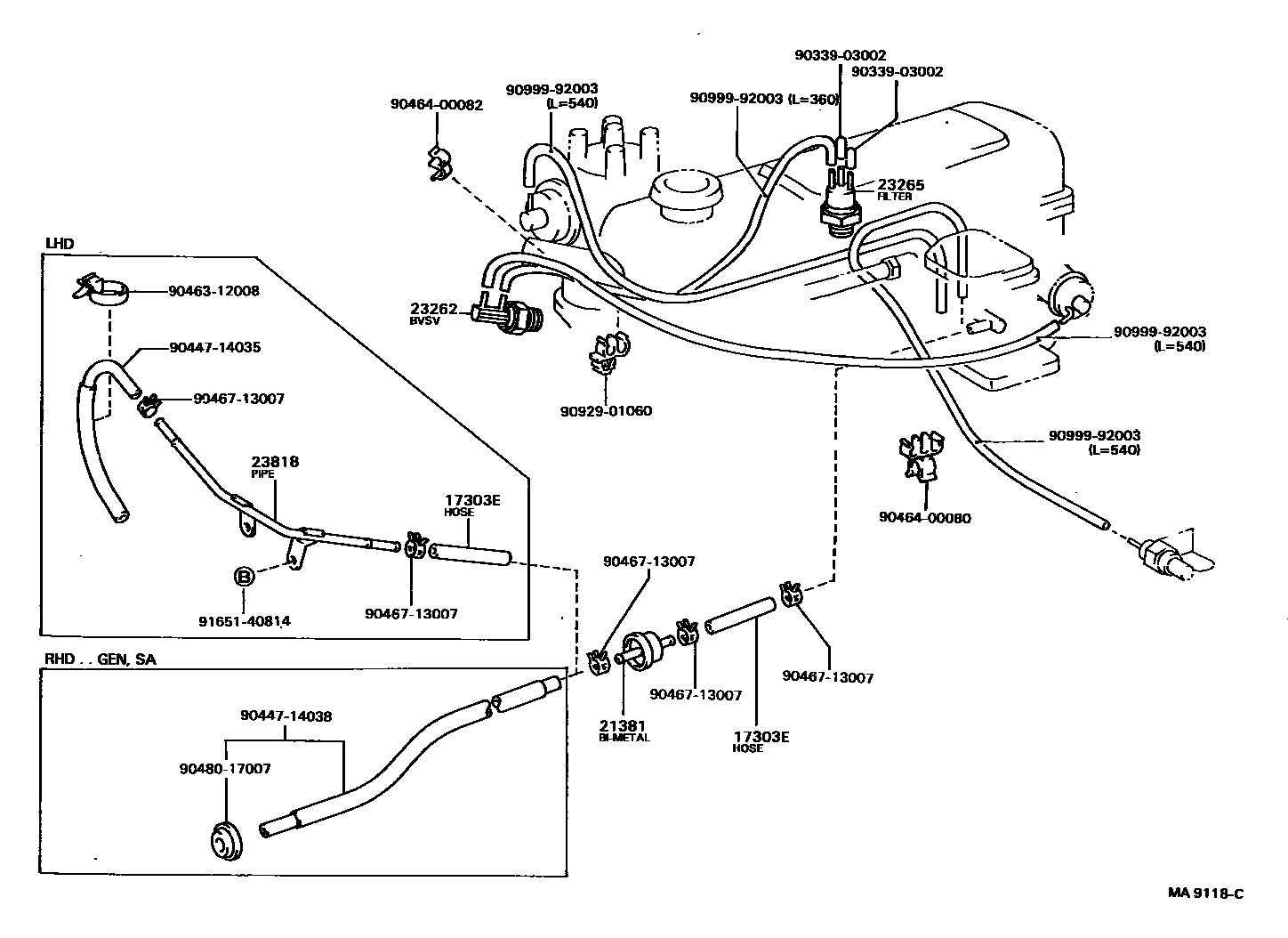

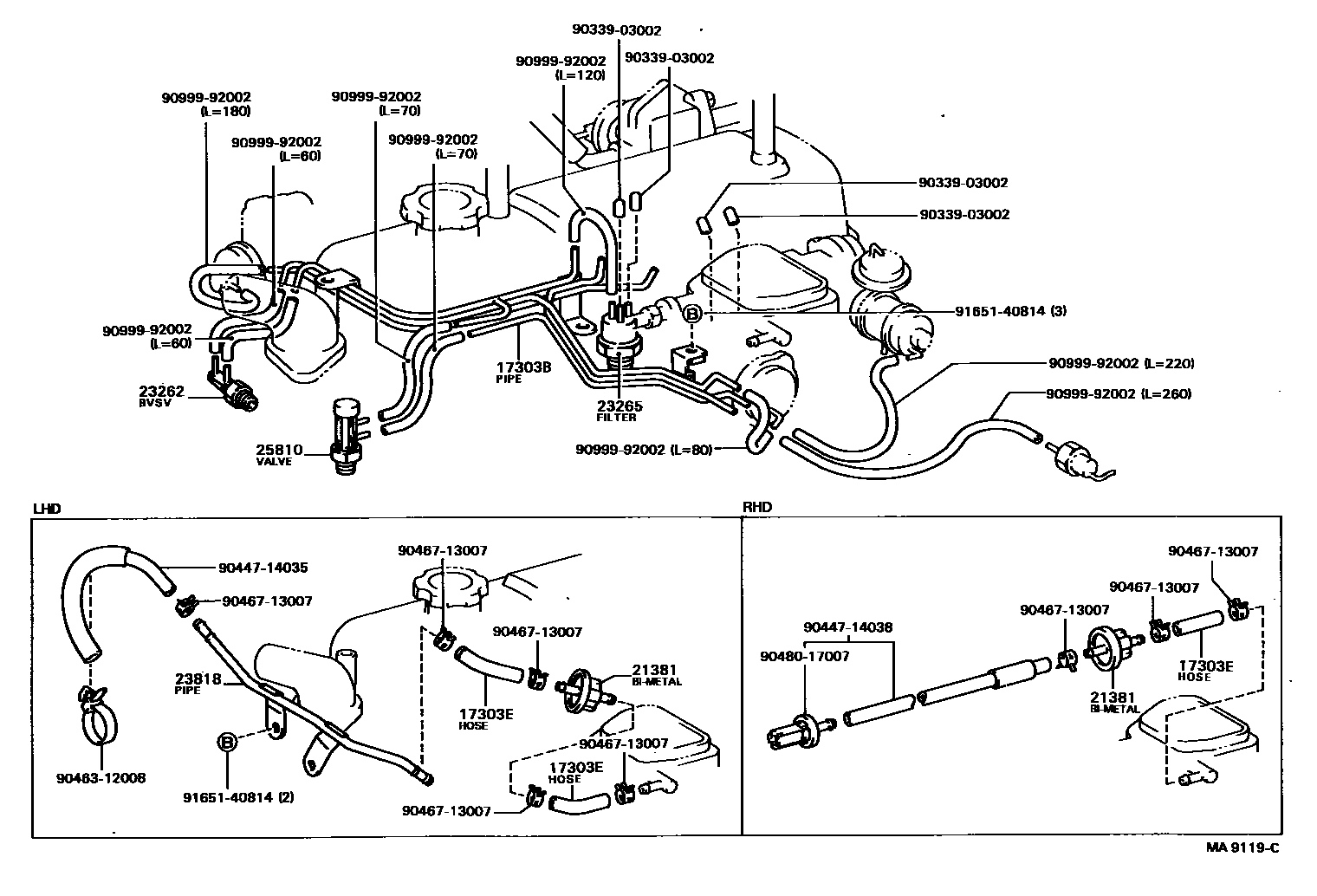

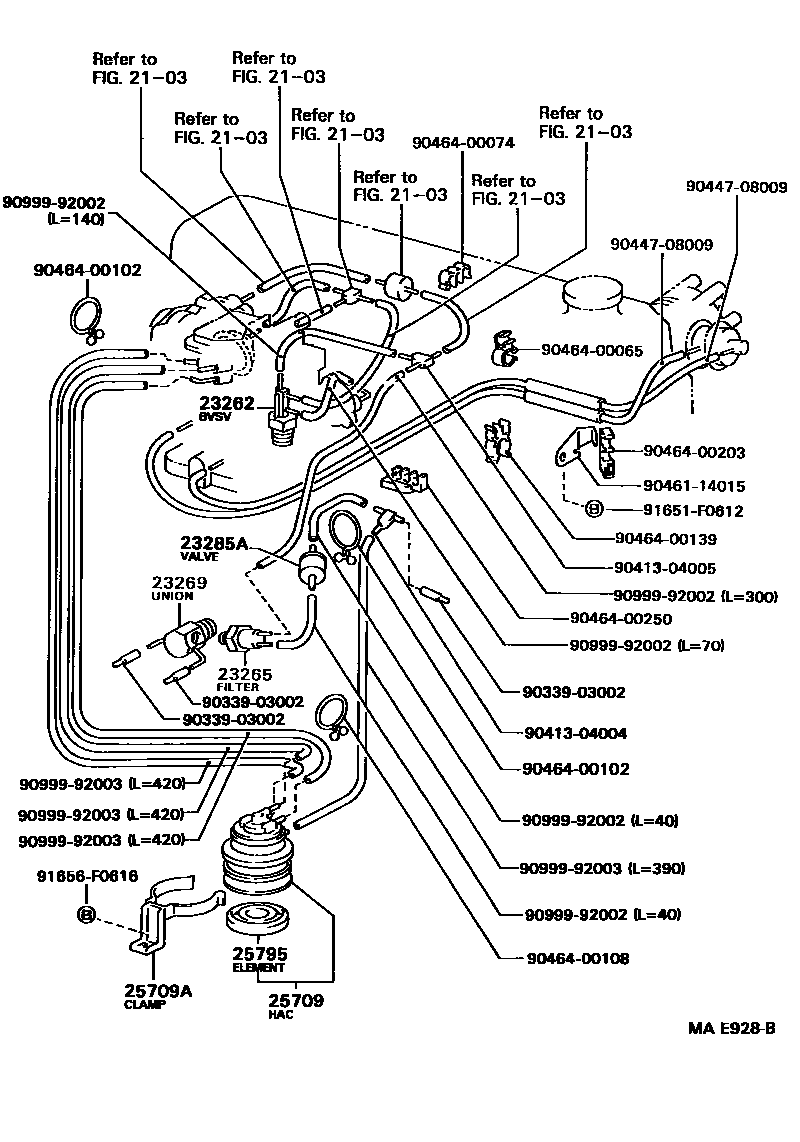

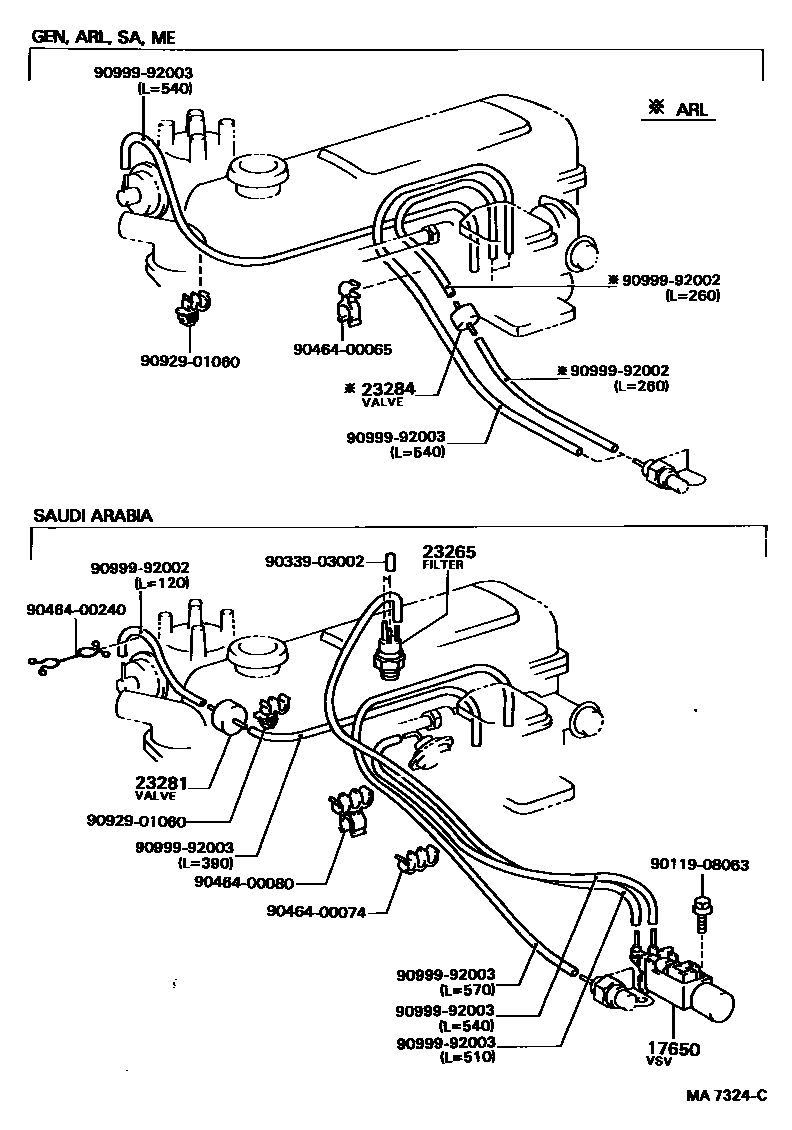

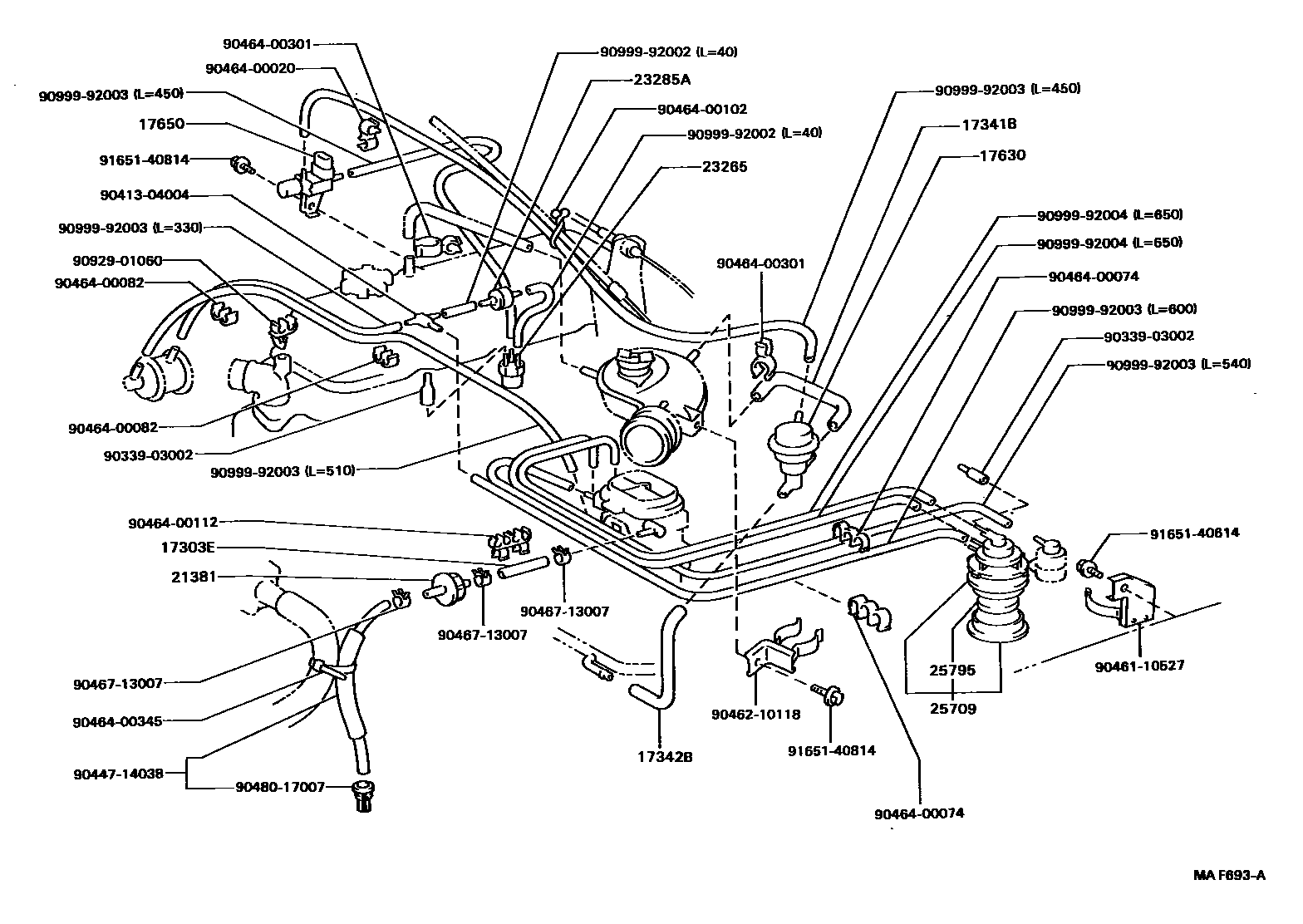

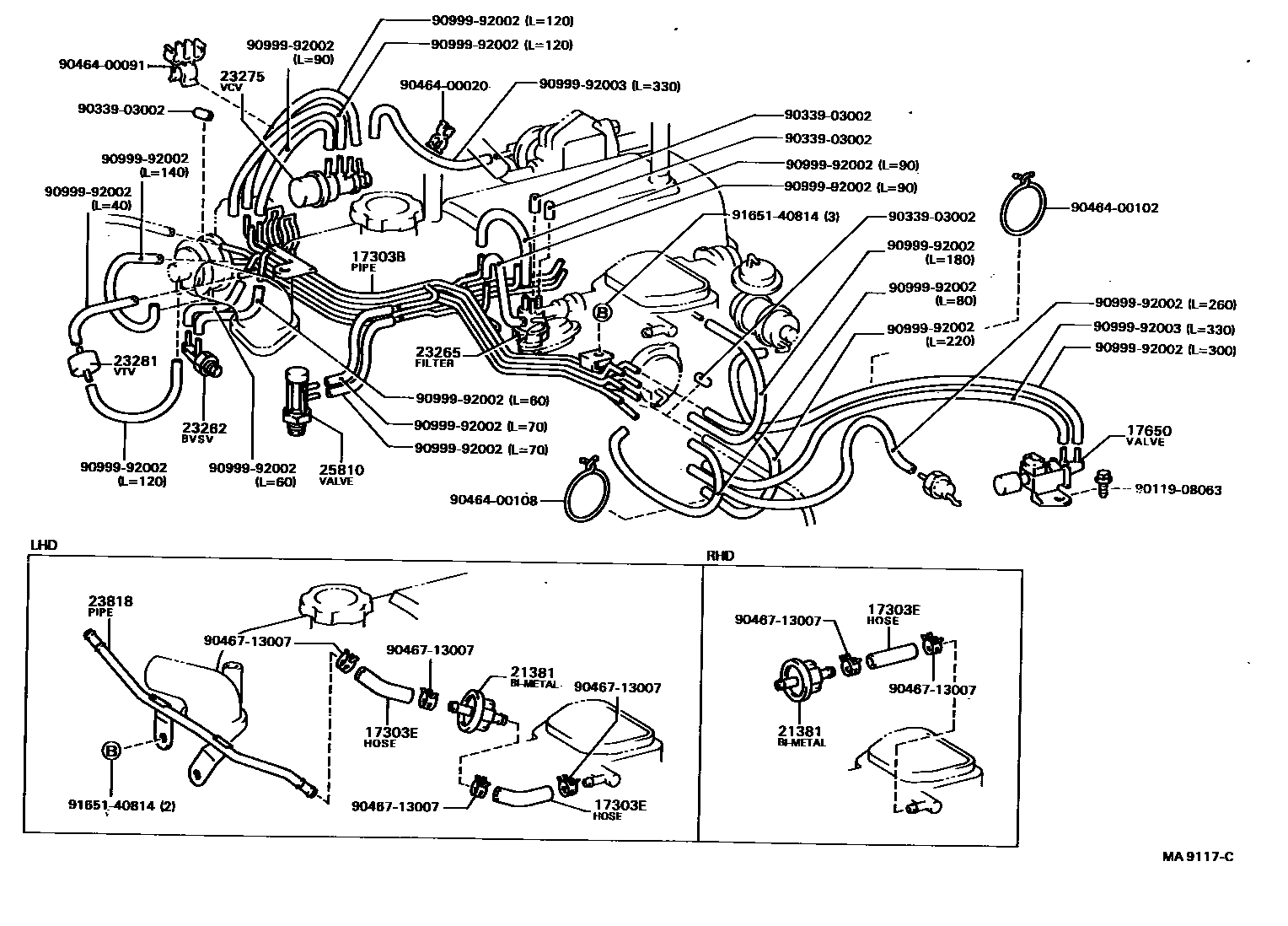

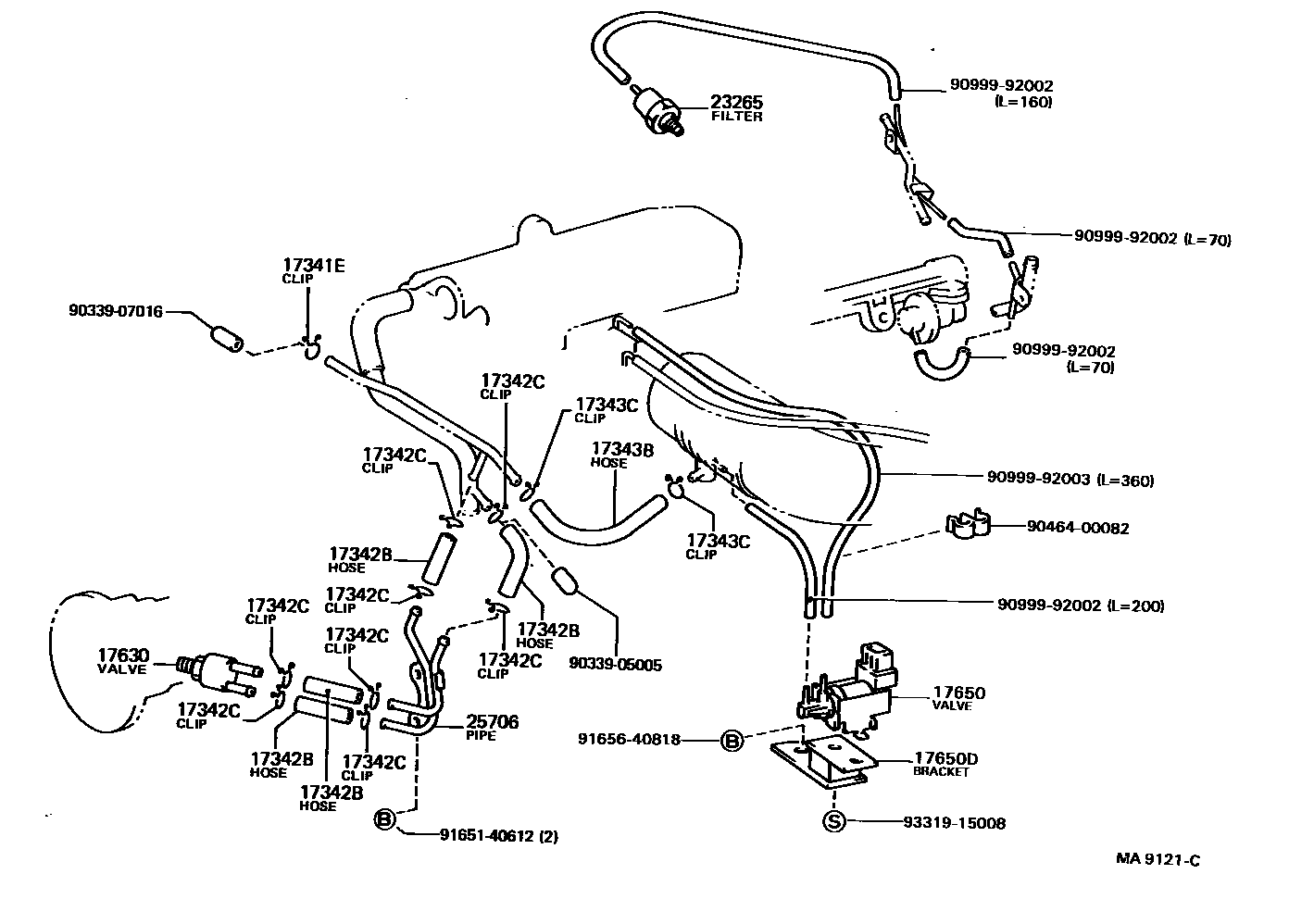

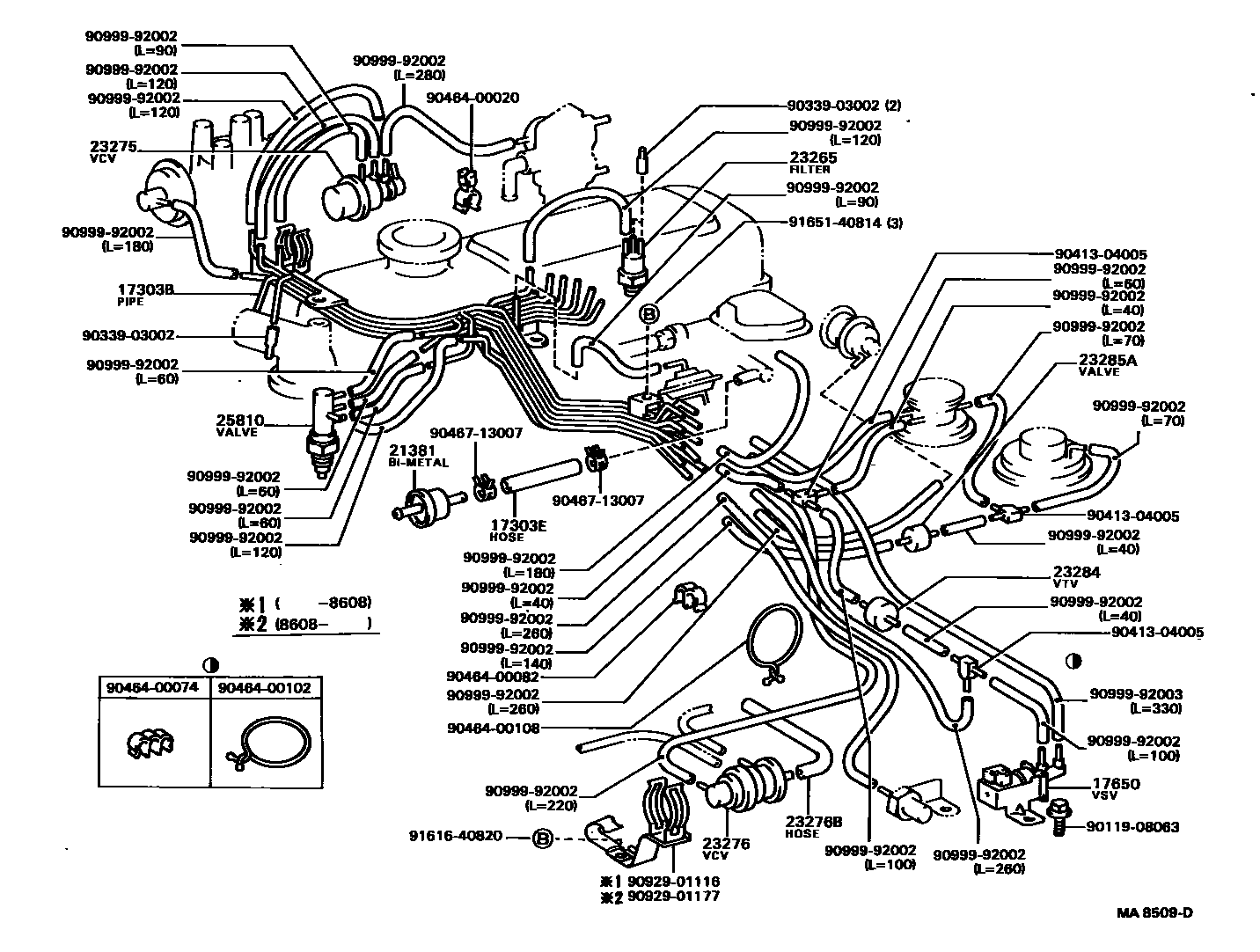

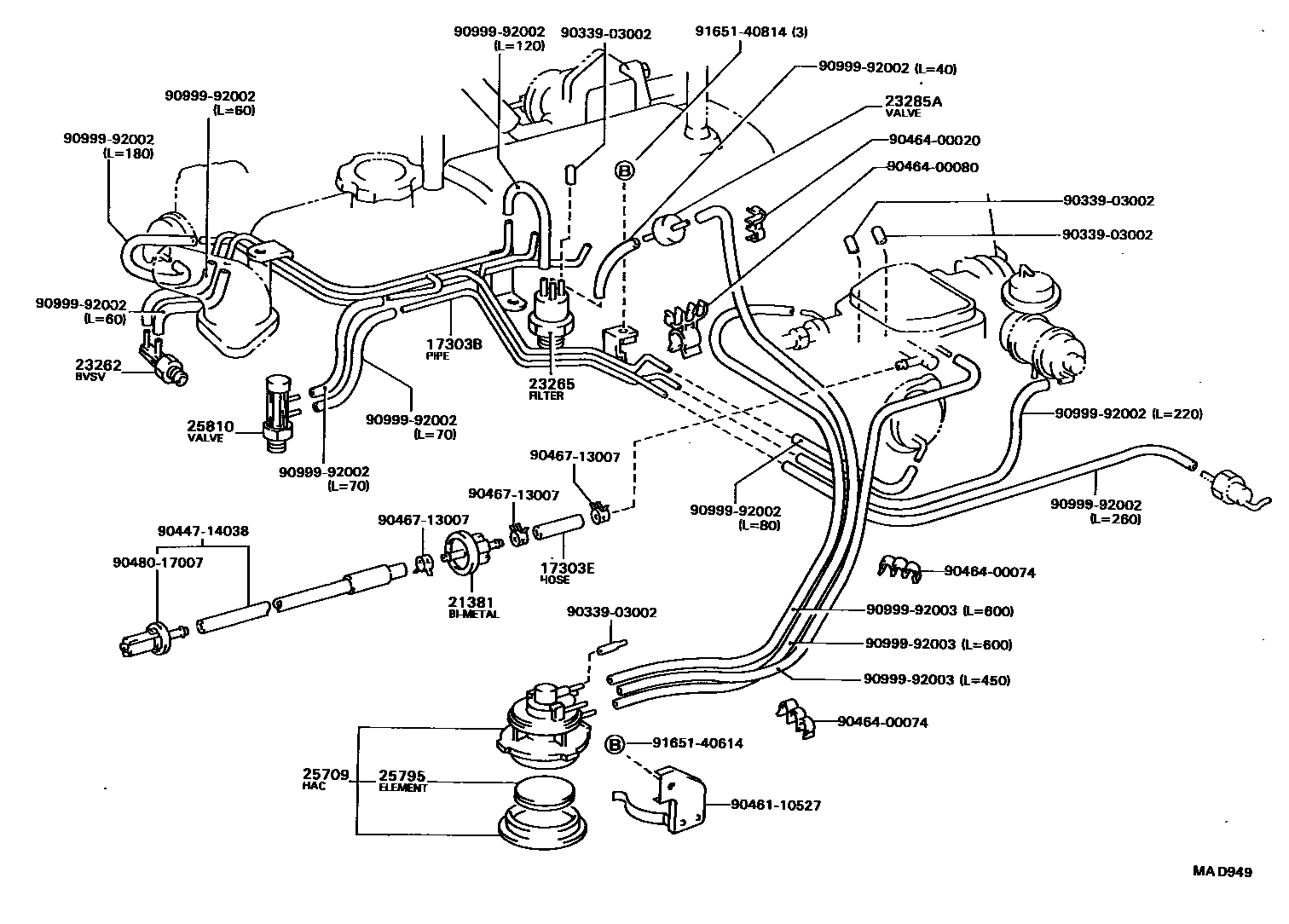

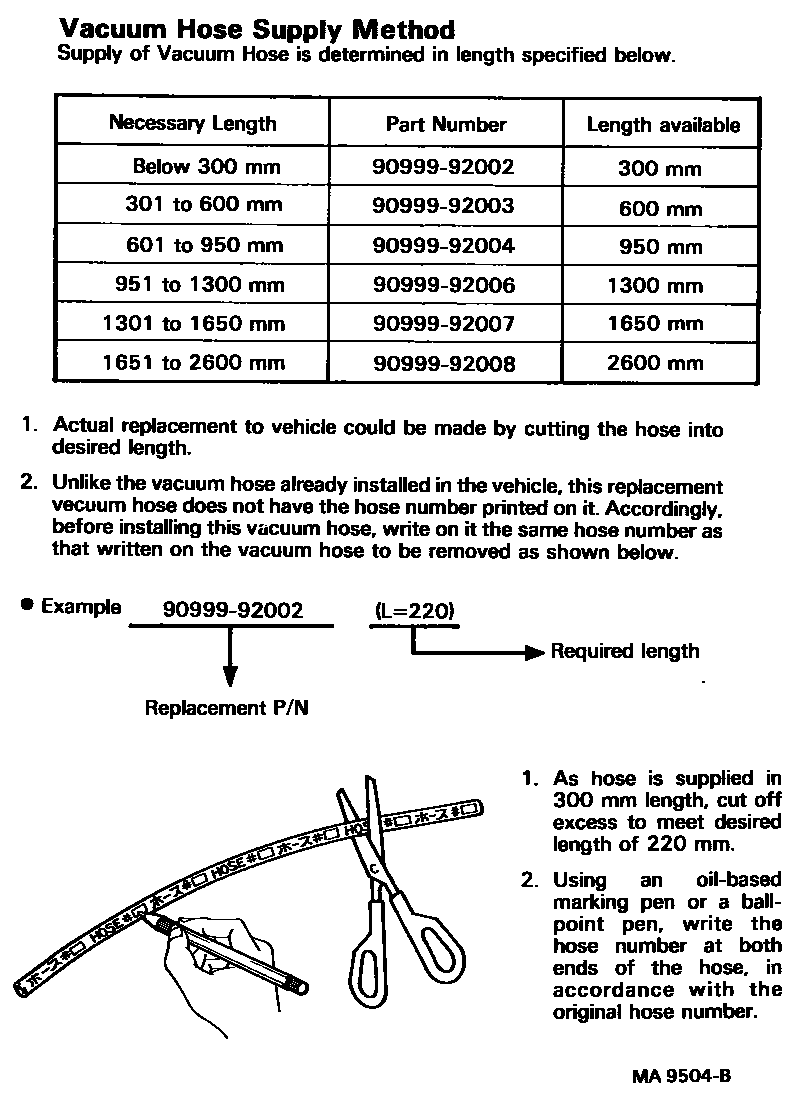

Toyota HILUX vacuum tube — Figure 1708
Toyota HILUX EPC diagram 1708, vacuum tube, with 23 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-35190 · 17303-35250 · 17303-71060 · 17303-71070 · 17303-71080 · 17303-72020 · 17303-72021 · 17303-73020 · 17303-73030 · 17303-73040 · 17303-73050 |
| 17303E | No. 1 hose (for air pipe) | 90445-14075 · 90445-14079 |
| 17341B | Hoses No. 1 (for air injection systems) | 17341-73040 |
| 17341D | No. 1 hose (for idle boost) | 17341-35120 · 17341-35180 · 17342-35050 |
| 17341E | Clamp No. 1 (for idle lift hose) | 90467-12058 · 96132-30400 · 96132-30600 · 96132-41000 · 96132-41100 |
| 17342B | No. 2 hose (for idle boost) | 17342-35050 · 17342-73030 · 90445-12127 |
| 17342C | Clamp No. 2 (for idle lift hose) | 90467-12058 · 96132-30400 · 96132-41000 |
| 17343B | No. 3 hose (for idle speed boost) | 90445-12211 |
| 17343C | Clamp No. 3 (for idle lifting hose) | 90467-12058 |
| 17630 | Air control valve assembly | 17300-73020 · 17630-28010 |
| 17650 | Vacuum switch valve assembly | 89570-35180 · 89570-35200 · 90910-12035 · 90910-12036 · 90910-12038 · 90910-12039 · 90910-12066 · 90910-12067 · 90910-12084 · 90910-12085 |
| 17650D | Vacuum switch valve bracket | 25861-35010 · 25861-35020 · 25861-73020 |
| 17810A | air filter assembly | 90925-06006 |
| 21381 | thermostat bimetal | 21381-71050 |
| 23262 | No. 1 bimetallic vacuum switch valve | 25810-27010 · 90925-05017 · 90925-05044 |
| 23263 | No. 2 bimetallic vacuum switch valve | 25810-27010 · 25820-13010 · 90925-05078 · 90925-05080 |
| 23265 | No. 1 gas filter | 90917-11022 · 90917-11023 · 90917-11024 · 90917-11027 |
| 23269 | Connector (for gas filter) | 90404-54030 |
| 23275 | Vacuum control valve No. 1 | 90925-03152 · 90925-03166 |
| 23276 | Vacuum control valve No. 2 | 90925-03162 · 90925-03165 |
| 23276B | Hoses (for vacuum control valve) | 90445-11019 |
| 23281 | Vacuum Transfer Valve No. 1 | 90925-01014 · 90925-01019 · 90925-01027 |
| 23282 | Vacuum Transfer Valve No. 2 | 90925-01021 |
| 23284 | No. 4 Vacuum Transfer Valve | 90925-01021 |
| 23285A | No. 1 one-way valve | 90917-10038 · 90917-10049 |
| 23818 | Fuel vapor supply pipe | 23818-71010 · 23818-71011 · 23818-71012 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 17645-73011 |
| 25709 | High altitude compensator valve sub-assembly | 25709-38010 |
| 25709A | Clamp (for high altitude compensator valve) | 90461-10527 |
| 25795 | Altitude compensator filter element | 25795-38010 |
| 25810 | Bimetal valve assembly | 25820-37010 · 90925-02077 |
