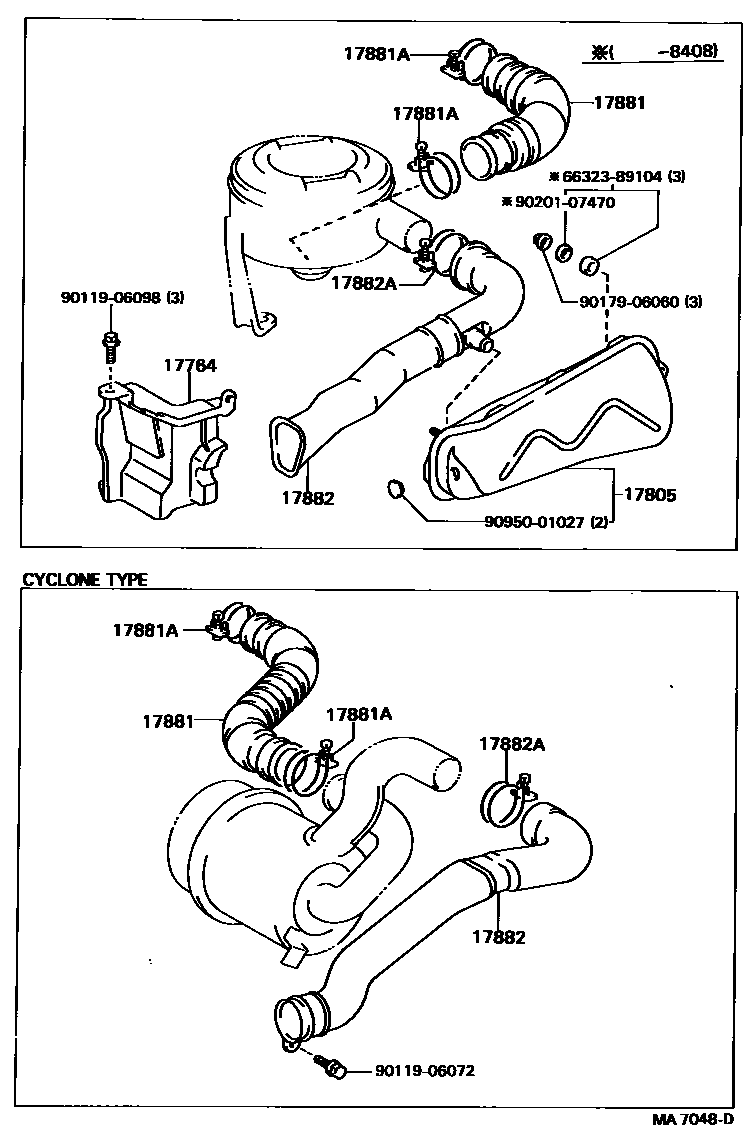

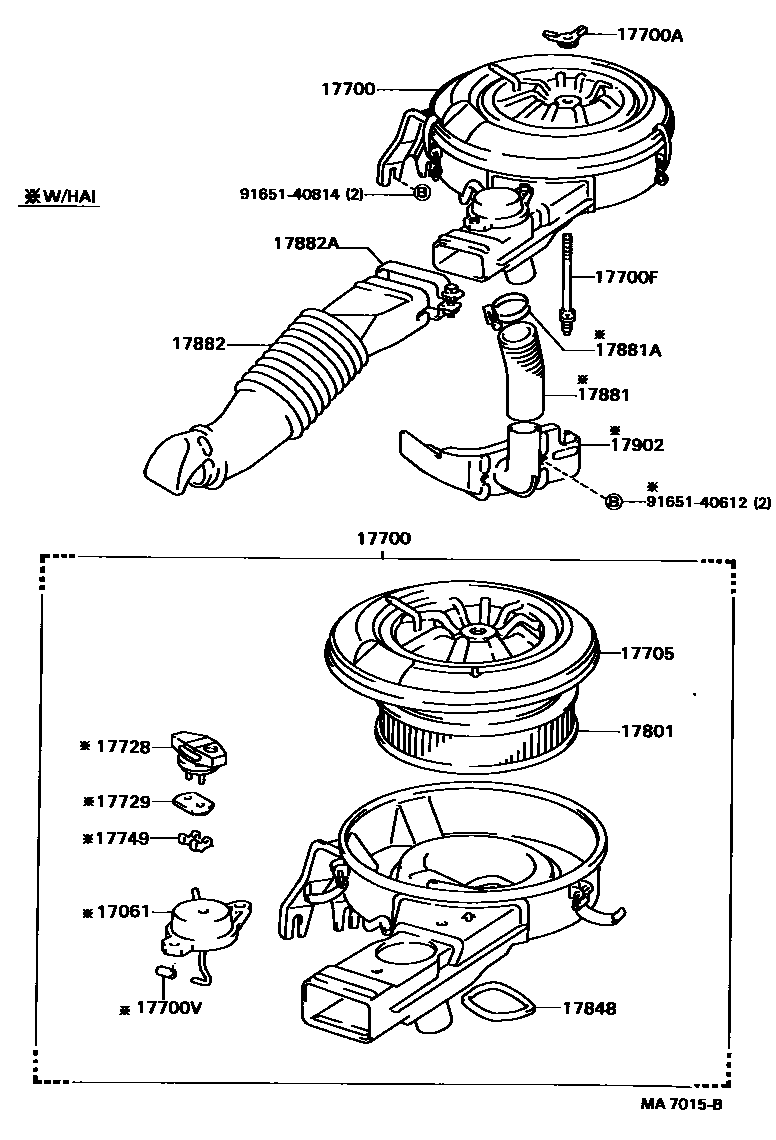

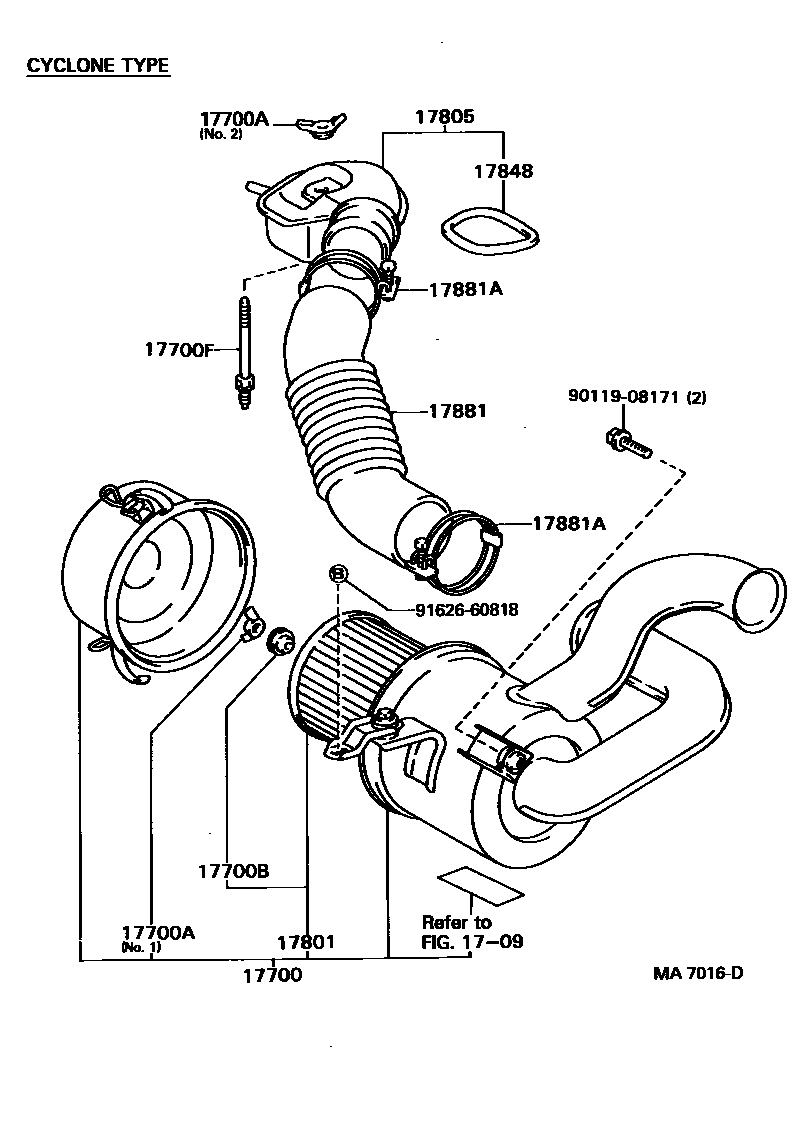

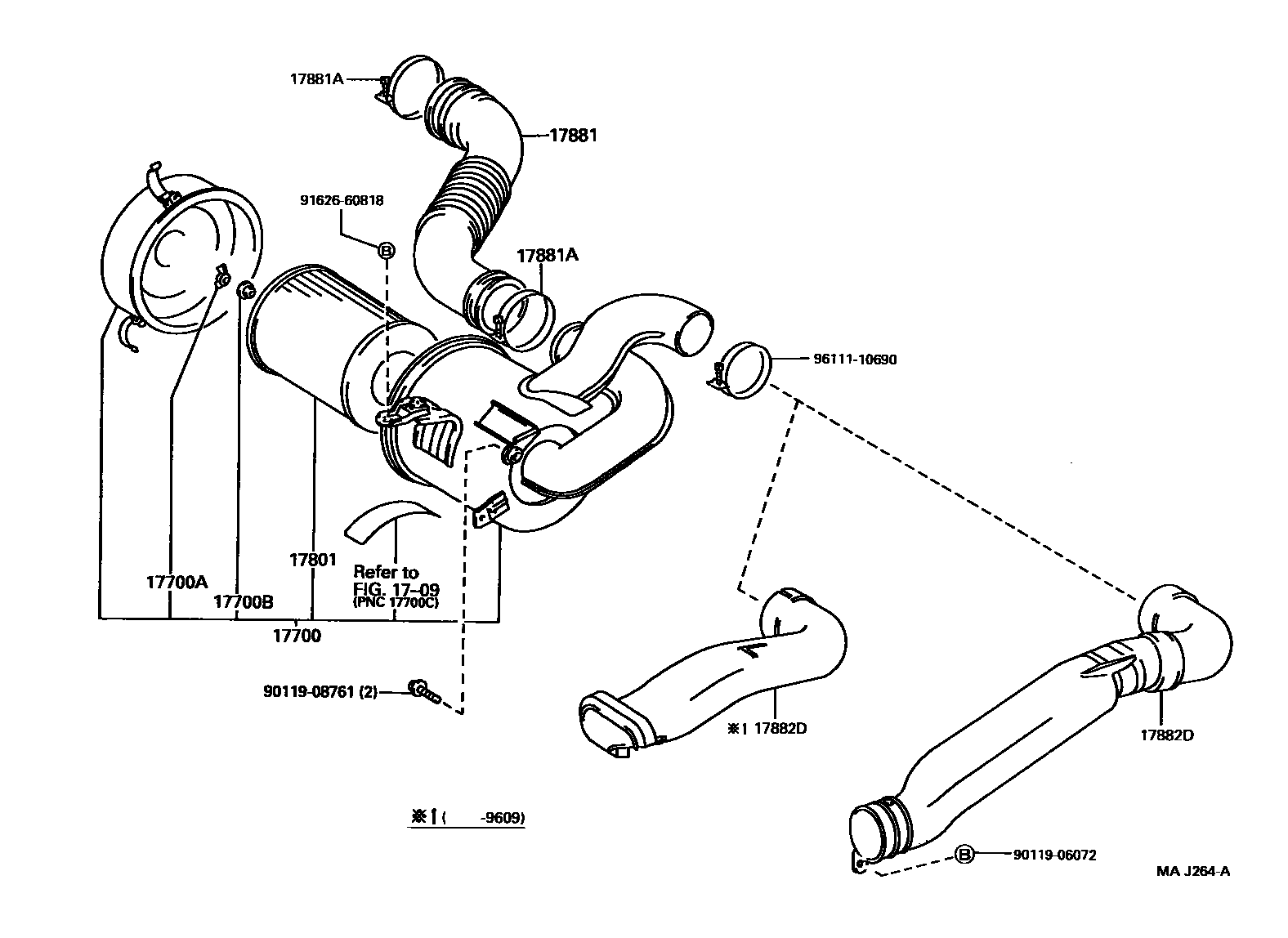

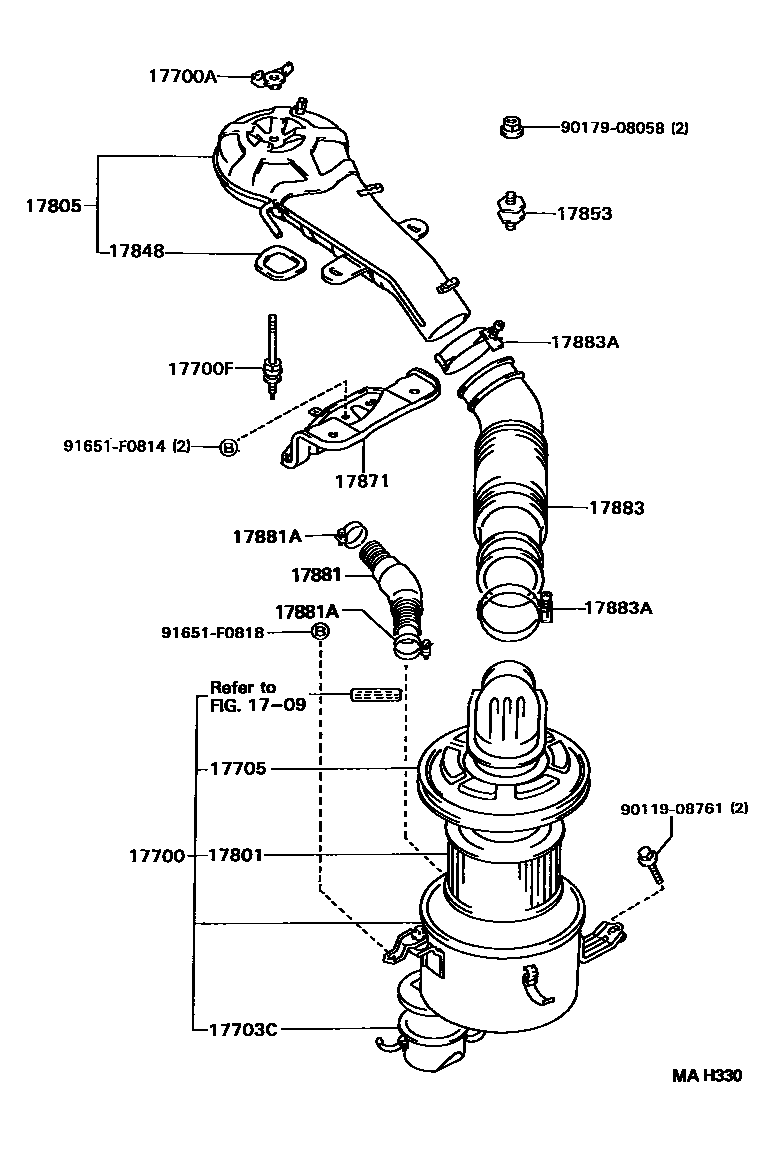

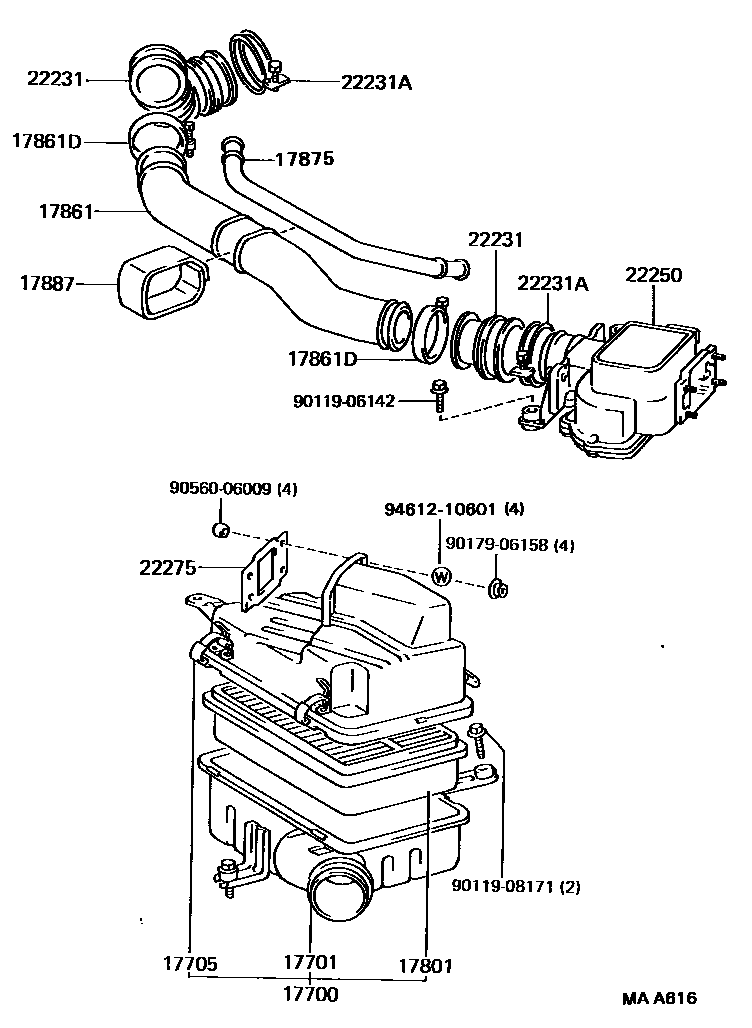

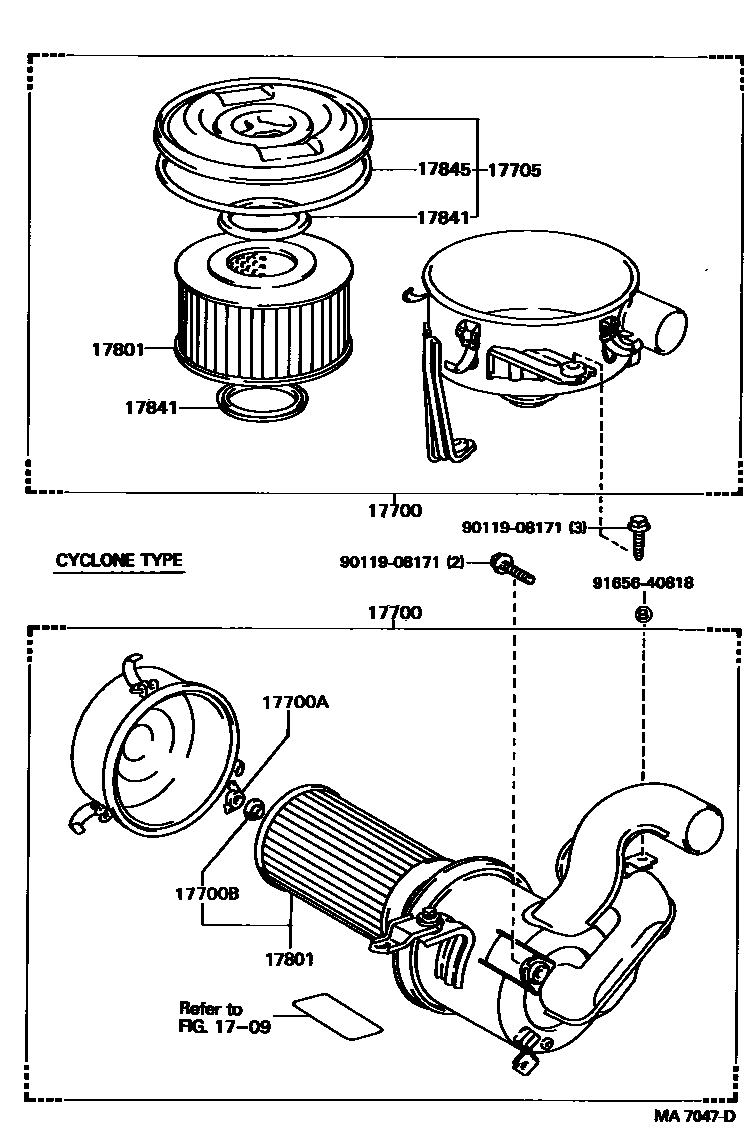

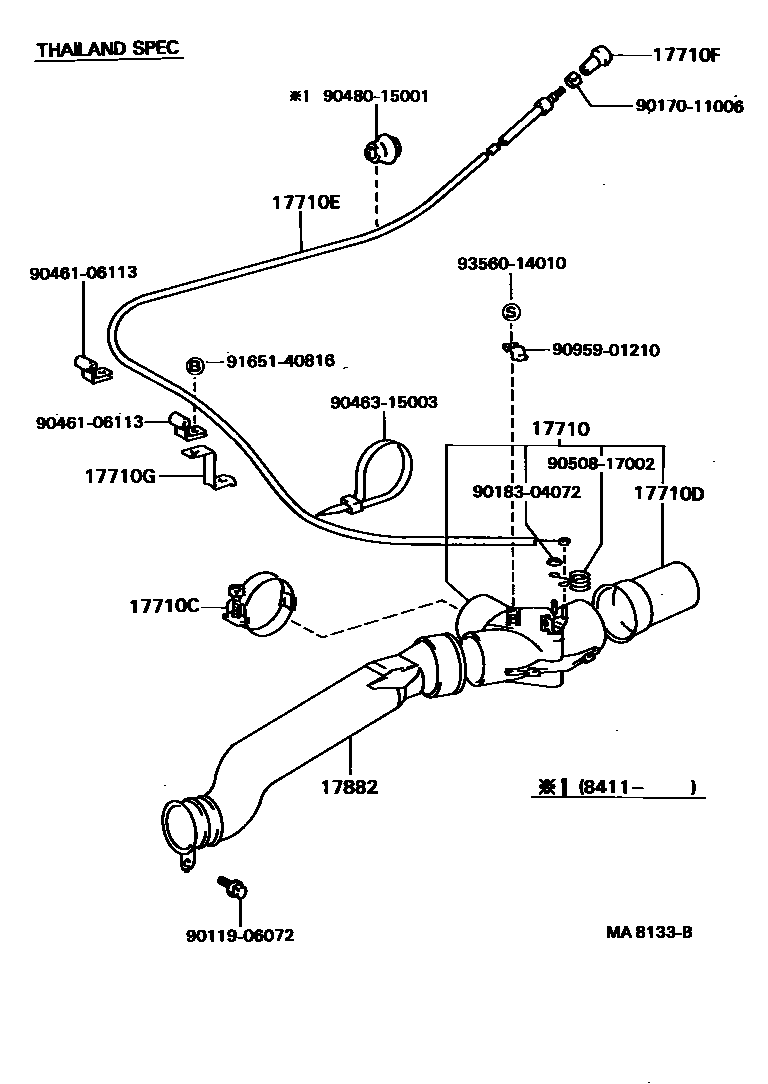

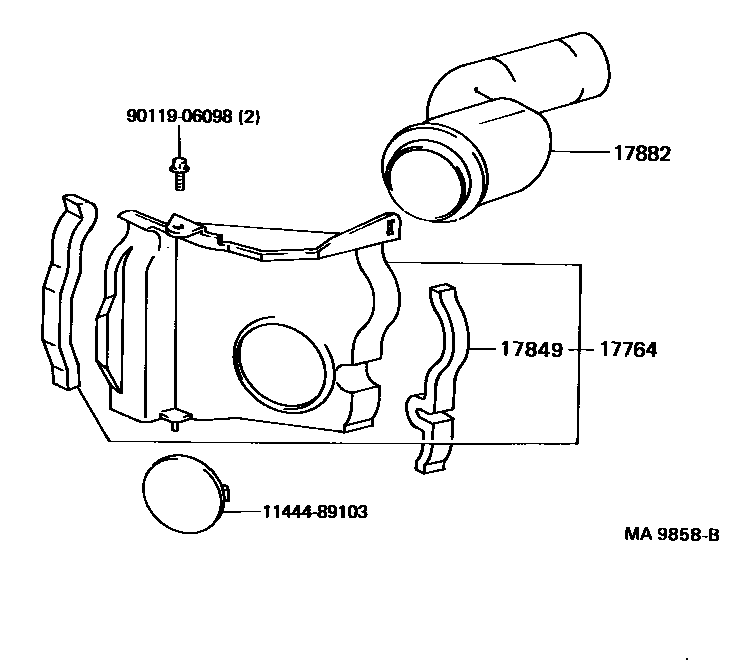

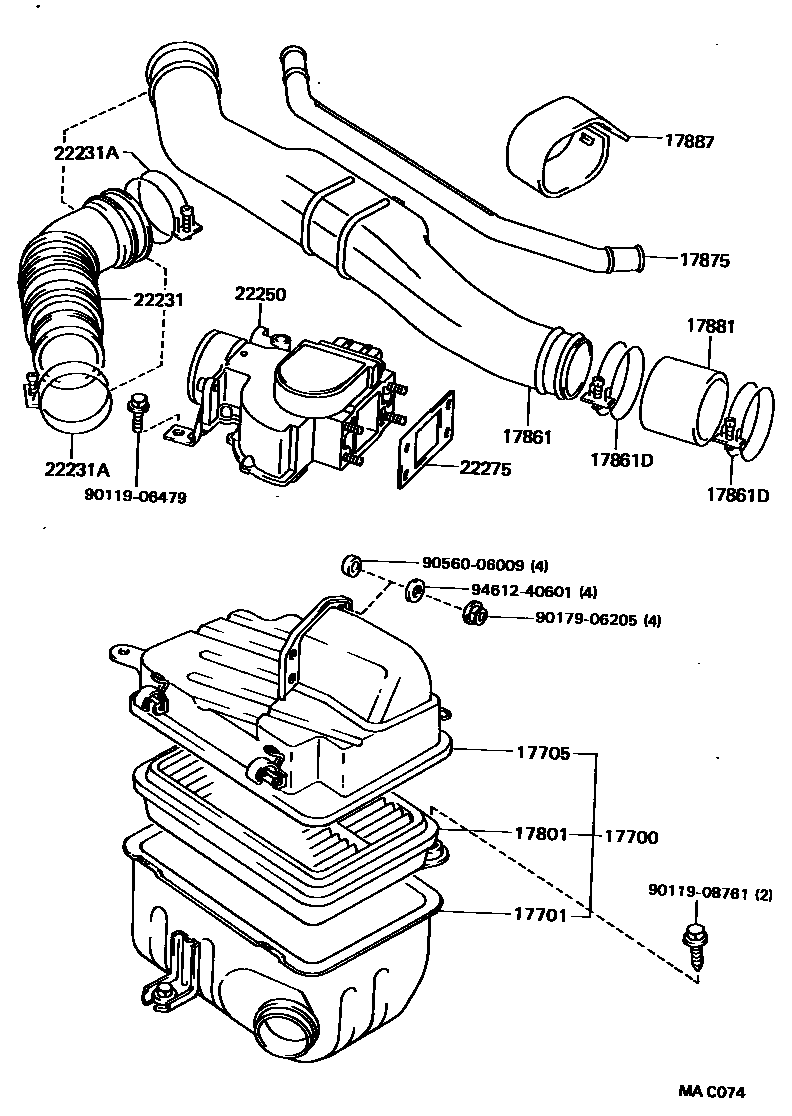

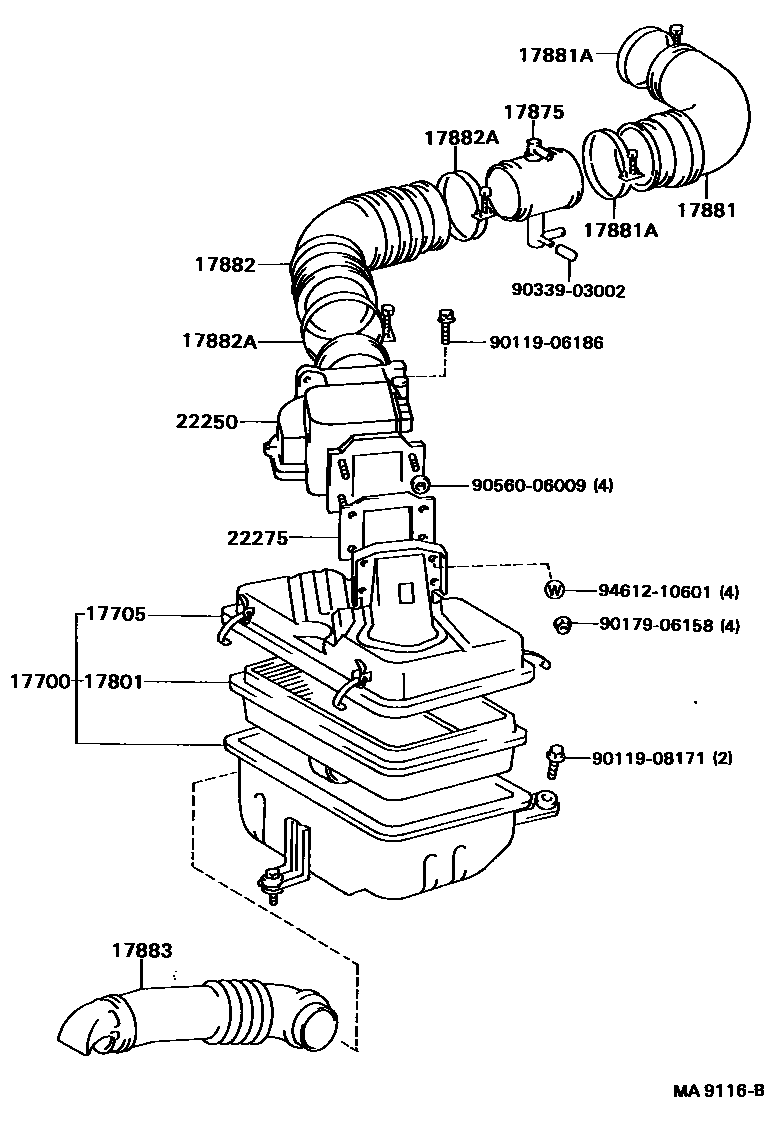

Toyota HILUX Air Cleaner — Figure 1703
Toyota HILUX EPC diagram 1703, Air Cleaner, with 12 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17061 | Diaphragm sub-assembly | 17061-72010 |
| 17700 | air filter assembly | 17700-35240 · 17700-35350 · 17700-35380 · 17700-54180 · 17700-54270 · 17700-54300 · 17700-54491 · 17700-71040 · 17700-71041 · 17700-71050 · 17700-71060 · 17700-71061 · 17700-71070 · 17700-73060 |
| 17700A | Wing nut (for air cleaner) | 90175-06003 · 90175-06013 · 94271-00800 |
| 17700B | Gasket (for air cleaner) | 90210-08024 |
| 17700F | Stud bolt (for securing air filter) | 90116-06021 · 90116-06024 |
| 17700V | Bushing (for air cleaner) | 90386-03001 |
| 17701 | Air filter housing sub-assembly | 17701-35210 |
| 17703C | Dust cover sub-assembly | 17703-35010 |
| 17705 | Air filter cover sub-assembly | 17705-35140 · 17705-35150 · 17705-35160 · 17705-54032 · 17705-71020 |
| 17710 | No. 1 air filter air inlet pipe sub-assembly | 53901-89102 |
| 17710C | Clamp (for air filter inlet duct) | 96111-10690 |
| 17710D | air filter intake pipe | 53792-89101 |
| 17710E | Cable sub-assembly | 86307-89101 |
| 17710F | Control button sub-assembly | 55905-89111 |
| 17710G | Bracket (for cable) | 87263-89108 |
| 17728 | thermostat valve | 17728-34010 |
| 17729 | thermostat valve gasket | 17729-34010 |
| 17749 | Thermostat valve bracket | 17749-34010 |
| 17764 | air filter duct | 53207-89104 · 53207-89106 |
| 17801 | Air filter element sub-assembly | 17801-31050 · 17801-34060 · 17801-34070 · 17801-35030 · 17801-54030 · 17801-54080 · 17801-70010 |
| 17805 | Intake connecting pipe sub-assembly | 17805-35060 · 17805-73030 · 17805-73100 · 17805-89104 · 17805-89105 |
| 17841 | filter liner | 17841-54010 |
| 17845 | air cleaner cover gasket | 17845-54010 |
| 17848 | Gasket from air cleaner to carburetor | 17848-35010 |
| 17849 | Intake connecting pipe gasket | 17849-89104 |
| 17853 | Air filter bracket vibration isolation pad | 17853-35010 · 17853-38010 |
| 17861 | Intake connecting pipe | 17861-35070 · 17861-35080 |
| 17861D | Clamp (for air intake connecting pipe) | 90460-75001 · 90460-80001 |
| 17871 | Air intake connecting pipe stay | 17871-35010 |
| 17875 | Intake connecting pipe | 17875-35010 · 17875-73020 |
| 17881 | No. 1 air cleaner hose | 17881-16210 · 17881-34071 · 17881-35080 · 17881-35120 · 17881-54190 · 17881-54200 · 17881-54410 · 17881-70010 · 17881-73030 · 17881-74040 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10460 · 96111-10690 · 96111-10710 · 96111-10780 |
| 17882 | No. 2 air cleaner hose | 17880-35150 · 17880-89101 · 17880-89102 · 17880-89105 · 17882-70010 · 17882-89109 · 17882-89116 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90460-01032 · 90460-01053 · 96111-10690 · 96111-10710 · 96111-10800 |
| 17882D | Cold air intake hose | 17880-35071 · 17880-89102 |
| 17883 | No. 3 air cleaner hose | 17881-35050 · 17882-89107 |
| 17883A | Clamp (for No. 3 air cleaner hose) | 96111-10780 |
| 17887 | air cleaner hose cover | 17887-35030 |
| 17902 | No. 1 hot air intake sub-assembly | 17895-71010 |
| 22231 | throttle body hose | 22231-35011 · 22231-35030 · 22231-41030 |
| 22231A | Clip or clip (for throttle body hose) | 96111-10800 |
| 22250 | Intake air flow meter assembly | 22250-35020 · 22250-35060 · 22250-73020 |
| 22275 | air flow meter gasket | 22275-41010 |
