Toyota HILUX Exhaust Pipe — Figure 1702

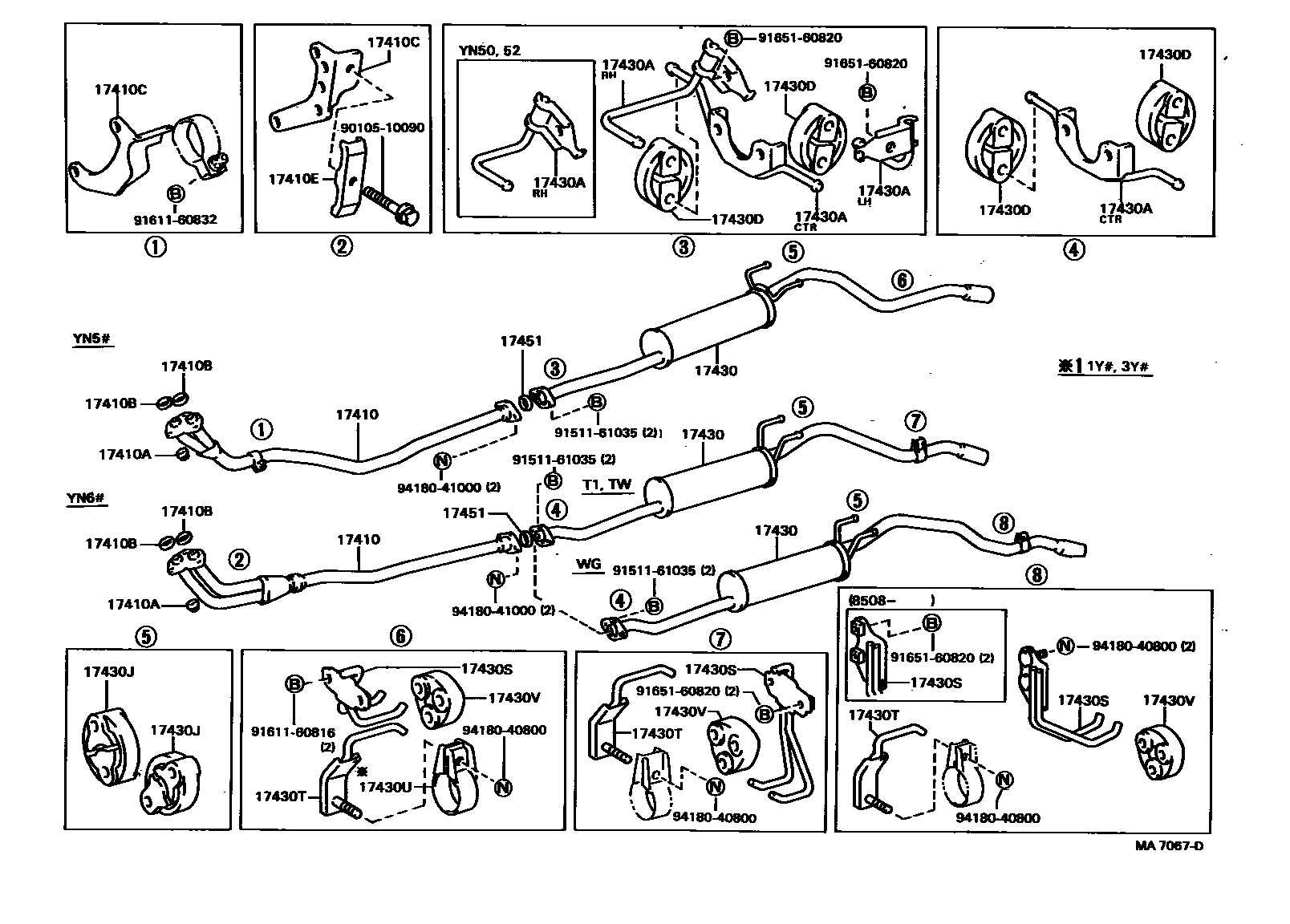

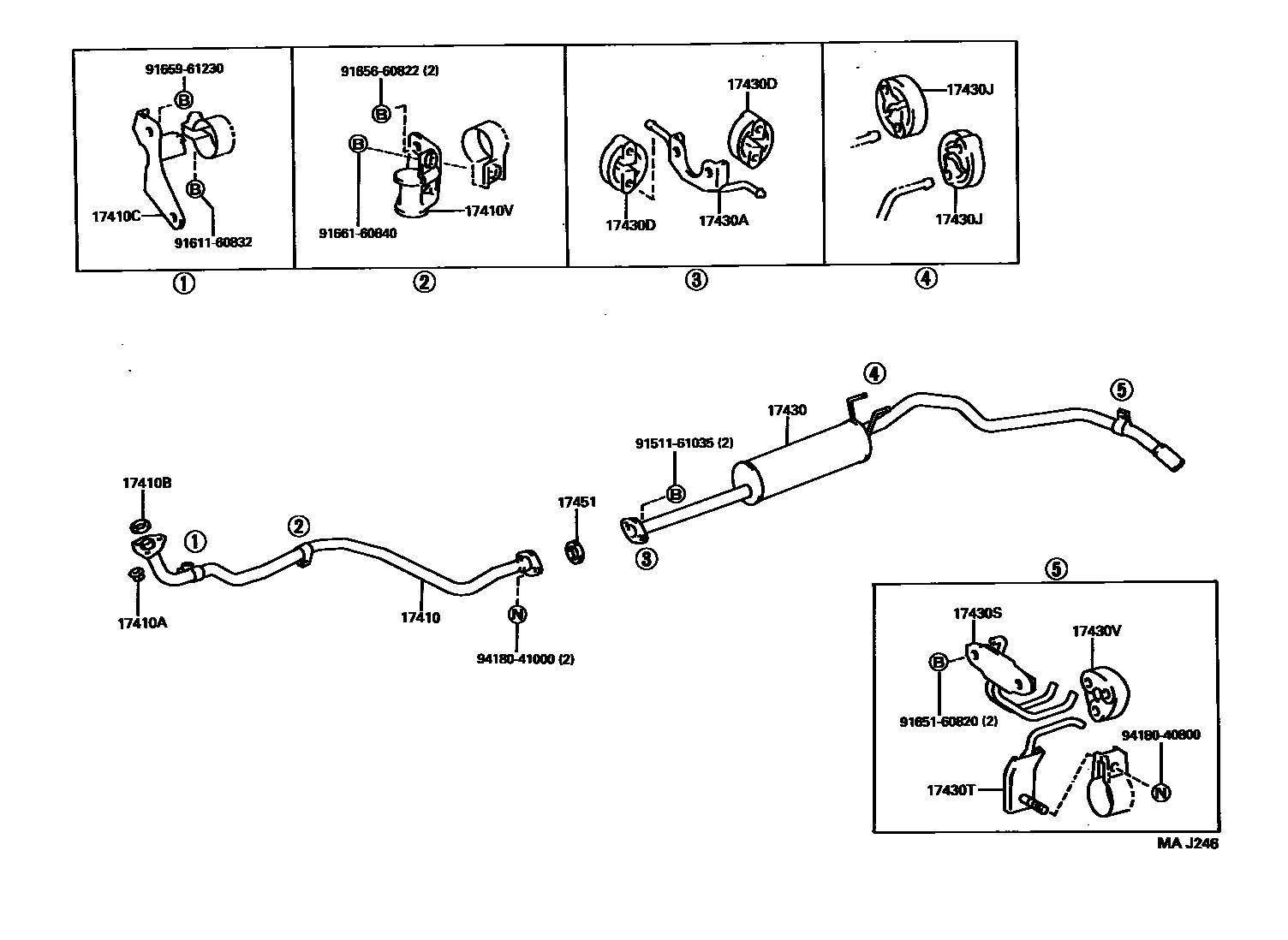

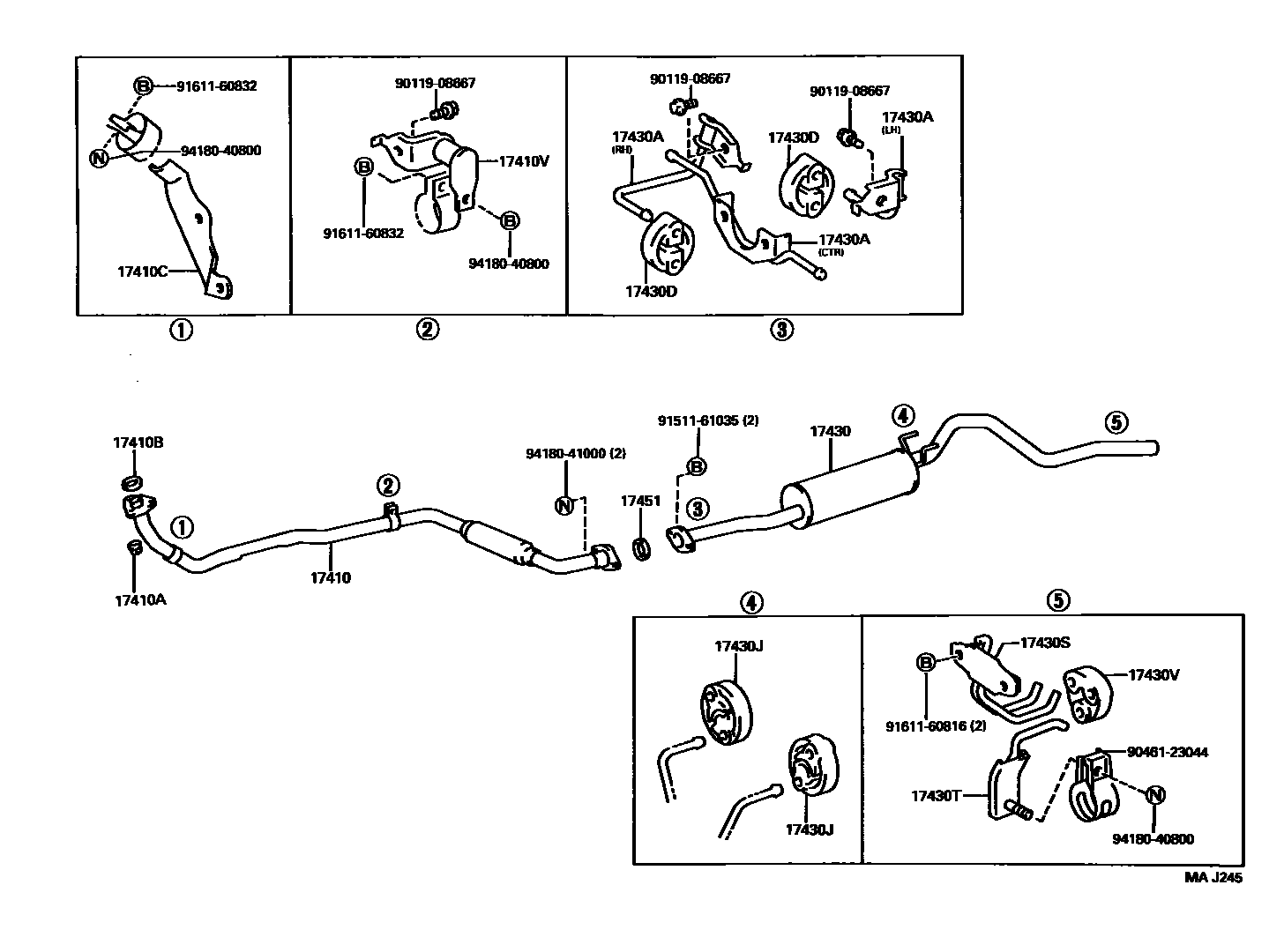

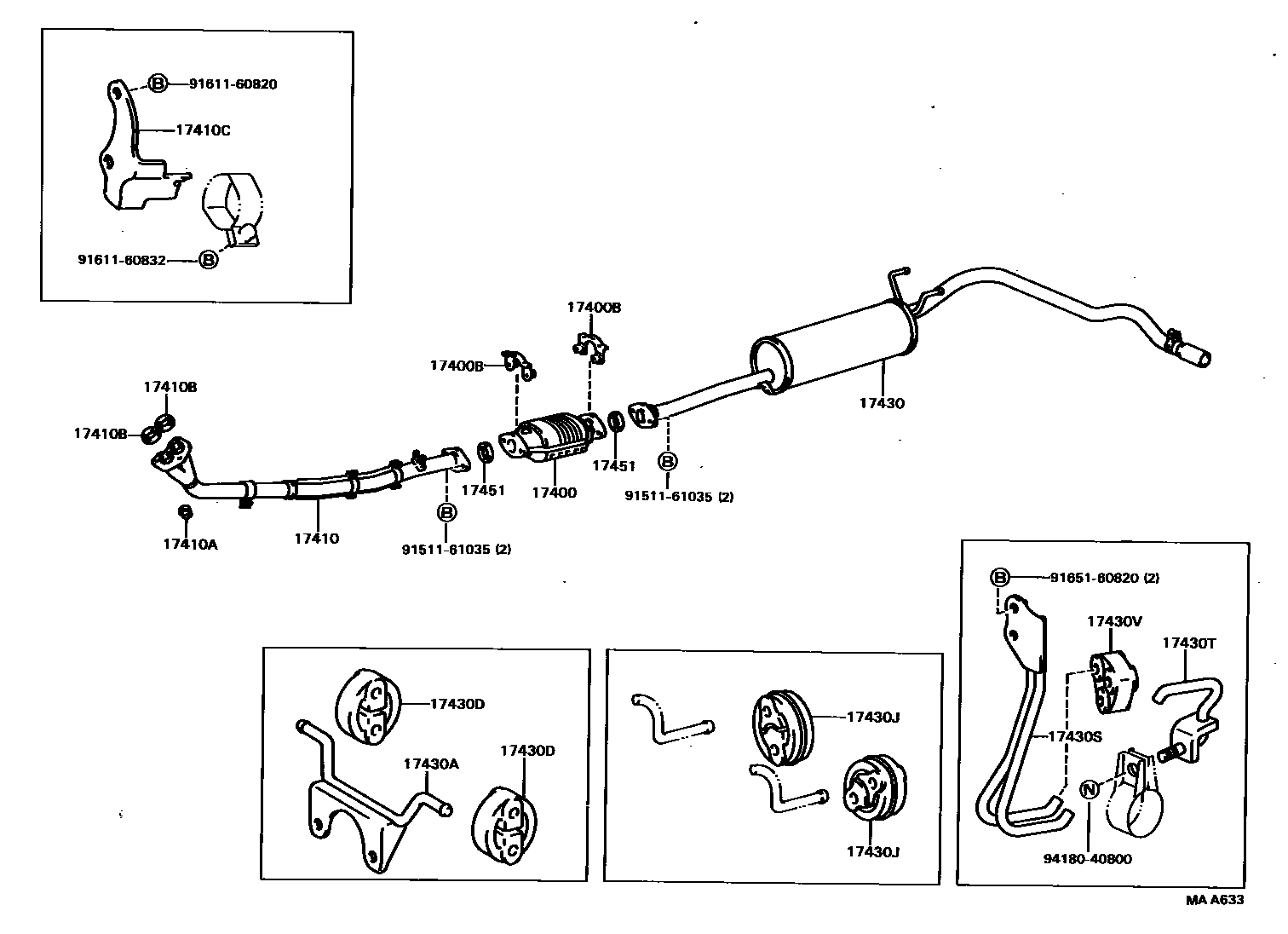

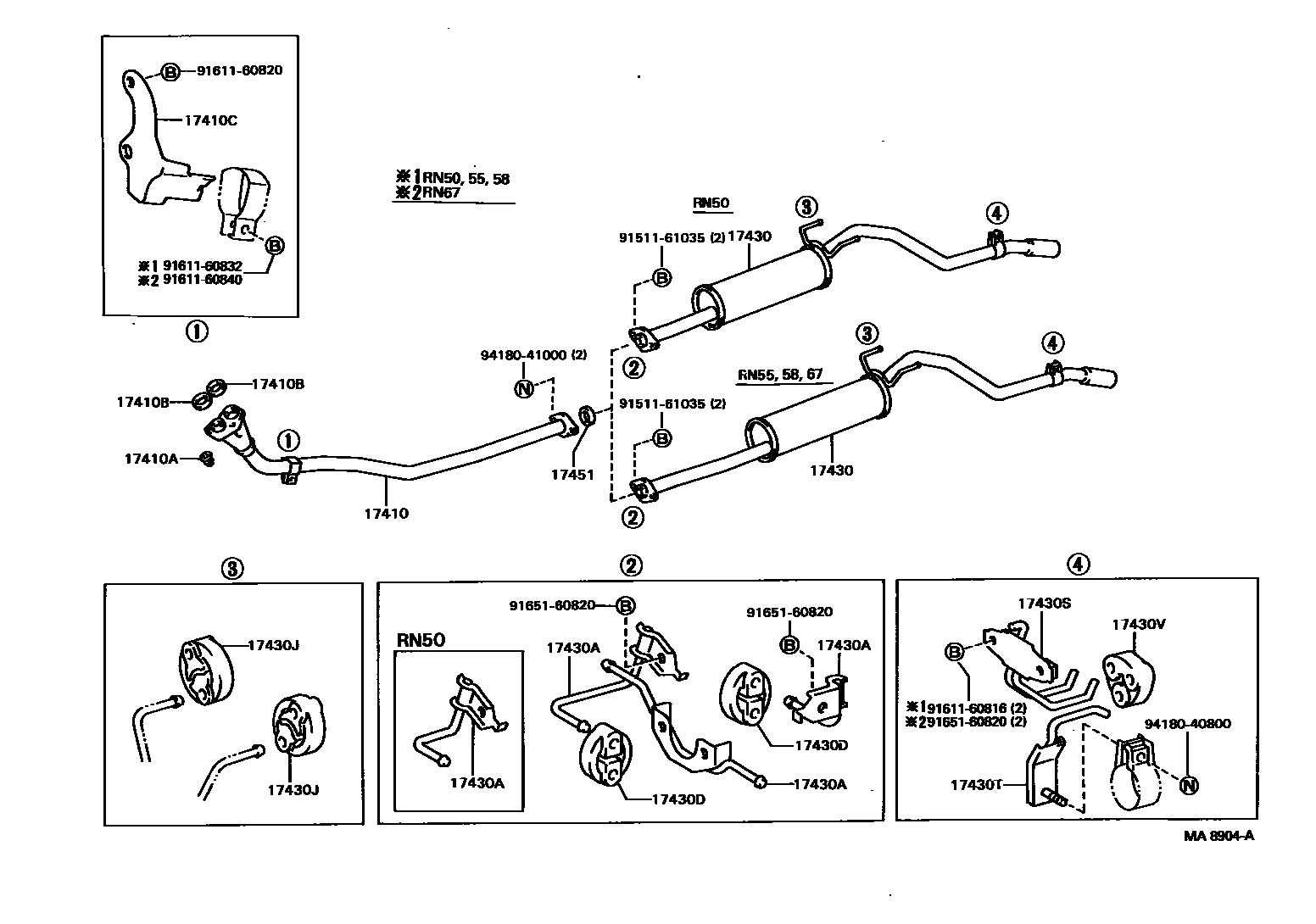

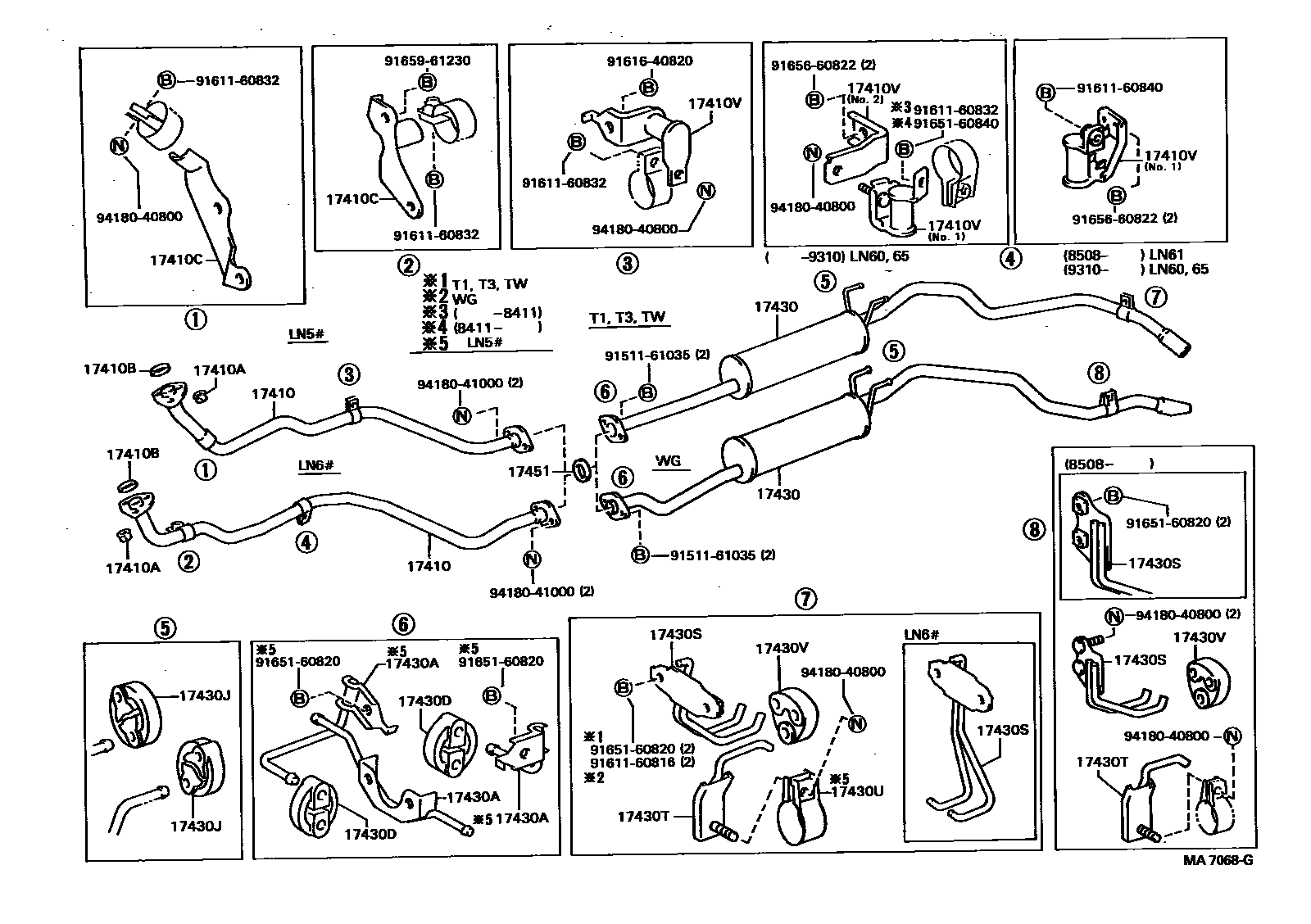

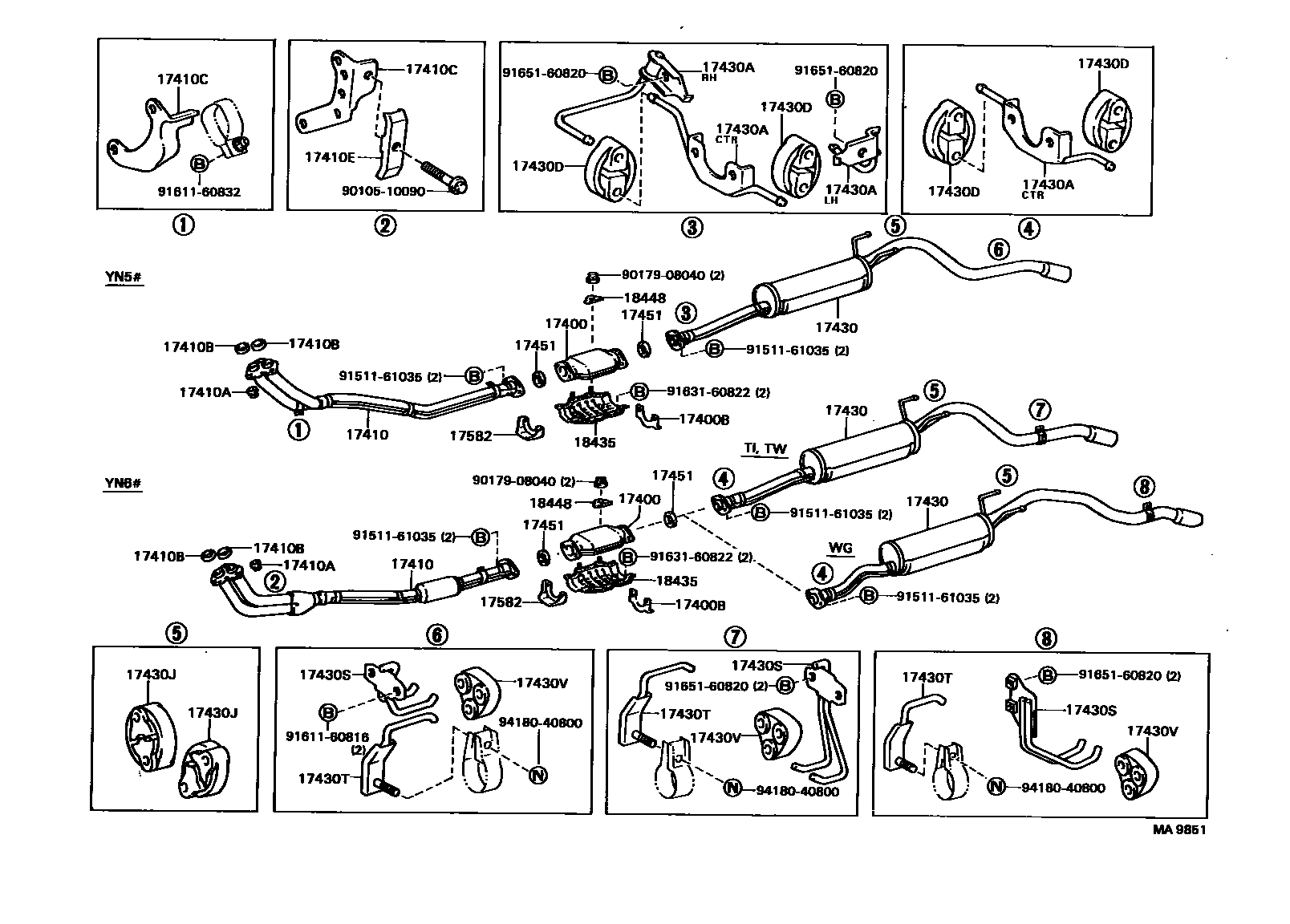

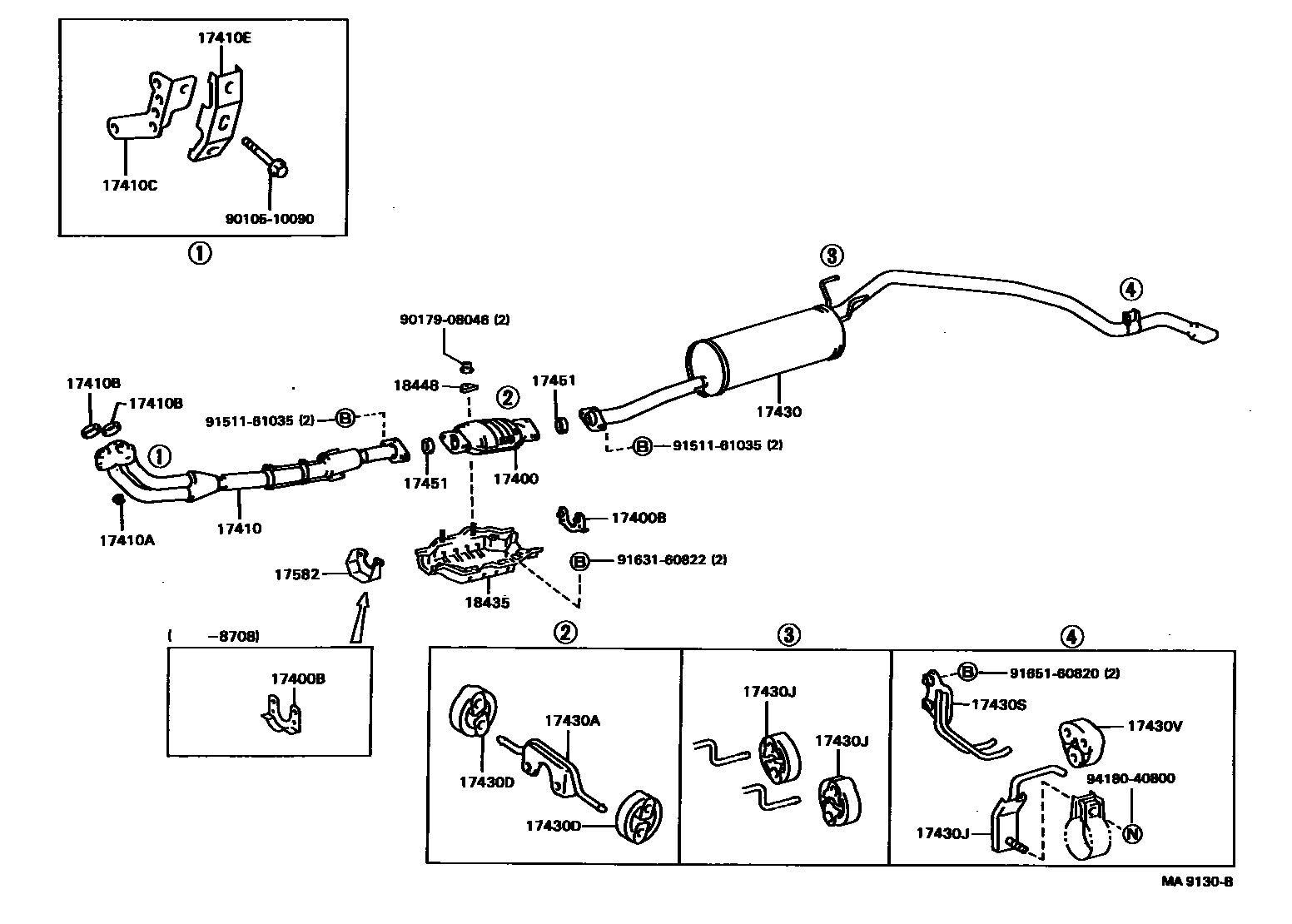

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 8 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-35070 · 18450-35130 · 18450-73070 · 18450-73071 · 18450-74071 |
| 17400B | exhaust pipe fixings | 18495-38020 |
| 17410 | Front exhaust pipe assembly | 17410-35220 · 17410-35221 · 17410-35310 · 17410-35452 · 17410-54290 · 17410-54300 · 17410-54310 · 17410-54530 · 17410-54700 · 17410-54721 · 17410-71070 · 17410-71130 · 17410-72170 · 17410-73030 · 17410-73040 · 17410-73050 · 17410-73051 · 17410-73120 · 17410-73160 · 17410-73200 · 17410-73310 · 17410-73360 · 17410-73370 · 17410-73380 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 · 90917-06038 · 90917-06064 · 90917-06066 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-35040 · 17571-35070 · 17571-35100 · 17571-54050 · 17571-54130 · 17571-54170 · 17571-54220 · 17571-54330 · 17571-54360 · 17571-71030 · 17571-71050 · 17571-73040 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 90917-04030 |
| 17410V | Front exhaust pipe bracket (for rear) | 17562-35020 · 17562-54090 · 17562-54110 · 17562-54280 · 17572-54060 · 17572-54080 |
| 17430 | Exhaust tailpipe assembly | 17430-35540 · 17430-35700 · 17430-35710 · 17430-3D011 · 17430-54350 · 17430-54351 · 17430-54830 · 17430-54860 · 17430-5B050 · 17430-5B060 · 17430-5B150 · 17430-71150 · 17430-71160 · 17430-72050 · 17430-72060 · 17430-72150 · 17430-72161 · 17430-73050 · 17430-73070 · 17430-73151 · 17430-73210 · 17430-73220 · 17430-73240 · 17430-73280 · 17430-73290 |
| 17430A | Exhaust tailpipe bracket (for front) | 17503-35060 · 17503-35080 · 17503-35110 · 17503-35120 · 17503-35130 · 17503-71010 · 17587-35010 · 17587-35020 · 17587-71020 · 17588-35010 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 17563-35020 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 17565-35010 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17575-35030 · 17575-54020 · 17575-71030 · 17575-73010 · 17575-73020 |
| 17430T | Exhaust tailpipe cushion (for rear) | 17585-35010 · 17585-71010 |
| 17430U | No. 1 exhaust tailpipe clamp (for rear) | 90949-01102 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 17566-35010 · 17566-35030 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06012 · 90917-06023 · 90917-06025 · 90917-06041 · 90917-06044 · 90917-06045 · 90917-06047 |
| 17582 | Three-way catalytic converter upper bracket | 17582-70020 · 17582-72010 |
| 18435 | Three-way catalytic converter protection device | 18407-35010 · 18407-35020 |
| 18448 | Three-way catalytic converter protection device central bracket | 18439-35010 · 18448-35020 |
