Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 7 images and 8 PNC and OE references.

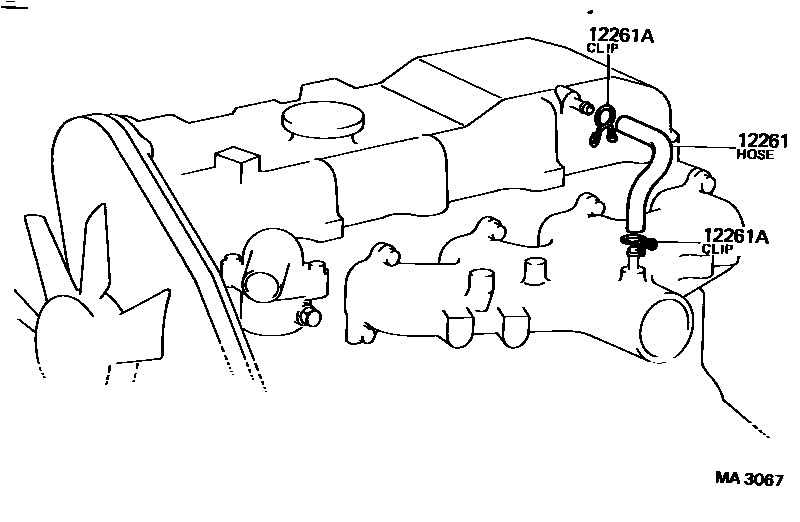

Toyota HILUX Ventilation Hose EPC diagram — MA3067
Ventilation Hose — MA3067 (198308 – 199508)

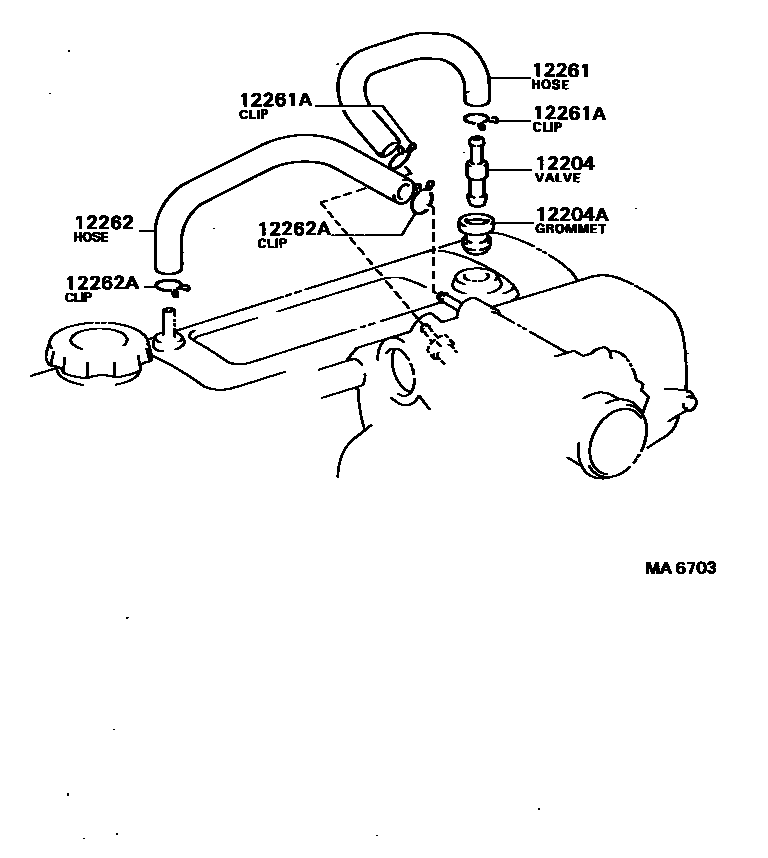

Toyota HILUX Ventilation Hose EPC diagram — MA6703
Ventilation Hose — MA6703 (198608 – 198903)

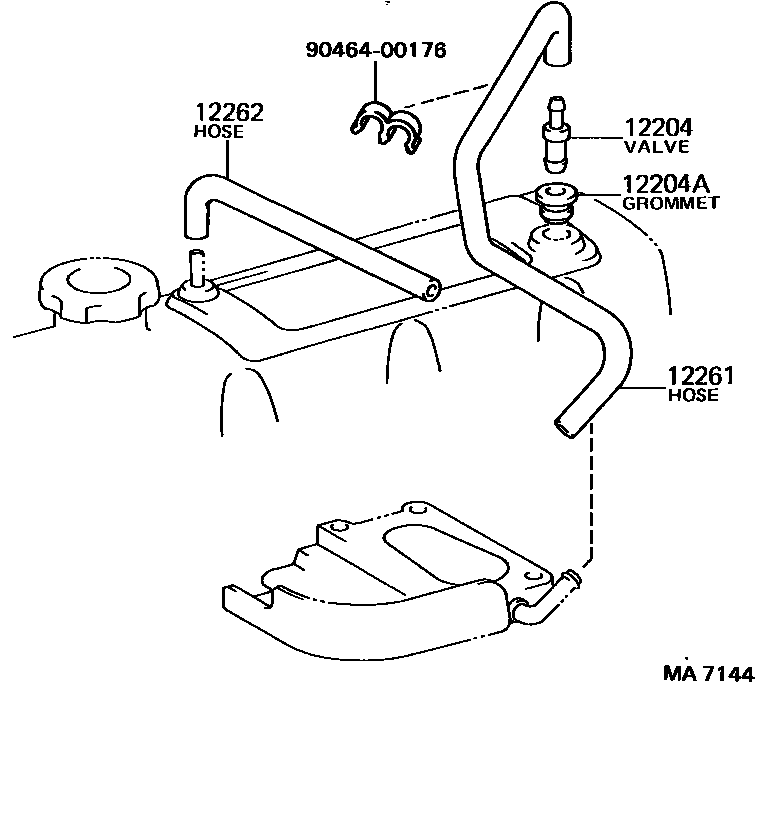

Toyota HILUX Ventilation Hose EPC diagram — MA7144
Ventilation Hose — MA7144 (198308 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — MA7782
Ventilation Hose — MA7782 (198601 – 198808)

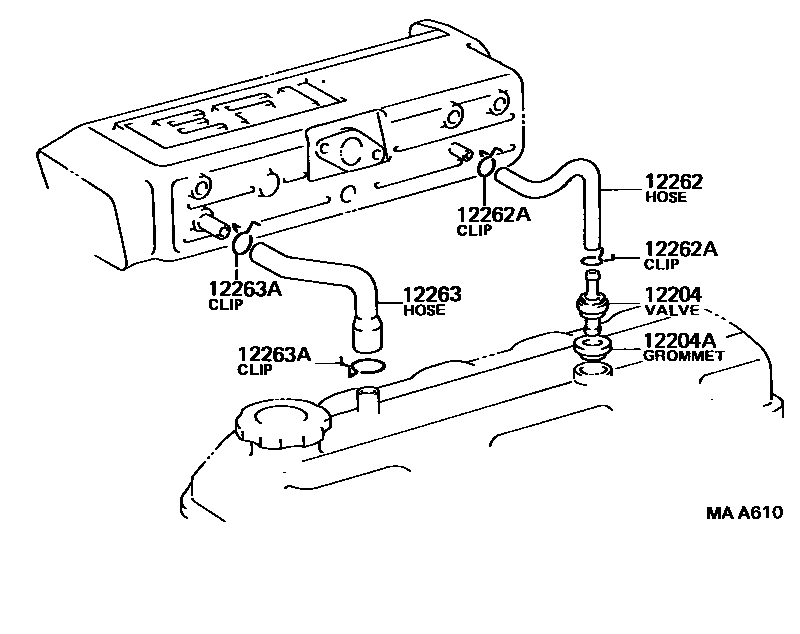

Toyota HILUX Ventilation Hose EPC diagram — MAA610
Ventilation Hose — MAA610 (198712 – 198808)

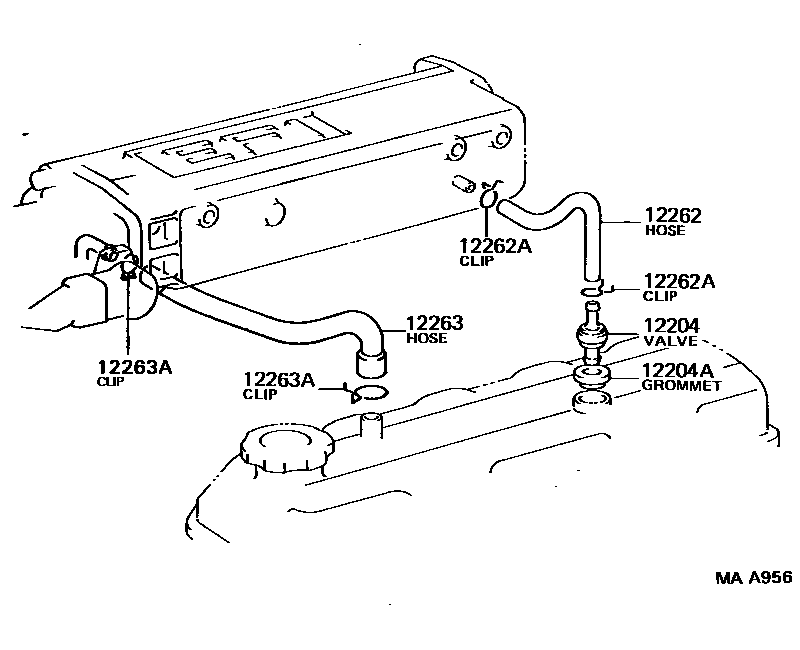

Toyota HILUX Ventilation Hose EPC diagram — MAA956
Ventilation Hose — MAA956 (198808 – 198903)
Toyota HILUX Ventilation Hose EPC diagram — MAH821
Ventilation Hose — MAH821 (199508 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-15022 · 12204-35010 · 12204-35030 · 12204-35040 · 12204-71010
12204AGasket (for ventilation system)90480-18001 · 90480-18008 · 90480-18180
12261Ventilation Hose12261-54010 · 12261-54100 · 12261-71021 · 12261-73021
12261AClip or clip (for vent hose)90467-15006 · 90467-15120 · 90467-18003
12262Ventilation hose No. 212261-35011 · 12261-35020 · 12261-38011 · 12262-71010 · 12262-71020 · 12262-73010
12262AClamp (for vent hose No. 2)90467-15006
12263No. 3 ventilation hose12262-35030 · 12262-35040 · 12262-35060
12263AClip (for ventilation hose)90467-15006 · 90467-19003
