Toyota HILUX Engine Overhaul Gasket Kit — Figure 1103

Toyota HILUX EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

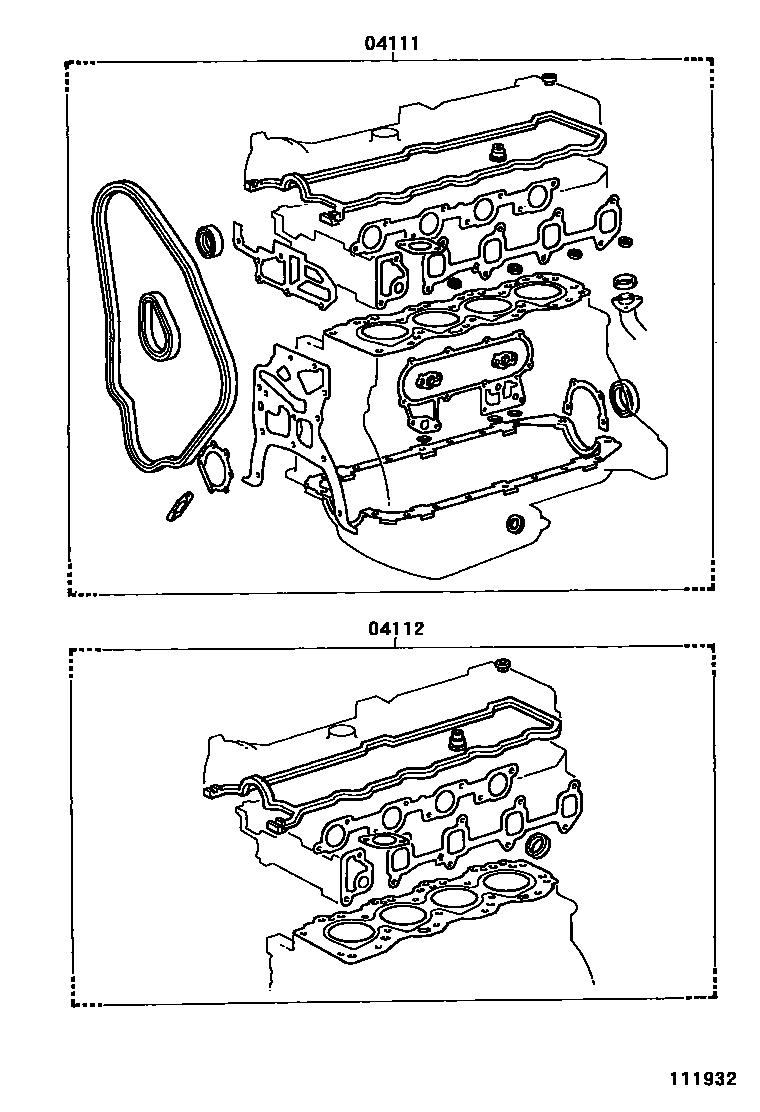

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — 111932
Engine Overhaul Gasket Kit — 111932 (198308 – 199508)

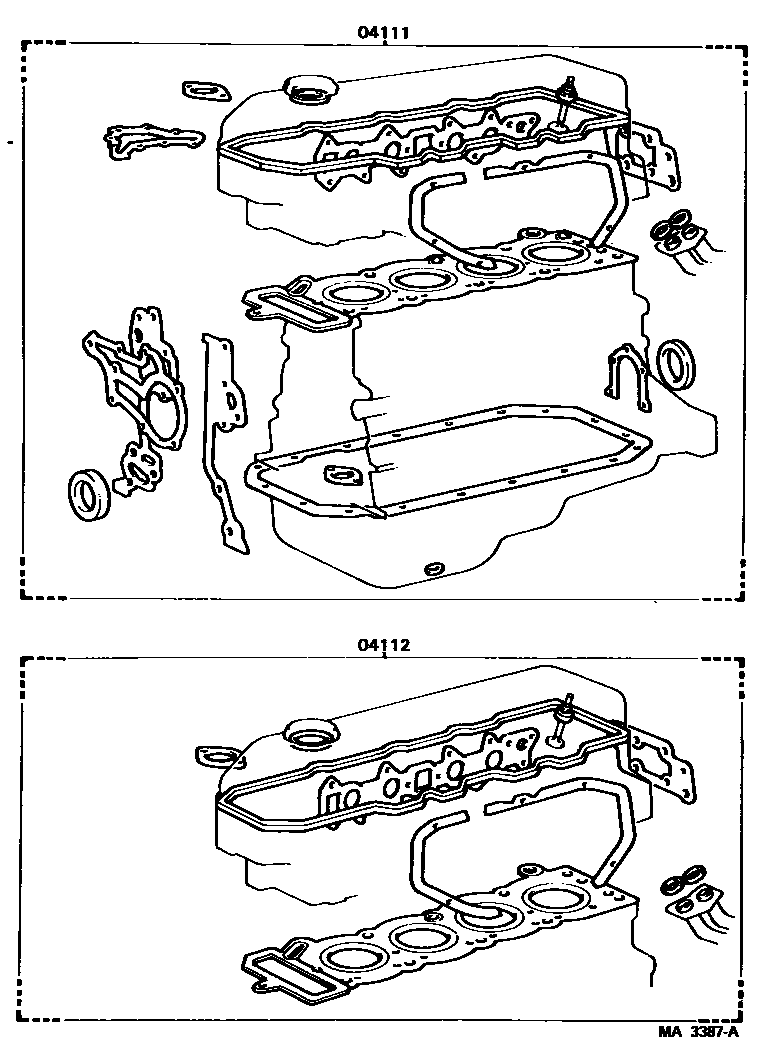

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — MA3387A
Engine Overhaul Gasket Kit — MA3387A (198601 – 198808)

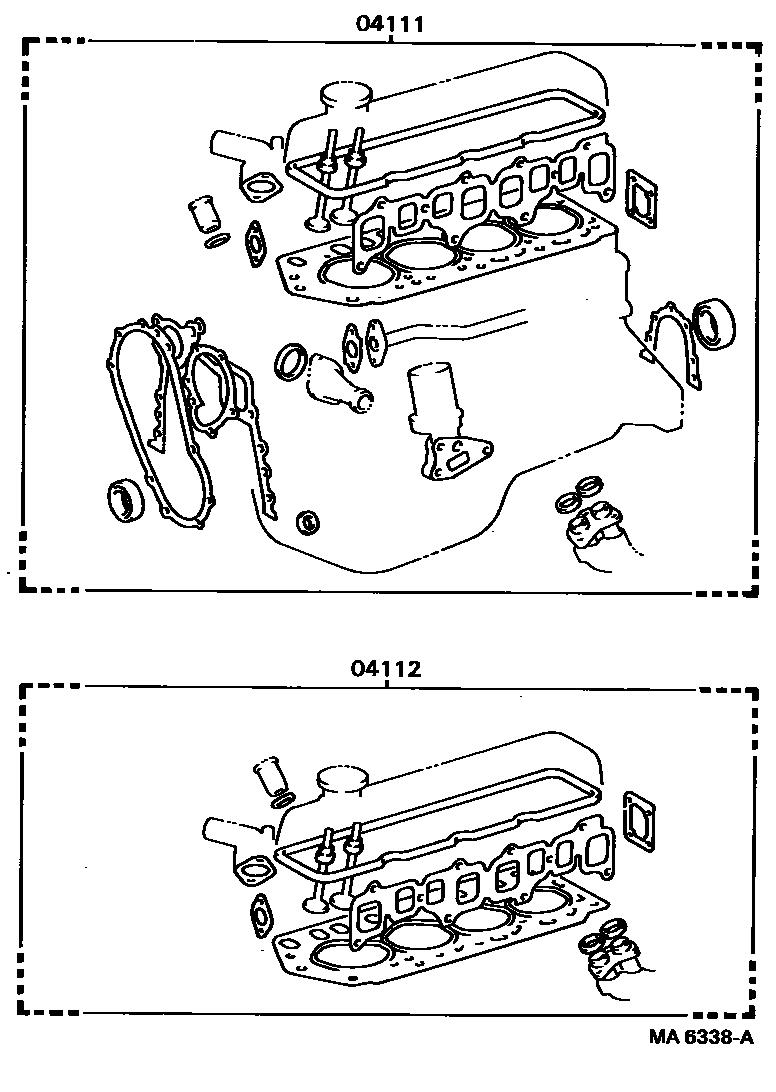

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — MA6338A
Engine Overhaul Gasket Kit — MA6338A (198308 – 999999)

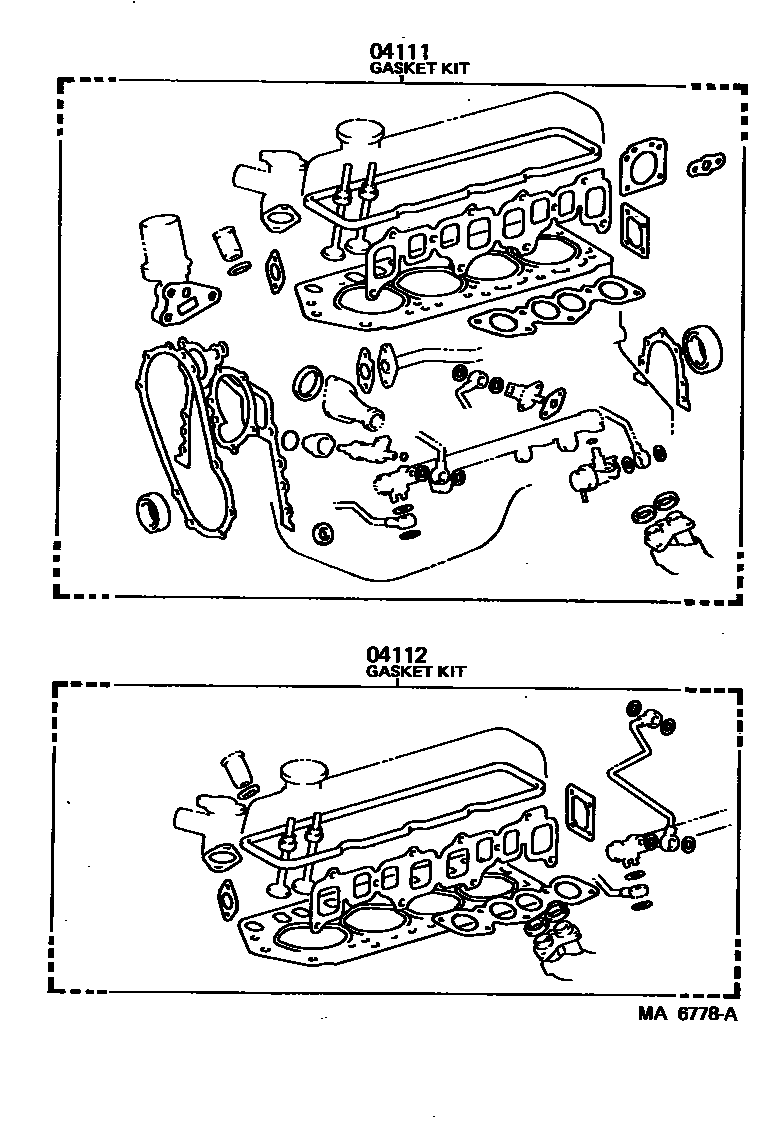

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — MA6778A
Engine Overhaul Gasket Kit — MA6778A (198608 – 198903)

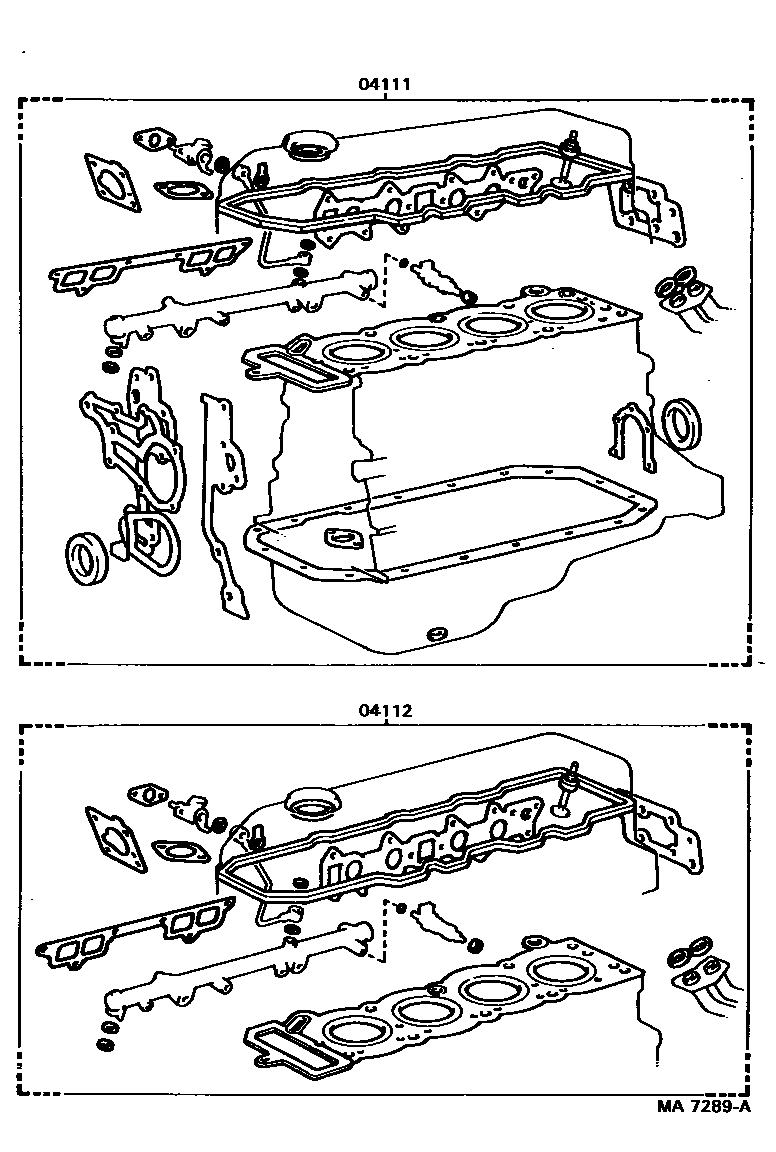

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — MA7289A
Engine Overhaul Gasket Kit — MA7289A (198712 – 198903)

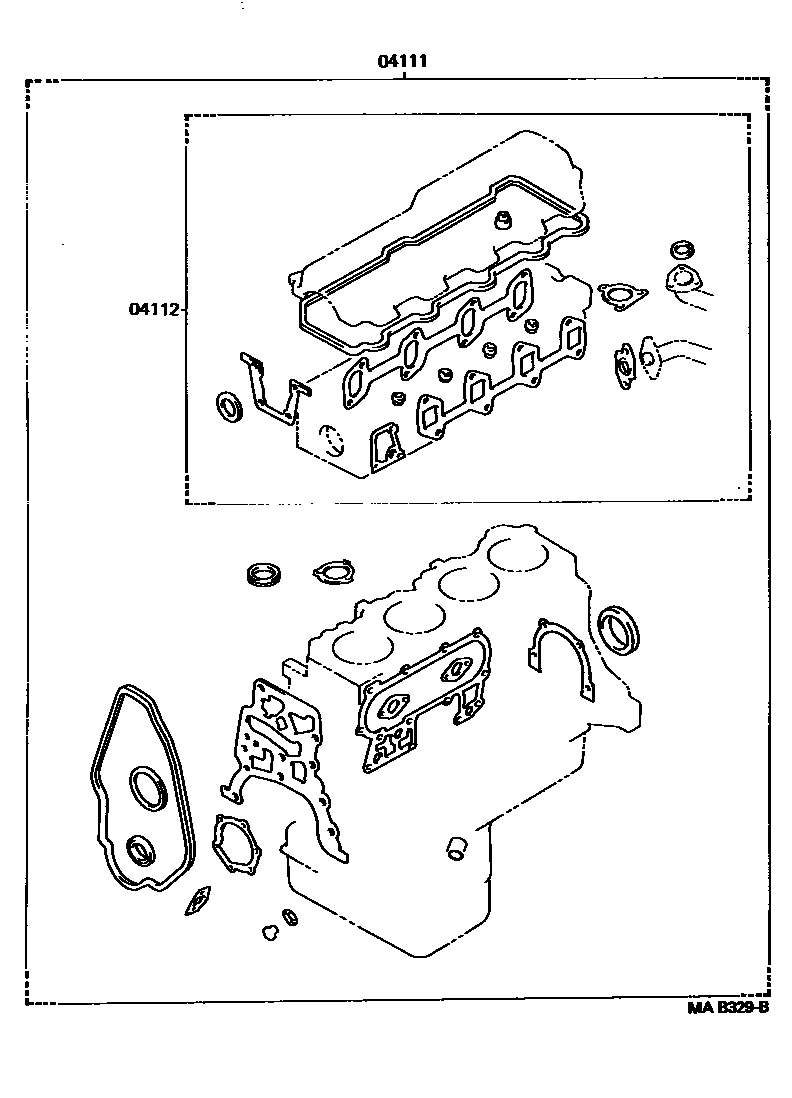

Toyota HILUX Engine Overhaul Gasket Kit EPC diagram — MAB329B
Engine Overhaul Gasket Kit — MAB329B (199508 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-35130 · 04111-35131 · 04111-35160 · 04111-35342 · 04111-54034 · 04111-54035 · 04111-54050 · 04111-54051 · 04111-54052 · 04111-54053 · 04111-54083 · 04111-54084 · 04111-54093 · 04111-54094 · 04111-54160 · 04111-72010 · 04111-72011 · 04111-72012 · 04111-72013 · 04111-72014 · 04111-72015 · 04111-72016 · 04111-72040 · 04111-73020 · 04111-73022 · 04111-73023 · 04111-73040 · 04111-73042 · 04111-73043 · 04111-73044
04112Engine valve grinding pad assembly04112-35120 · 04112-35121 · 04112-35150 · 04112-35322 · 04112-54022 · 04112-54023 · 04112-54040 · 04112-54041 · 04112-54042 · 04112-54071 · 04112-54072 · 04112-72010 · 04112-72011 · 04112-72012 · 04112-72013 · 04112-72014 · 04112-72015 · 04112-72016 · 04112-72040 · 04112-73020 · 04112-73022 · 04112-73040 · 04112-73041 · 04112-73042 · 04112-73043
