Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719

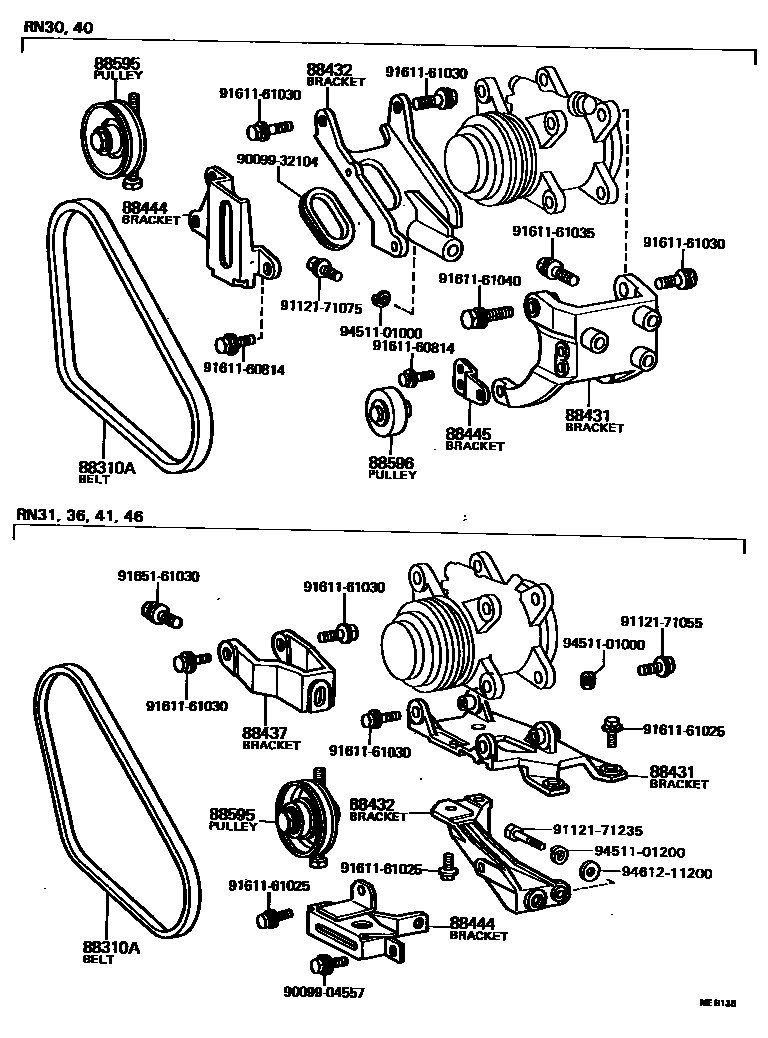

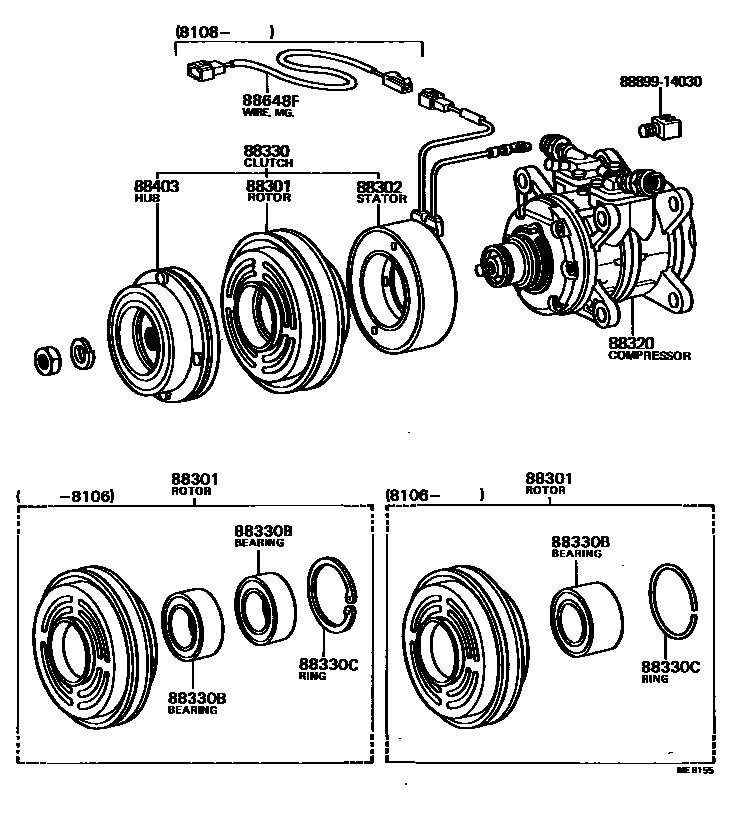

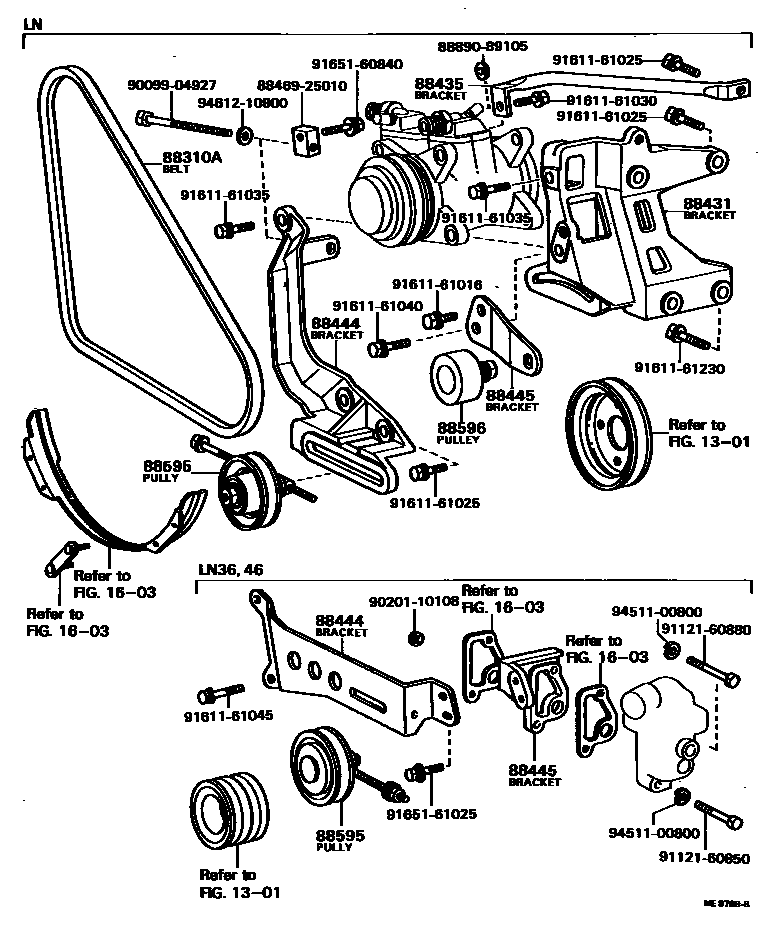

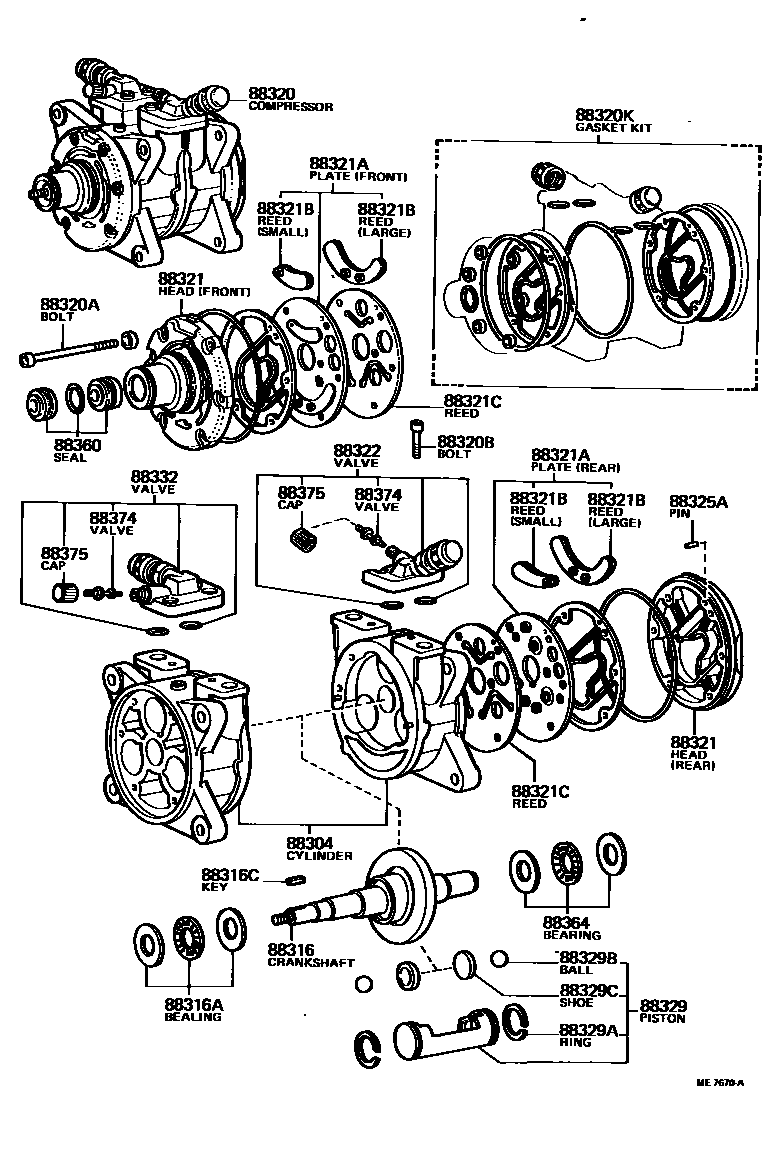

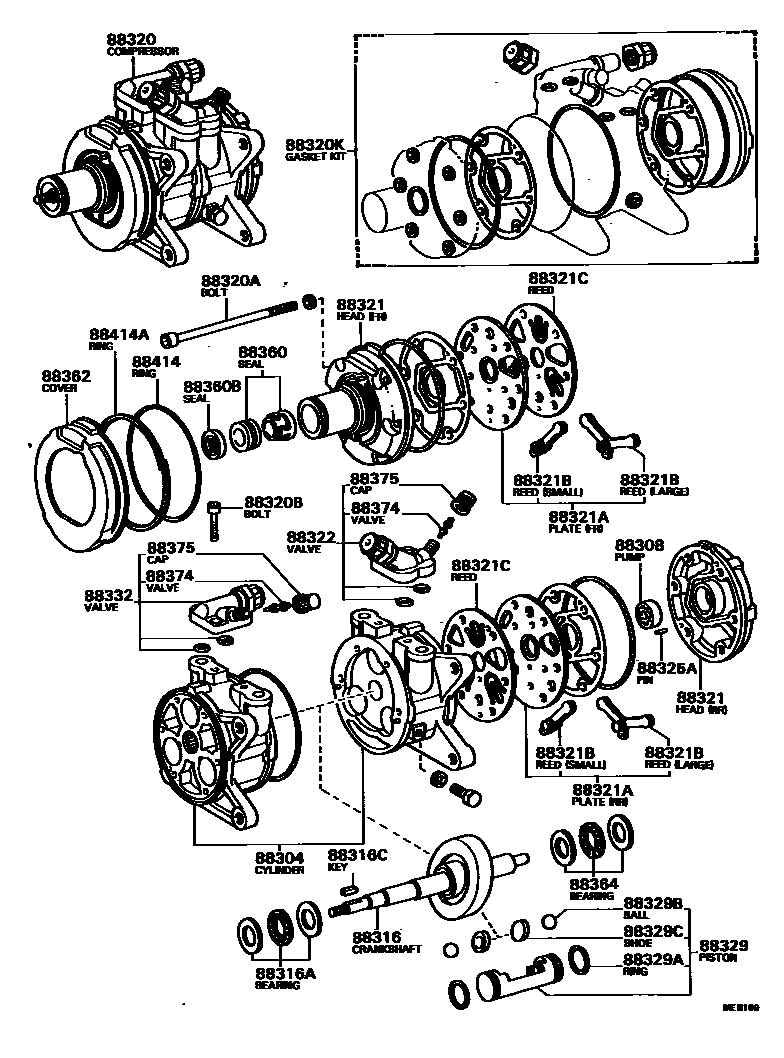

Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 5 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12040 · 88412-14010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-14050 · 88411-22040 |
| 88304 | Cooler compressor cylinder sub-assembly | 88304-12020 · 88304-35030 |
| 88308 | Cooler compressor pump assembly | 88308-35010 |
| 88316 | Cooler compressor crankshaft | 88316-12060 · 88316-12061 · 88316-35010 |
| 88316A | Compressor crankshaft front bearing | 90099-10123 |
| 88316C | Compressor crankshaft key | 90099-13011 · 90099-13019 |
| 88320 | Cooler Compressor Assembly | 88320-35010 · 88320-35011 · 88320-35020 · 88320-35021 · 88320-35030 · 88320-35040 · 88320-35061 · 88320-35070 · 88320-35071 · 88320-35080 |
| 88320A | Through bolt | 90099-04923 · 90099-04970 |
| 88320B | Service valve bolts | 90099-04924 |
| 88320K | Cooler compressor overhaul gasket assembly | 04881-12020 · 04881-35010 · 04881-35020 |
| 88321 | Cooler compressor cylinder head | 88321-12030 · 88321-12031 · 88321-35010 · 88322-12010 · 88322-35010 |
| 88321A | Valve sub-assembly | 88305-12040 · 88305-35010 · 88306-12010 · 88306-35010 |
| 88321B | Valve reed sub-assembly | 88307-12030 · 88307-12040 · 88307-35010 · 88307-35020 |
| 88321C | suction valve reed | 88343-12010 · 88343-35010 |
| 88322 | Cooler compressor suction service valve | 88371-10010 · 88371-10020 · 88371-12050 · 88371-12140 · 88371-12150 · 88371-35010 |
| 88325A | cylinder pin | 90099-08058 |
| 88329 | Cooler compressor piston sub-assembly | 88301-12040 |
| 88329A | Compressor piston snap ring | 88317-12010 |
| 88329B | piston ball | 90099-12010 |
| 88329C | piston shoe | 88313-12060 |
| 88330 | Magnetic Clutch Assembly | 88410-14090 · 88410-22060 |
| 88330B | Electromagnetic clutch bearing | 90099-10117 · 90099-10133 |
| 88330C | Snap ring (for electromagnetic clutch) | 90099-07094 · 90099-07114 |
| 88332 | Cooler compressor discharge service valve | 88372-35010 · 88372-35030 · 88372-35040 |
| 88360 | Cooler compressor shaft seal assembly | 88360-12070 · 88360-12071 |
| 88360B | Shaft seal | 90099-15031 |
| 88362 | Cooler compressor seal | 88351-35010 |
| 88364 | Compressor crankshaft rear bearing | 90099-10123 |
| 88374 | Cooler compressor service valve | 88374-12020 |
| 88375 | Cooler compressor repair valve cover | 88375-30260 · 88375-30270 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-14030 · 88403-26030 |
| 88414 | guard ring | 90099-14063 |
| 88414A | Guard plate snap ring | 88352-35010 |
| 88431 | Compressor No. 1 mounting bracket | 88431-25020 · 88431-35010 · 88431-35030 |
| 88432 | Compressor No. 2 mounting bracket | 88431-22091 · 88431-35020 · 88431-35050 |
| 88435 | Compressor No. 5 mounting bracket | 88433-25030 · 88433-35010 |
| 88437 | Compressor No. 7 mounting bracket | 88437-35010 |
| 88444 | Idler gear bracket | 88444-22030 · 88444-25020 · 88444-26040 · 88444-35010 |
| 88445 | Idler gear bracket | 88444-25030 · 88444-26050 · 88444-35020 |
| 88595 | Cooler compressor idler pulley | 88440-25010 · 88440-26030 · 88440-30250 |
| 88596 | No. 2 idler gear assembly | 88440-20060 · 88440-25020 |
| 88648F | Electromagnetic clutch wiring harness | 88648-89107 |
