Toyota HILUX 暖风和空调系统 - 真空管 — Figure 8717

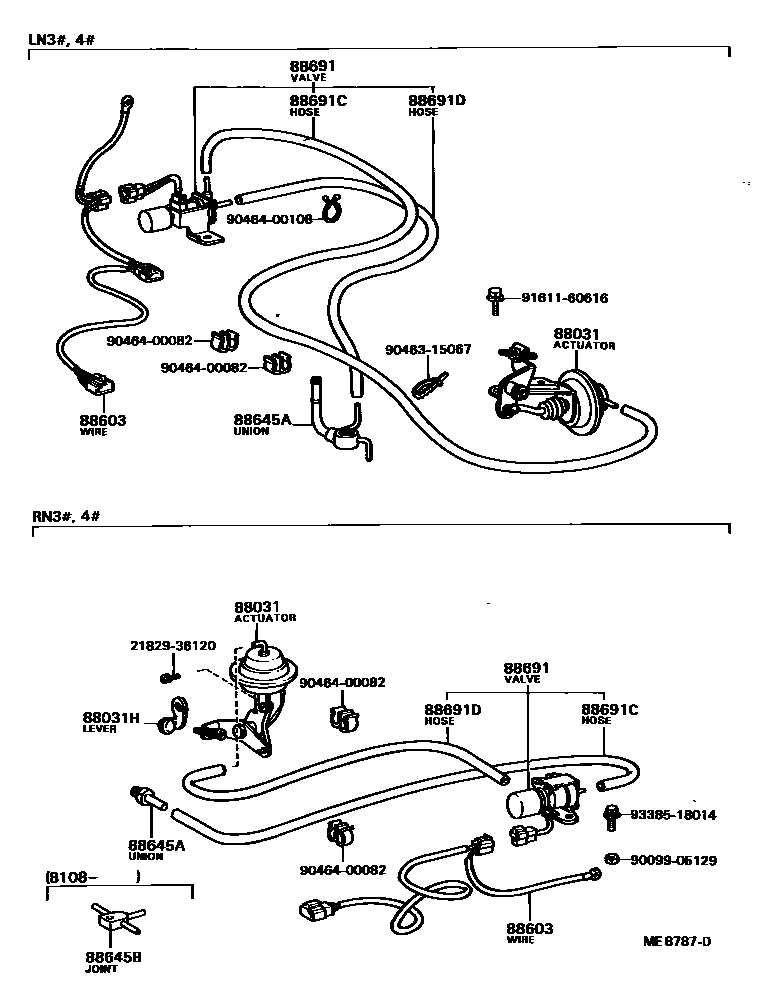

Toyota HILUX EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88031 | Idle speed lift actuator assembly | 21099-36110 · 88031-30060 · 88031-35010 · 88031-35020 · 88031-35040 |
| 88031H | Rod (for idle lift actuator) | 21409-14030 · 21409-36110 |
| 88603 | Idle speed lifting device wiring harness | 88648-89103 · 88648-89105 · 88648-89106 · 88648-89108 · 88648-89112 |
| 88645A | Connector (for idle lift device) | 90404-51093 · 90405-09004 |
| 88645B | Connector No. 1 (for idle speed lifting device) | 90413-04001 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-89109 · 88690-89112 · 88690-89113 · 88690-89114 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 88689-89101 |
