Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716

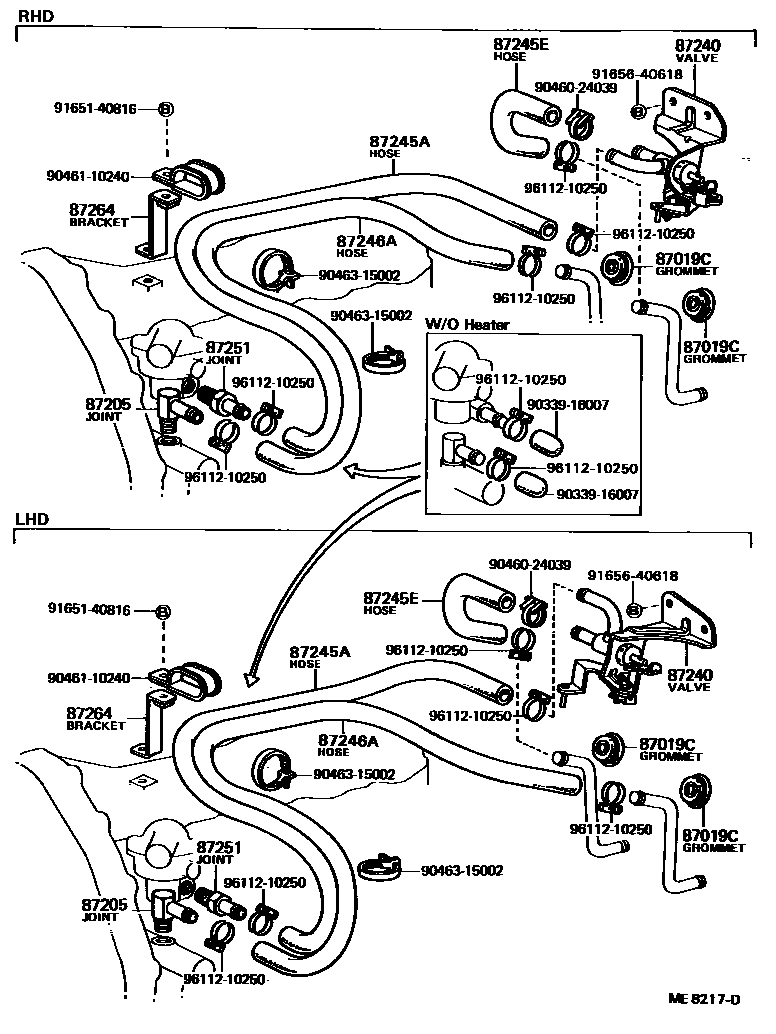

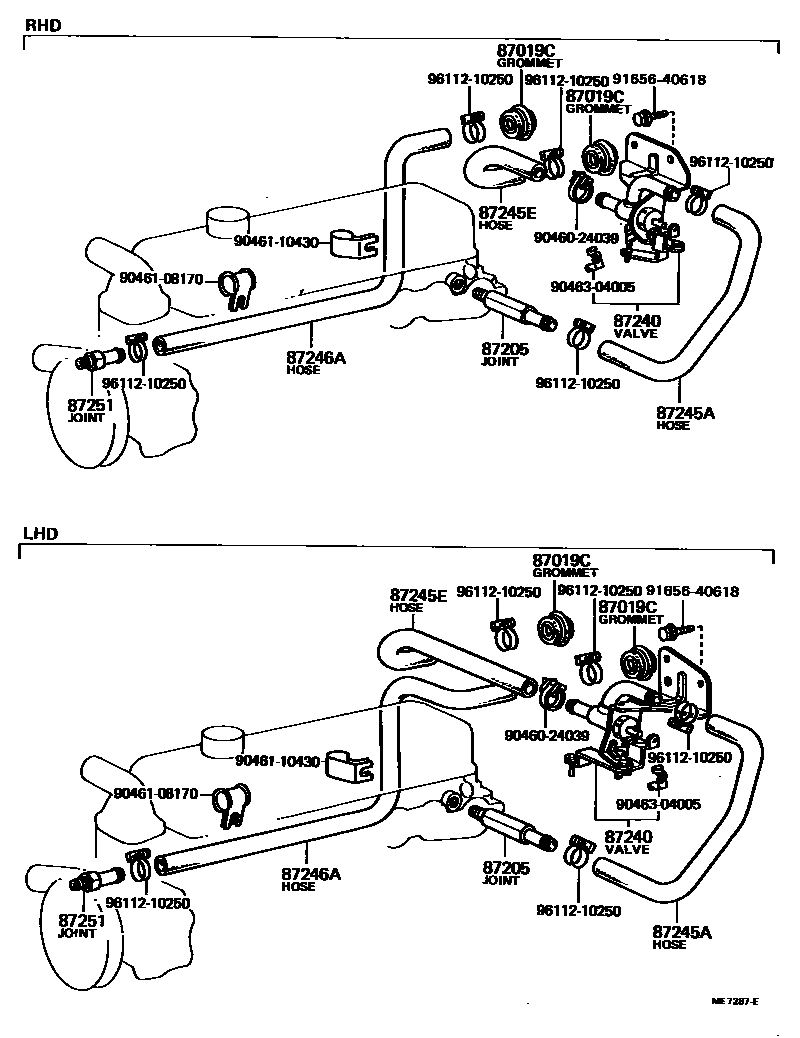

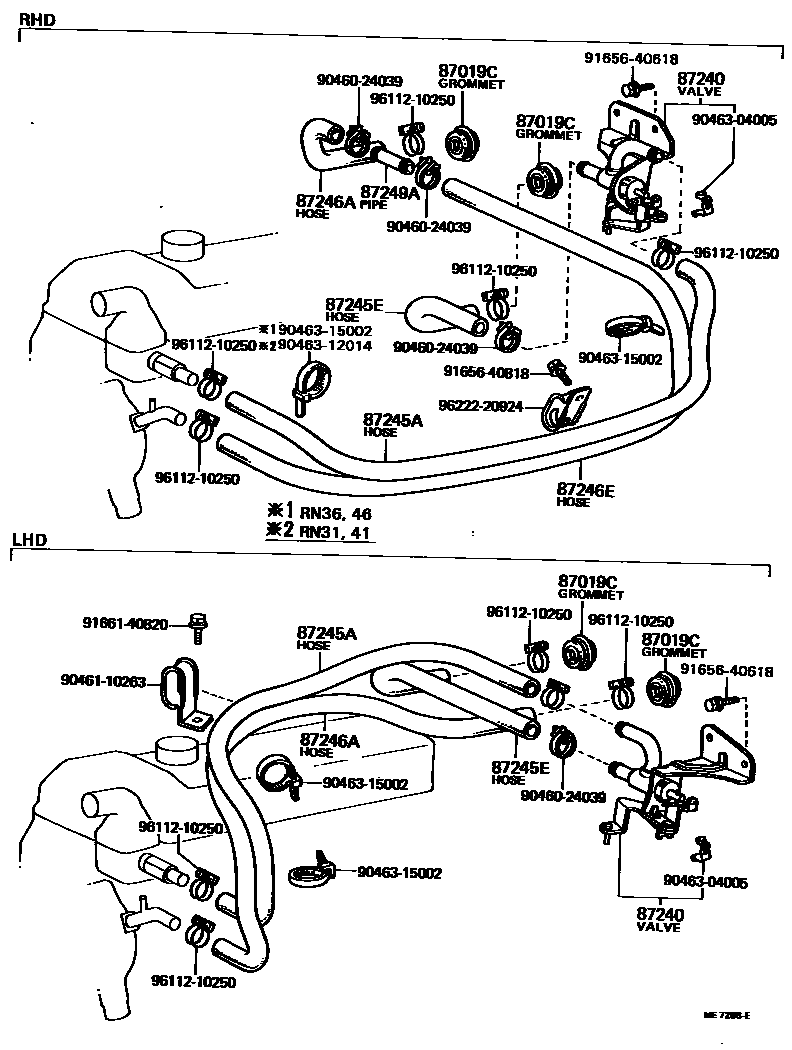

Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-36005 |
| 87205 | Front heater hose feedthrough connector or water inlet valve connector | 87251-30230 · 87251-87308 · 87251-89111 |
| 87240 | Heater water valve assembly | 87240-89109 · 87240-89110 · 87240-89111 · 87240-89112 |
| 87245A | Heater water inlet hose A | 87245-89123 · 87245-89124 · 87245-89130 · 87245-89133 · 99552-30880 · 99552-31000 |
| 87245E | Heater water inlet hose E | 87245-89121 · 87245-89122 |
| 87246A | Heater outlet hose A | 87245-89126 · 87245-89127 · 87245-89128 · 87245-89131 · 87245-89132 · 87245-89137 |
| 87246E | Heater outlet hose E | 99552-31000 |
| 87249A | Heater outlet pipe A | 87248-14090 |
| 87251 | Water hose penetration joint | 87251-30200 |
| 87264 | Heater water hose bracket | 87263-89107 · 87263-89108 · 87263-95110 |
