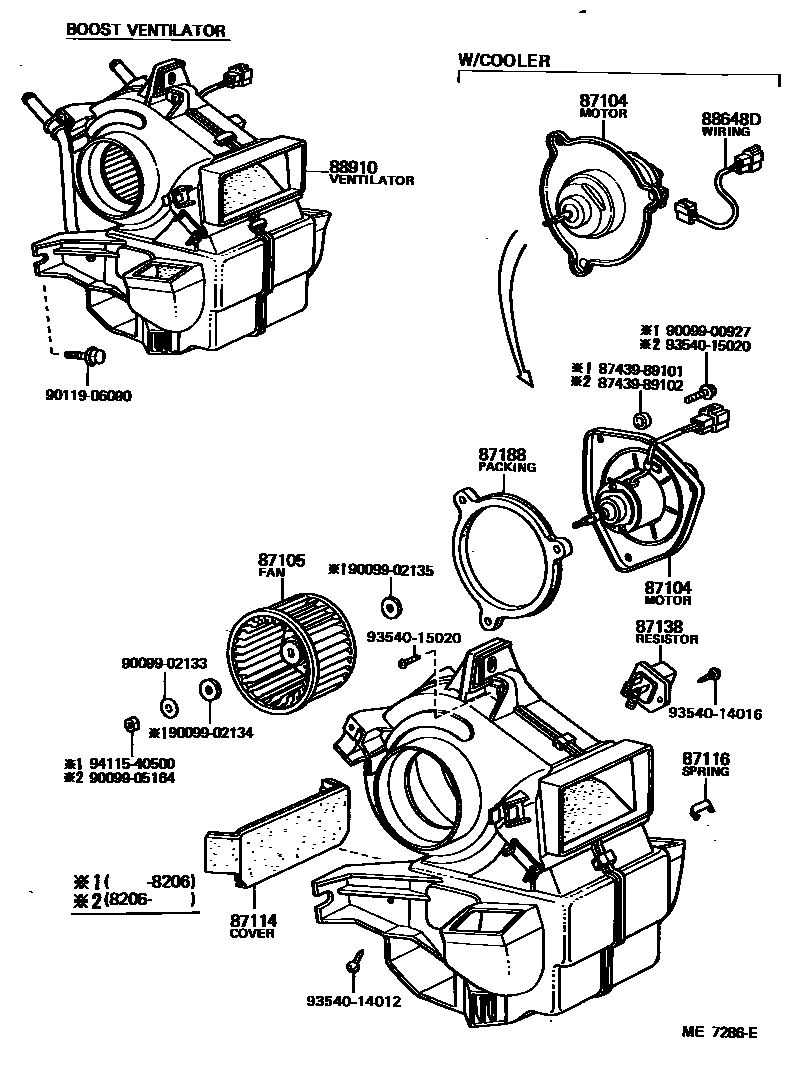

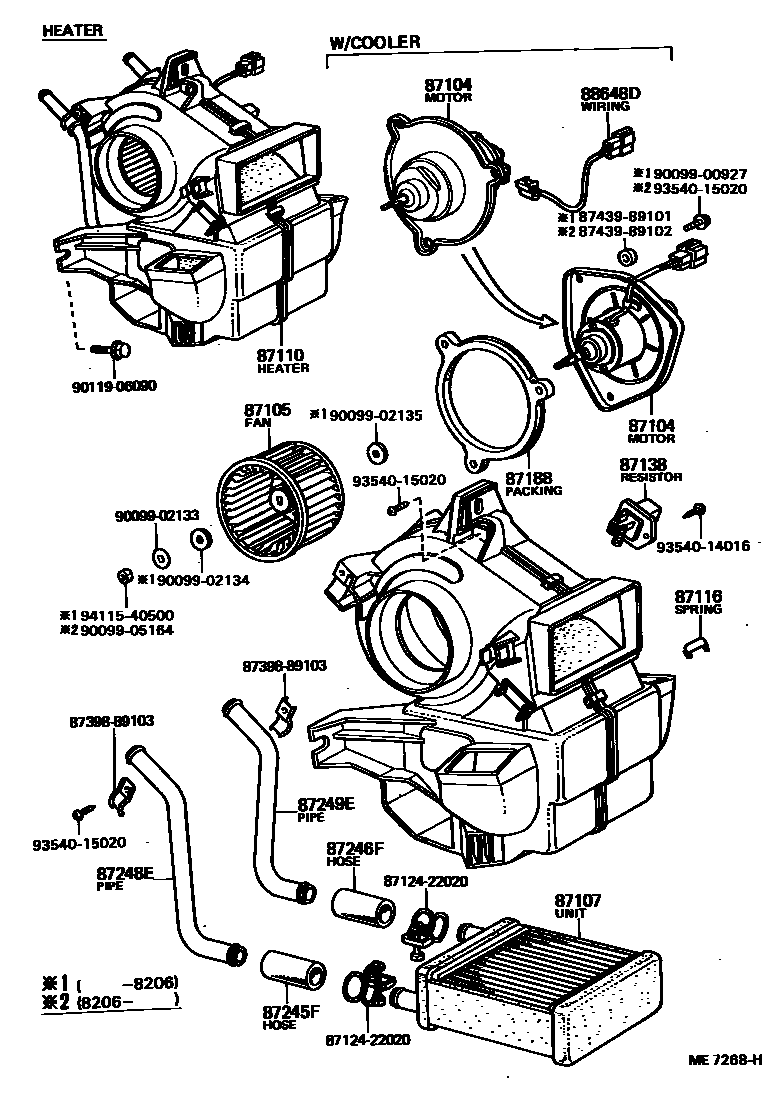

Toyota HILUX 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota HILUX EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87104 | Heater blower motor sub-assembly | 87104-95401 · 87104-95403 |
| 87105 | Heater blower fan sub-assembly | 87105-12030 · 87105-12040 |
| 87107 | Heater radiator device sub-assembly | 87107-89106 · 87107-89107 · 87107-89108 · 87107-89109 |
| 87110 | heater assembly | 87110-89127 · 87110-89128 · 87110-89129 · 87110-89130 · 87110-89132 · 87110-89133 · 87110-89134 · 87110-89135 |
| 87114 | heater cover | 87114-89102 |
| 87116 | Heater shell fastening spring | 87116-14010 |
| 87138 | Heater Blower Resistor | 87138-87003 · 87138-87004 · 87138-89103 · 88635-89102 |
| 87188 | Heater blower motor seal | 87128-22010 |
| 87245F | Heater water inlet hose F | 99552-30040 |
| 87246F | Heater outlet hose F | 99552-30040 |
| 87248E | Heater water inlet pipe E | 87248-89114 · 87248-89116 |
| 87249E | Heater outlet pipe E (for heating device) | 87248-89115 · 87248-89117 |
| 88648D | Blower motor wiring harness | 88648-89101 |
| 88910 | Auxiliary ventilation device assembly | 88910-89101 · 88910-89102 · 88910-89103 · 88910-89104 |
