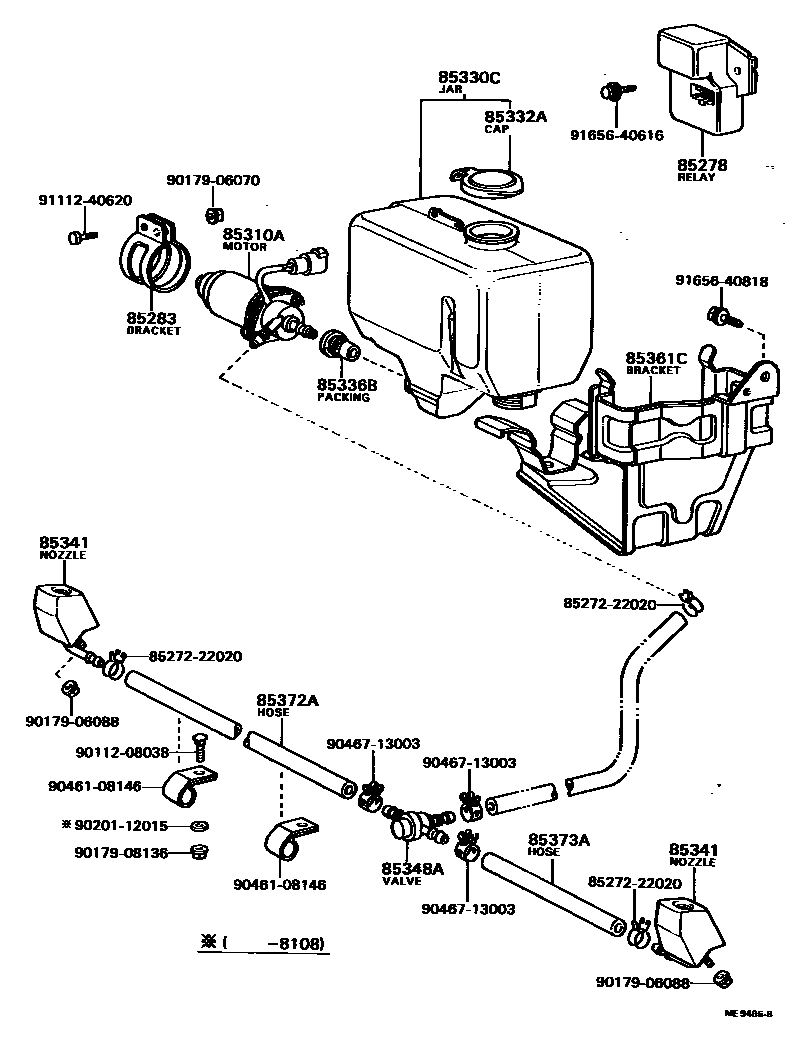

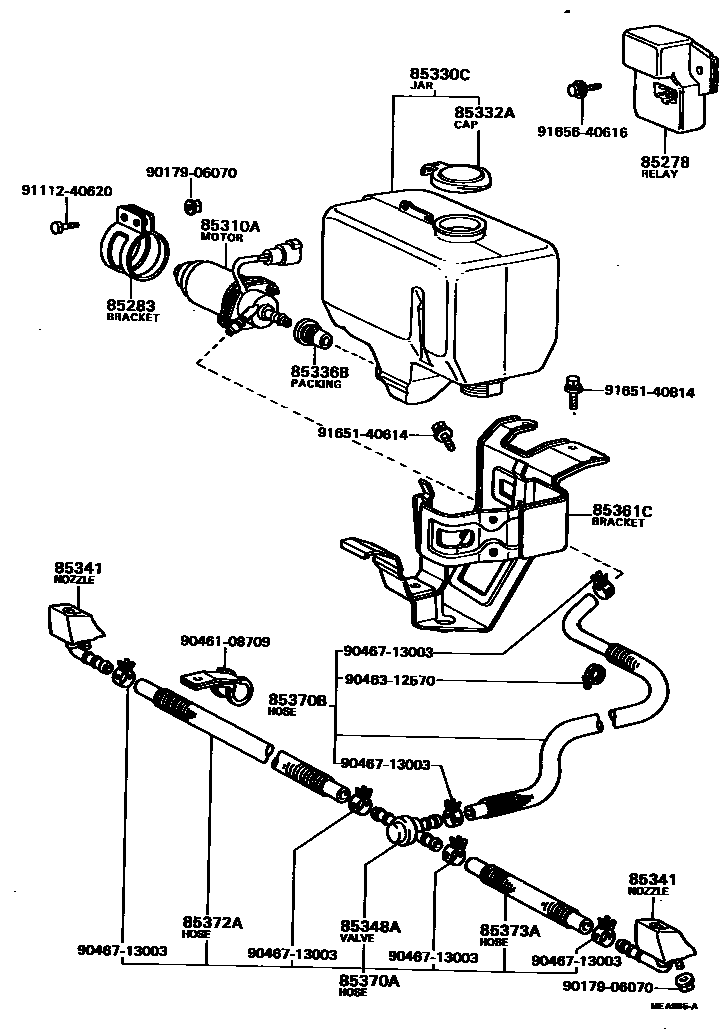

Toyota HILUX 前大灯清洗器 — Figure 8505
Toyota HILUX EPC diagram 8505, 前大灯清洗器, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85278 | Headlight washer control relay assembly | 85276-14010 |
| 85283 | Headlight washer bracket | 85361-14100 |
| 85310A | Headlight washer motor and pump assembly | 85310-10090 · 85310-22070 |
| 85330C | Headlight washer cleaning fluid tank assembly | 85330-22120 |
| 85332A | Headlight washer washer fluid tank cap | 85332-16010 |
| 85336B | Headlight washer seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85035-89103 · 85035-89104 · 85035-95110 |
| 85348A | Headlight washer hose connector No. 1 | 85031-12010 |
| 85361C | Cleaner stand | 53752-89104 · 53752-89105 · 53752-95110 |
| 85370A | No. 1 headlight washer hose assembly | 85370-95110 |
| 85370B | No. 2 headlight washer hose assembly | 85370-95111 |
| 85372A | Headlight washer hose (from fitting to fitting or nozzle) | 90445-14061 |
| 85373A | Headlight washer hose (from connector to nozzle) | 90445-14048 · 90445-14059 |
