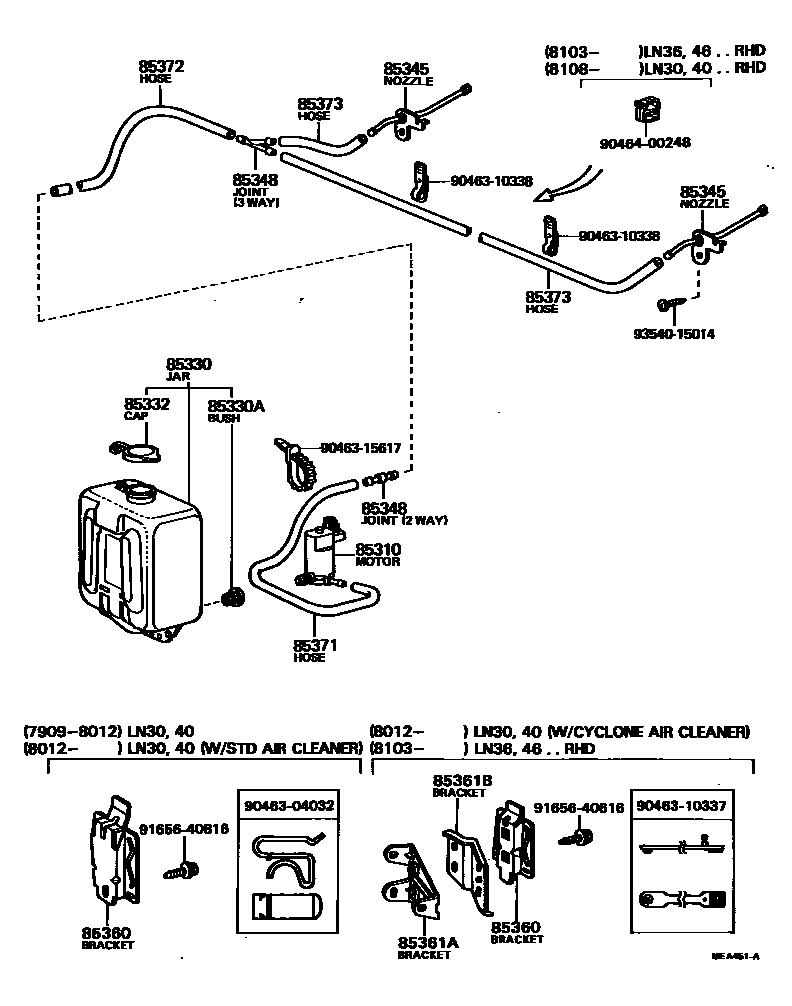

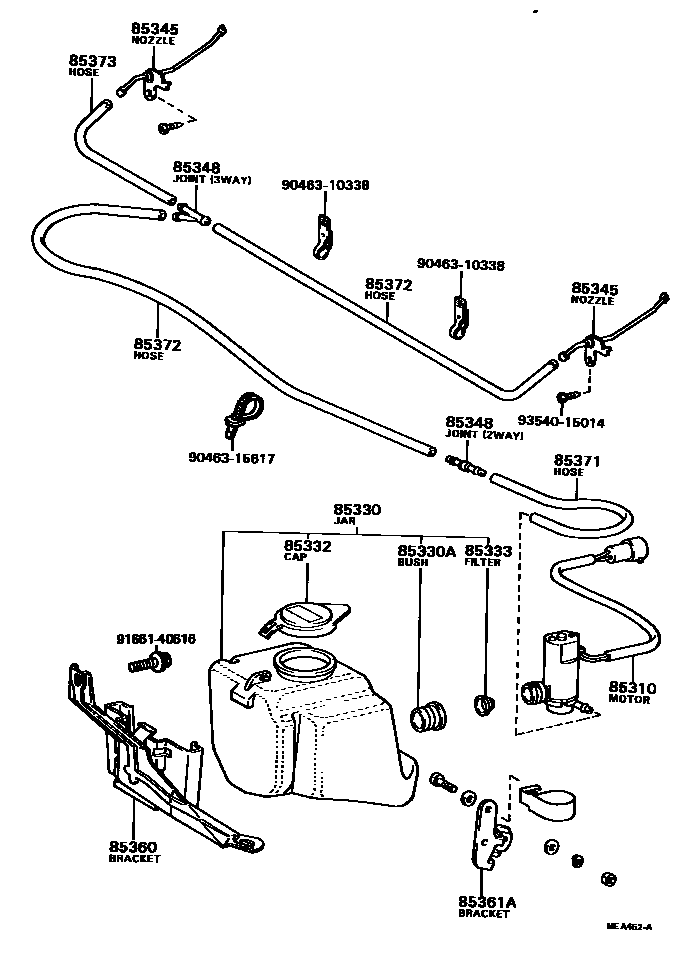

Toyota HILUX 挡风玻璃清洗器 — Figure 8503
Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85310 | Windshield washer motor and pump assembly | 85310-20100 · 85310-89103 · 85310-89104 · 85310-95110 |
| 85330 | Windshield washer fluid tank assembly | 85330-89104 · 85330-89110 · 85330-95110 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 · 90099-32103 |
| 85332 | Windshield washer fluid tank cap | 85332-16010 · 85332-20060 · 85332-30050 |
| 85333 | Windshield washer fluid tank filter | 85333-20020 |
| 85345 | windshield washer nozzle | 85341-89104 |
| 85348 | Windshield washer hose connector No. 1 | 85349-20010 · 85355-14010 · 85355-87201 |
| 85360 | Windshield washer bracket assembly | 16402-89101 · 53752-89101 · 53752-89107 |
| 85361A | Windshield washer bracket No. 1 | 53261-89102 · 53752-89106 |
| 85361B | Windshield washer bracket No. 2 | 53262-89102 |
| 85371 | Windshield washer hose (from motor to connector) | 90099-33346 · 90446-06013 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-06013 |
