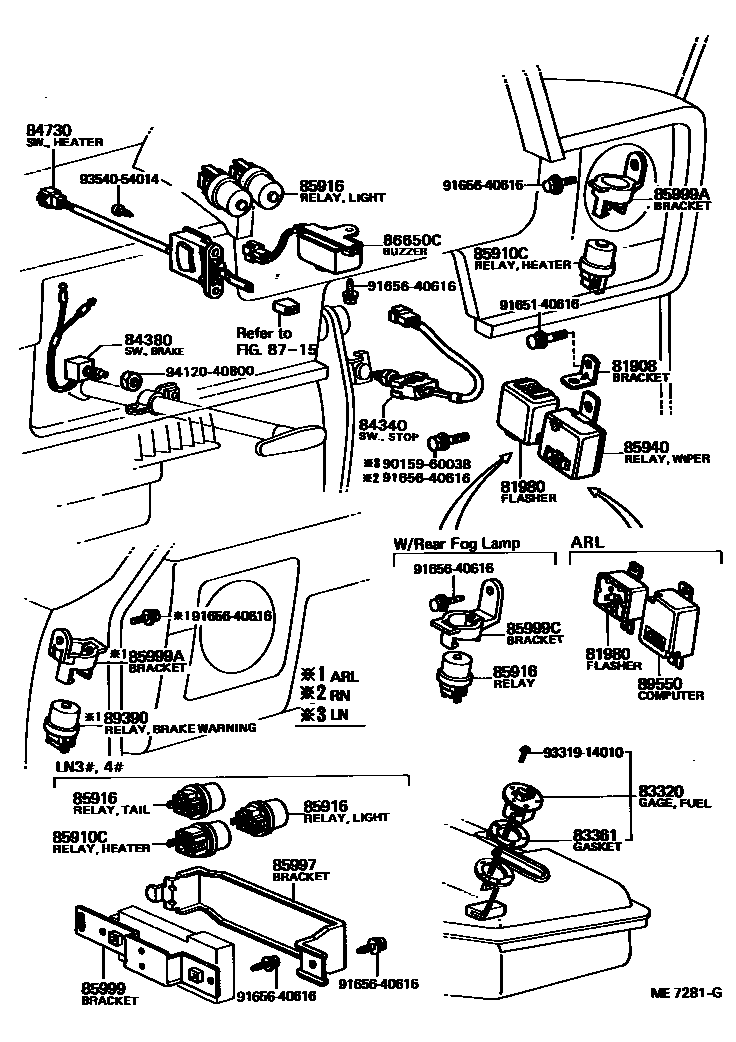

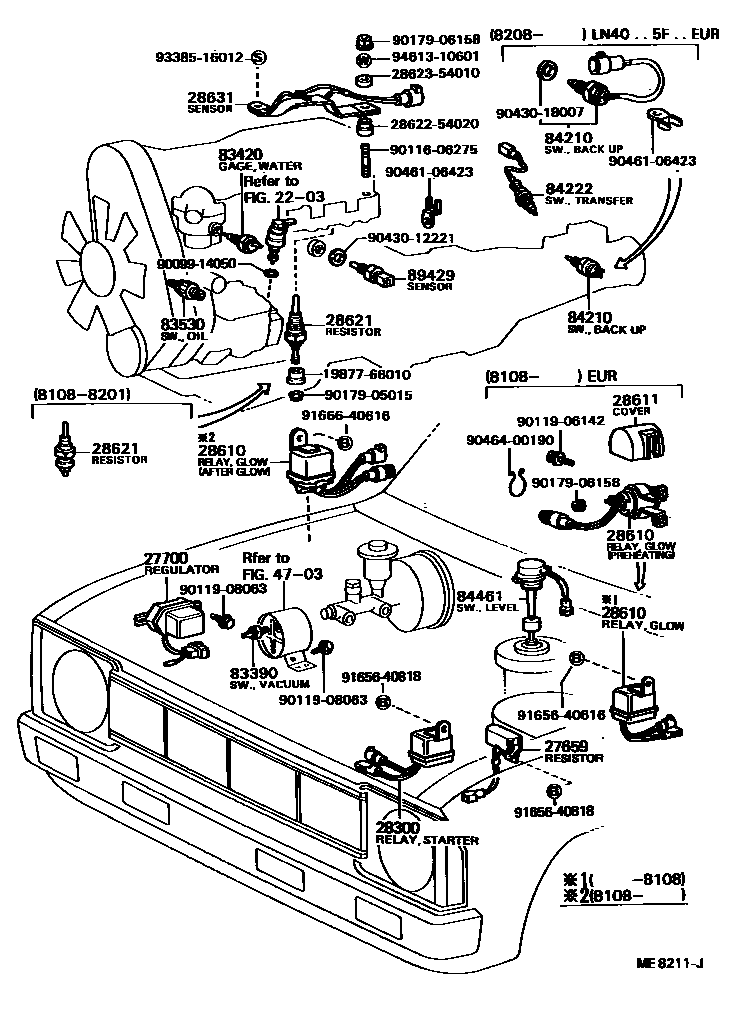

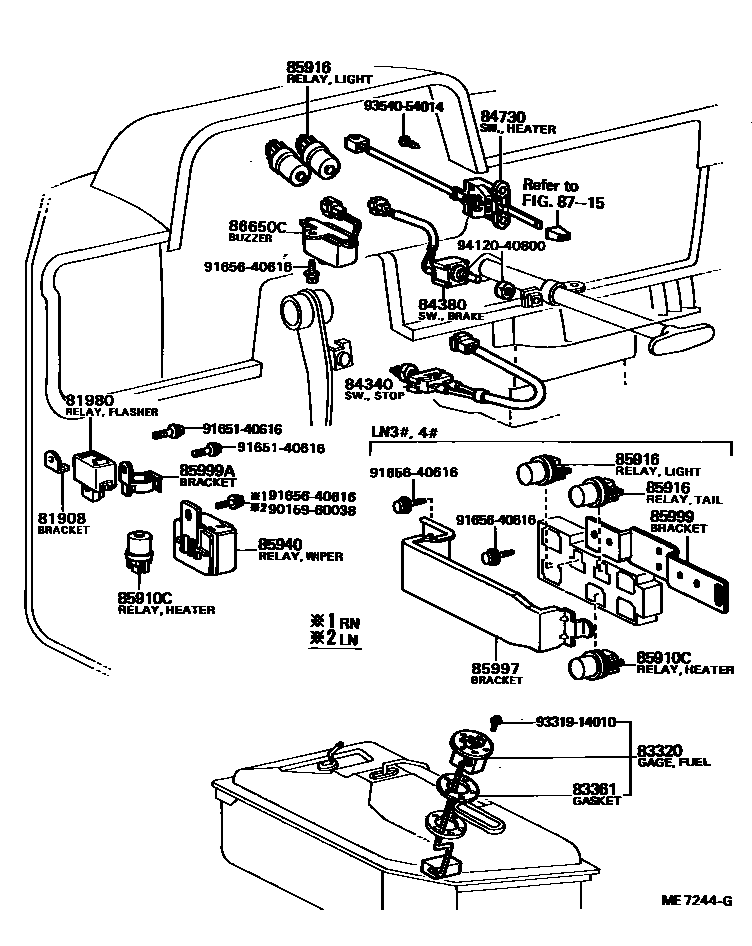

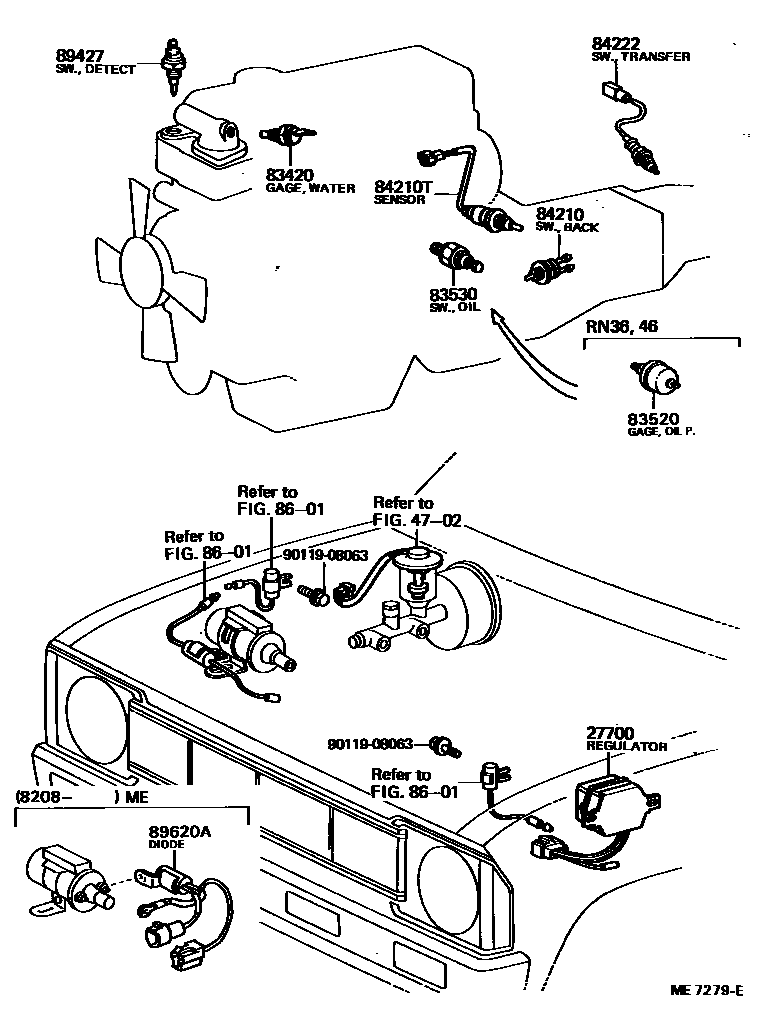

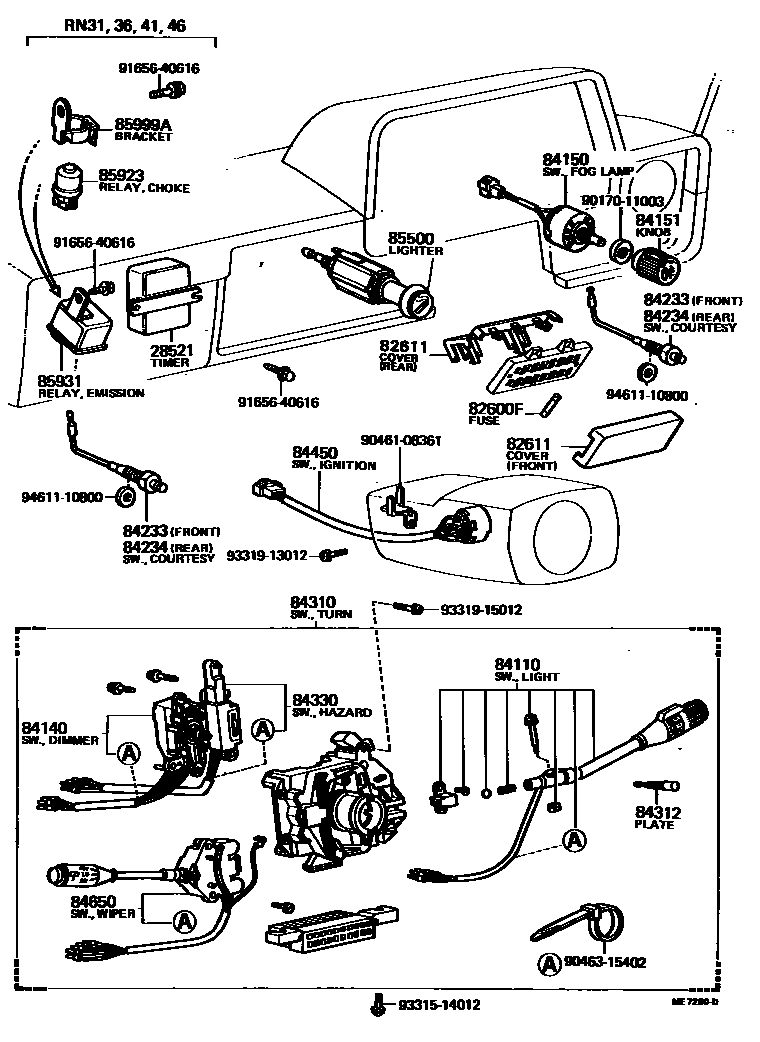

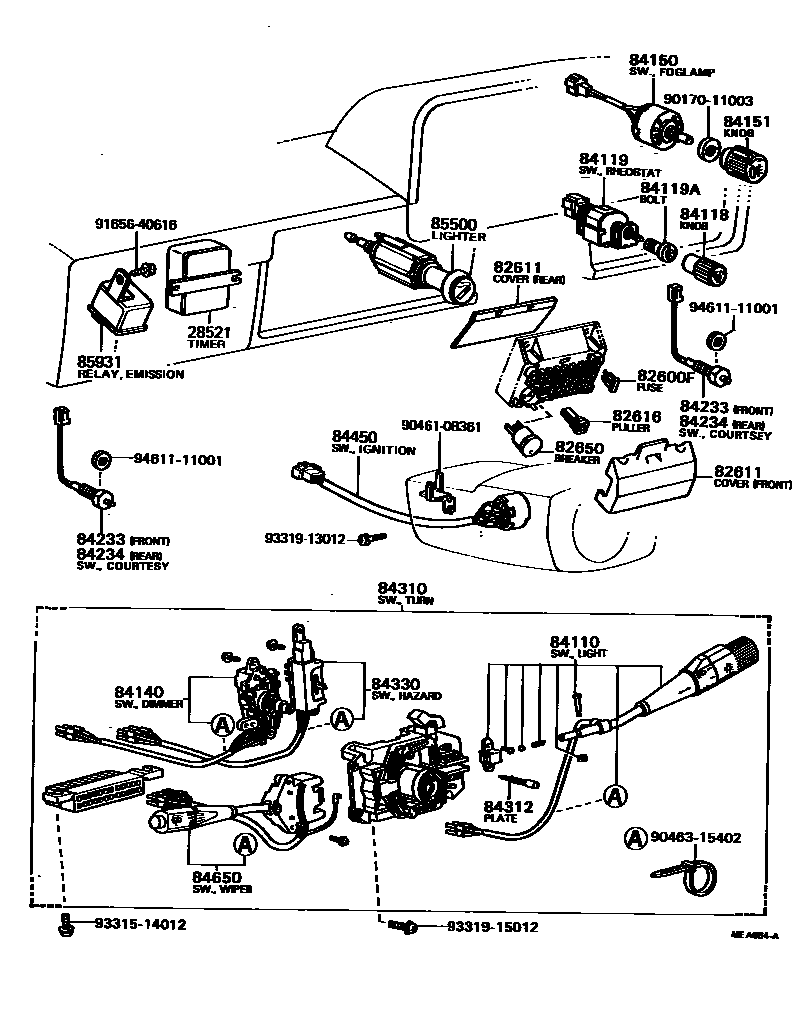

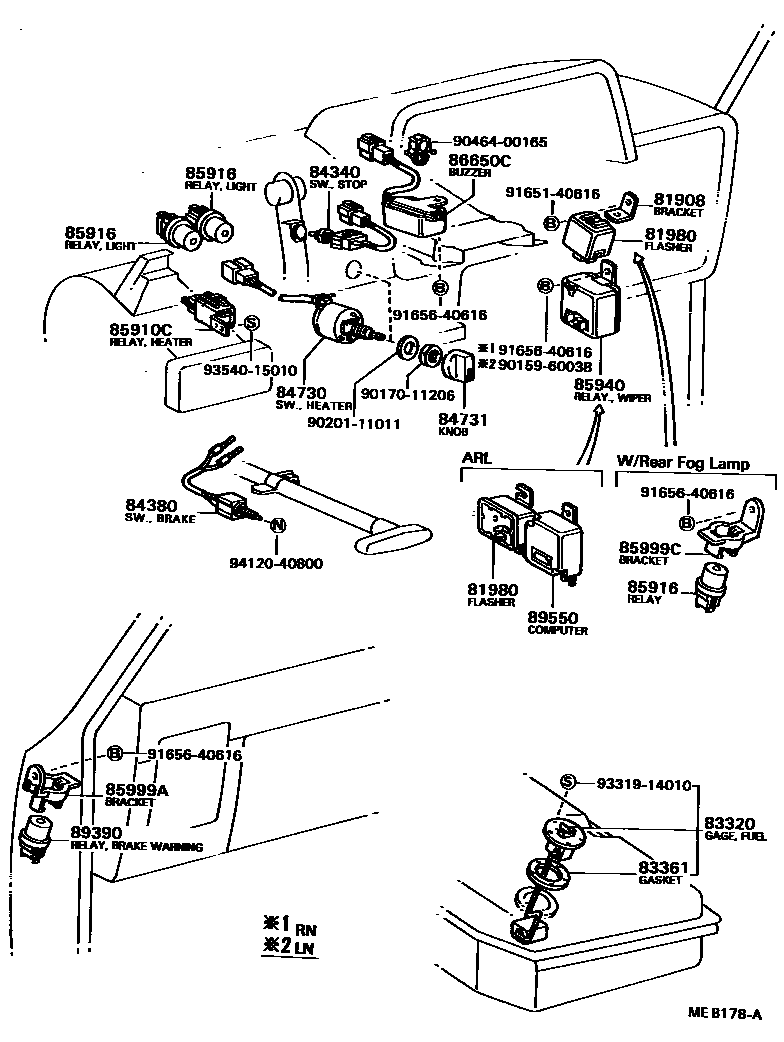

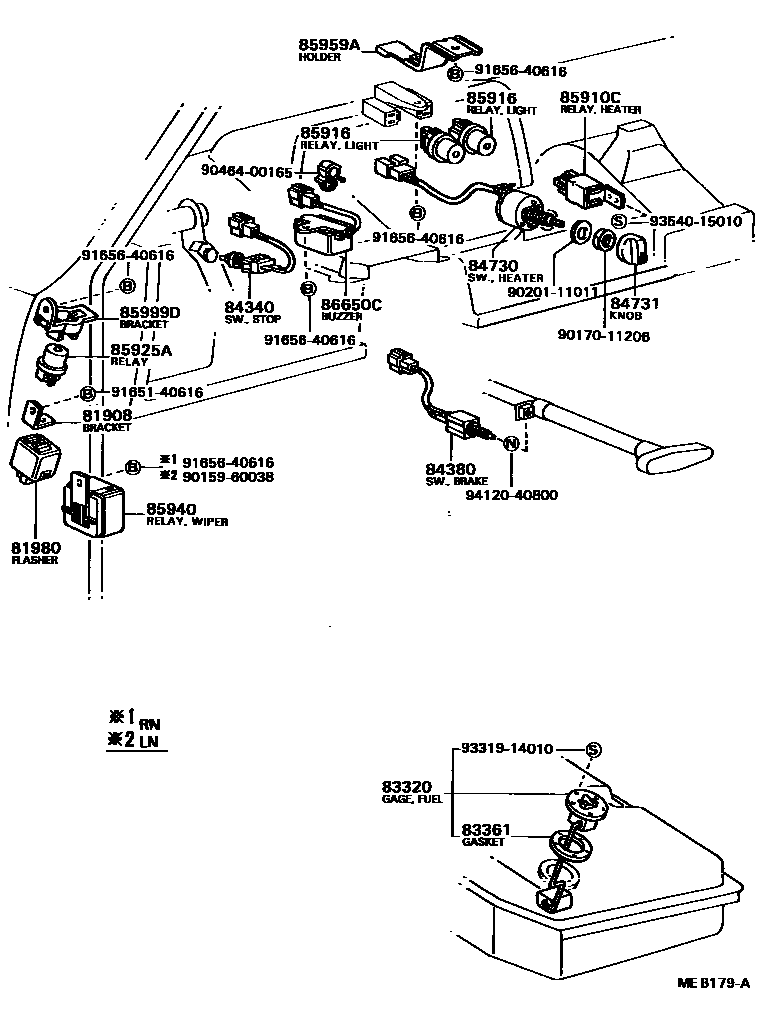

Toyota HILUX 开关和继电器和ECU — Figure 8401
Toyota HILUX EPC diagram 8401, 开关和继电器和ECU, with 8 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27659 | Solenoid valve resistor | 27659-54050 |
| 27700 | Generator voltage regulator assembly | 27700-13010 · 27700-13050 |
| 28300 | Starter relay assembly | 28300-54020 |
| 28521 | Preheat timer | 28521-54051 · 28521-54100 · 28521-54131 · 28521-54160 |
| 28610 | Glow plug relay assembly | 28300-54020 · 28610-54080 · 28610-54090 · 28610-64010 |
| 28611 | Glow plug relay cover | 28611-54010 · 28611-54011 |
| 28621 | glow plug resistor | 28621-54030 · 28621-54031 |
| 28631 | glow plug current sensor | 28631-54031 |
| 81908 | Flash bracket sub-assembly | 85999-89101 |
| 81980 | Turn signal flasher relay assembly | 81980-22060 · 81980-22070 · 81980-30030 |
| 82600F | Spare fuse | 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 · 99118-62005 · 99118-62910 · 99118-62915 |
| 82611 | fuse box cover | 82611-89105 · 82611-89106 · 82611-89108 · 82611-89109 |
| 82616 | fuse puller | 82616-12010 |
| 82650 | No. 1 circuit breaker assembly | 82650-35010 |
| 83320 | Fuel gauge sensor assembly | 83320-39175 · 83320-39176 · 83320-39185 · 83320-39186 · 83320-39195 · 83320-39196 |
| 83361 | fuel gauge sensor gasket | 77169-14020 · 83361-20030 |
| 83390 | Vacuum warning switch assembly | 83390-30020 |
| 83420 | Water temperature sensor assembly | 83420-16010 · 83420-20011 · 83420-20020 |
| 83520 | Oil pressure gauge sensor assembly | 83520-55010 · 83520-55011 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-14010 · 83530-36011 |
| 84110 | No. 1 light control switch assembly | 84112-19075 · 84112-19076 · 84112-19085 · 84112-19086 · 84112-19168 · 84112-19245 · 84112-19265 · 84112-39135 · 84112-39145 |
| 84118 | Light control rheostat button | 84118-12030 |
| 84119 | Light control rheostat | 84119-89102 |
| 84119A | Rheostat control retaining bolt or nut | 90984-01007 |
| 84140 | Headlight dimmer switch assembly | 84140-19015 · 84140-19025 · 84140-19046 · 84140-19055 · 84140-29095 · 84140-39055 · 84140-39065 |
| 84150 | Fog light switch assembly | 84162-89102 |
| 84151 | Fog light switch button | 84161-89102 |
| 84210 | Reversing light switch assembly | 84210-10060 · 84210-14010 · 84210-26010 · 84210-35010 · 84210-35020 · 84210-60021 |
| 84210T | Shift point sensor assembly | 84220-35011 · 84220-35040 |
| 84222 | No. 1 transfer case indicator switch | 84222-35011 · 84222-35012 |
| 84233 | Door control light switch assembly (for front door) | 84230-20040 · 84230-89102 · 84231-20060 |
| 84234 | Door control light switch assembly (for rear door) | 84230-20040 · 84230-89102 · 84231-20060 |
| 84310 | Turn signal switch assembly | 84310-10210 · 84310-10211 · 84310-10220 · 84310-10221 · 84310-10230 · 84310-10231 · 84310-10240 · 84310-10241 · 84310-12382 · 84310-14190 · 84310-35120 · 84310-35130 · 84310-35150 · 84310-35160 · 84310-35170 |
| 84312 | Speaker contact piece | 84312-12020 · 84312-20011 |
| 84330 | Hazard warning signal switch assembly | 84332-19015 · 84332-19025 · 84332-19045 · 84332-39095 · 84332-39105 · 84332-39115 · 84332-39125 |
| 84340 | brake light switch assembly | 84340-22060 · 84340-22071 · 84340-22072 · 84340-36030 |
| 84380 | Brake warning test switch assembly | 84380-35010 |
| 84450 | Ignition or starter switch assembly | 84450-14021 · 84450-60080 |
| 84461 | Liquid level warning switch | 84461-30030 · 84461-30040 |
| 84650 | Windshield wiper switch assembly | 84652-19135 · 84652-19136 · 84652-19145 · 84652-19146 · 84652-19155 · 84652-19156 · 84652-19165 · 84652-19166 · 84652-19317 · 84652-19335 · 84652-39155 · 84652-39165 · 84652-39175 · 84652-39185 · 84652-69285 |
| 84730 | Heater blower switch assembly | 84732-89104 · 84732-89105 · 84732-89106 · 84732-89107 |
| 84731 | Heater blower switch button | 84731-12010 |
| 85500 | Cigarette lighter assembly | 85500-20042 · 85500-30340 |
| 85910C | Relay assembly (for heater blower motor) | 85913-12010 · 90987-02001 · 90987-02004 |
| 85916 | Light control relay | 90987-01001 · 90987-01003 |
| 85923 | Choke control relay | 90987-02001 |
| 85925A | red indicator light relay | 90987-03001 |
| 85931 | Emission control relay | 85925-12010 |
| 85940 | Windshield wiper relay assembly | 85940-36010 · 85940-89101 |
| 85959A | Relay mounting parts | 85959-89101 |
| 85997 | Relay bracket cover | 85997-89101 |
| 85999 | Combination relay bracket | 55767-89106 |
| 85999A | No. 2 relay bracket | 85999-12050 · 85999-26010 |
| 85999C | No. 3 relay bracket | 85999-12050 · 85999-26010 |
| 85999D | No. 4 relay bracket | 85999-12050 |
| 86650C | Sediment warning buzzer assembly | 86650-55060 · 86650-55080 |
| 89390 | brake warning relay | 90987-02001 · 90987-02004 |
| 89427 | Temperature detection switch | 89428-12030 · 89428-26010 |
| 89429 | oil temperature sensor | 89422-30020 |
| 89550 | Emission control ECU assembly | 89550-26020 · 89550-35111 · 89550-35120 · 89550-35130 |
| 89620A | ignition coil diode | 90919-14011 |
