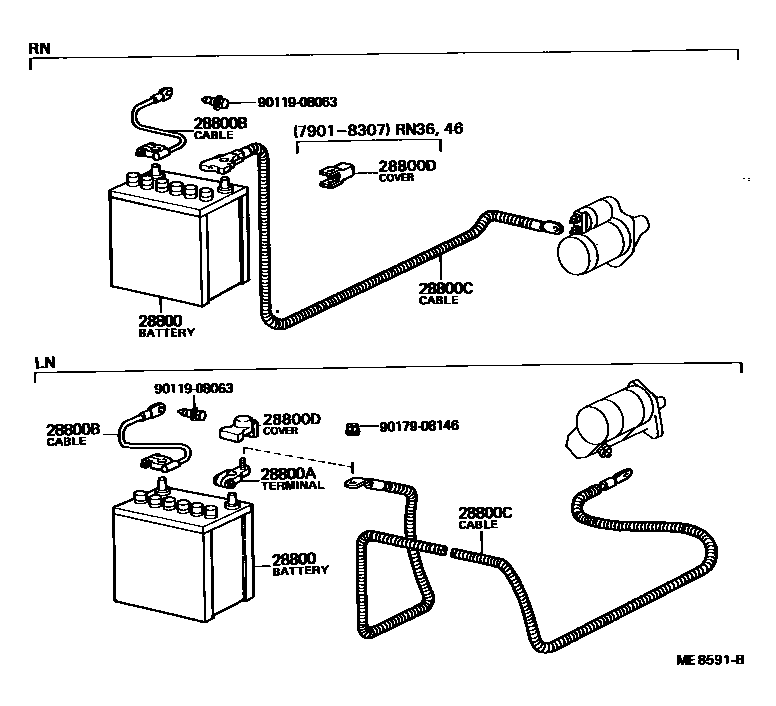

Toyota HILUX 蓄电池和蓄电池电缆 — Figure 8201
Toyota HILUX EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-14010 · 28800-24030 · 28800-33071 · 28800-33111 · 28800-42010 · 28800-46012 · 28800-54030 · 28800-54040 · 28800-54140 · 28800-67030 |
| 28800A | battery positive terminal | 90982-05005 |
| 28800B | Cable between battery and ground | 82123-95110 · 90982-02156 · 90982-02157 · 90982-02208 · 90982-02209 · 90982-02210 |
| 28800C | Cable between battery and starter (for battery to main switch) | 90982-01260 · 90982-01261 · 90982-01329 · 90982-01330 · 90982-01396 · 90982-01399 · 90982-01403 · 90982-01404 · 90982-01405 · 90982-01412 · 90982-01413 |
| 28800D | Connector cover (for battery terminals) | 82821-12130 · 82821-89101 · 82821-89102 |
