Toyota HILUX 后牌照灯 — Figure 8113

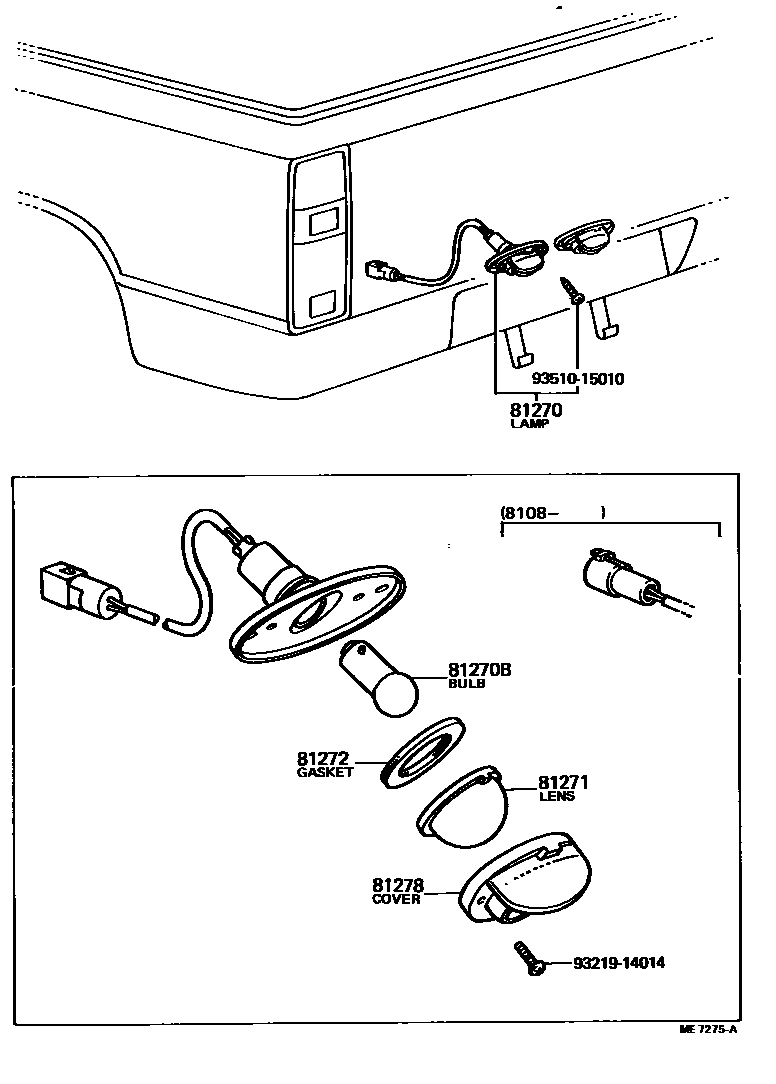

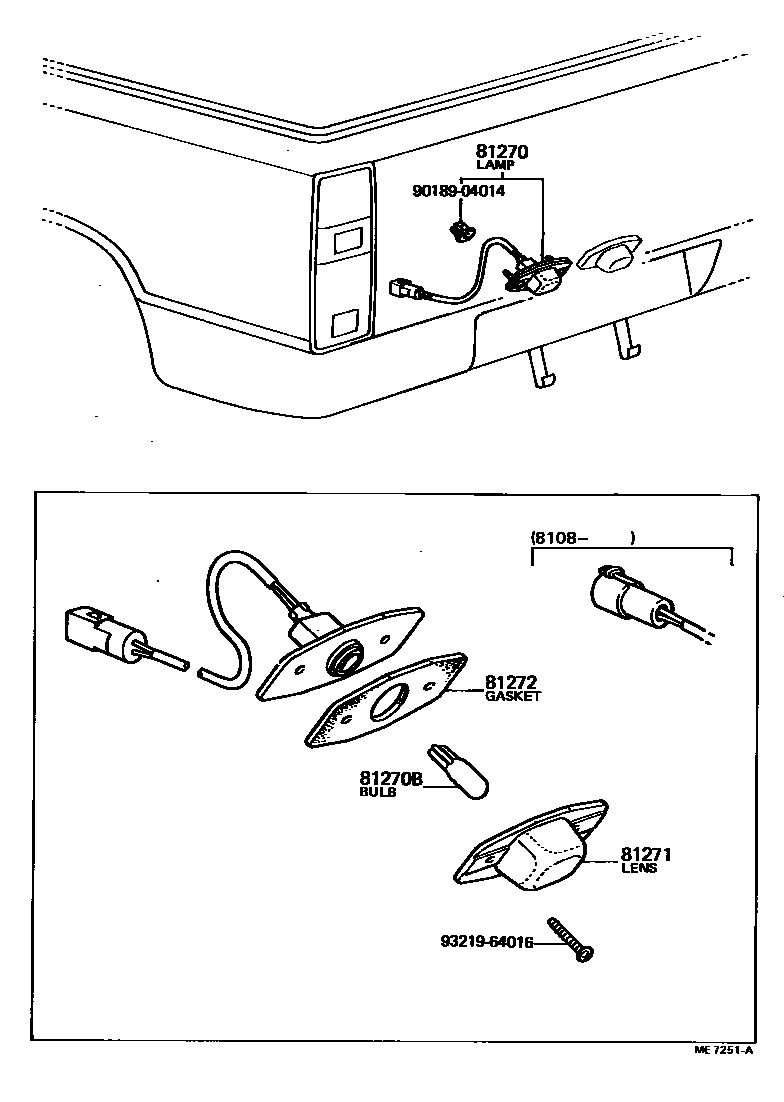

Toyota HILUX EPC diagram 8113, 后牌照灯, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270 | License plate light assembly | 81270-39125 · 81270-39145 · 81270-39285 · 81270-39305 |
| 81270B | Bulb (for license plate light) | 99132-11100 · 99132-12050 |
| 81271 | license plate lamp shade | 81271-89102 · 81271-89110 |
| 81272 | License plate lamp shade gasket | 81272-10010 · 81272-89110 |
| 81278 | license plate light cover | 81276-89112 |
