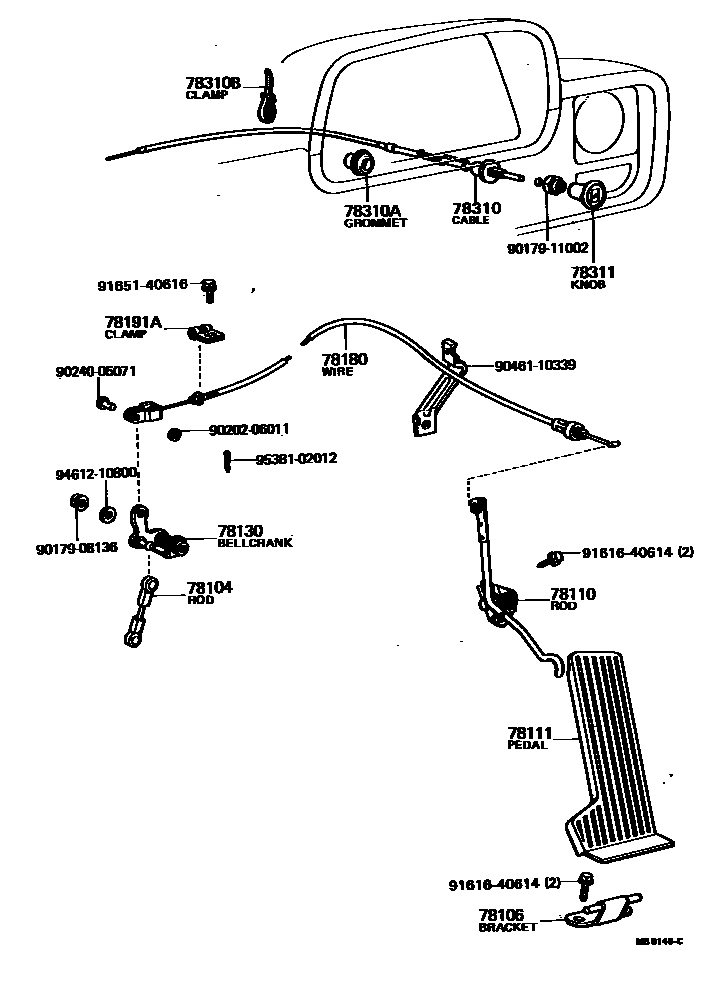

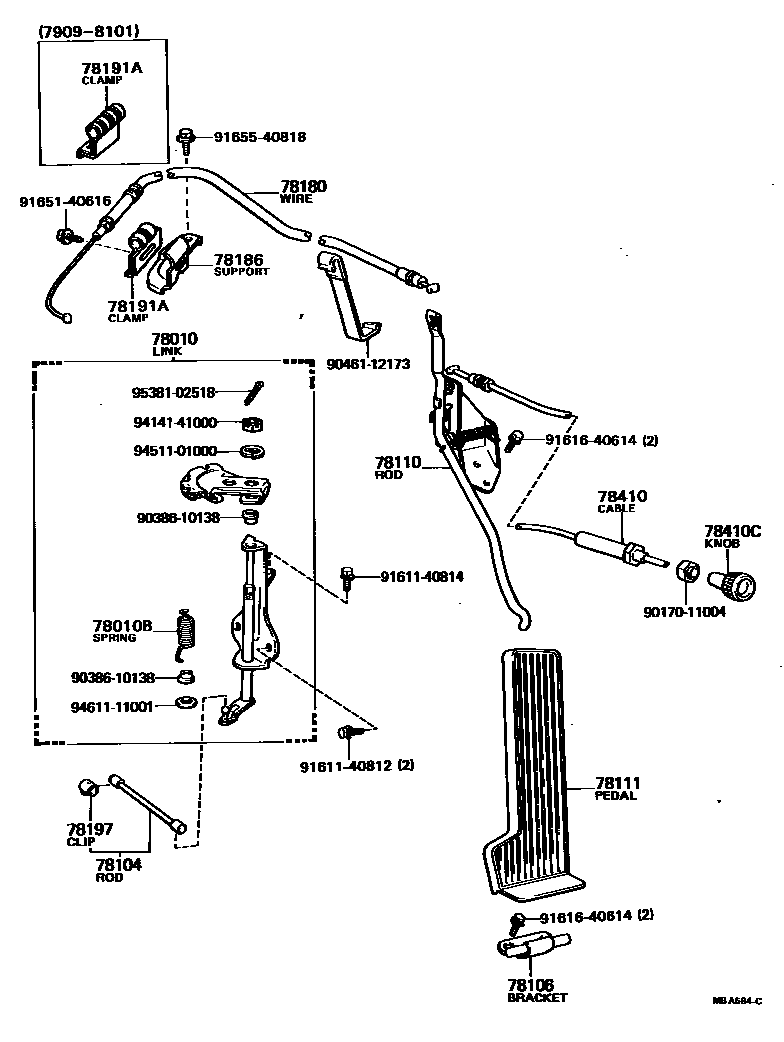

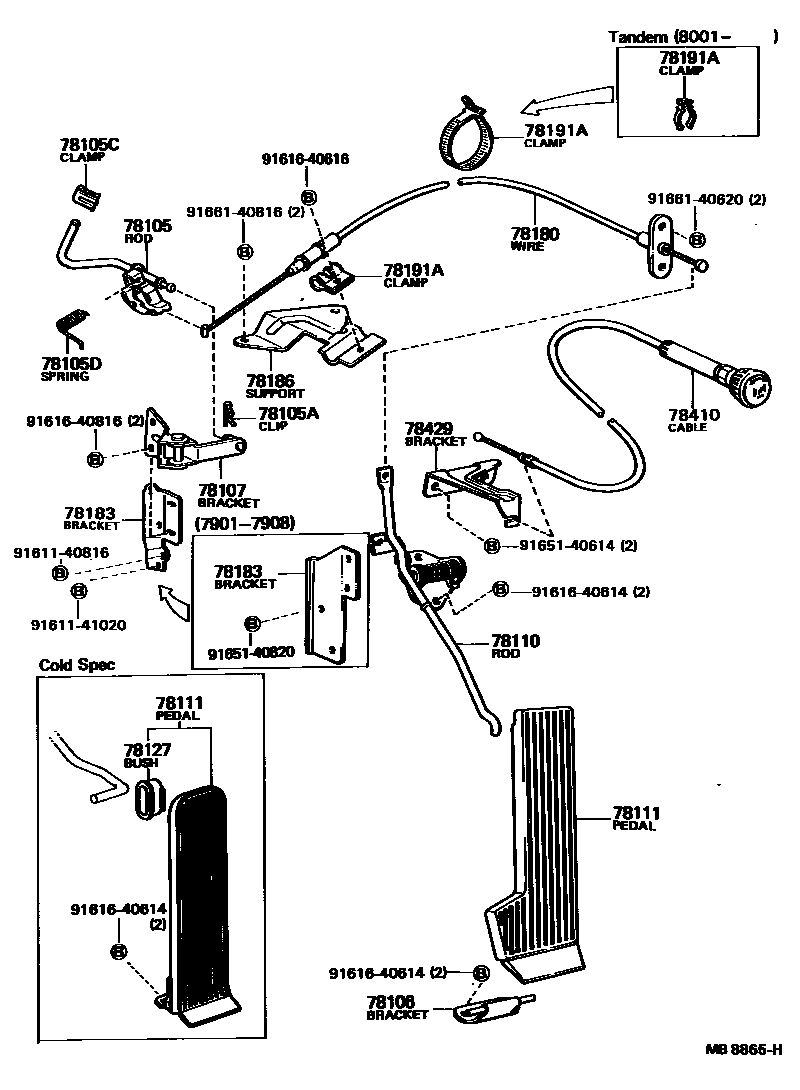

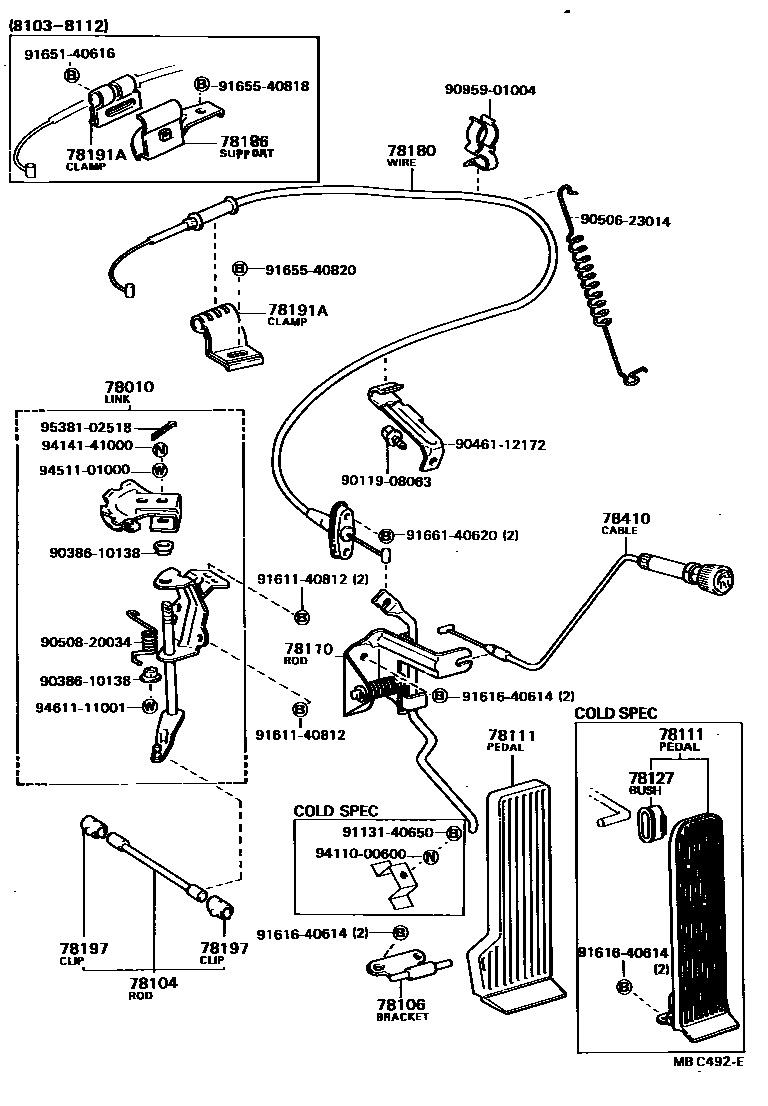

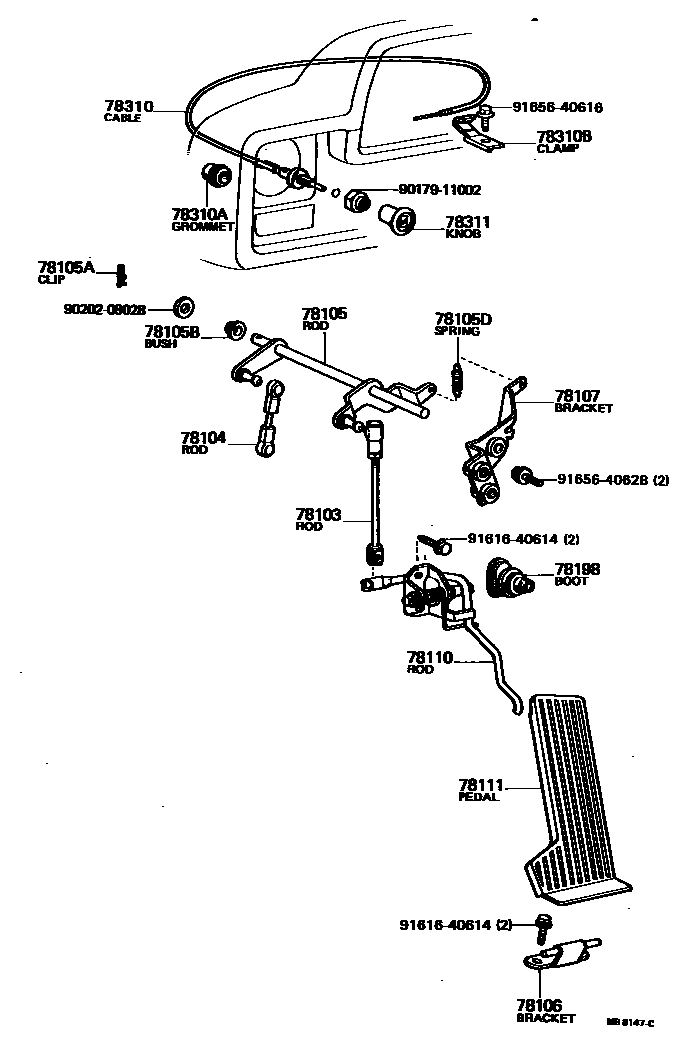

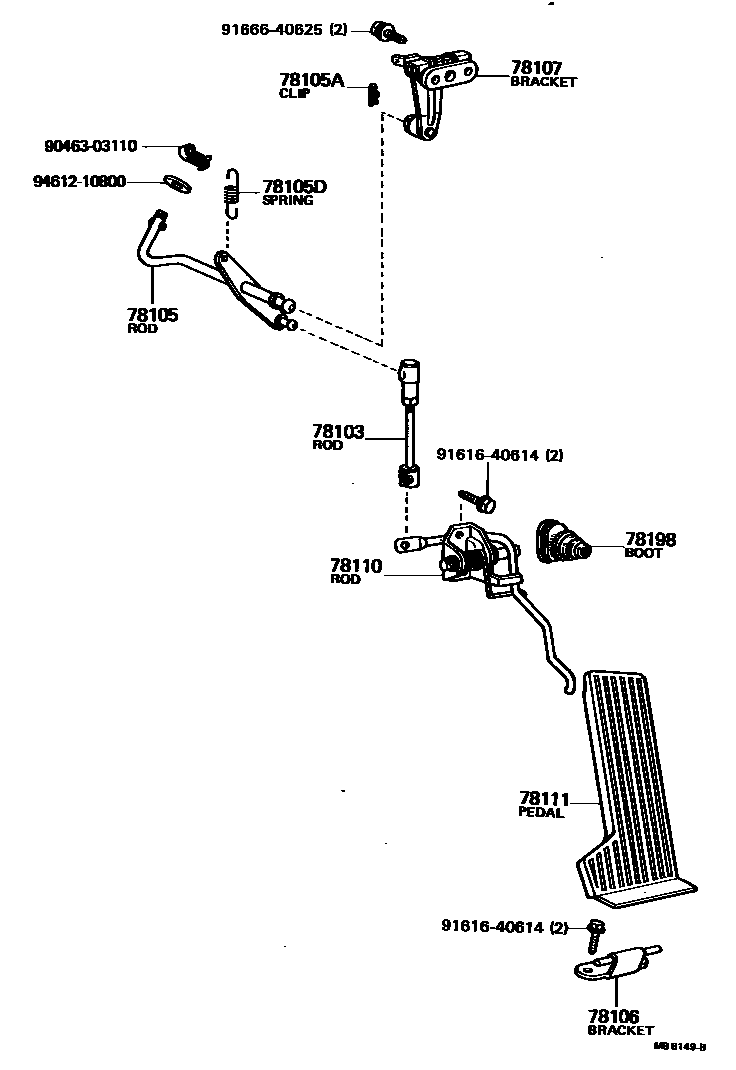

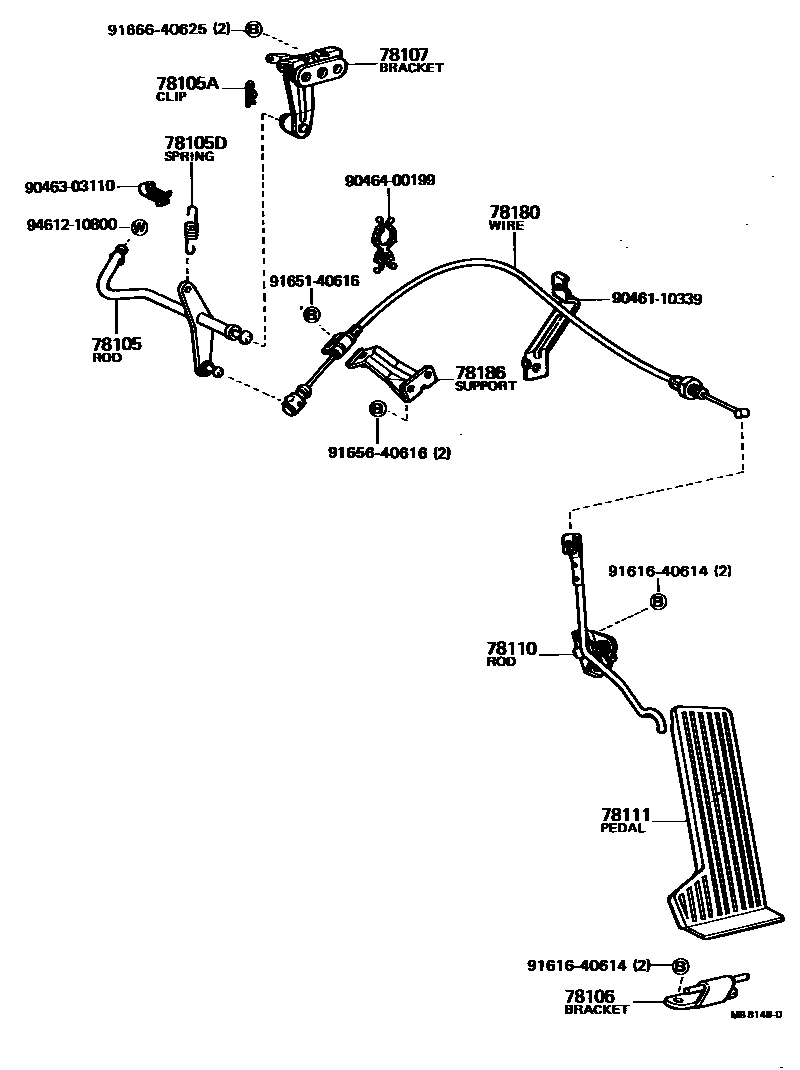

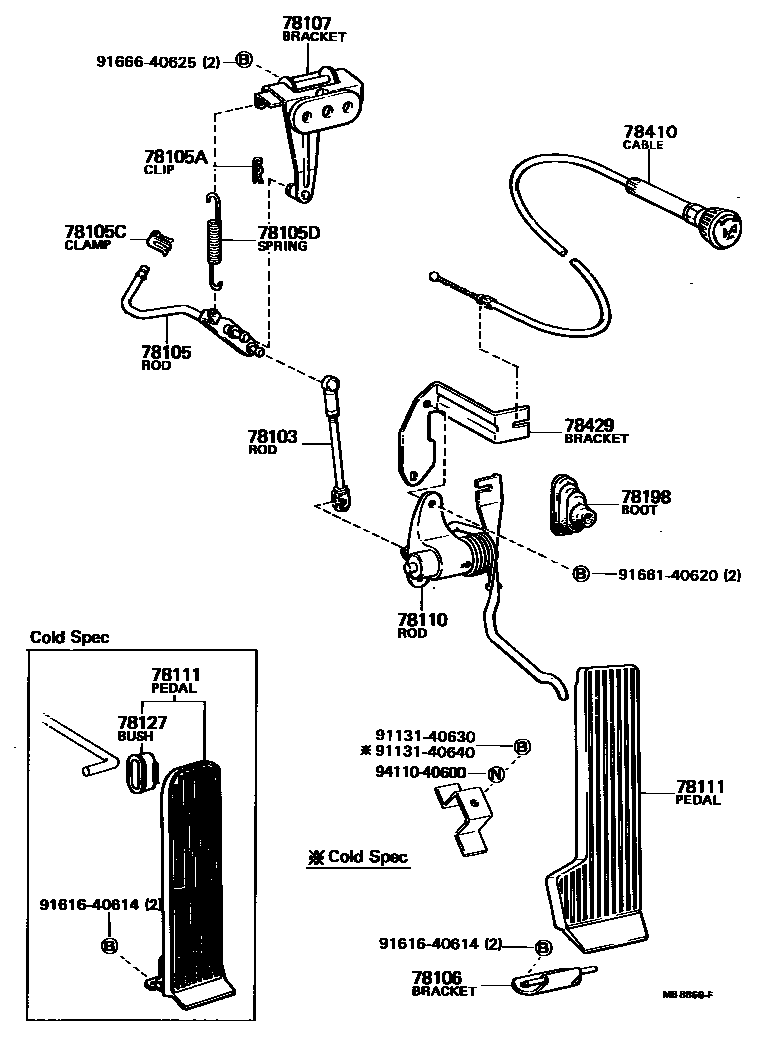

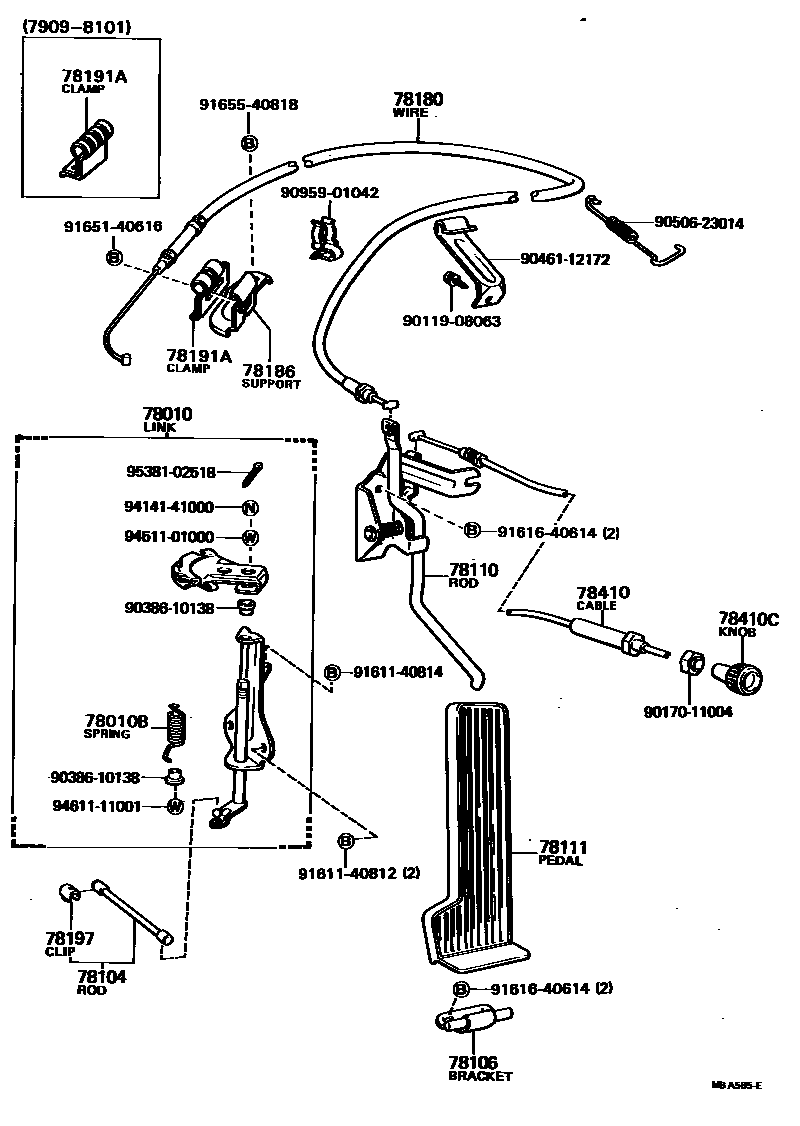

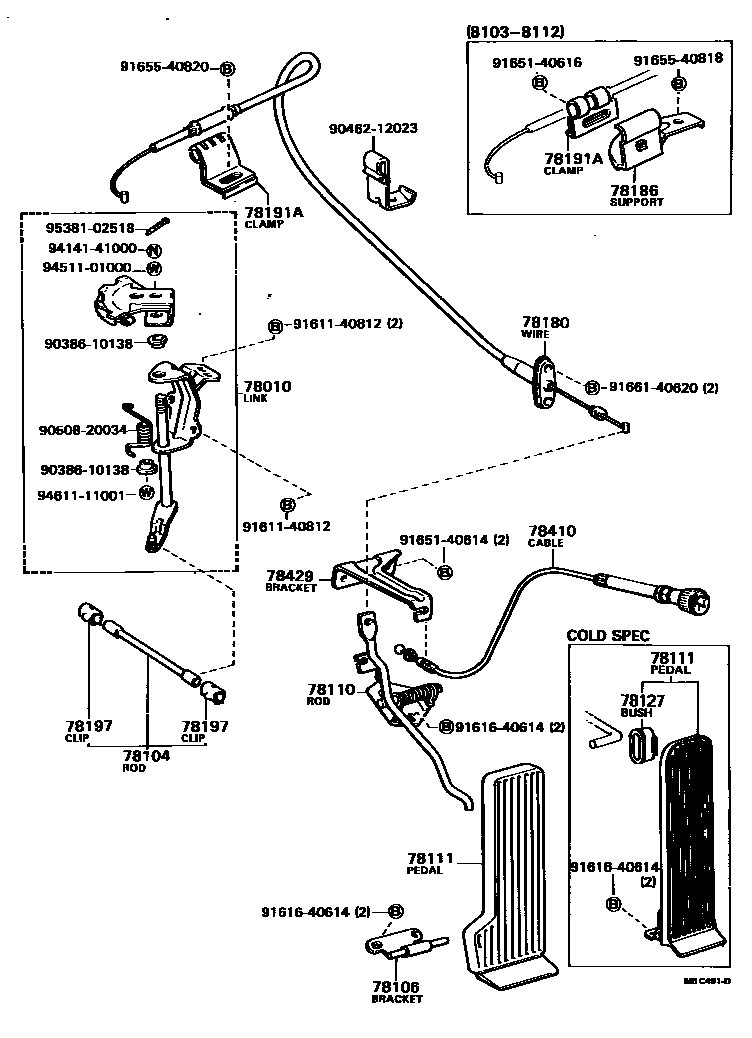

Toyota HILUX accelerator pedal connecting rod — Figure 7851
Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 10 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010 | accelerator pedal connecting rod | 78100-89101 · 78100-89102 · 78100-95110 |
| 78010B | Torsion spring (for accelerator pedal linkage) | 90508-20016 · 90508-20034 |
| 78103 | No. 1 accelerator pedal connecting rod sub-assembly | 78103-89109 · 78103-89110 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-20041 · 78104-30100 · 78104-89104 · 78104-89105 |
| 78105 | No. 3 accelerator pedal connecting rod sub-assembly | 78105-89111 · 78105-89112 · 78105-89113 · 78105-95110 · 78105-95114 · 78140-95110 |
| 78105A | Catch (for accelerator pedal torque lever) | 90468-16012 |
| 78105B | Bushing (for accelerator pedal torque rod) | 90386-08077 |
| 78105C | Clamp (for accelerator pedal torque lever) | 90463-03110 |
| 78105D | Spring (for accelerator pedal torque lever) | 90506-09018 · 90506-09020 · 90506-09022 · 90506-11001 · 90506-11002 · 90506-12021 · 90508-20020 · 90508-23032 |
| 78106 | Accelerator pedal bracket sub-assembly | 78011-89101 · 78011-95110 |
| 78107 | Accelerator pedal torque rod bracket sub-assembly | 78170-89101 · 78170-89102 · 78170-89104 · 78170-95111 · 78170-95112 |
| 78110 | Accelerator pedal lever assembly | 78120-89101 · 78120-89102 · 78120-89105 · 78120-89106 · 78120-89109 · 78120-95110 · 78120-95117 · 78120-95118 · 78120-95119 · 78120-95122 · 78120-95123 · 78120-95127 · 78120-95128 · 78120-95130 · 78120-95131 |
| 78111 | accelerator pedal | 78010-95111 · 78010-95113 · 78111-89102 · 78111-89103 |
| 78127 | No. 2 accelerator pedal bushing | 78127-20010 |
| 78130 | Accelerator pedal right-angle lever assembly | 78130-89108 |
| 78180 | Throttle cable assembly | 78180-89117 · 78180-89118 · 78180-89122 · 78180-89123 · 78180-89126 · 78180-89127 · 78180-95113 · 78180-95118 · 78180-95119 · 78180-95120 · 78180-95121 |
| 78183 | Accelerator pedal connecting rod bracket | 25625-34021 · 78014-95110 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78185-95110 · 78186-89103 · 78186-89106 |
| 78191A | Clip (for throttle cable assembly) | 90461-08148 · 90461-10287 · 90461-10357 · 90461-10559 · 90463-08235 · 90463-15002 |
| 78197 | Accelerator pedal ball joint clip | 78197-10010 |
| 78198 | Accelerator pedal connecting rod dust cover | 78199-89104 |
| 78310 | Choke door cable assembly | 78310-89109 · 78310-89110 |
| 78310A | Choke cable retaining ring | 90480-15001 |
| 78310B | Choke cable clip | 90461-08363 · 90463-12002 |
| 78311 | Choke control cable button | 78311-89101 · 78311-89102 |
| 78410 | Throttle valve control cable assembly | 78401-89101 · 78401-89102 · 78401-89103 · 78401-89104 · 78410-95110 · 78410-95113 |
| 78410C | Throttle Cable Section | 78402-95400 · 78411-30020 |
| 78429 | Throttle lever bracket | 78484-95112 · 78484-95113 |
