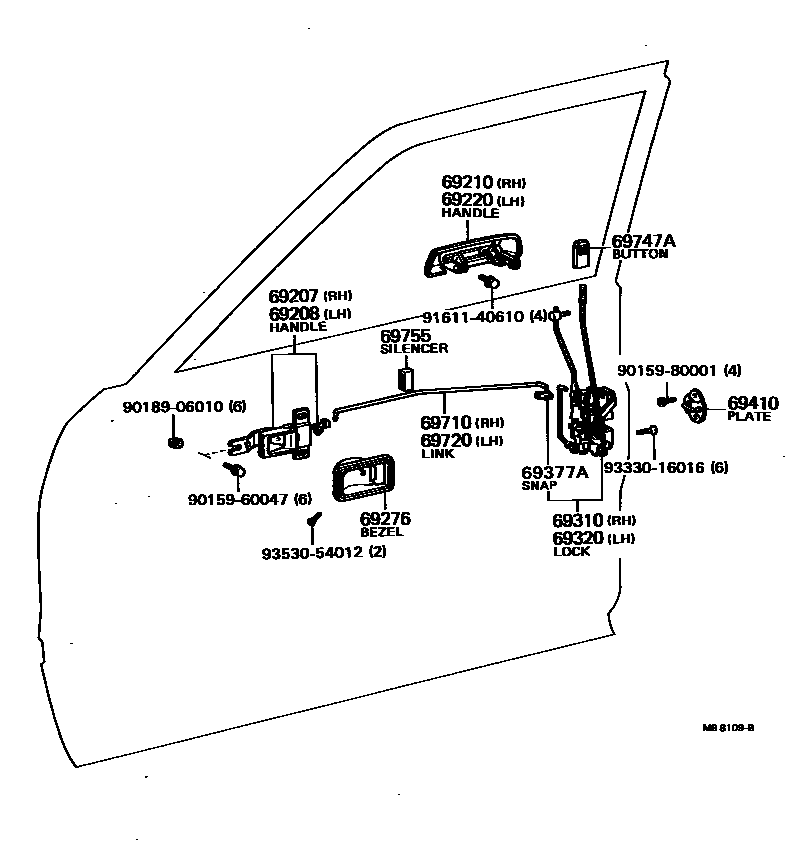

Toyota HILUX 前门锁和车门把手 — Figure 6753
Toyota HILUX EPC diagram 6753, 前门锁和车门把手, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69210 | Right front door outer handle assembly | 69210-89106 · 69210-89107 |
| 69220 | Left front door outer handle assembly | 69220-89106 · 69220-89107 |
| 69310 | Right front door lock assembly | 69310-89107 · 69310-89108 |
| 69320 | Left front door lock assembly | 69320-89107 · 69320-89108 |
| 69410 | Front door lock plate assembly | 69410-89103 |
| 69710 | Right front door opening control linkage assembly | 69711-89101 |
| 69720 | Left front door opening control linkage assembly | 69712-89101 |
| 69755 | Front door lock link silencer | 69759-89102 · 69759-95110 |
