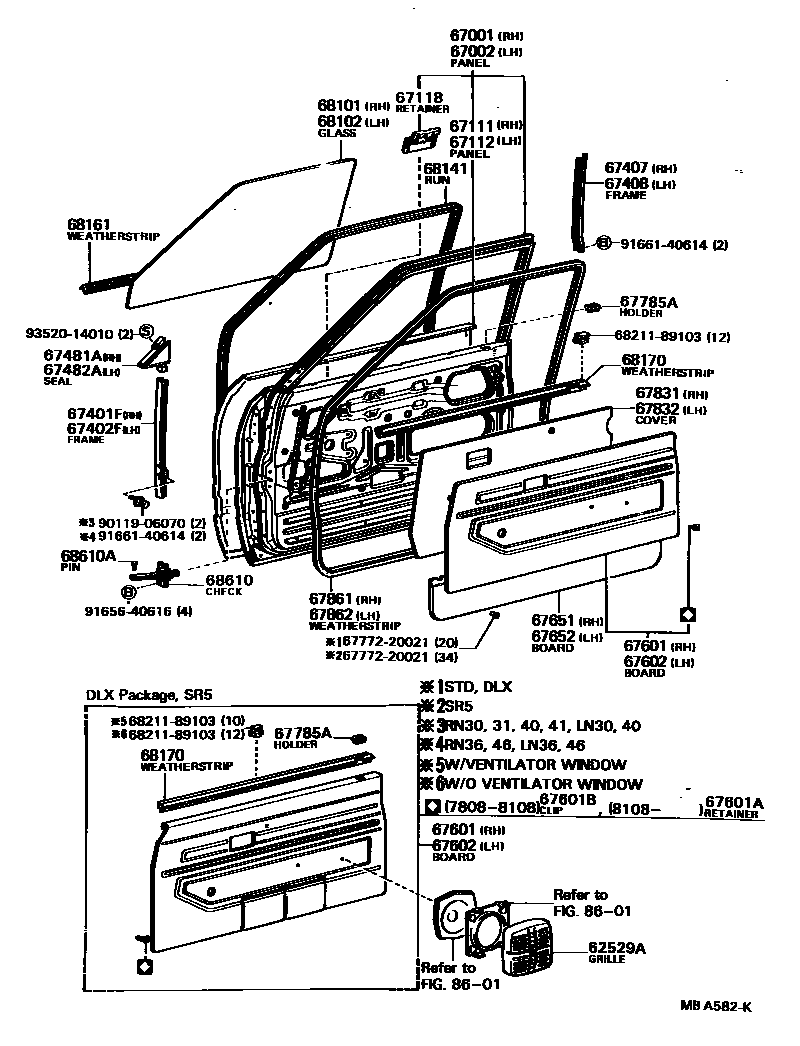

Toyota HILUX 前门板和前门玻璃 — Figure 6751
Toyota HILUX EPC diagram 6751, 前门板和前门玻璃, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-89113 · 67001-89114 · 67001-89115 · 67001-89116 · 67001-89117 · 67001-89118 · 67001-89119 · 67001-89120 · 67001-89122 · 67001-89123 · 67001-89124 · 67001-89125 · 67001-89126 · 67001-95110 · 67001-95111 · 67001-95113 |
| 67002 | Left front door panel sub-assembly | 67002-89115 · 67002-89116 · 67002-89117 · 67002-89118 · 67002-89119 · 67002-89120 · 67002-89121 · 67002-89122 · 67002-89124 · 67002-89125 · 67002-89126 · 67002-89127 · 67002-89128 · 67002-95110 · 67002-95111 · 67002-95113 |
| 67111 | Outer right front door panel | 67111-89106 · 67111-89109 |
| 67112 | Outer left front door panel | 67112-89108 · 67112-89113 |
| 67118 | Exterior rearview mirror fixing parts | 67118-89101 · 67118-89102 · 67118-95110 · 67118-95111 · 67119-89101 · 67119-89102 · 67119-95110 · 67119-95111 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-89106 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-89106 |
| 67407 | Right front door rear lower door frame sub-assembly | 67433-89101 |
| 67408 | Left front door rear lower door frame sub-assembly | 67434-89101 |
| 67481A | Right front door front lower door frame seal | 67481-89105 |
| 67482A | Left front door front lower door frame seal | 67481-89105 |
| 67601A | Fixings (for front door trim) | 67771-89101 |
| 67601B | Catch (for front door trim panel) | 90467-11002 |
| 67785A | Door lock button collar fastener (for front doors) | 69751-20040 |
| 67831 | Right front door access hole cover | 67831-89103 · 67831-95113 |
| 67832 | Left front door access hole cover | 67831-89103 · 67831-95113 |
| 67861 | Right front door seal | 67861-89104 |
| 67862 | Left front door seal | 67862-89103 |
| 68101 | Right front door glass sub-assembly | 68111-89107 · 68111-89108 · 68111-89109 · 68111-89110 |
| 68102 | Left front door glass sub-assembly | 68112-89106 · 68112-89107 · 68112-89108 · 68112-89109 |
| 68141 | Front door glass lift chute | 68141-89105 · 68141-89106 |
| 68161 | Front door glass outer seal strip | 68160-89104 · 68160-89105 |
| 68170 | Front door glass inner sealing strip assembly | 68170-89104 · 68170-89105 · 68170-89106 · 68170-89107 · 68170-89108 · 68170-89109 · 68220-89101 · 68220-89102 |
| 68610 | Front door opening limiter assembly | 68610-89101 |
| 68610A | Pin (for front door opening limiter) | 68617-22010 |
| 69250 | Rear door lock handle assembly | 65755-89101 |
| 69377A | Back door lock lever buckle | 69377-30020 |
