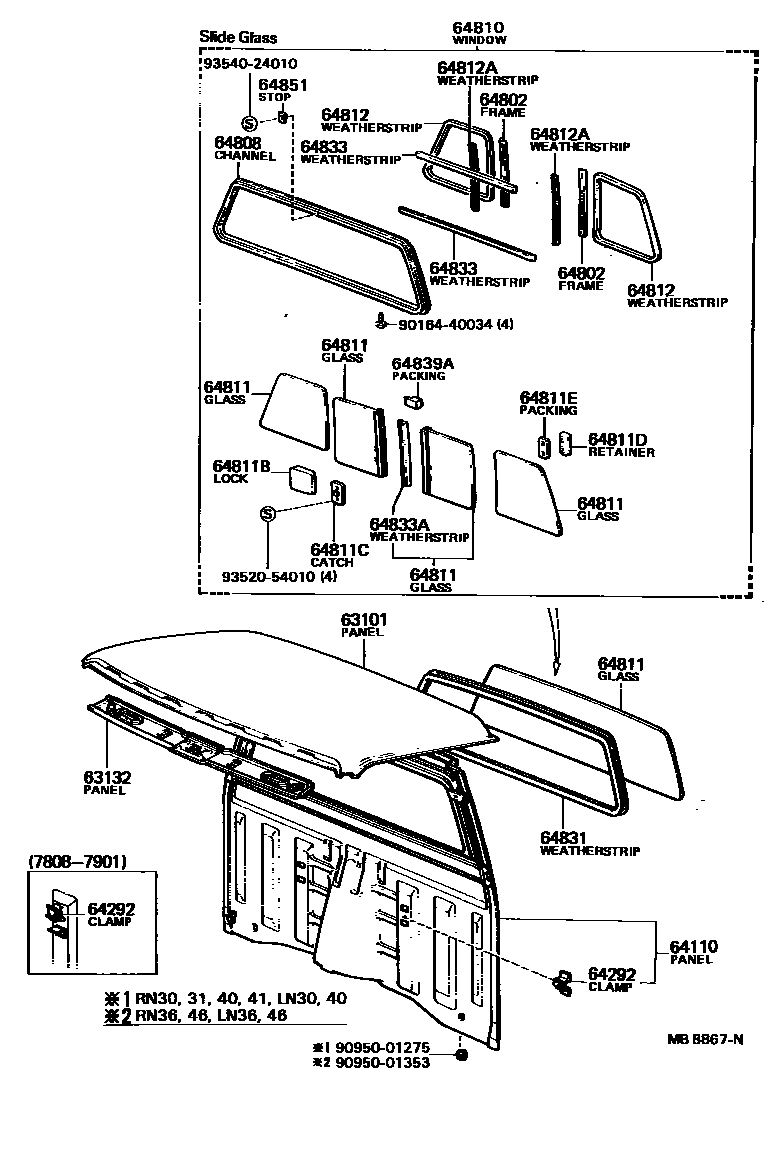

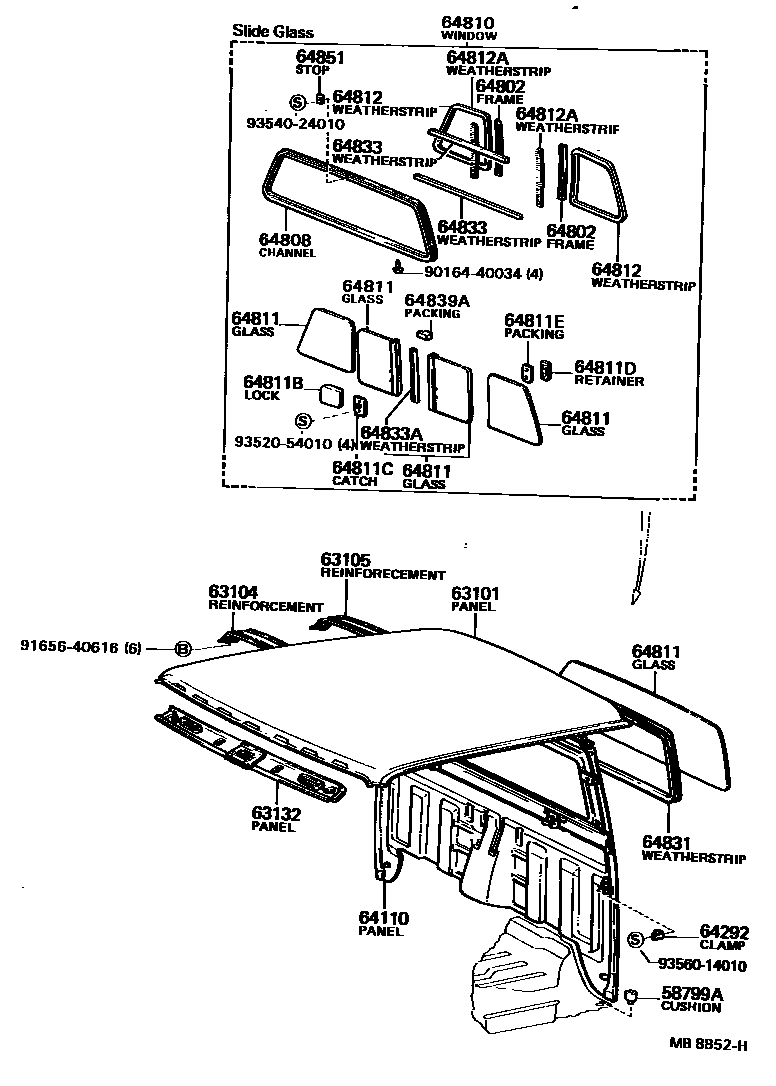

Toyota HILUX 天窗板和背板 — Figure 6153
Toyota HILUX EPC diagram 6153, 天窗板和背板, with 2 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58799A | Jack handle cushion | 58799-89101 |
| 63101 | Roof panel sub-assembly | 63111-89104 · 63111-89105 · 63111-89107 |
| 63104 | Center roof panel reinforcement sub-assembly | 63103-89103 |
| 63105 | Rear roof panel reinforcement sub-assembly | 63141-89102 |
| 63132 | Windshield inner roof panel | 63102-89101 |
| 64110 | Front body back panel assembly | 64101-89110 · 64101-89111 · 64101-89113 · 64101-89115 · 64101-89117 · 64101-95110 · 64101-95111 · 64101-95112 · 64101-95113 |
| 64292 | Jack handle clip | 58706-89101 · 64292-12010 · 64292-89102 |
| 64802 | Rear window fixed frame sub-assembly | 64881-89101 · 64881-89102 |
| 64808 | Rear window sliding glass channel sub-assembly | 64808-89101 · 64808-89102 |
| 64810 | Rear window assembly | 64810-89101 · 64810-89102 |
| 64811 | back window glass | 64807-89101 · 64807-89102 · 64807-89103 · 64807-89104 · 64811-89107 · 64811-89108 · 64811-89109 · 64811-89110 · 64811-89111 · 64811-89114 · 64811-89115 |
| 64811B | Rear window lock assembly | 69370-89101 |
| 64811C | Back window latch | 69374-89101 |
| 64811D | Rear window fixings | 69375-89102 |
| 64811E | Rear window lock seal | 69376-89101 |
| 64812 | No. 1 back window glass seal strip | 64812-89102 |
| 64812A | No. 2 rear window glass seal strip | 64812-89103 |
| 64831 | Back window glass seal strip | 64812-89101 |
| 64833 | Back window groove sealing strip | 64833-89101 · 64833-89102 |
| 64833A | Center sealing strip of rear window trough | 64833-89103 |
| 64839A | Rear window seal | 64839-89101 |
| 64851 | Rear window sliding glass stop | 64851-89101 |
