Toyota HILUX 地板垫和消声垫 — Figure 5854

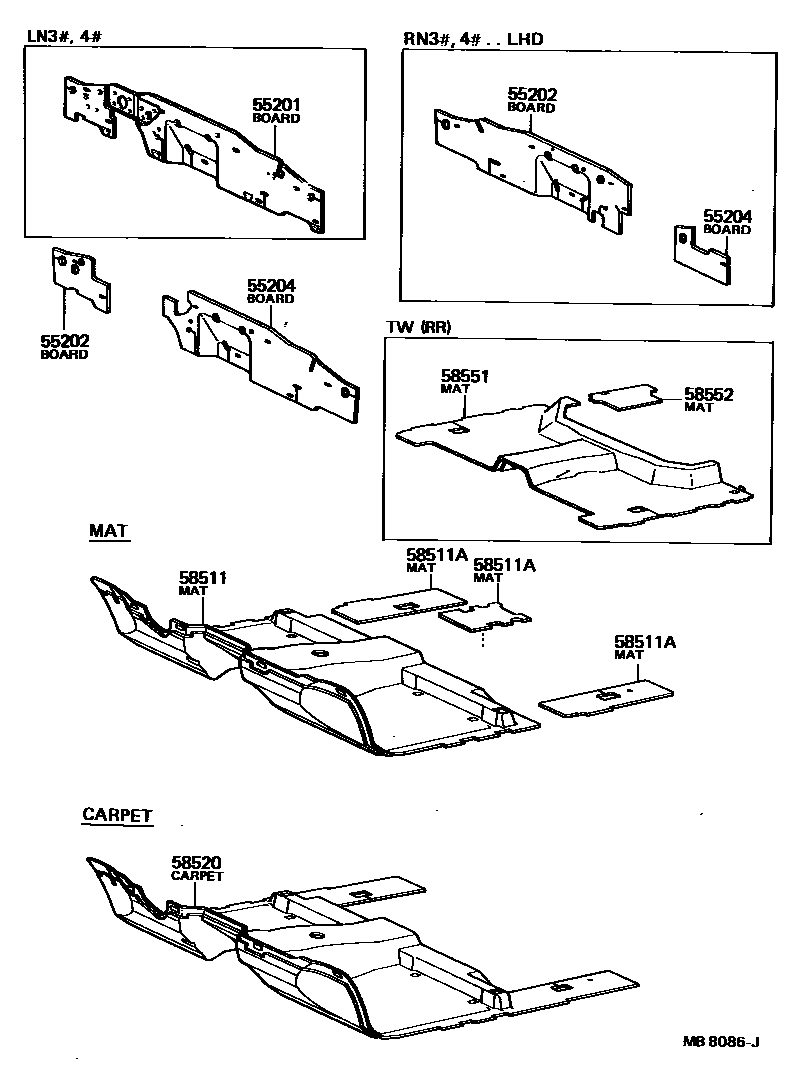

Toyota HILUX EPC diagram 5854, 地板垫和消声垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55201 | Front apron muffler panel sub-assembly | 55210-89131 · 55210-89132 · 55210-95125 · 55210-95126 |
| 55202 | Right front apron muffler panel sub-assembly | 55210-89122 · 55210-89123 · 55210-95120 · 55210-95121 |
| 55204 | Left front apron muffler panel sub-assembly | 55210-89121 · 55210-89124 · 55210-95111 · 55210-95122 |
