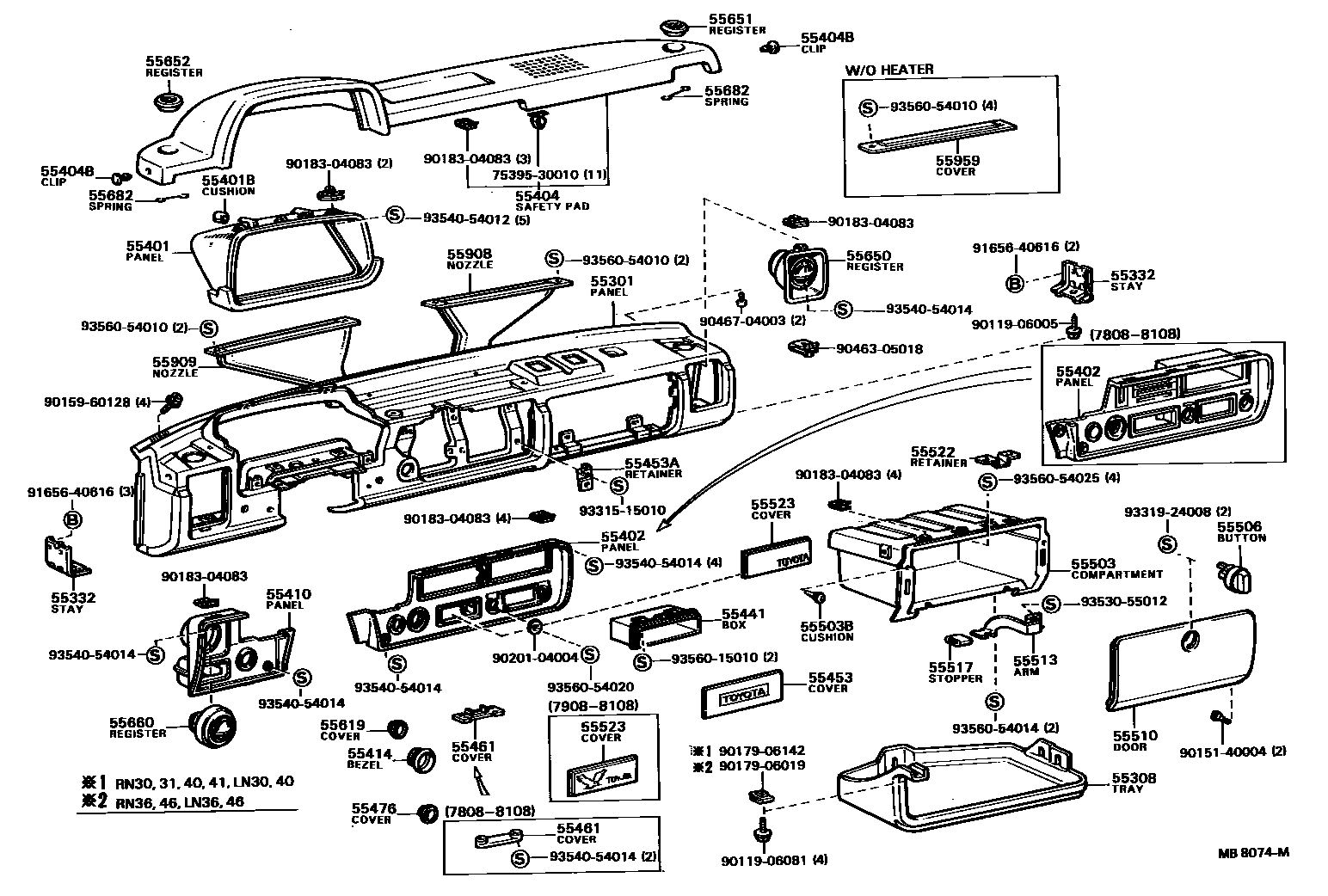

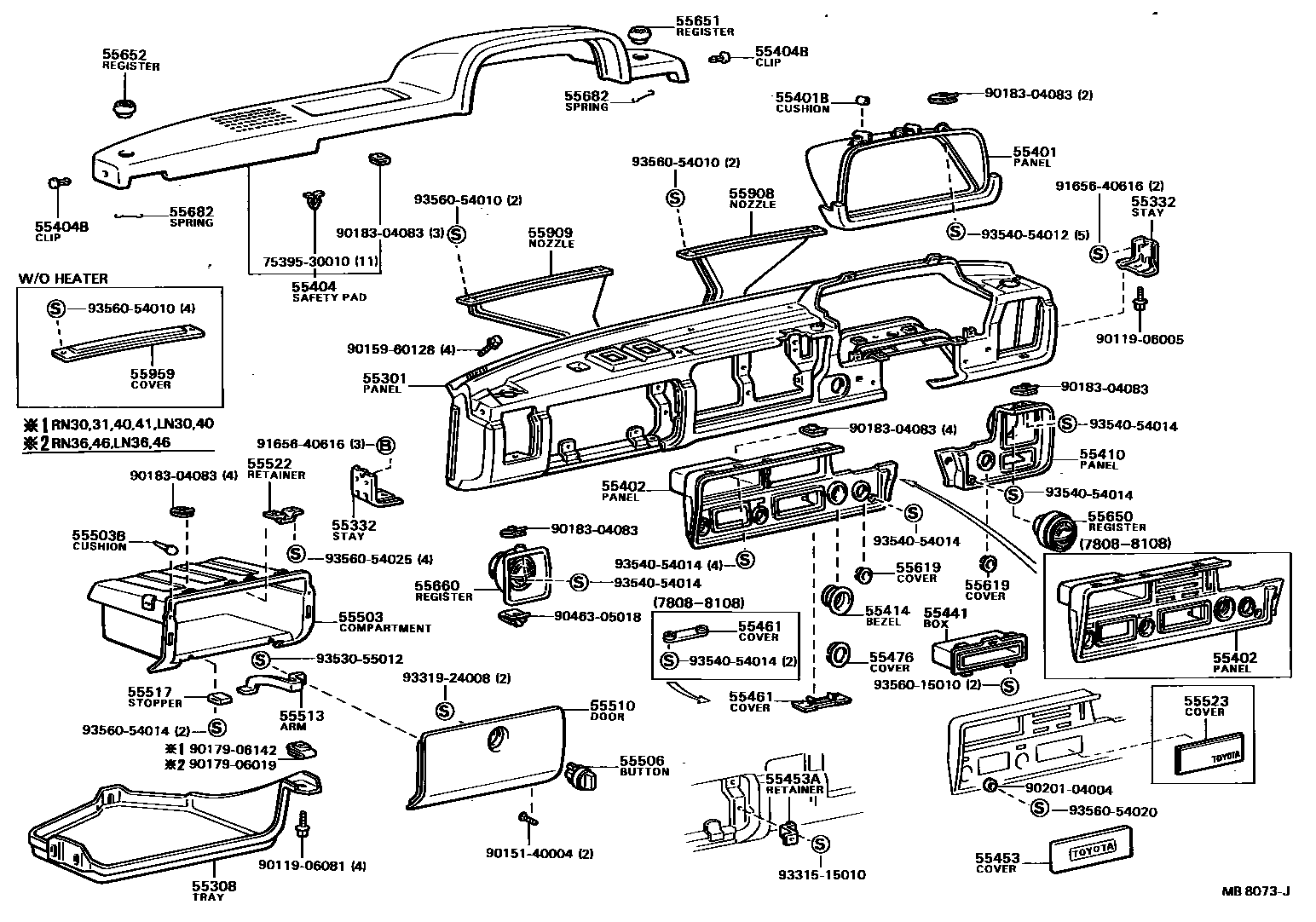

Toyota HILUX 仪表板和手套箱 — Figure 5551
Toyota HILUX EPC diagram 5551, 仪表板和手套箱, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55301 | Instrument panel sub-assembly | 55301-89113 · 55301-89114 · 55301-89116 · 55301-89117 · 55301-89118 · 55301-89119 |
| 55308 | Instrument panel bottom support sub-assembly | 55611-89101 · 55611-89103 |
| 55332 | instrument panel stay | 55326-89101 · 55327-89102 |
| 55401B | Instrument cluster decorative panel cushion | 55419-89101 |
| 55402 | Central instrument configuration panel sub-assembly | 55405-89104 · 55405-89105 · 55405-89107 · 55405-89108 · 55405-89109 · 55405-89111 · 55405-89112 · 55405-89115 · 55405-89116 · 55405-89118 · 55405-89120 · 55405-89121 · 55405-89122 · 55405-89124 · 55405-89125 · 55405-89127 · 55405-89131 · 55405-89132 · 55405-89133 · 55405-89137 · 55405-89138 · 55405-89140 · 55405-89141 · 55405-89142 · 55405-89143 · 55405-89145 · 55405-89150 · 55405-89151 · 55405-95110 · 55405-95111 · 55405-95112 · 55434-89101 · 55434-89102 · 55434-89103 · 55434-89104 · 55434-89106 · 55434-89107 · 55434-89108 · 55434-89109 · 55434-89114 · 55434-89115 · 55434-89119 · 55434-89120 · 55434-89123 · 55434-89124 · 55434-89125 · 55434-89127 · 55434-89129 · 55434-89130 · 55434-89133 · 55434-89134 · 55434-89135 · 55434-89136 · 55434-95110 · 55434-95111 · 55434-95112 · 55434-95115 · 55434-95116 · 55434-95117 |
| 55410 | Instrument cluster No. 2 decorative panel assembly | 55404-89108 · 55404-89109 · 55404-89111 · 55404-89112 · 55404-89113 |
| 55414 | Cigarette lighter hole frame | 55477-89101 |
| 55441 | Dashboard storage box | 55441-89104 |
| 55453A | No. 1 radio tuner opening fixing | 55437-89101 · 55437-89102 · 55437-89103 · 55437-89104 |
| 55461 | Heater controller hole cover | 55548-89102 |
| 55476 | Cigarette lighter hole cover | 55532-89102 |
| 55503 | Glove box sub-assembly | 55506-89101 |
| 55503B | Cushion pad (for glove box) | 90541-04006 · 90541-04012 |
| 55506 | Glove box lid lock button sub-assembly | 55560-12020 |
| 55513 | Glove box cover stopper arm | 55556-89101 · 55556-89102 |
| 55517 | Glove box cover arm stop | 55517-89104 |
| 55522 | Glovebox plug-in fasteners | 55561-89102 |
| 55523 | Heater control opening cover | 55523-89101 · 55523-89102 · 55523-89105 |
| 55619 | switch hole cover | 55539-89102 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-89103 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55650-89103 |
| 55682 | Dashboard air register bracket spring | 55686-89101 |
| 55908 | Right defroster nozzle sub-assembly | 55950-89101 |
| 55909 | Left defroster nozzle sub-assembly | 55960-89101 |
| 55959 | Defroster No. 1 nozzle opening cover | 55959-89101 |
