Toyota HILUX radiator grille — Figure 5351

Toyota HILUX EPC diagram 5351, radiator grille, with 1 images and 1 PNC and OE references.

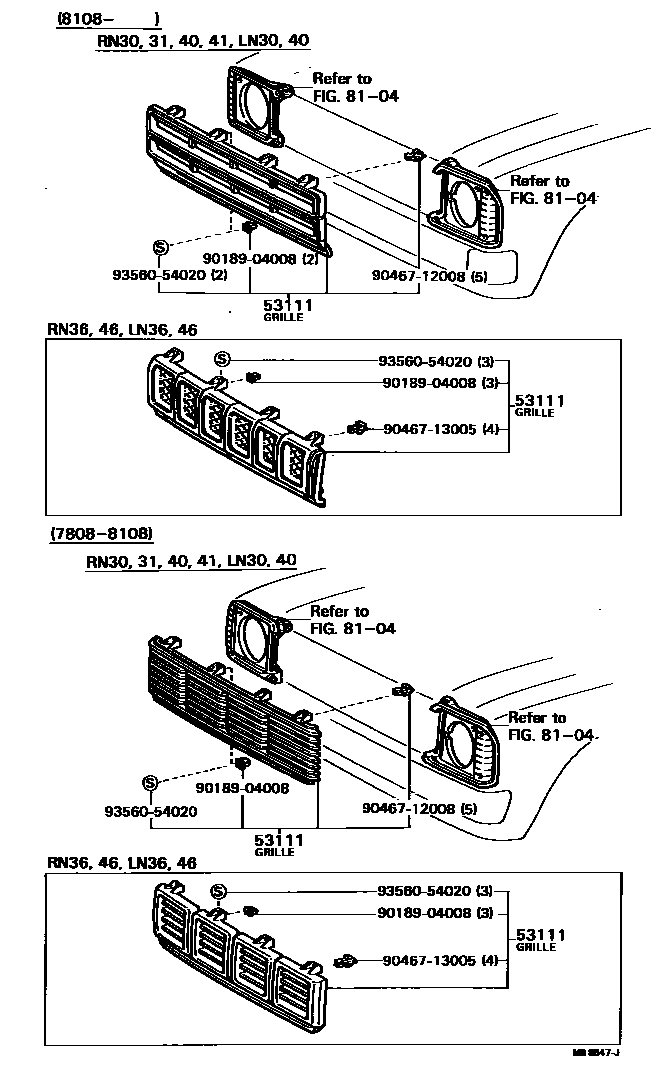

Toyota HILUX radiator grille EPC diagram — MB8847J
radiator grille — MB8847J (197808 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53100-89101 · 53100-89102 · 53100-89103 · 53100-89104 · 53100-89105 · 53100-89106 · 53100-89107 · 53100-89108 · 53100-95115 · 53100-95116 · 53100-95119 · 53100-95120
