Toyota HILUX 后保险杠及附件 — Figure 5253

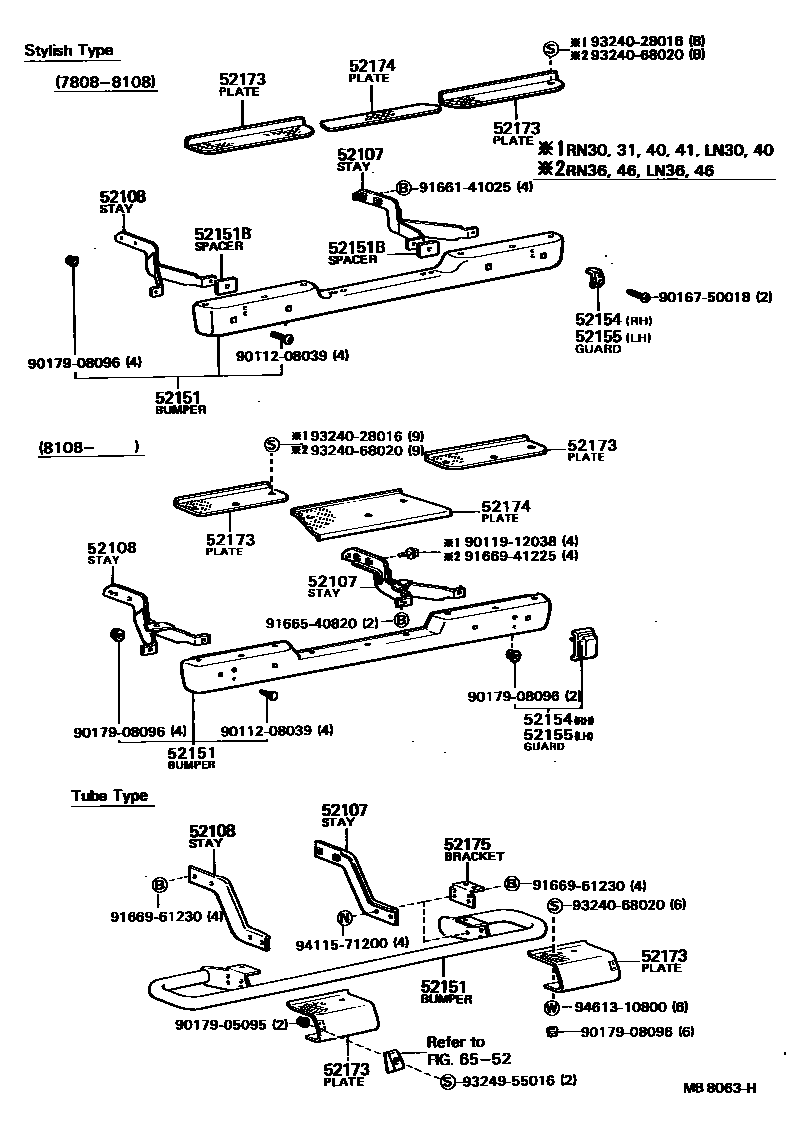

Toyota HILUX EPC diagram 5253, 后保险杠及附件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52107 | Rear bumper right side stay sub-assembly | 52015-89104 · 52015-89105 · 52015-89106 · 52015-89107 · 52181-95110 · 52181-95111 |
| 52108 | Rear bumper left side stay sub-assembly | 52016-89104 · 52016-89105 · 52016-89106 · 52016-89107 · 52182-95110 · 52182-95111 |
| 52151 | Rear bumper assembly | 52105-95110 · 52105-95111 · 52150-39015 · 52150-39025 |
| 52151B | Spacer (for rear bumper assembly) | 52188-89101 |
| 52154 | Rear bumper right anti-collision bar | 52405-39015 · 52461-89101 |
| 52155 | Rear bumper left anti-collision bar | 52405-39015 · 52461-89101 |
| 52173 | Rear bumper side fenders | 52163-95110 · 52164-95110 · 52179-89101 · 52179-89105 |
| 52174 | Rear bumper center panel | 52179-89102 · 52179-89106 |
| 52175 | Rear bumper arm mounting bracket | 52175-95110 |
