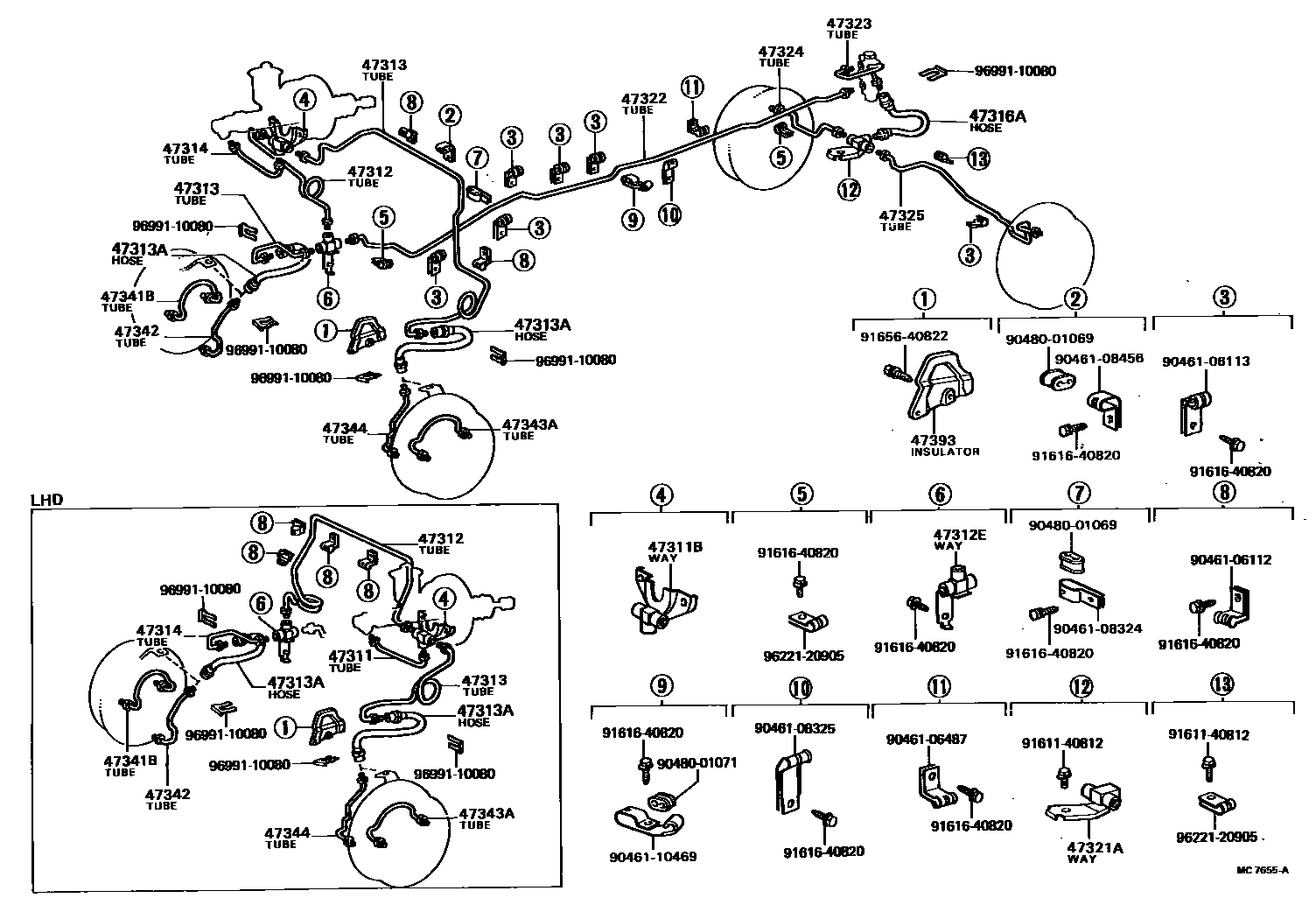

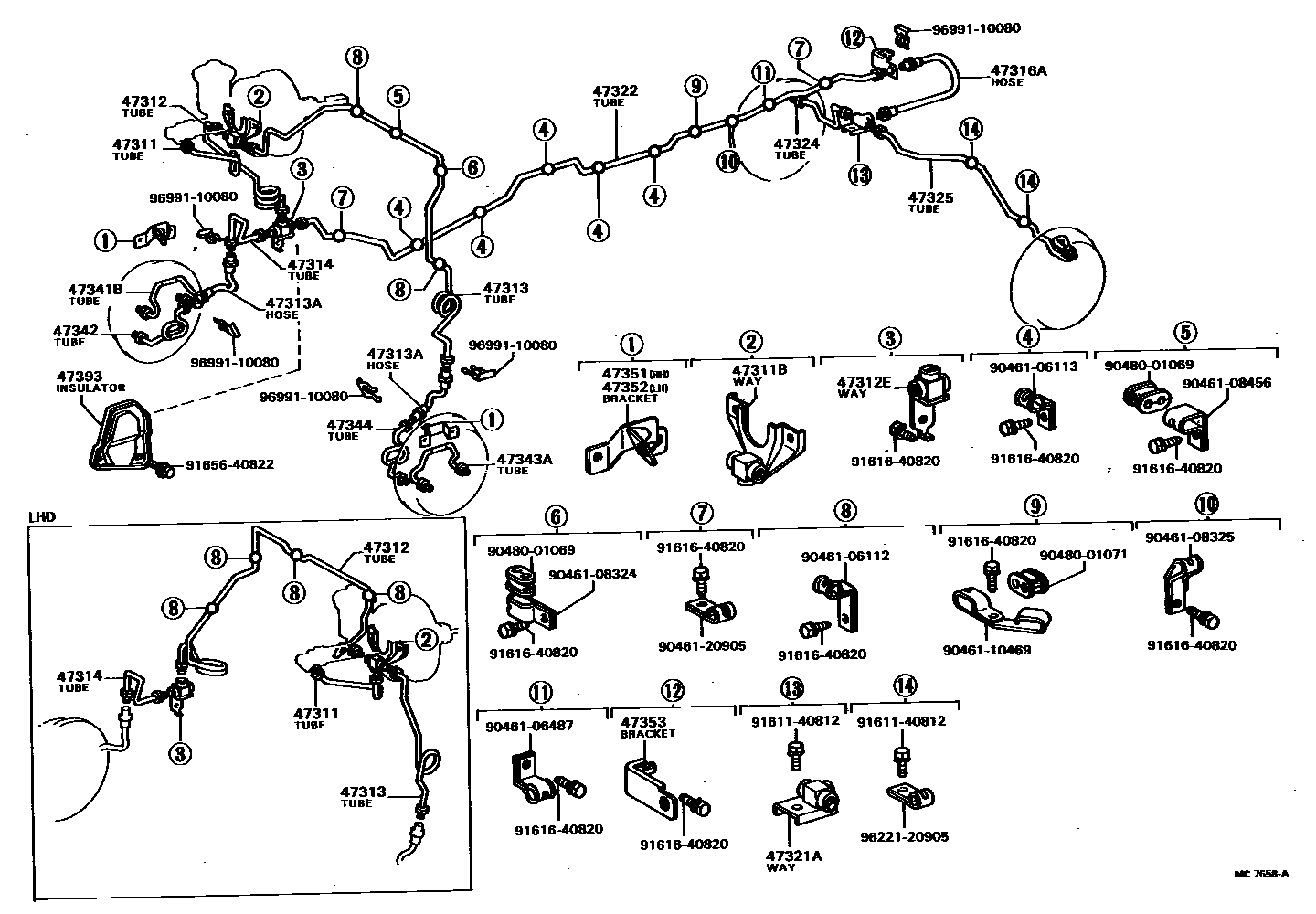

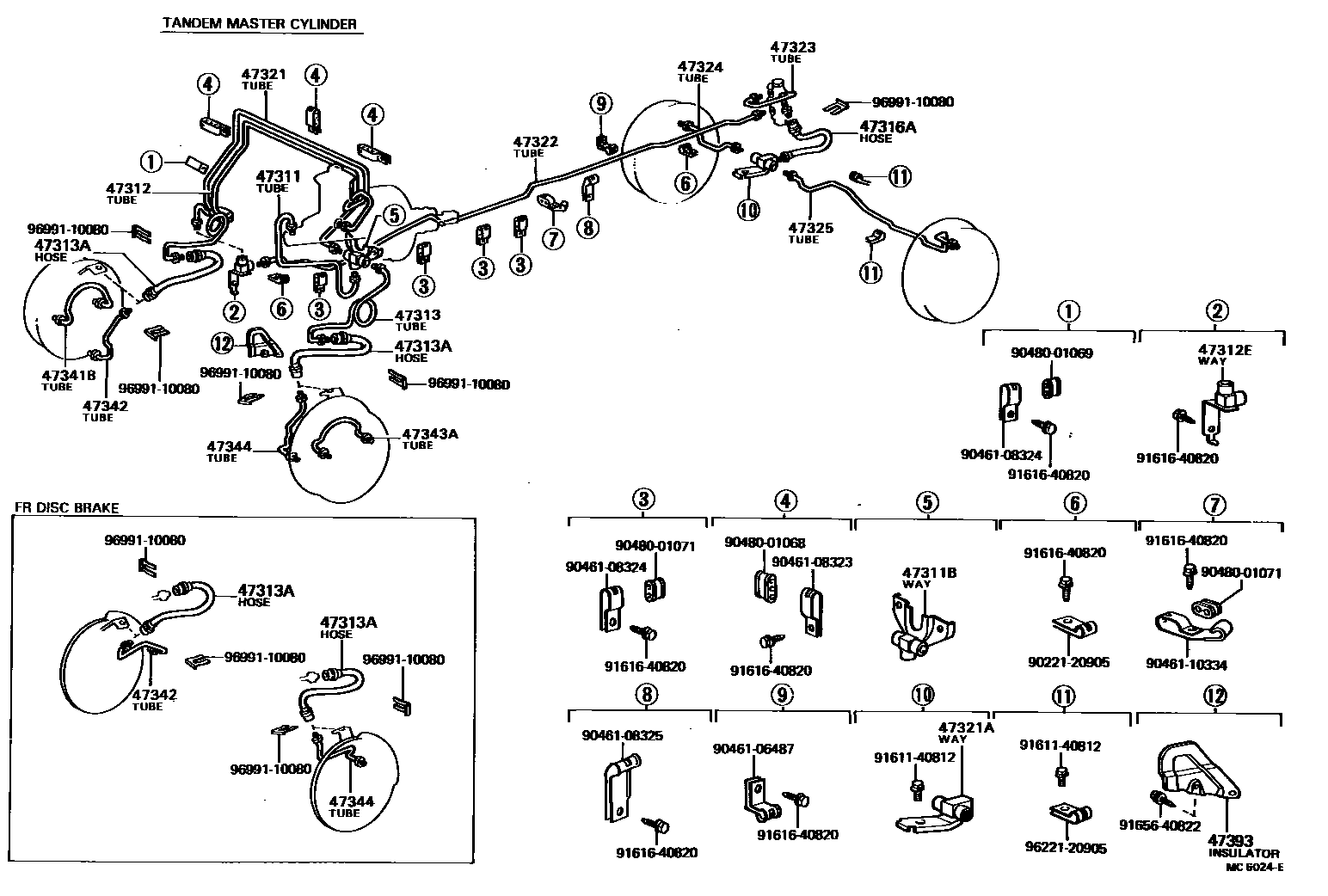

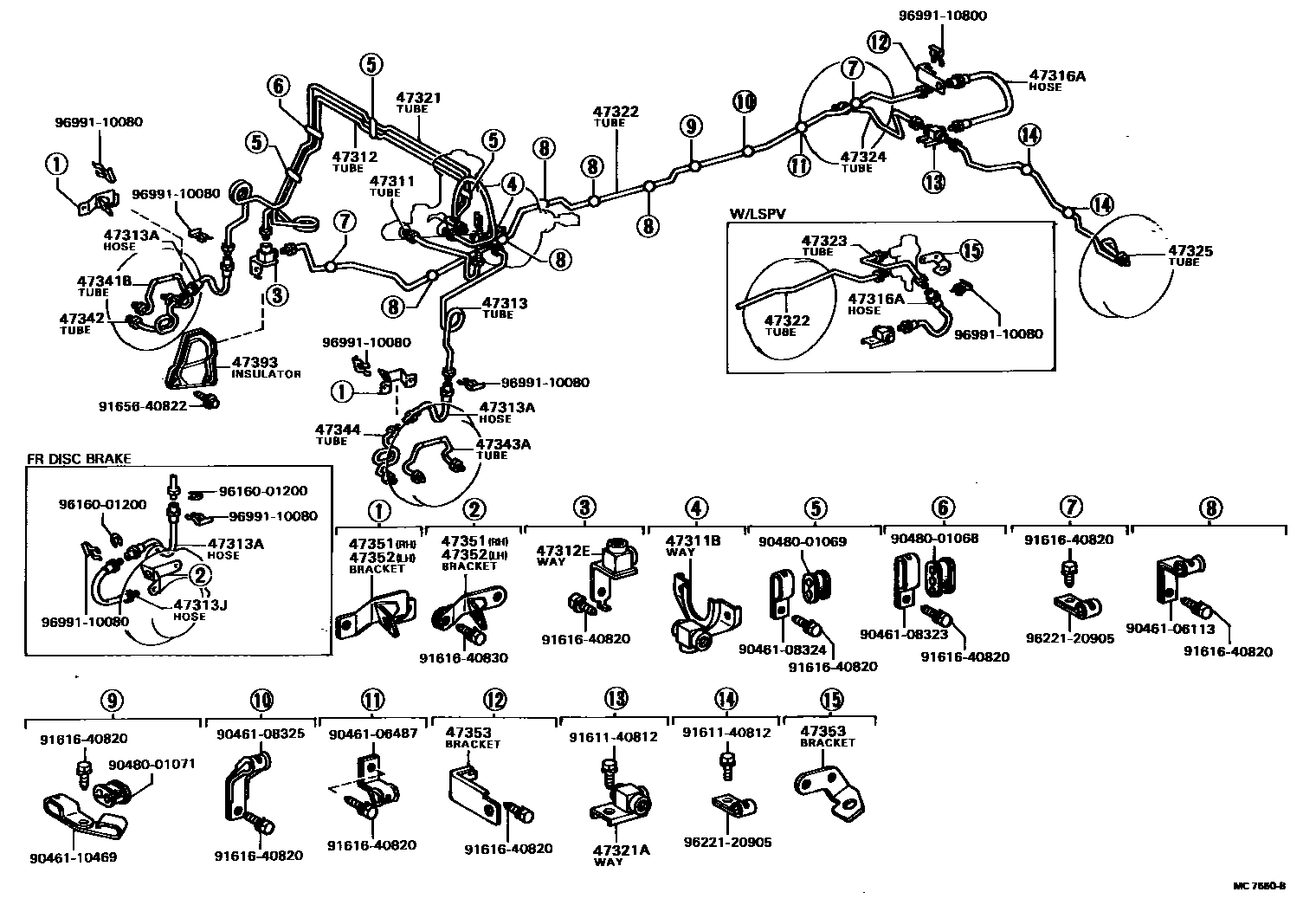

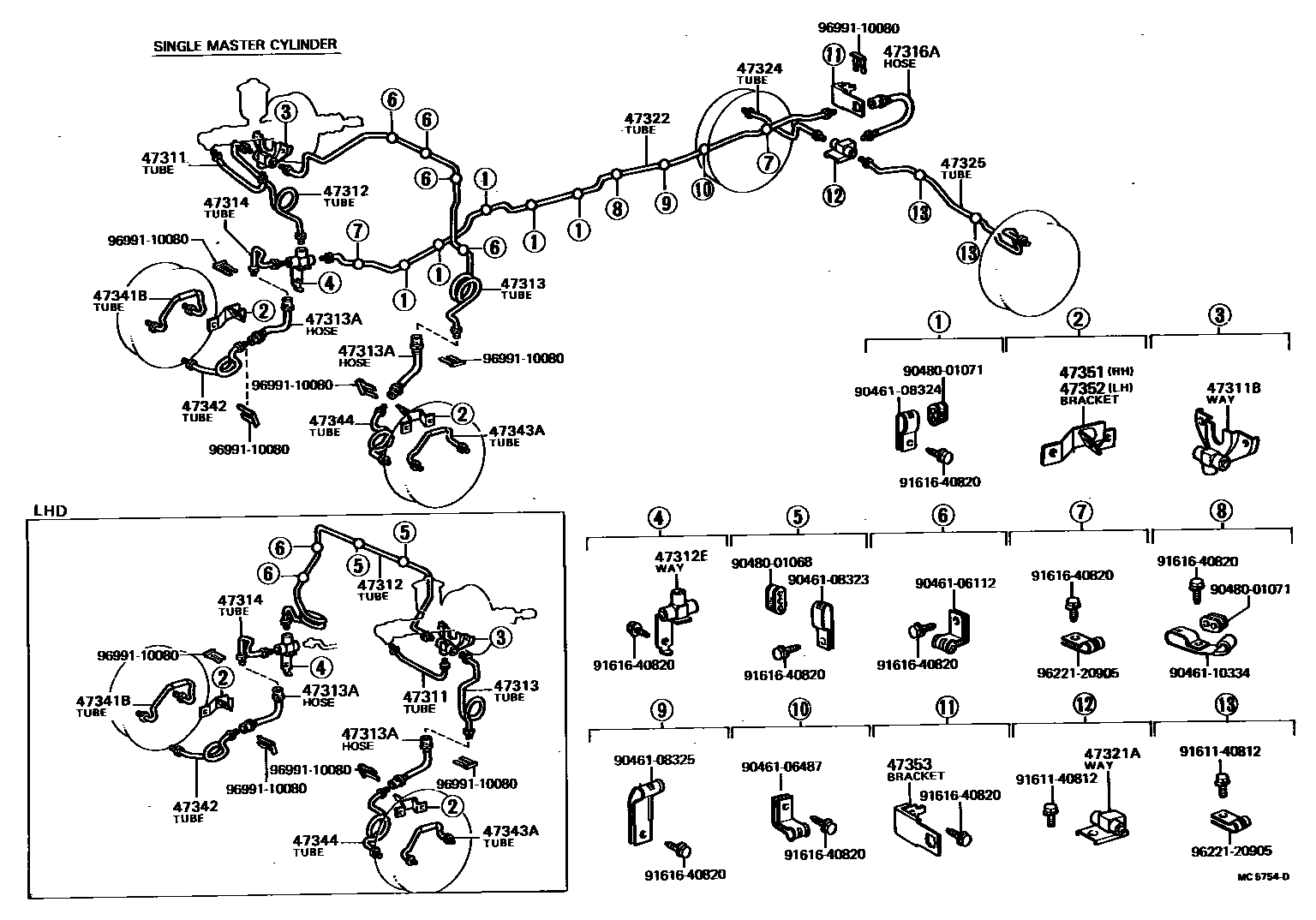

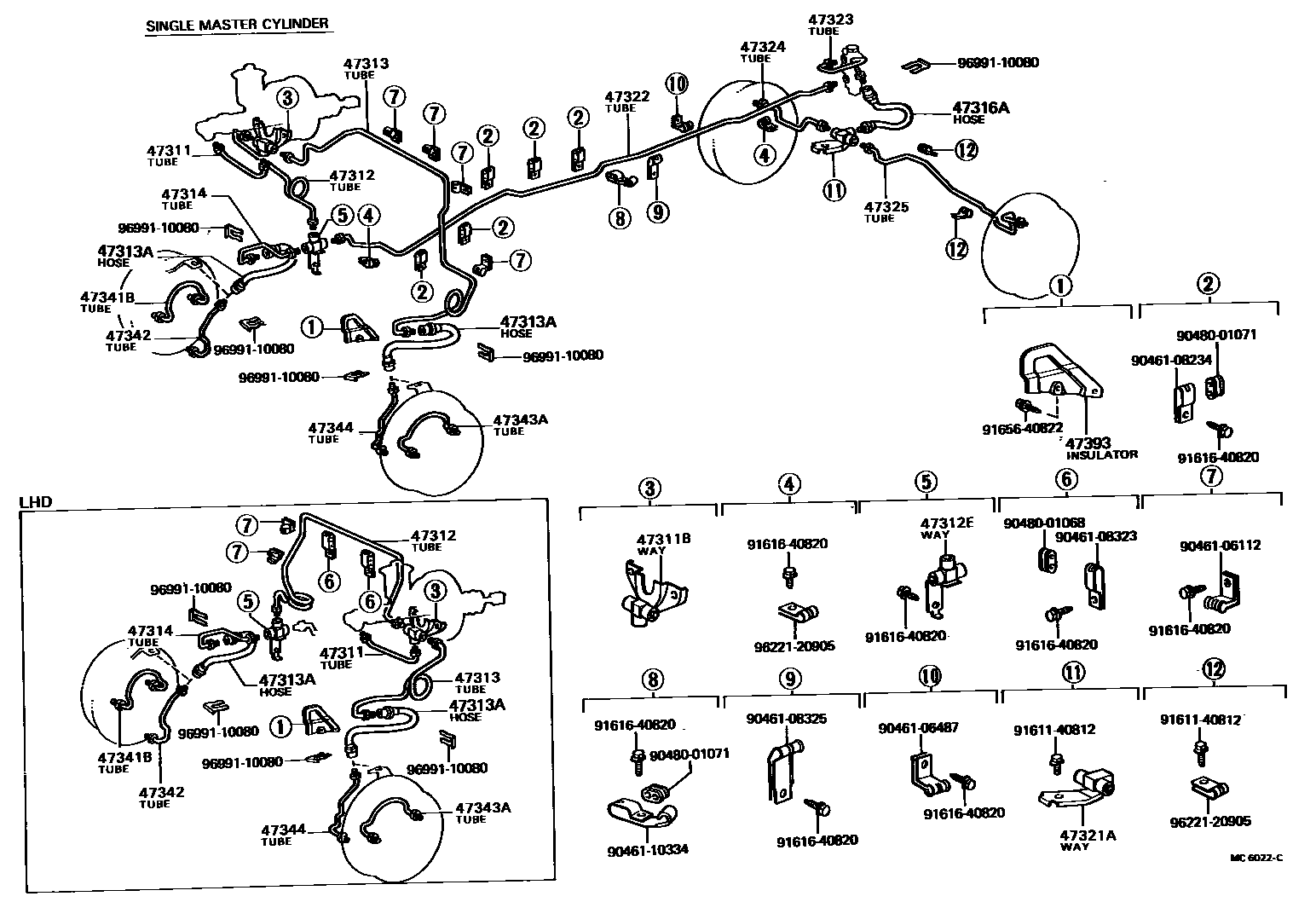

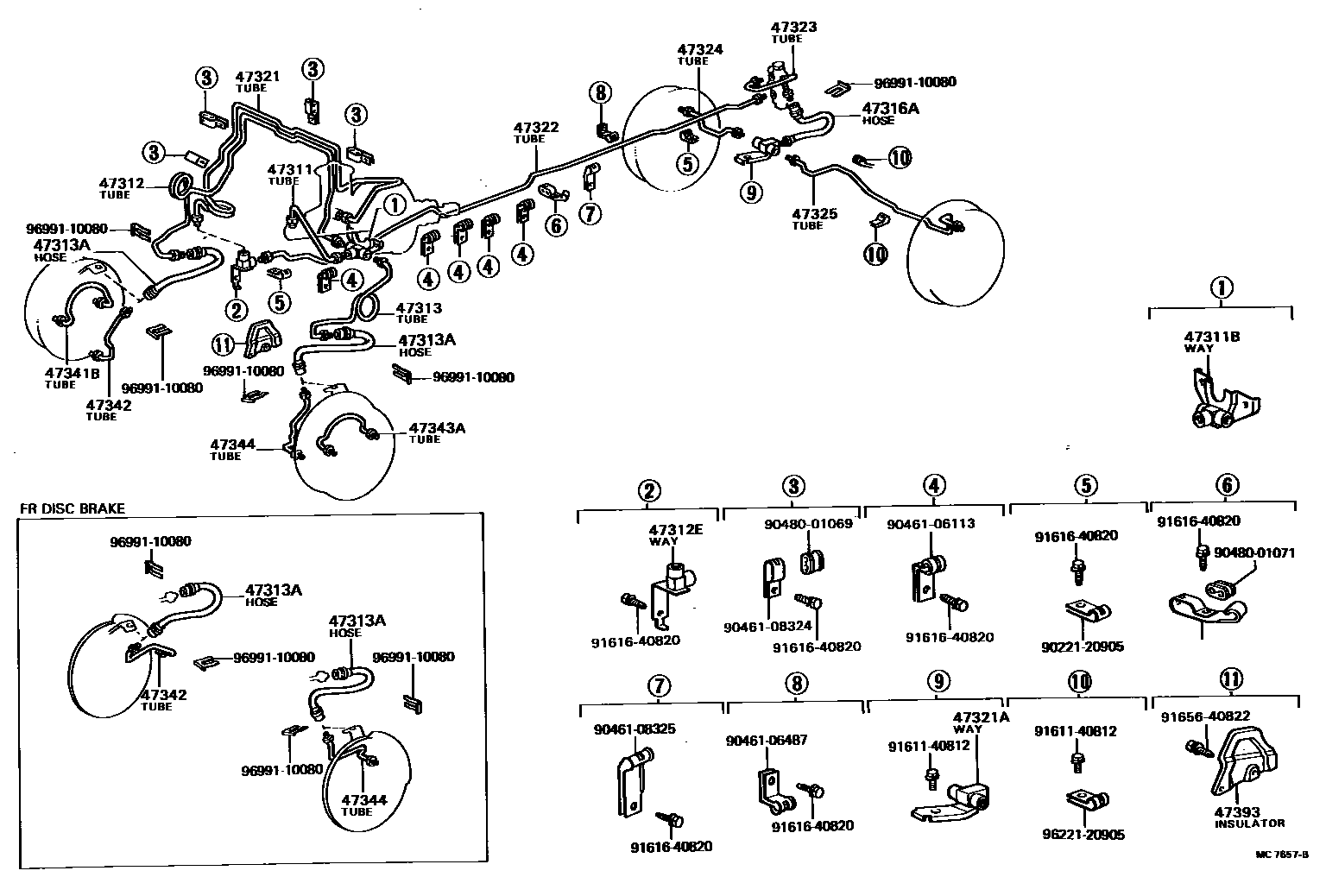

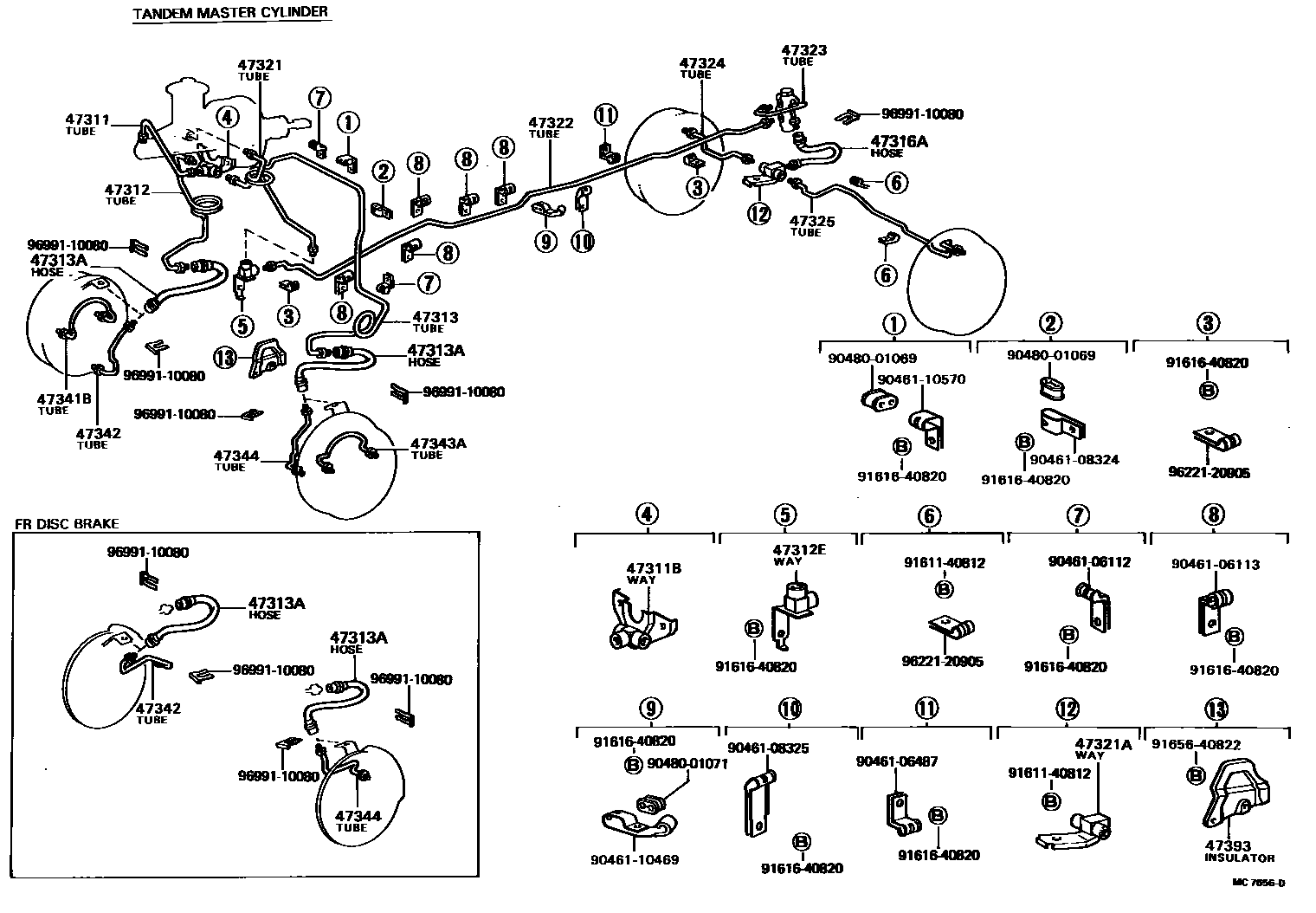

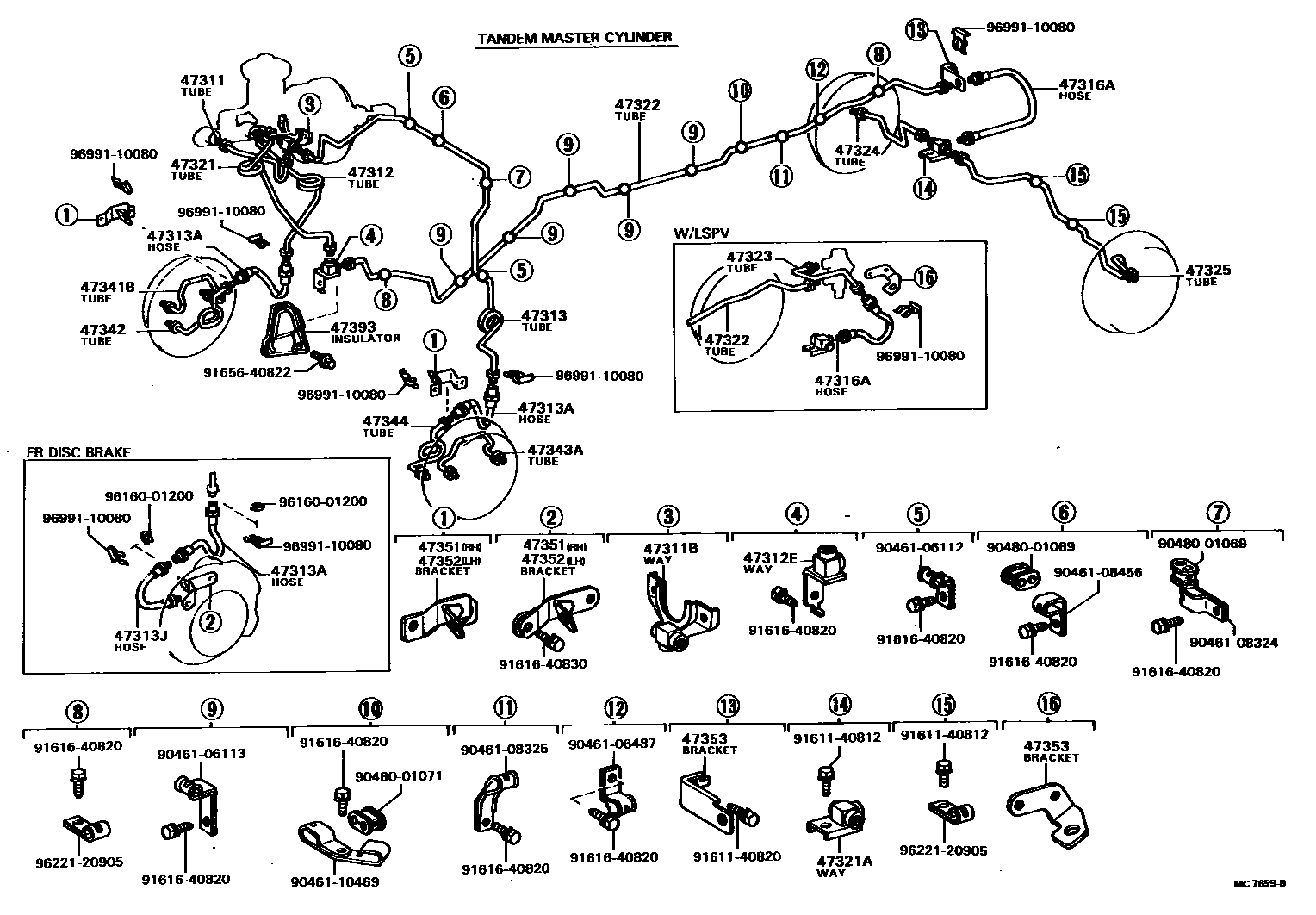

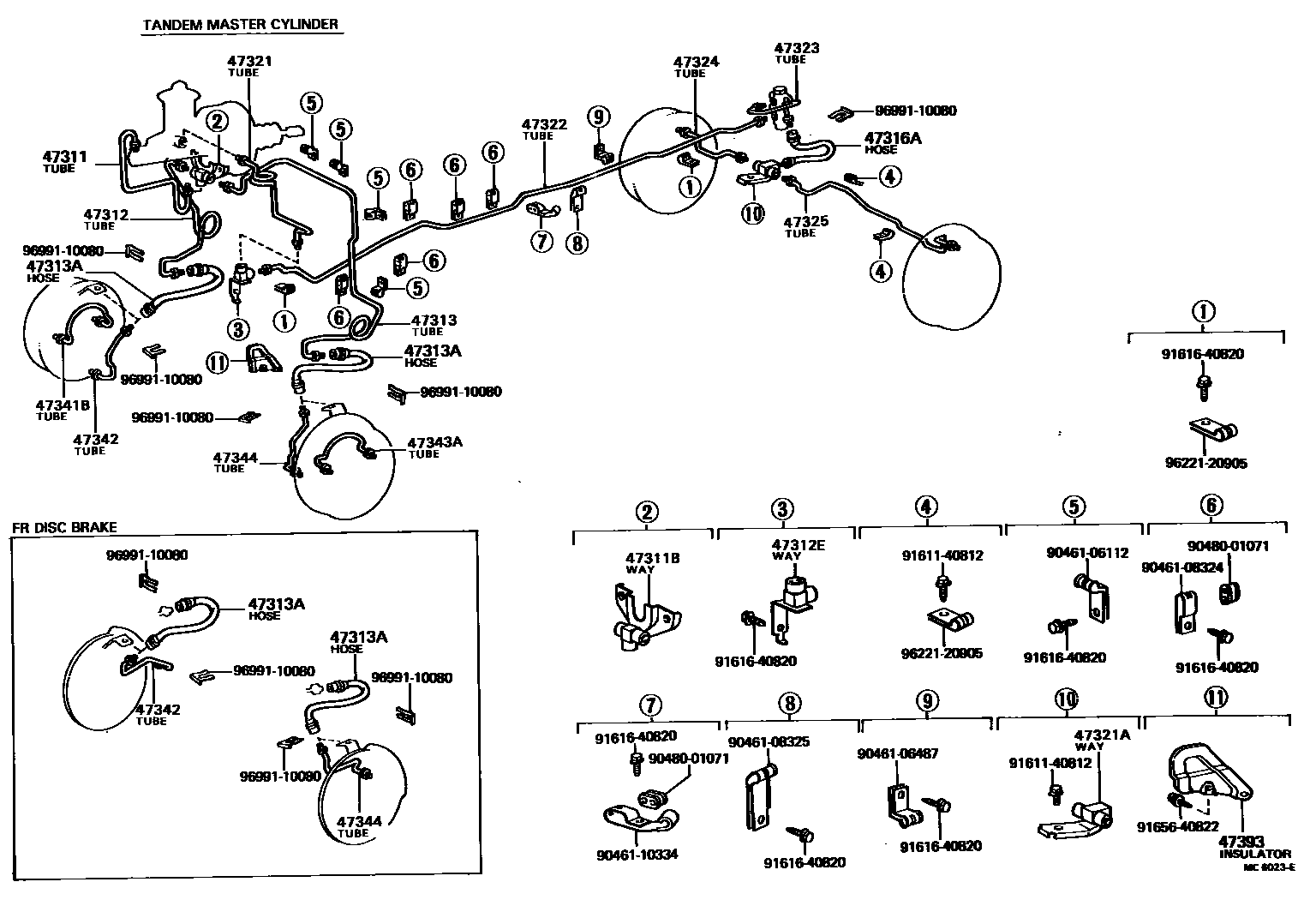

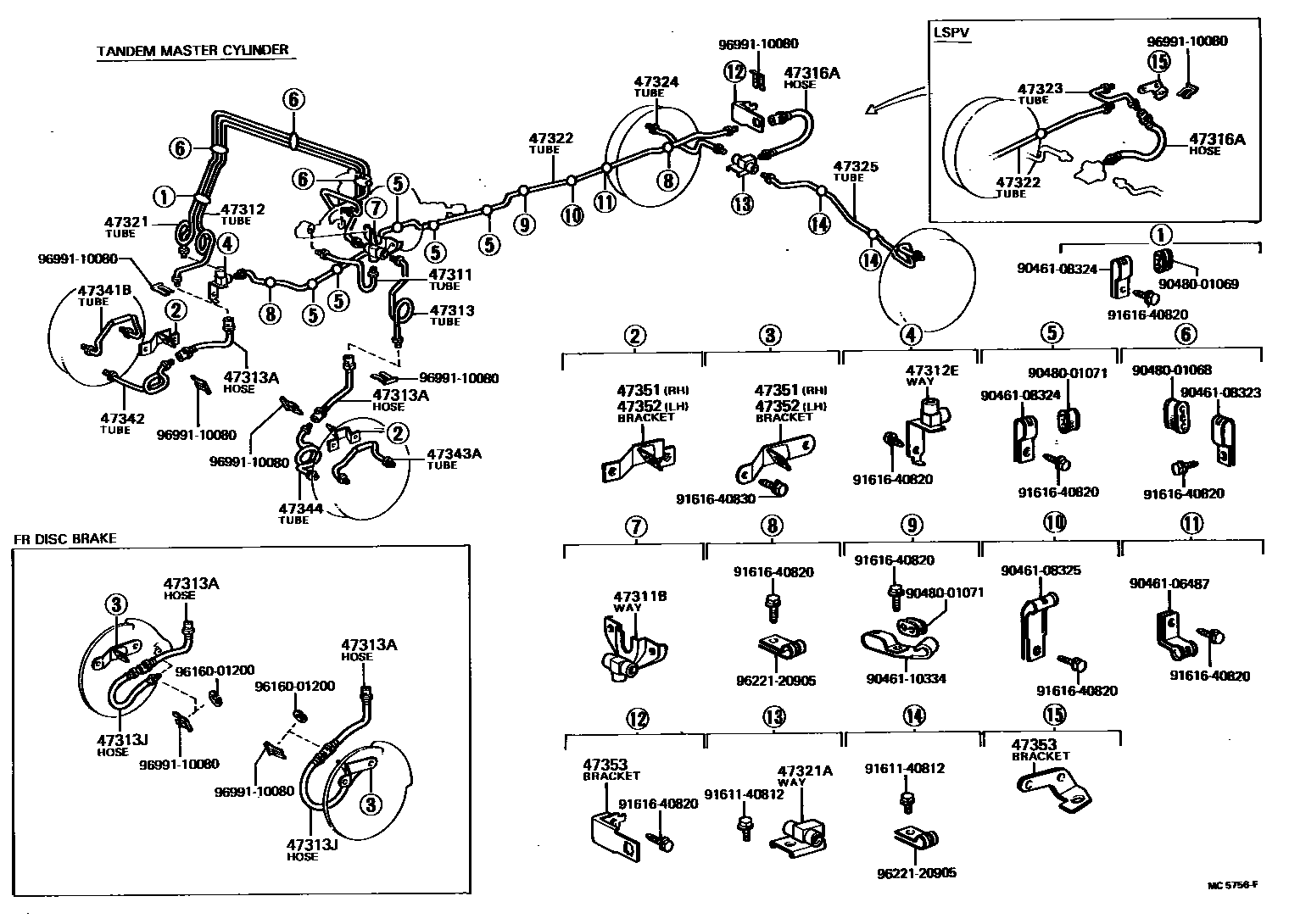

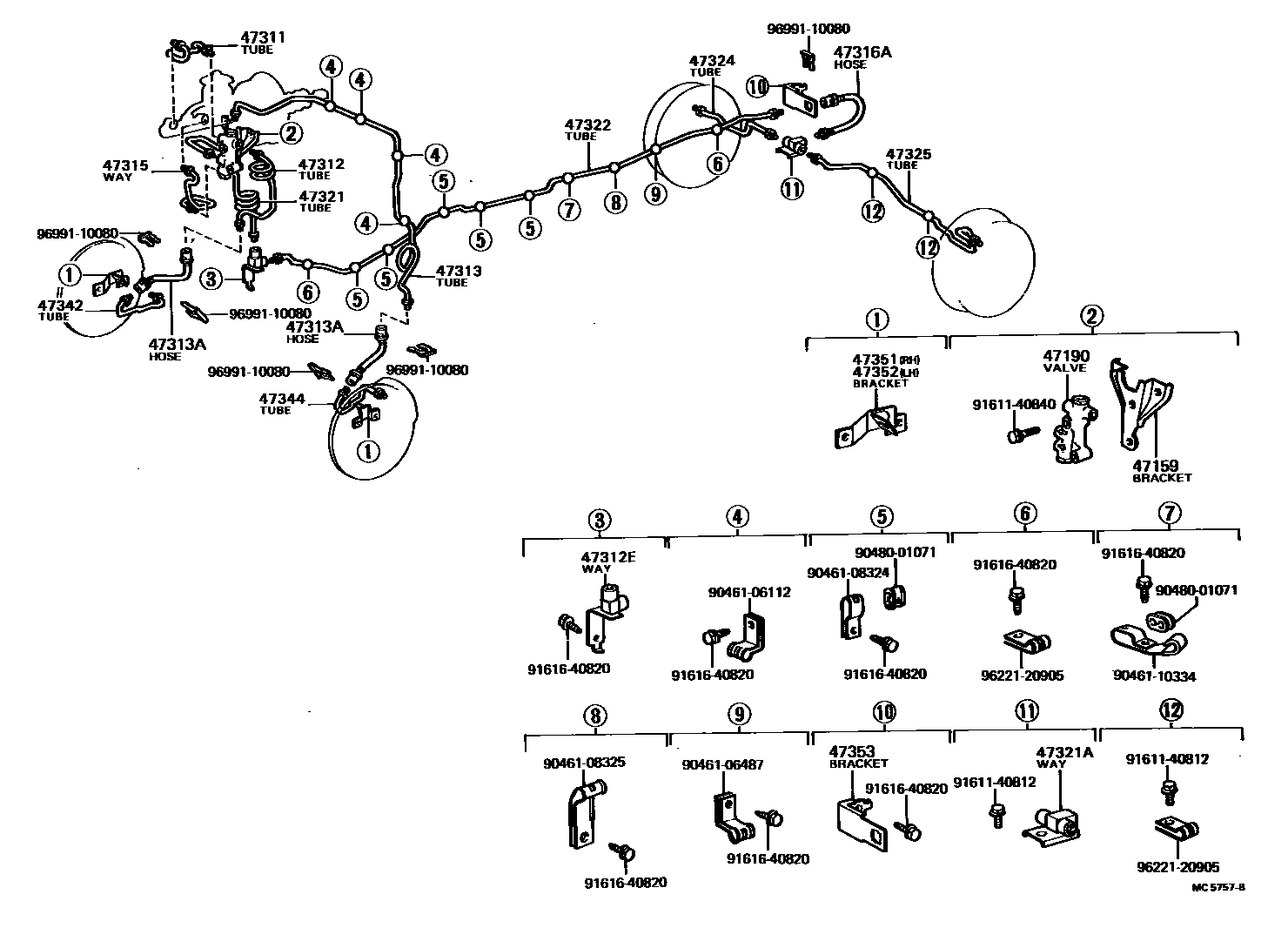

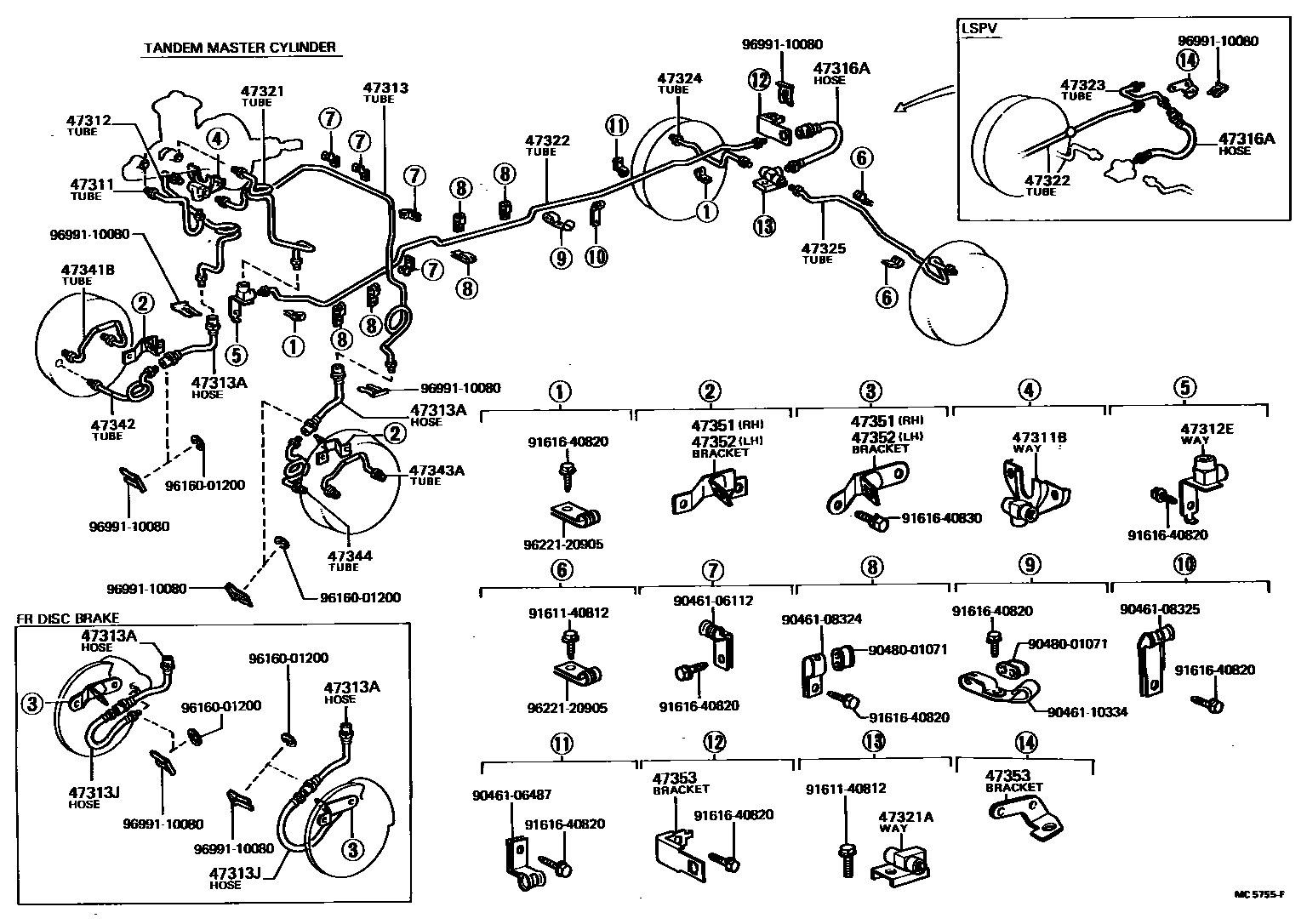

Toyota HILUX 制动配管和卡箍 — Figure 4708
Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 14 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47159 | Proportional valve bracket | 47159-35030 |
| 47190 | Proportional and bypass valve assembly | 47190-35010 |
| 47311 | No. 1 front brake pipe | 47311-35250 · 47311-35260 · 47311-35270 · 47311-35290 · 47311-35310 · 47311-35320 · 47311-35330 · 47311-35340 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90413-10058 · 90413-10067 · 90413-10111 |
| 47312 | No. 2 front brake pipe | 47312-35141 · 47312-35151 · 47312-35160 · 47312-35170 · 47312-35180 · 47312-35190 · 47312-35200 · 47312-35210 · 47312-35250 · 47312-35280 · 47312-35290 · 47312-35310 · 47312-35340 · 47312-35350 |
| 47312E | No. 2 pipe joint (for front brake pipe) | 90412-10049 · 90413-10057 |
| 47313 | No. 3 front brake pipe | 47313-35121 · 47313-35131 · 47313-35140 · 47313-35150 · 47313-35180 · 47313-35190 · 47313-35200 · 47313-35230 |
| 47313A | No. 1 front flexible hose | 90947-02378 · 90947-02379 · 90947-02382 · 90947-02383 |
| 47313J | No. 2 front flexible hose | 90947-02381 · 96960-32405 |
| 47314 | No. 4 front brake pipe | 47314-35141 · 47314-35150 |
| 47315 | No. 5 front brake pipe | 47321-35080 |
| 47316A | Flexible hose (for rear brake pipe) | 96910-31403 · 96910-31443 · 96910-34005 · 96910-34405 · 96910-34805 |
| 47321 | No. 1 rear brake pipe | 47321-35030 · 47321-35040 · 47321-35050 · 47321-35060 · 47321-35090 · 47321-35110 · 47321-35120 · 47321-35160 · 47321-35170 |
| 47321A | Pipe fitting (for rear brake pipe) | 90413-10054 · 90413-10081 |
| 47322 | No. 2 rear brake pipe | 47322-35030 · 47322-35031 · 47322-35040 · 47322-35041 · 47322-35090 · 47322-35100 · 47322-35120 · 47322-35121 · 47322-35130 · 47322-35140 · 47322-35150 · 47322-35160 |
| 47323 | No. 3 rear brake pipe | 47323-35020 · 47323-35030 |
| 47324 | No. 4 rear brake pipe | 47324-35010 · 47324-35020 · 47324-35030 |
| 47325 | No. 5 rear brake pipe | 45307-35061 · 47325-35020 · 47325-35030 · 47325-35040 |
| 47341B | No. 1 right front wheel cylinder brake pipe | 47342-26010 · 47342-35010 |
| 47342 | No. 2 right front wheel cylinder brake pipe | 47341-35010 · 47341-35020 · 47341-35030 · 47341-35040 |
| 47343A | No. 1 left front wheel cylinder brake pipe | 47342-26010 · 47342-35010 |
| 47344 | No. 2 left front wheel cylinder brake pipe | 47343-35010 · 47343-35020 · 47343-35030 · 47343-35040 |
| 47351 | Right front flex hose bracket | 47354-35030 · 47354-35040 · 47354-35042 |
| 47352 | Left front flex hose bracket | 47355-35030 · 47355-35040 · 47355-35042 |
| 47353 | Rear flex hose bracket | 47352-35040 · 47352-35060 |
| 47393 | brake pipe heat shield | 47393-35020 · 47393-35030 · 47393-35040 |

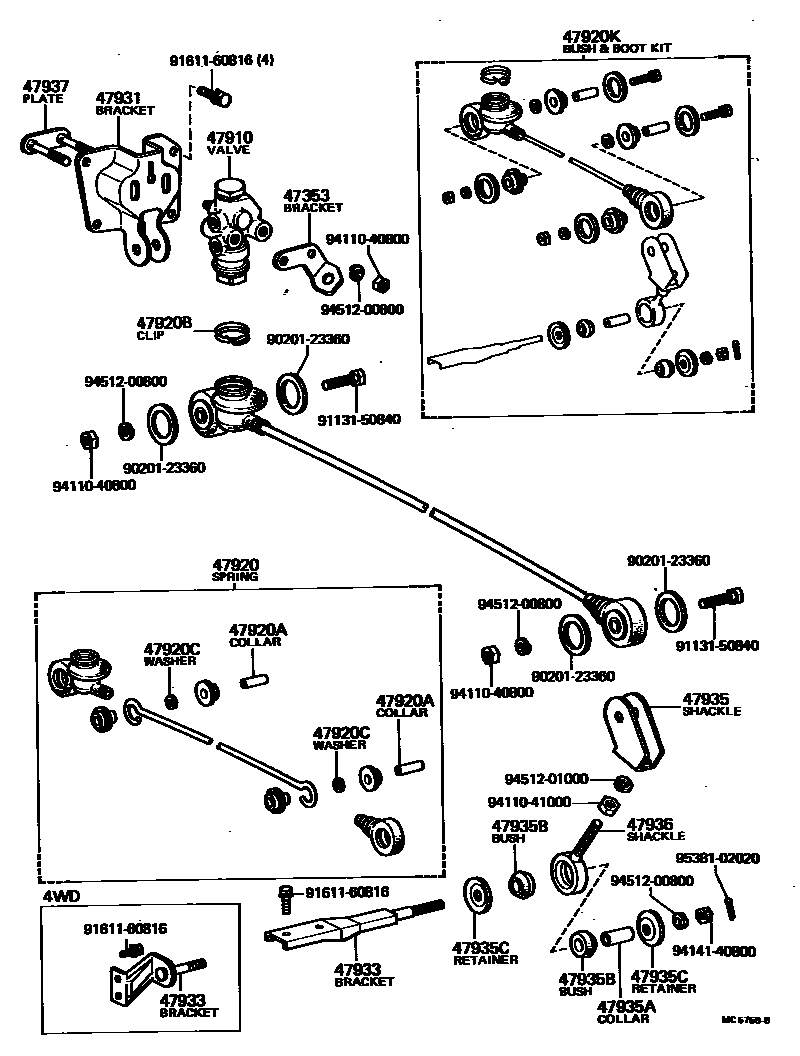

| 47910 | Load sensing proportional valve assembly | 47910-26010 |
| 47920 | Load sensing spring assembly | 47920-26010 · 47920-35020 |
| 47920A | Collar (for load sensing spring) | 90387-08099 |
| 47920B | Clamp (for load sensing valve dust cover) | 90467-31110 |
| 47920C | Washer (for load sensing spring) | 90202-10103 |
| 47920K | Load sensing spring bushing and boot assembly | 04477-35010 |
| 47931 | Load sensing valve bracket | 47931-35020 |
| 47933 | No. 1 load-sensing spring lifting eye bracket | 47933-35010 · 47933-35020 |
| 47935 | No. 1 load-sensing spring lifting ear | 47935-35010 |
| 47935A | Shaft collar (for load sensing spring lifting lugs) | 90387-08099 |
| 47935B | Bushing (for load sensing spring lifting lugs) | 90385-10064 |
| 47935C | Fixings (for load-sensing spring lifting lugs) | 90948-02033 |
| 47936 | No. 2 load-sensing spring lifting lugs | 47936-35010 · 47936-35020 |
| 47937 | Load sensing valve fixing plate | 47937-26010 |
