Toyota HILUX 后鼓式制动器分泵和底板 — Figure 4706

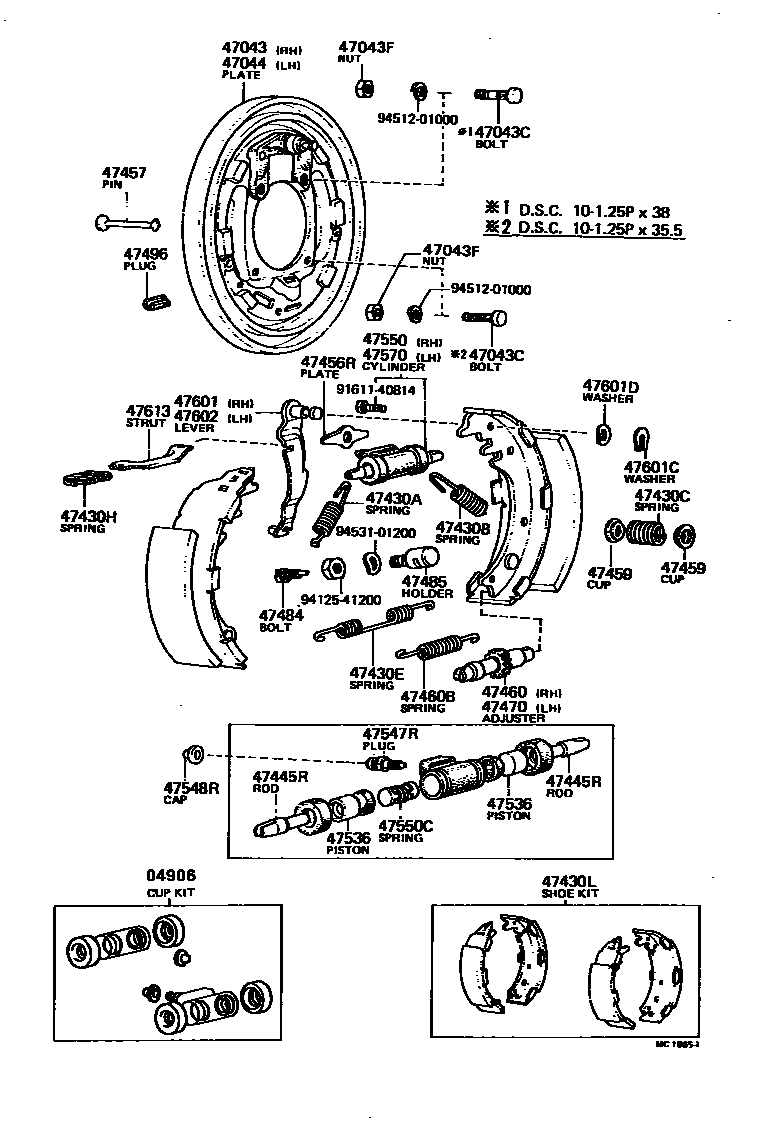

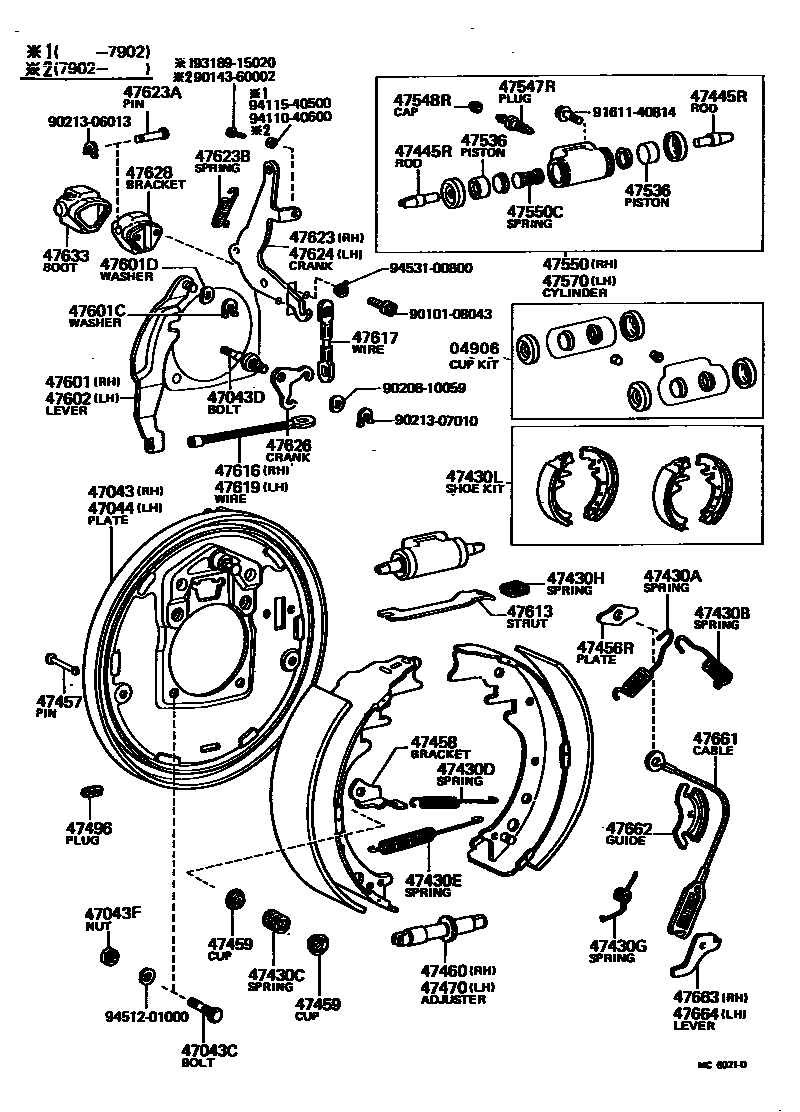

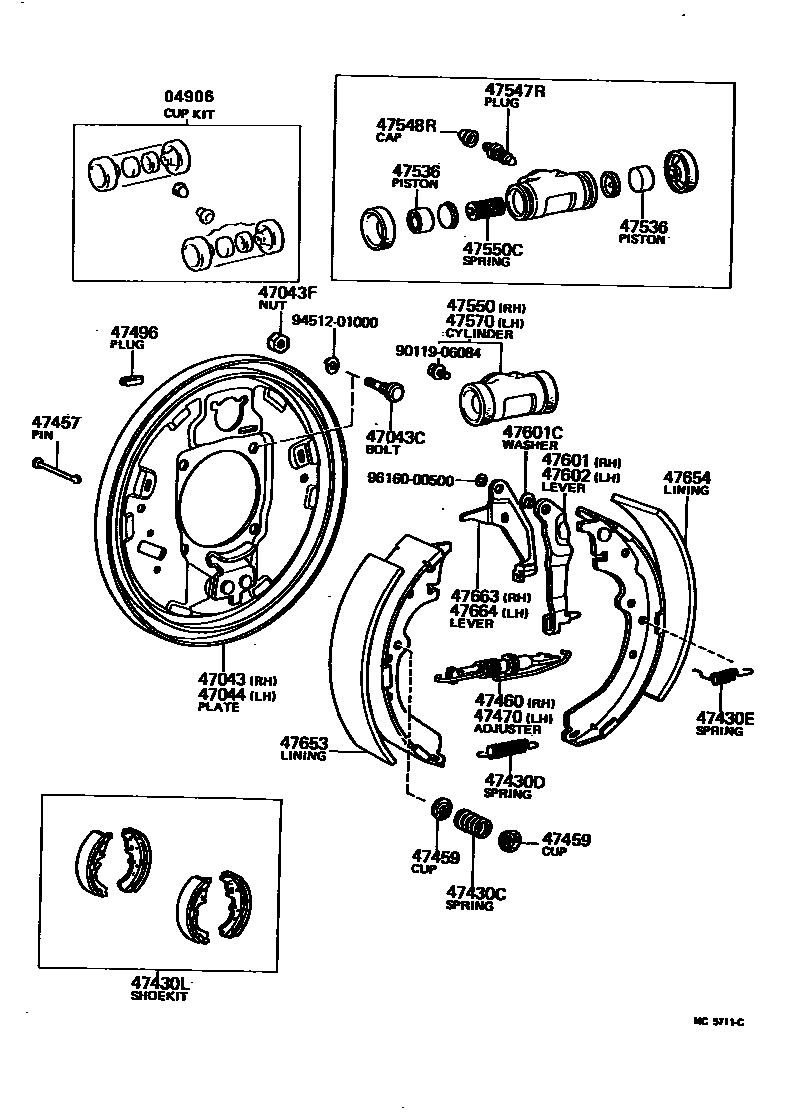

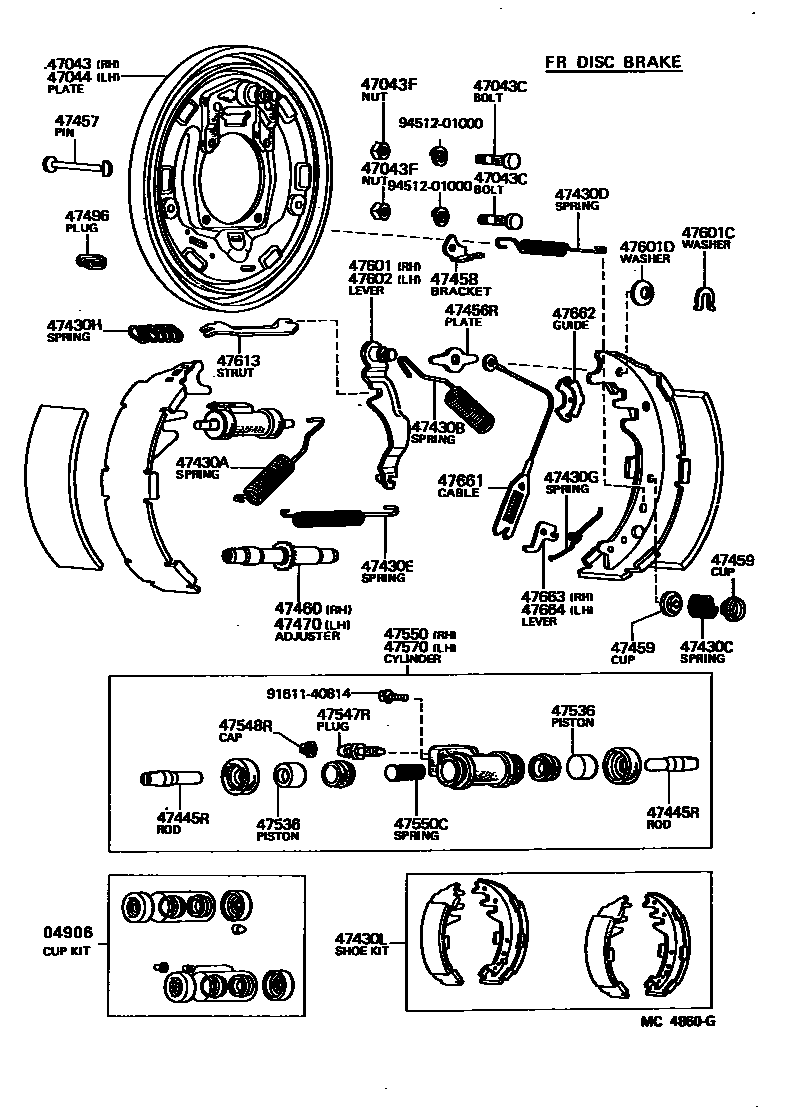

Toyota HILUX EPC diagram 4706, 后鼓式制动器分泵和底板, with 4 images and 52 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04906 | Rear wheel pump cup assembly | 04906-30040 · 04906-30100 · 04906-31010 · 04906-35080 |
| 47043 | Right rear brake base plate sub-assembly | 47043-35041 · 47043-35050 · 47043-35060 · 47043-35070 |
| 47043C | Bolts (used to secure the base plate to the rear axle housing) | 90114-10002 · 90114-10016 |
| 47043D | Bolts (used to secure the base plate to the rear axle housing) | 90114-10008 |
| 47043F | Nut (used to fix the base plate to the rear axle housing) | 90170-10172 · 90170-10191 |
| 47044 | Left rear brake base plate sub-assembly | 47044-35031 · 47044-35040 · 47044-35050 · 47044-35060 |
| 47430A | Tension spring (for rear brake shoe return) | 90506-26331 |
| 47430B | Tension spring (for rear brake shoe return) | 90506-26331 · 90506-26394 |
| 47430C | Limit spring (for rear brake shoe) | 90501-20225 · 90501-20604 · 90501-20756 |
| 47430D | Tension spring (for rear brake shoe return) | 90506-12412 · 90506-20005 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-12015 · 90506-16343 · 90506-26002 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90508-20261 · 90508-20262 |
| 47430H | Compression spring (for parking brake shoe push rod) | 90504-18012 |
| 47430L | Rear brake shoe assembly | 04495-26020 · 04495-35051 · 04495-35060 |
| 47445R | Rear cylinder lever | 47538-35010 |
| 47456R | Rear brake shoe guide | 47456-20010 |
| 47457 | Brake shoe limit spring pin (for rear wheel brake) | 47447-20010 · 47447-30020 |
| 47458 | Rear brake shoe return spring bracket | 47457-35010 · 47457-35020 · 47458-35010 · 47458-35020 |
| 47459 | Brake shoe limit spring seat (for rear wheel brake) | 47449-20011 · 47449-30020 |
| 47460 | Right brake shoe adjuster assembly (for rear wheel brake) | 47061-35010 · 47405-30010 · 47405-30020 · 47406-30020 |
| 47460B | Tension spring (for rear brake shoe adjuster) | 90506-23344 |
| 47470 | Left brake shoe adjuster assembly (for rear wheel brake) | 47062-35010 · 47406-30010 · 47406-30020 |
| 47484 | Rear brake shoe return spring clamp bolt | 47408-30020 |
| 47485 | Brake shoe return spring clip spacer or fixture | 47485-35010 |
| 47496 | Hole plug (for rear brake) | 47491-20011 · 47491-35040 |
| 47536 | Wheel brake cylinder piston (for rear wheel brake) | 47051-22020 · 47531-20071 · 47531-30110 · 47531-31011 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20010 · 47547-20030 · 47547-26010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-29175 · 47550-29265 · 47550-29275 · 47550-29305 · 47550-39115 · 47550-39125 · 47550-39275 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 47509-12010 · 47509-20010 · 47509-22010 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-29175 · 47550-29265 · 47550-29275 · 47550-39115 · 47550-39125 · 47550-39275 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-35011 · 47601-35020 · 47602-35020 · 47611-35020 |
| 47601C | C-shaped washer (for rear brake) | 90213-07010 |
| 47601D | Wave washer (for rear brake) | 90206-10059 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-35011 · 47602-35020 · 47612-35020 |
| 47613 | Parking brake shoe push rod (for rear wheel brake) | 47613-35011 · 47613-35020 · 47614-35011 · 47614-35020 |
| 47616 | Right parking brake cable | 47616-35010 |
| 47617 | No. 2 parking brake cable | 47617-35010 |
| 47619 | left parking brake cable | 47616-35010 |
| 47623 | No. 1 Parking Brake Right Angle Lever | 47624-35010 · 47624-35011 |
| 47623A | Pin (for parking brake right angle lever) | 90249-08068 |
| 47623B | Tension spring (for parking brake right angle lever return) | 90506-20019 |
| 47624 | No. 2 parking brake right angle lever | 47625-35010 · 47625-35011 |
| 47626 | No. 3 parking brake right angle lever | 47626-35010 |
| 47628 | Rear brake right angle lever bracket | 47628-35010 · 47628-35020 |
| 47633 | Parking brake right angle lever dust boot | 47633-35010 · 47633-35020 |
| 47653 | Rear brake shoe friction lining (for front or upper side) | 47655-30050 |
| 47654 | Rear brake shoe friction lining (for rear or lower side) | 47655-30050 |
| 47661 | Self-adjusting cable (for rear brakes) | 47607-30010 |
| 47662 | Self-adjusting cable guide (for rear brakes) | 47642-20010 |
| 47663 | Right automatic adjustment lever (for rear brake) | 47643-20011 · 47643-35010 |
| 47664 | Left side automatic adjustment lever (for rear brake) | 47643-20011 · 47644-35010 |
