Toyota HILUX 前鼓式制动器分泵和底板 — Figure 4704

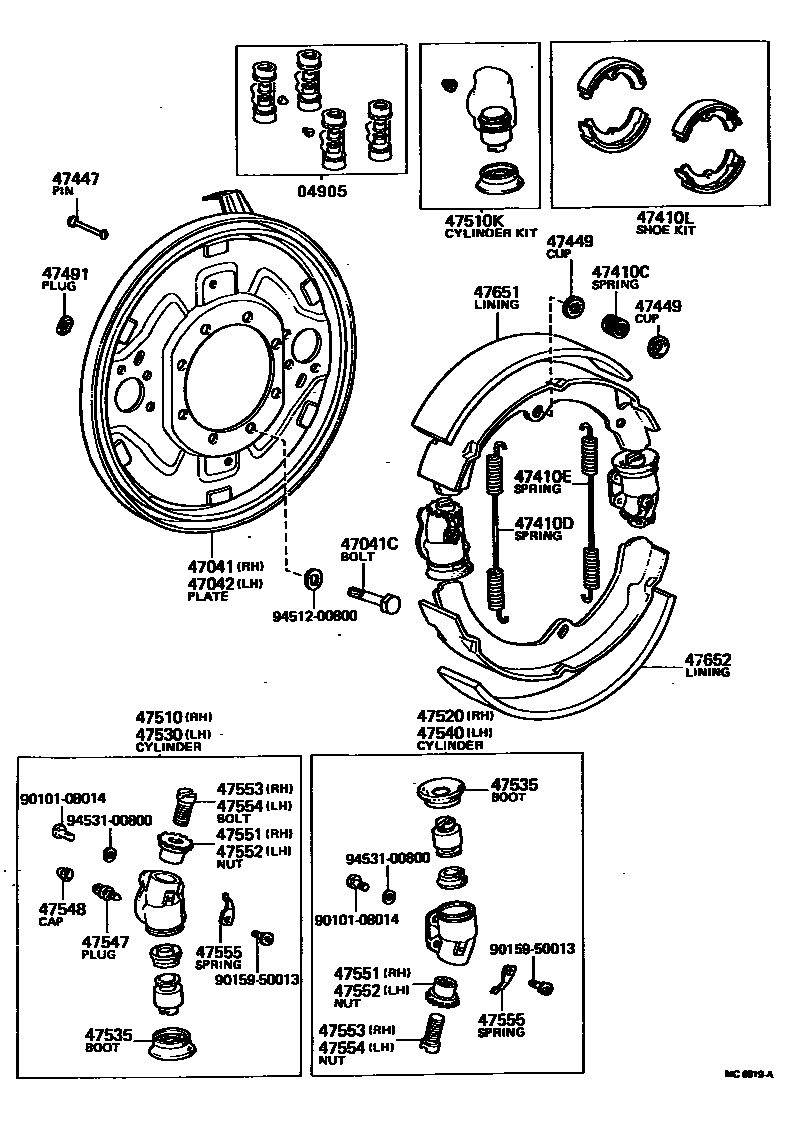

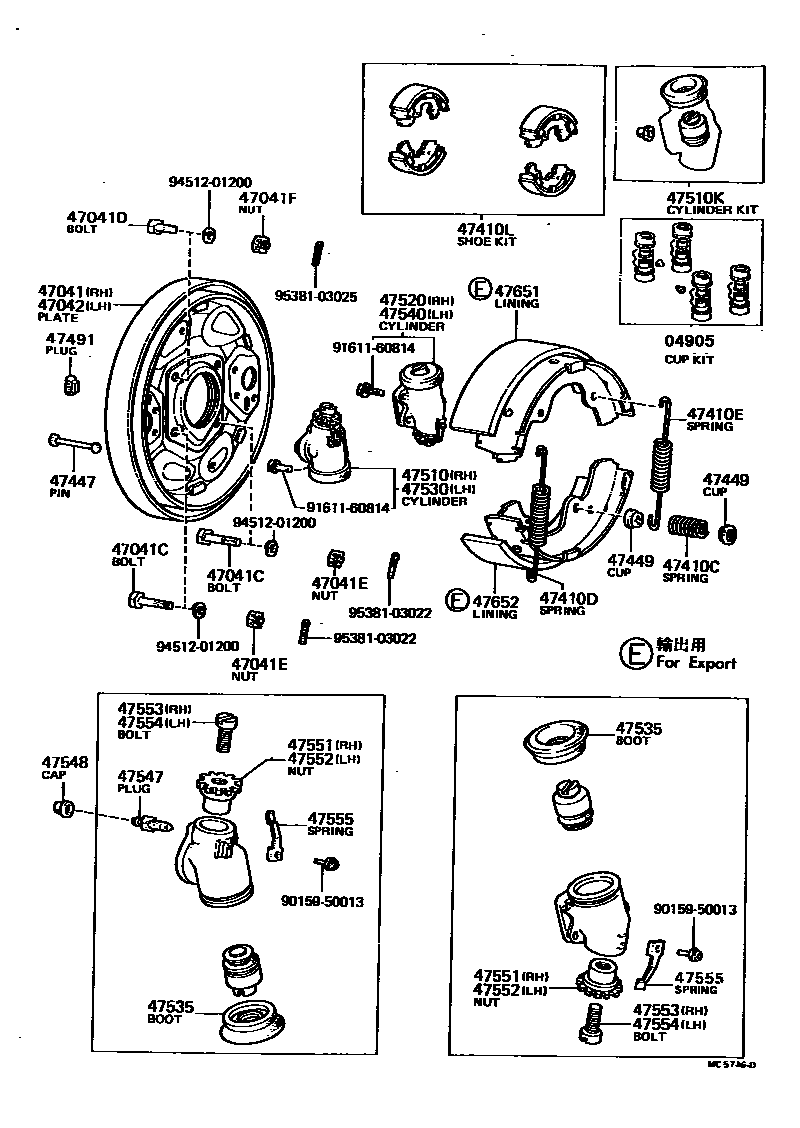

Toyota HILUX EPC diagram 4704, 前鼓式制动器分泵和底板, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04905 | Front wheel cylinder cup assembly | 04905-35050 |
| 47041 | Right front brake base plate sub-assembly | 47041-35040 · 47041-35050 |
| 47041C | Bolts (to secure the base plate to the knuckle arm) | 90101-10439 · 90102-12004 · 90102-12065 · 90114-12138 |
| 47041D | Bolts (used to secure the base plate to the steering knuckle) | 90102-12058 |
| 47041E | Nut (used to secure the base plate to the steering knuckle arm) | 94145-71200 |
| 47041F | Nut (used to secure the base plate to the steering knuckle) | 94145-71200 |
| 47042 | Left front brake base plate sub-assembly | 47042-35030 · 47042-35040 |
| 47410C | Limit spring (for front brake shoes) | 90501-20756 |
| 47410D | Tension spring (for front brake shoe return) | 90506-23011 · 90506-23301 |
| 47410E | Tension spring (for front brake shoe return) | 90506-23011 · 90506-23301 |
| 47410L | front brake shoe assembly | 04494-26030 · 04494-35060 |
| 47447 | Brake shoe limit spring pin (for front wheel brake) | 47447-20020 · 47447-20030 |
| 47449 | Brake shoe limit spring seat (for front wheel brake) | 47449-30020 |
| 47491 | Hole plug (for front wheel brake) | 47491-20020 |
| 47510 | Right front wheel brake cylinder assembly (for front or upper side) | 47510-39165 · 47520-29065 |
| 47510K | Front wheel cylinder assembly | 04473-26010 |
| 47520 | Right front wheel brake cylinder assembly (for rear or lower side) | 47510-29145 · 47520-39125 |
| 47530 | Left front wheel brake cylinder assembly (for front or upper side) | 47530-39165 · 47540-29065 |
| 47535 | Wheel cylinder dust boot (for front wheel brake) | 47535-30010 |
| 47540 | Left front wheel brake cylinder assembly (for rear or lower side) | 47530-29145 · 47540-39125 |
| 47547 | Bleed plug (for front drum brake) | 47547-12010 |
| 47548 | Bleeder plug cap (for front drum brake) | 31478-30010 |
| 47551 | Right front wheel cylinder adjustment nut (for front wheel brake) | 47551-26020 |
| 47552 | Left front wheel cylinder adjustment nut (for front wheel brake) | 47552-26020 |
| 47553 | Right front wheel cylinder adjustment bolt (for front wheel brake) | 47553-30051 |
| 47554 | Left front wheel cylinder adjustment bolt (for front wheel brake) | 47554-30051 |
| 47555 | Adjuster locking spring (for front wheel brake) | 47555-26030 |
| 47651 | Front brake shoe friction lining (for front or upper side) | 47651-26020 · 47651-35060 |
| 47652 | Front brake shoe friction lining (for rear or lower side) | 47651-26020 · 47651-35060 |
