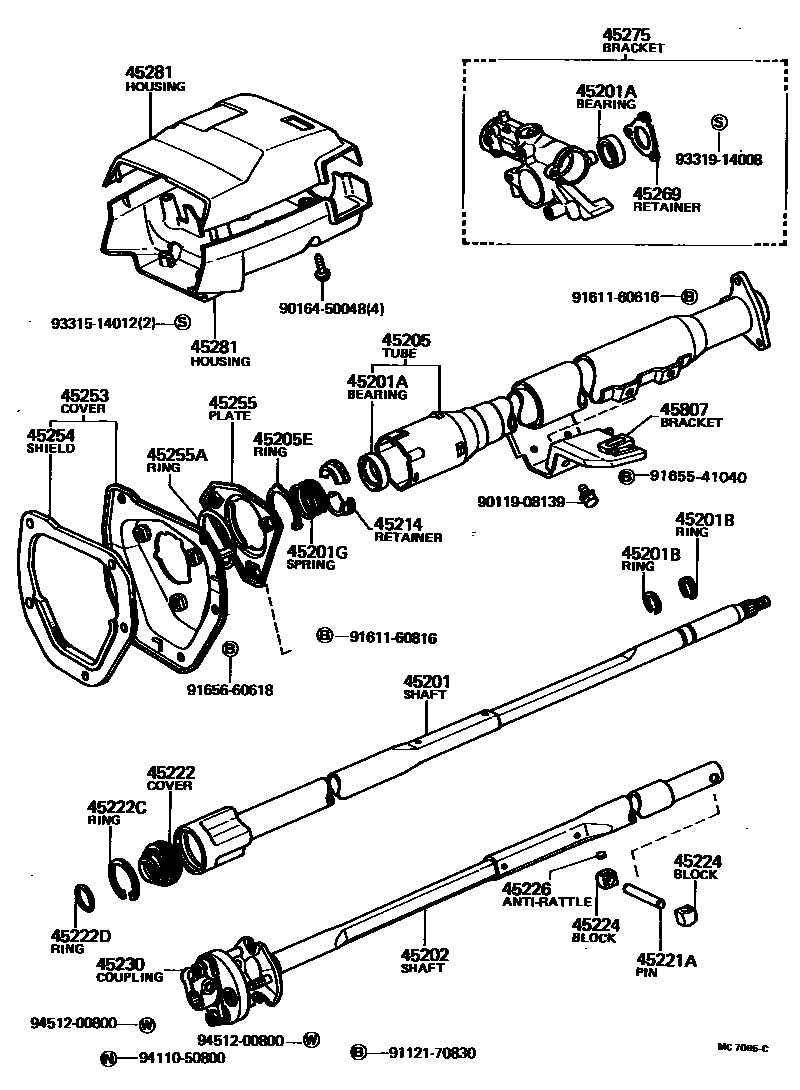

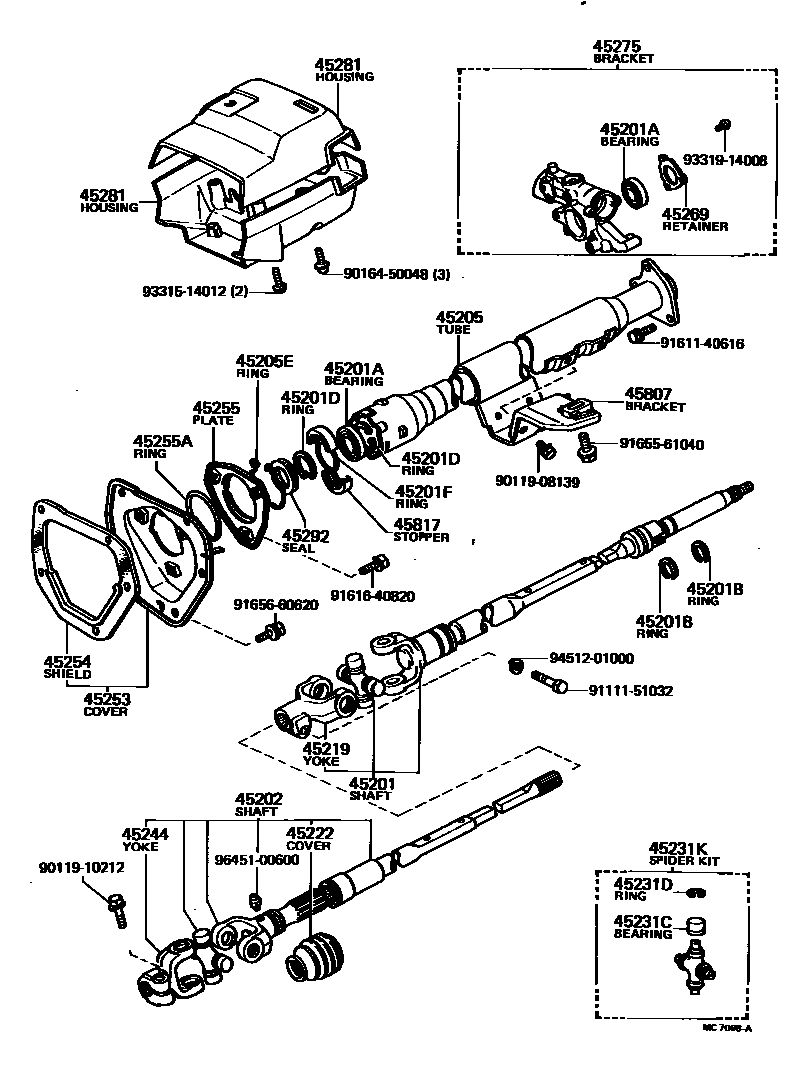

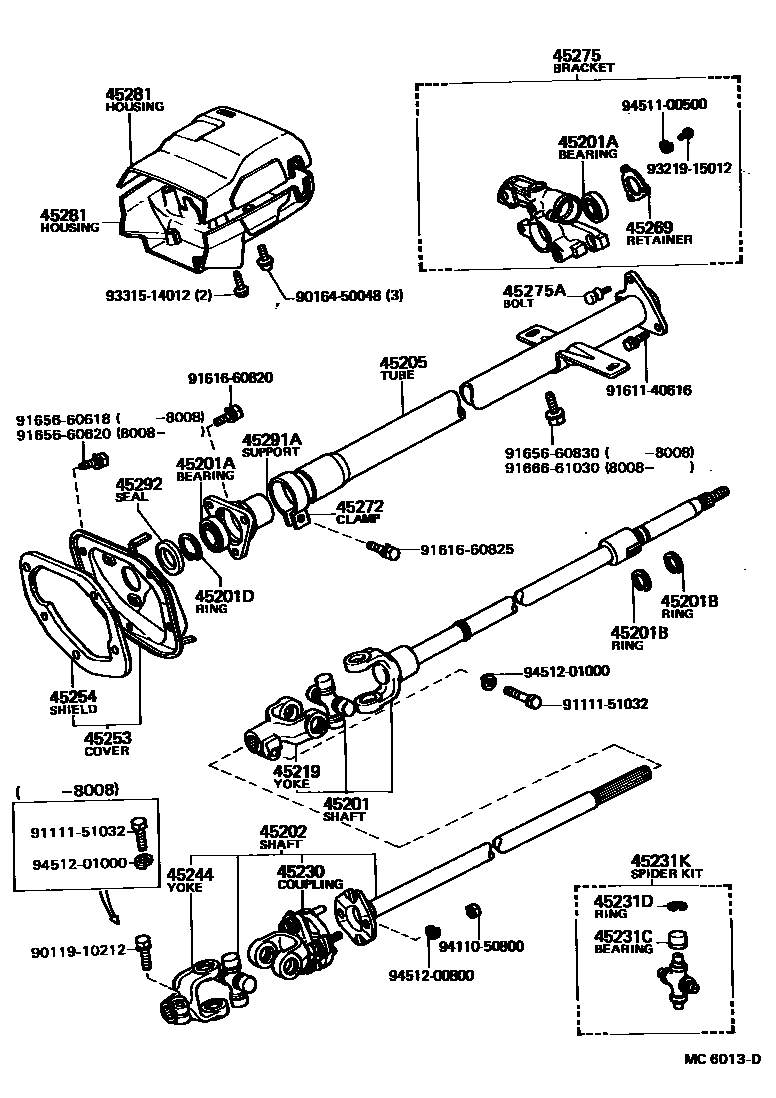

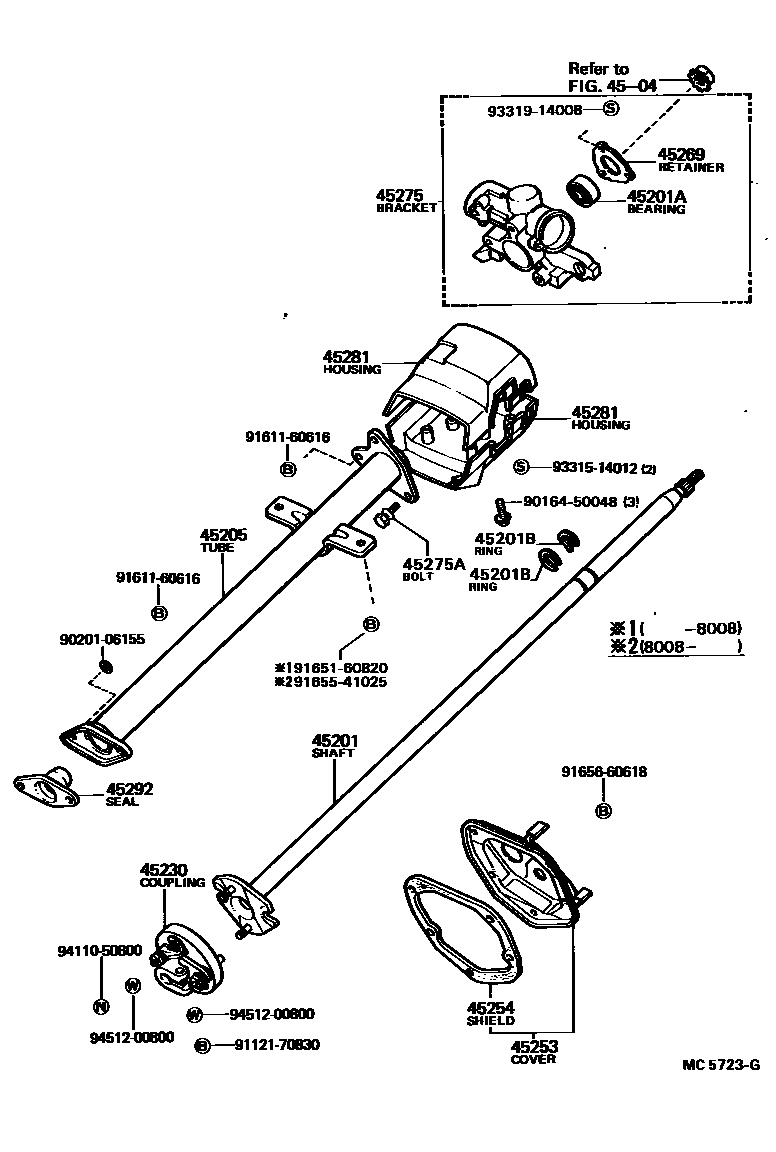

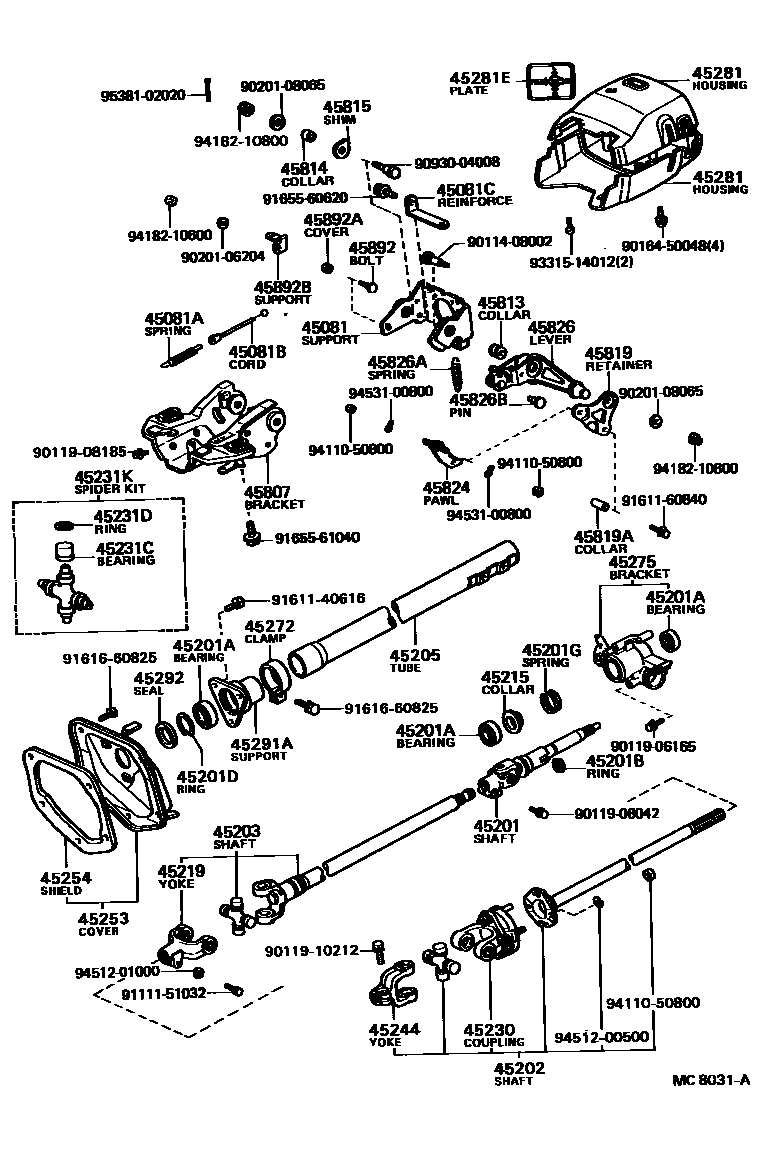

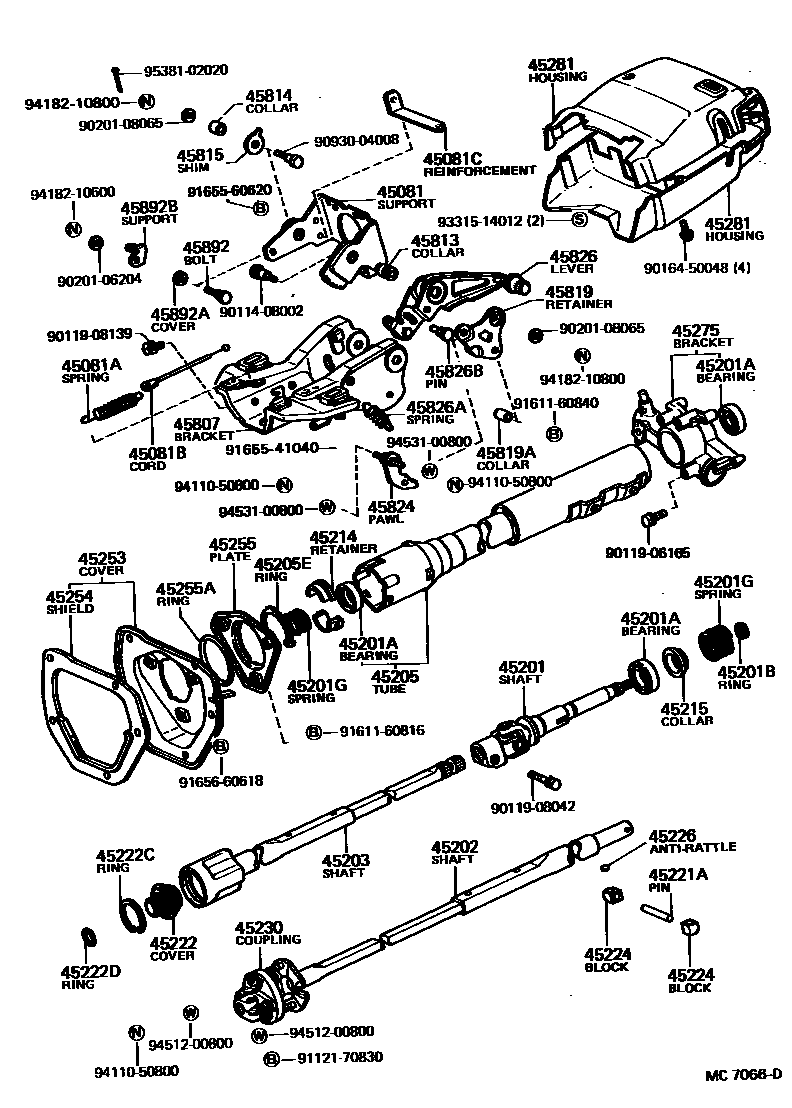

Toyota HILUX Steering Column & Shaft — Figure 4501
Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 8 images and 75 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45081 | Tilt-adjustable steering bracket sub-assembly | 45081-22020 |
| 45081A | Tension spring (for tilt-adjustable steering column) | 90506-23009 |
| 45081B | Wire (for tilt-adjustable steering column) | 90945-02034 |
| 45081C | Tilt-adjustable steering bracket reinforcement | 45821-22010 |
| 45201 | Steering spindle sub-assembly | 45201-35090 · 45201-35100 · 45210-22050 · 45210-35020 · 45210-35030 · 45210-35040 · 45210-35050 · 45210-35060 · 45210-35080 |
| 45201A | Bearings (for steering spindle) | 90363-18001 · 90363-18038 · 90363-28001 · 90363-30007 · 90369-43027 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45201D | Ring (for steering spindle) | 96151-04700 · 96152-00300 |
| 45201F | O-ring (for steering spindle) | 96710-02045 · 96711-24045 |
| 45201G | Compression spring (for steering spindle) | 90501-29388 · 90501-45011 |
| 45202 | Steering intermediate shaft sub-assembly | 45220-35010 · 45220-35011 · 45220-35040 · 45220-35052 |
| 45203 | No. 2 steering intermediate shaft sub-assembly | 45260-35010 · 45860-35010 |
| 45205 | Steering column tube sub-assembly | 45205-35060 · 45205-35061 · 45205-35070 · 45205-35071 · 45205-35080 · 45205-35081 · 45205-35090 · 45205-35100 · 45205-35101 · 45870-35010 · 45870-35020 · 45870-35030 · 45870-35050 |
| 45205E | Snap ring (for steering column tube) | 90521-60001 · 90521-70001 |
| 45214 | Spindle spring seat ring | 45214-30030 |
| 45215 | Spindle bearing thrust collar | 45215-22011 |
| 45219 | steering fork | 45219-35010 |
| 45221A | Pin (for steering countershaft) | 90250-10059 |
| 45222 | Steering gear dust cover | 45222-30030 · 45222-35010 |
| 45222C | Hole snap ring (for dust cover) | 90521-52003 |
| 45222D | O-ring (for dust cover) | 90301-23054 |
| 45224 | Bearing body (for steering flexible coupling) | 45224-30040 · 45225-30040 |
| 45226 | Vibration isolators (for steering flexible couplings) | 45226-30020 |
| 45230 | Flexible coupling assembly | 45230-35020 · 45230-35030 |
| 45231C | Universal joint cross shaft bearing (for steering spindle) | 37402-10020 |
| 45231D | Hole snap ring (for steering spindle) | 90521-22011 · 90521-22012 · 90521-22013 |
| 45231K | Universal joint cross shaft assembly (for steering spindle) | 04371-10011 |
| 45240 | Steering worm assembly | 45240-14040 · 45240-14050 · 45240-22070 · 45240-22090 · 45240-35030 · 45240-36030 · 45240-36031 · 45240-36040 · 45240-36041 |
| 45240A | Bearings (for steering worm) | 90363-20003 · 90369-19001 · 90369-43001 |
| 45240B | Oil seal (for steering worm) | 90311-18001 · 90311-19001 |
| 45242 | Worm bearing adjustment screw | 45242-22040 · 45242-22060 · 45242-30050 |
| 45243 | Worm bearing adjustment screw lock nut | 45243-22040 · 45243-30060 |
| 45244 | Steering worm sliding fork | 45244-36010 · 45244-60020 |
| 45253 | Steering column hole cover | 45025-35010 · 45025-35020 · 45025-35040 · 45025-89101 · 45025-89102 · 45025-89103 · 45025-89104 |
| 45254 | steering column escutcheon | 45254-89101 · 45254-89102 |
| 45255 | Steering column hole cover | 45255-35010 · 45255-35020 |
| 45255A | Seal or O-ring (for steering column clamp) | 90301-60122 |
| 45269 | Spindle bearing retainer | 45269-35010 |
| 45272 | Steering column lower clip | 45272-35020 |
| 45275 | Steering column upper bracket | 45275-12090 · 45280-22181 · 45280-22200 · 45280-60110 · 45280-60130 · 45307-35040 · 45307-35041 · 45307-35050 · 45307-35051 · 45307-35060 · 45307-35061 · 45307-35070 · 45307-35071 |
| 45275A | Hexagonal bolt (for steering column bracket) | 45897-12030 |
| 45281E | Safety warning nameplate | 45283-22010 · 45283-22020 |
| 45291A | Steering column tube bracket | 45291-35020 |
| 45292 | Dust-proof sealing ring under spindle | 45292-35020 · 45292-35021 · 45292-35030 · 45292-60030 |
| 45301 | Steering housing sub-assembly | 45301-35090 · 45301-35091 · 45301-35110 · 45301-35120 · 45301-35130 · 45301-35141 |
| 45301A | No. 1 sector gear shaft bushing or bearing | 90999-73061 |
| 45301B | Oil seal (for sector gear shaft) | 90310-28027 · 90310-32024 |
| 45301H | No. 2 sector gear shaft bushing or bearing | 90999-73061 |
| 45310 | Steering housing assembly | 45310-35080 · 45310-35100 · 45310-35101 · 45310-35110 · 45310-35111 · 45310-35120 |
| 45312 | Steering case bracket | 45312-35030 · 45312-35031 · 45312-35040 · 45312-35041 |
| 45321 | Steering housing end cover | 45321-36020 |
| 45323 | Steering housing end cover gasket | 45323-36010 · 45323-36020 · 45323-36030 · 45323-36040 · 45323-36050 · 45323-36060 · 45323-36070 · 45323-36080 |
| 45331 | Sector gear shaft end cover | 45304-35040 · 45304-35050 · 45304-36020 |
| 45332 | Sector gear shaft end cover gasket | 45332-20060 · 45332-22020 · 45332-36010 |
| 45351 | Steering sector gear shaft | 45351-36020 |
| 45351A | Hexagonal nut (used to fix the sector gear shaft to the steering rocker arm) | 90170-20147 · 90170-22058 |
| 45352 | Sector gear shaft thrust washer | 45352-14010 · 45352-14020 · 45352-14030 · 45352-14040 · 45352-14050 · 45352-14060 · 45352-20010 · 45352-36010 · 45353-20010 · 45353-36010 · 45354-20010 · 45354-36010 · 45355-20010 · 45355-36010 · 45356-20010 · 45356-36010 |
| 45357 | Sector gear shaft adjustment screw | 45357-30040 · 45357-36020 |
| 45372 | Steering case oil plug | 90930-03027 · 90930-03058 |
| 45401 | Steering rocker arm sub-assembly | 45401-35070 · 45401-35080 · 45401-35081 · 45411-35130 · 45411-35140 · 45411-35200 |
| 45401A | Castle nut (for steering rocker arm) | 90171-14042 |
| 45807 | Steering column upper bracket sub-assembly | 45082-35011 · 45807-35030 · 45807-35040 · 45807-35060 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-22010 · 45813-22020 · 45813-22030 · 45813-22040 · 45813-22050 |
| 45814 | No. 2 tilt-adjustable steering bracket collar | 45814-22010 · 45814-22020 |
| 45815 | Tilt-adjustable steering rack spacer | 45815-22060 · 45815-22070 · 45815-22080 · 45815-22090 · 45815-22100 |
| 45817 | Steering shaft thrust stop | 45817-60010 |
| 45819 | Tilt adjustment lever retaining ring | 45819-22011 |
| 45819A | Collar (for tilt adjustment lever retaining ring) | 90387-08002 |
| 45824 | Tilt-adjustable steering pawl | 45890-22050 |
| 45826 | Steering tilt adjustment lever | 45804-22010 |
| 45826A | Tension spring (for steering tilt adjustment lever) | 90507-14001 |
| 45826B | Pin (for steering tilt adjustment lever) | 72538-12010 |
| 45892 | Tilt-adjustable steering bracket limit bolt | 45898-22010 |
| 45892A | Tilt-adjustable steering rack stop cover | 45899-22020 |
| 45892B | Tilt-adjustable steering column cover bracket | 45289-35010 |
