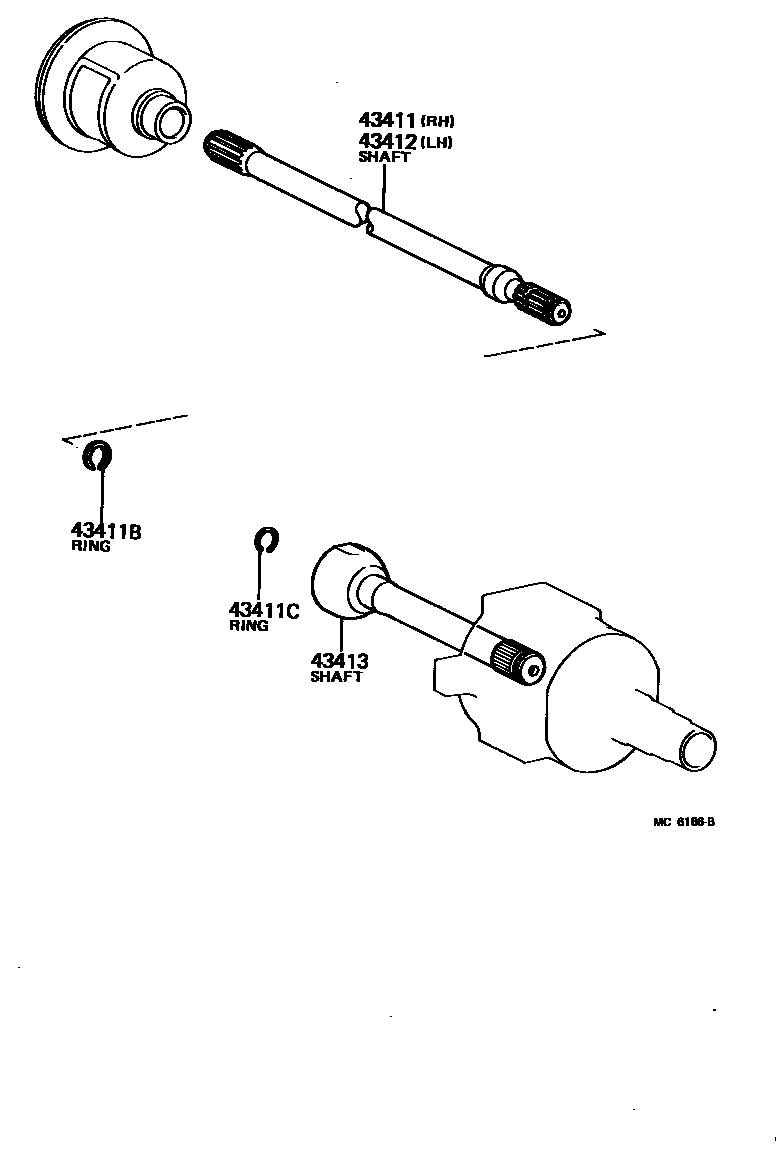

Toyota HILUX Front Drive Shaft — Figure 4302
Toyota HILUX EPC diagram 4302, Front Drive Shaft, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43411 | Right front axle inner shaft | 43411-35010 |
| 43411B | Inner shaft snap ring (for front axle inner shaft) | 90520-28036 |
| 43411C | Outer shaft snap ring (for front axle inner shaft) | 90520-27091 |
| 43412 | Left front axle inner shaft | 43412-35010 |
| 43413 | drive shaft | 43405-60015 |
