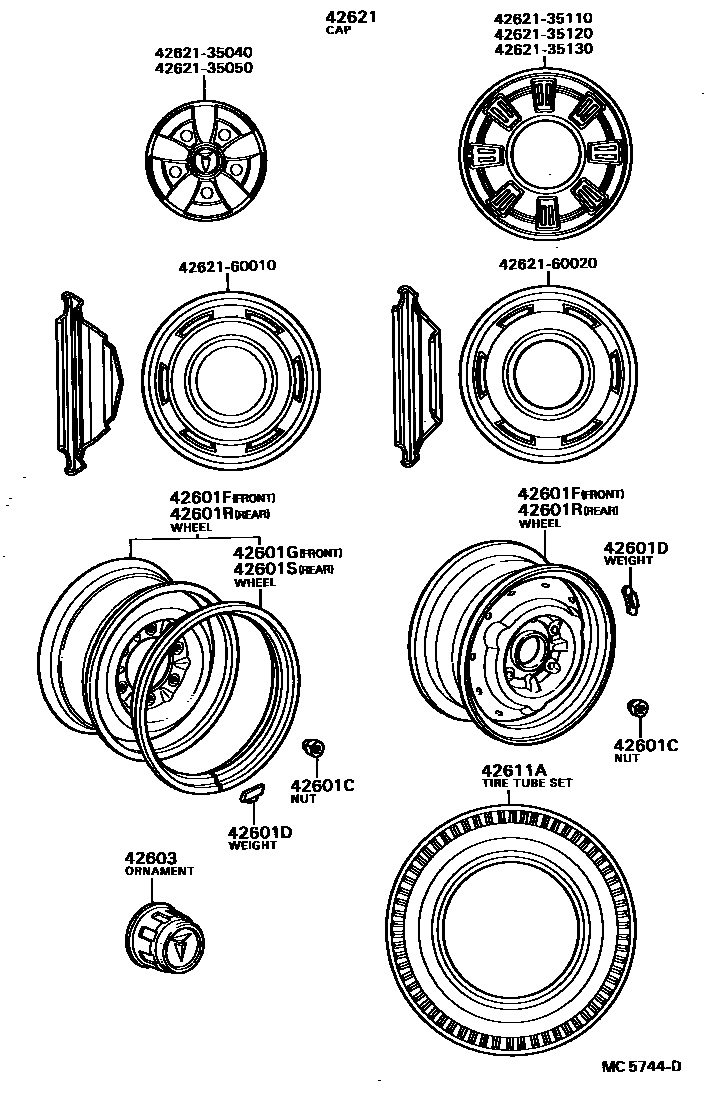

Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01027 |
| 42601D | Balance weight (for spoked wheels) | 90942-03017 · 90942-03020 · 90942-03022 · 90942-03025 · 90942-03027 · 90942-03029 · 90942-03031 · 90942-03041 · 90942-03045 · 90942-03047 · 90942-03049 · 90942-03050 · 90942-03051 · 90942-03052 · 90942-03053 · 90942-03064 · 90942-03098 · 90942-03099 · 90942-03100 · 90942-03101 · 90942-03102 · 90942-03106 |
| 42601F | Spoke wheels (for front tires) | 42601-26110 · 42601-26111 · 42601-35140 · 42601-35141 · 42601-35142 · 42601-35150 · 42601-35151 · 42601-35160 · 42601-35161 · 42601-35162 · 42601-35250 · 42610-35030 · 42610-60021 · 42610-60030 |
| 42601G | Web-type wheel retaining rings (for front tires) | 42613-35010 · 42613-36020 |
| 42601R | Spoke wheels (for rear tires) | 42601-26110 · 42601-26111 · 42601-35140 · 42601-35141 · 42601-35142 · 42601-35150 · 42601-35151 · 42601-35160 · 42601-35161 · 42601-35162 · 42601-35250 · 42610-35030 · 42610-60021 · 42610-60030 |
| 42601S | Spoke wheel retaining ring (for rear tire) | 42613-35010 · 42613-36020 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-26010 · 42603-35010 · 42603-35060 · 42603-35070 |
| 42611A | Tubeless tire assembly or tubeless tire | 42605-26110 · 42605-35010 · 42605-60470 · 42605-60560 · 98031-73140 · 98061-60143 · 98061-65144 · 98061-70153 · 98661-70154 · 98665-70154 · 98665-70163 · 98667-70163 |
| 42621 | wheel cover | 42621-35040 · 42621-35050 · 42621-35110 · 42621-35120 · 42621-35130 · 42621-35140 · 42621-60010 · 42621-60020 |
